Grain temperature monitor 90 cm starter set
Grain temperature monitor 90 cm starter set
Product number:
FA129409
€519.00 *
Content:
1
Stück
available within 14 working days
Our best price - No further discount possible!
Beschreibung
Product information "Grain temperature monitor 90 cm starter set"

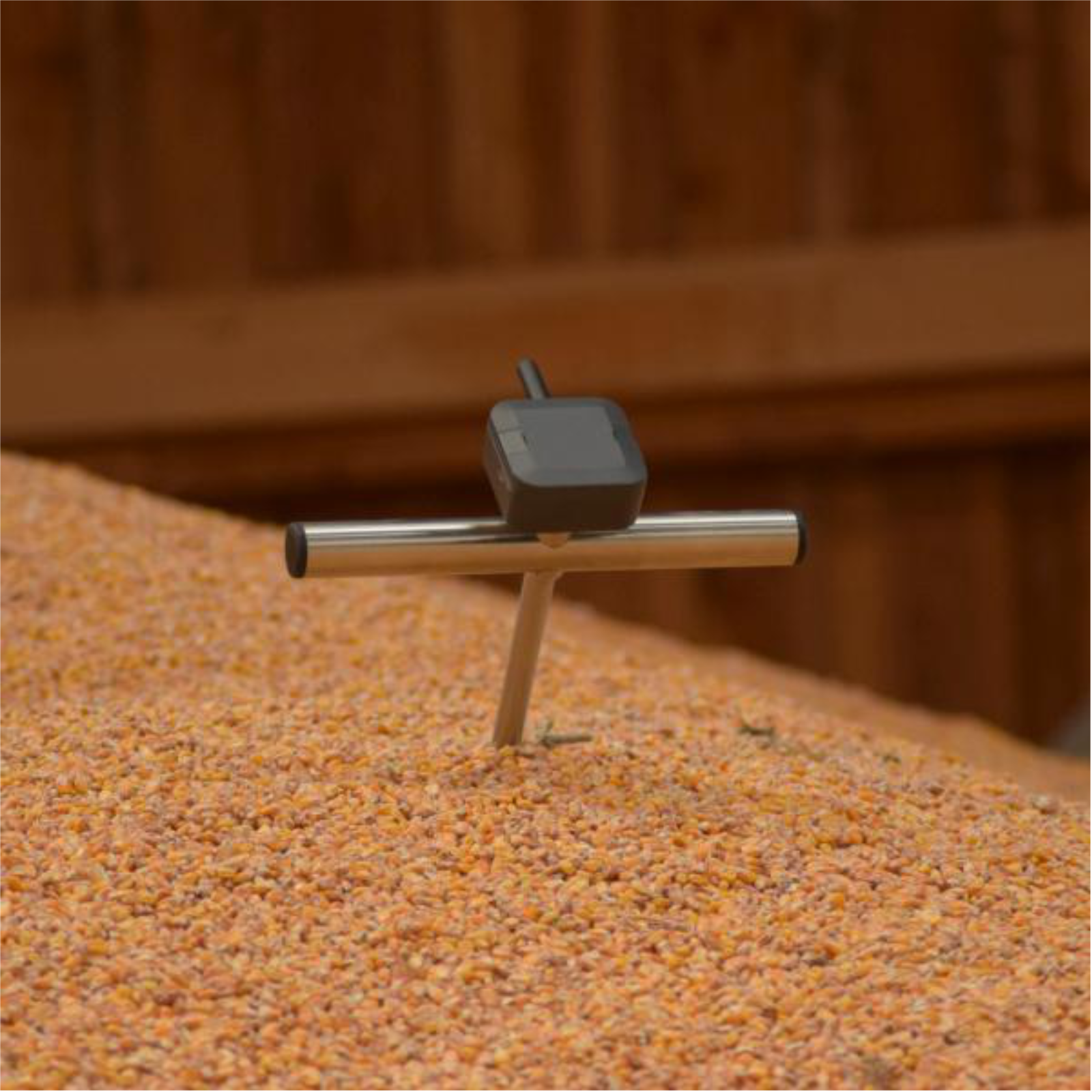

Temperature probe for wireless temperature monitoring in grain stores, grain silos and storage facilities for bulk goods
Continuous and automatic monitoring for unwanted heating
Ensures crop quality - data processing, storage and alarming via Onsenso Cloud and Onsenso app
LoRa radio technology
Product description:

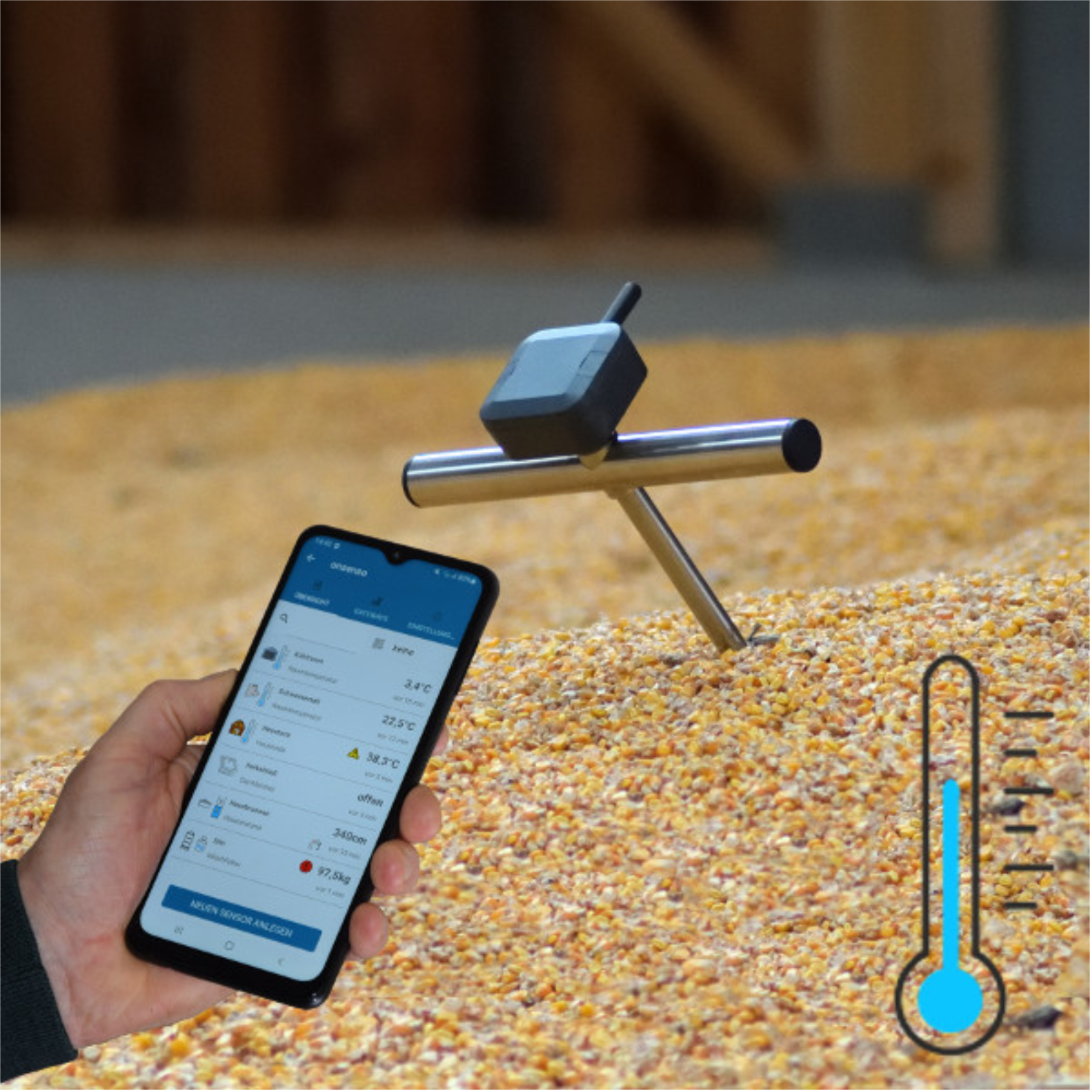

Automatic monitoring and documentation of the temperature curve in the grain store
The temperature probe measures the temperature inside the store and continuously sends the measured values to the Onsenso server via the gateway.
The recorded data is saved and can be viewed and evaluated at any time, either with the app or on the PC.
If the temperature exceeds the set limit value, you are automatically alerted.
Protect your valuable crops
Excessively high temperatures in grain storage are ideal for the proliferation of grain pests and microorganisms, which can result in loss of quality or spoilage.
In order to be able to react in good time, the temperature in the grain batches is monitored with temperature probes.
No power supply and no wiring required in the warehouse
The room temperature sensor is battery-operated and does not require a power supply on site. The temperature values are sent via LoRa radio.
Individual, two-stage alarm system
You decide for yourself at which temperatures you receive a warning or an alarm either by e-mail or push notification on your cell phone. Other people can also be included in the alert.

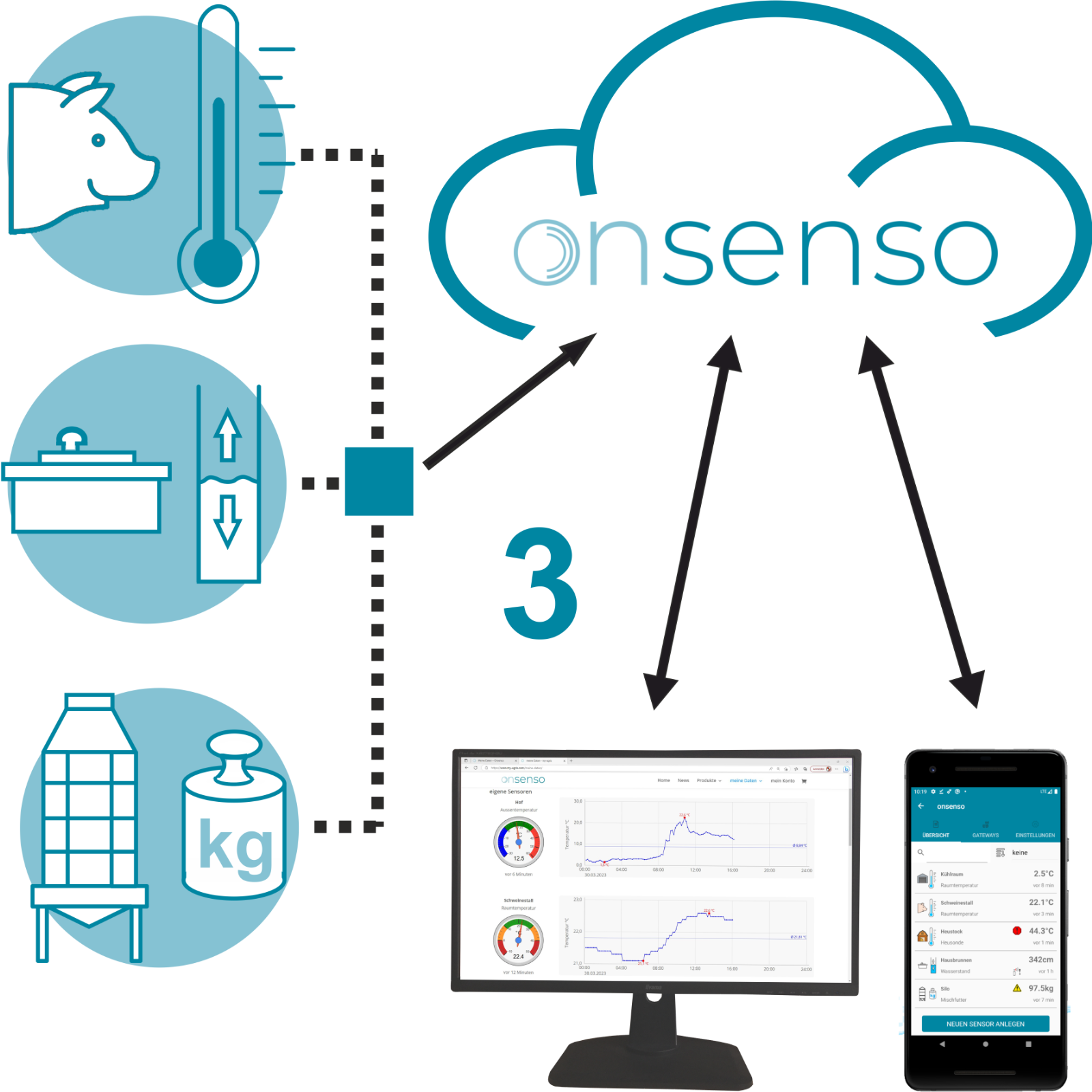

Basis for the Onsenso remote monitoring system
With this set you have all the components you need to get started with Onsenso remote monitoring, including the gateway and the first annual license.
You can add further sensors or measuring devices at any time and expand your system.
Scope of delivery:
- 1 temperature probe 90 cm

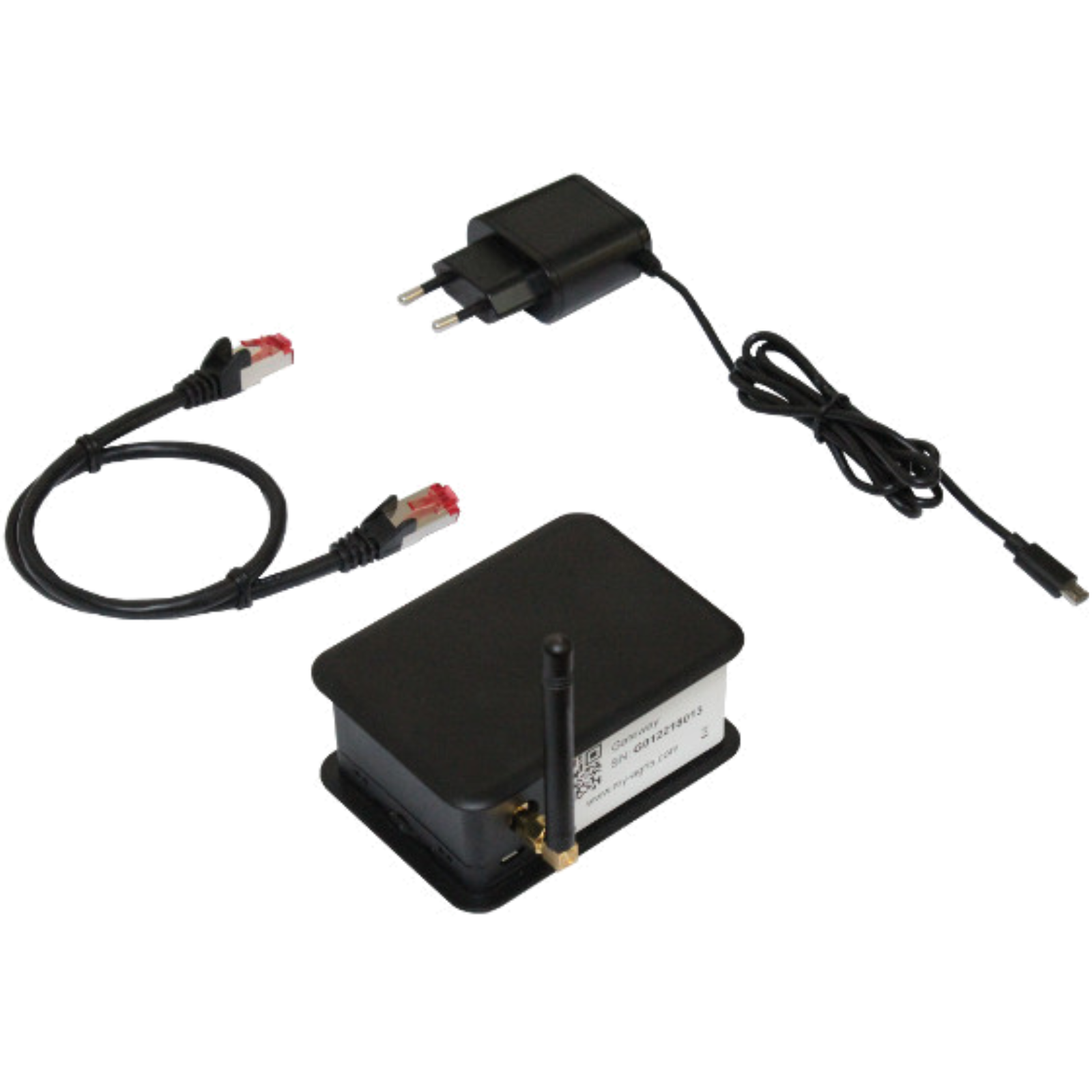

- 1 gateway incl. power supply unit and network cable
- 1 annual license for up to 3 sensors
- Instruction manual
Temperature probe:
- Stainless steel probe
- Usable lance length 87 cm
- Lance diameter 16 mm
- Unscrewable handle
- Temperature sensor in the tip of the lance
- Electronics in ABS plastic housing
- Protection class housing IP67
- Housing dimensions 75 x 75 x 35 mm (L x W x H)
- Sensor in the lance tip
- Sensor Measuring range -55 to +125 °C
- Accuracy +/- 1 °C
- Sensor protection class IP68
- Data transmission via LoRa radio technology
- Radio frequency 868 MHz
- AES-128 encryption
- Measuring interval / transmission interval 10 minutes
- Range up to 1,000 m
- Power supply via lithium battery 1 x LS14500 3.6 V
- Battery life approx. 3 years
Gateway:
- ABS plastic housing
- Housing dimensions 101 x 74 x 43 mm (L x W x H)
- LAN connection with network cable
- Data transmission from the sensor via LoRa radio technology
- Radio frequency 868 MHz
- AES-128 encryption
- Transmission interval to the server 10 minutes, critical values immediately
- Power supply via 230 V power supply unit
Onsenso server:
- Storage of measured values
- Access to real data only for customers
- Server location Austria
Onsenso web portal:
- User administration
- Creation of gateways and sensors
- Visualization of the measured values
- Defining the alarms

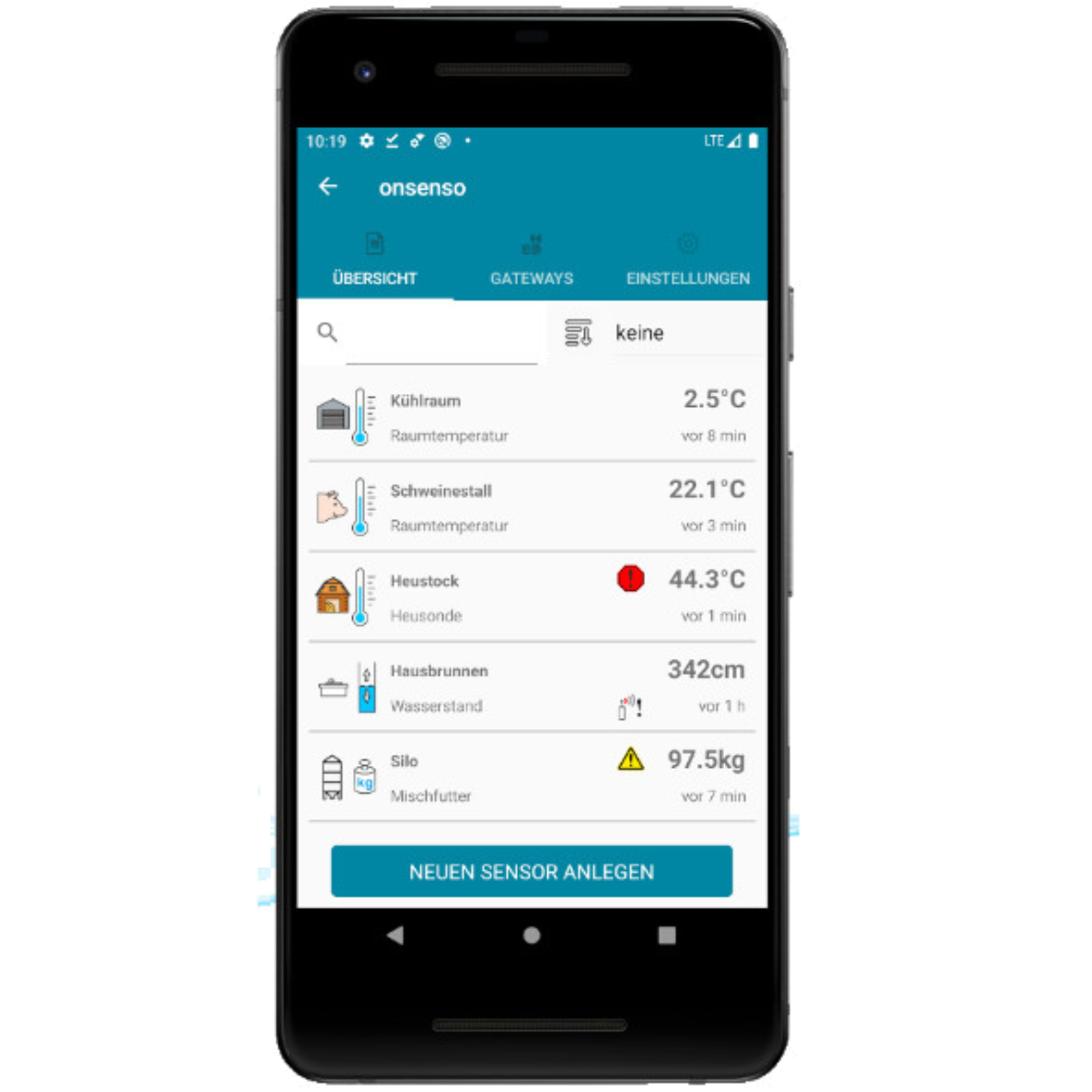

Onsenso mobile app:
- Creating the gateways and sensors
- Visualization of the measured values
- Defining the alarms
- Alerting via push messages
Prerequisite:
Stationary or mobile Internet modem from the cell phone operator with network cable connection for the gateway
ATTENTION: A license is required for operation, which incurs additional costs. (The license is included in the purchase price for the first year)
