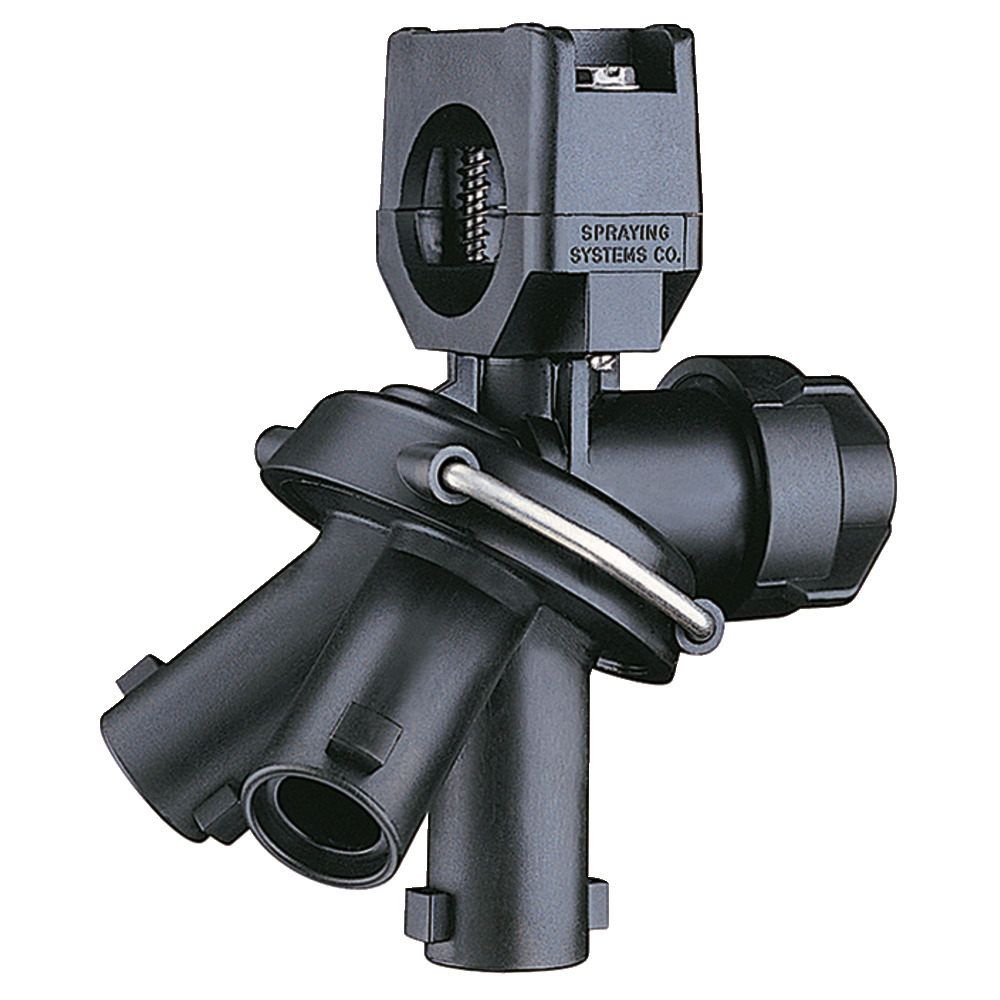

Triple nozzle body 24216A for pipelines
Triple nozzle body 24216A for pipelines
Beschreibung
Product information "Triple nozzle body 24216A for pipelines"
3-way nozzle body for quick changing of nozzles of different sizes/spraying characteristics.
Stop position between the spraying positions.
ChemSaver membrane check valve for drip-free shut-off. Standard diaphragm opens at 0.7 bar.
Membranes made of EPDM as standard, optionally made of Viton.
Maximum operating pressure 10 bar.
1/2"~ and 3/4"~ Versions with a hexagon socket in the top clamp for attachment to flat surfaces and rod profiles.
Mounting via a 9.5 mm hole in the pipe.
Maximum flow 6.1 l/min at 0.34 bar pressure drop, 8.6 l/ min at 0.69 bar pressure drop.
Stop position between the spraying positions.
ChemSaver membrane check valve for drip-free shut-off. Standard diaphragm opens at 0.7 bar.
Membranes made of EPDM as standard, optionally made of Viton.
Maximum operating pressure 10 bar.
1/2"~ and 3/4"~ Versions with a hexagon socket in the top clamp for attachment to flat surfaces and rod profiles.
Mounting via a 9.5 mm hole in the pipe.
Maximum flow 6.1 l/min at 0.34 bar pressure drop, 8.6 l/ min at 0.69 bar pressure drop.
| for pipe: | 3/4" |
|---|---|
| Ø outside (mm): | 26,3-27,4 |
Hersteller
TeeJet EMEA
Souverainestraat 5
9800
Deinze
BE
[email protected]
GTIN/EAN:
0736354431428
