Tractor parts

suitable for Steyr Profi / CVT series

Thread: M14x1.5

with screw connections

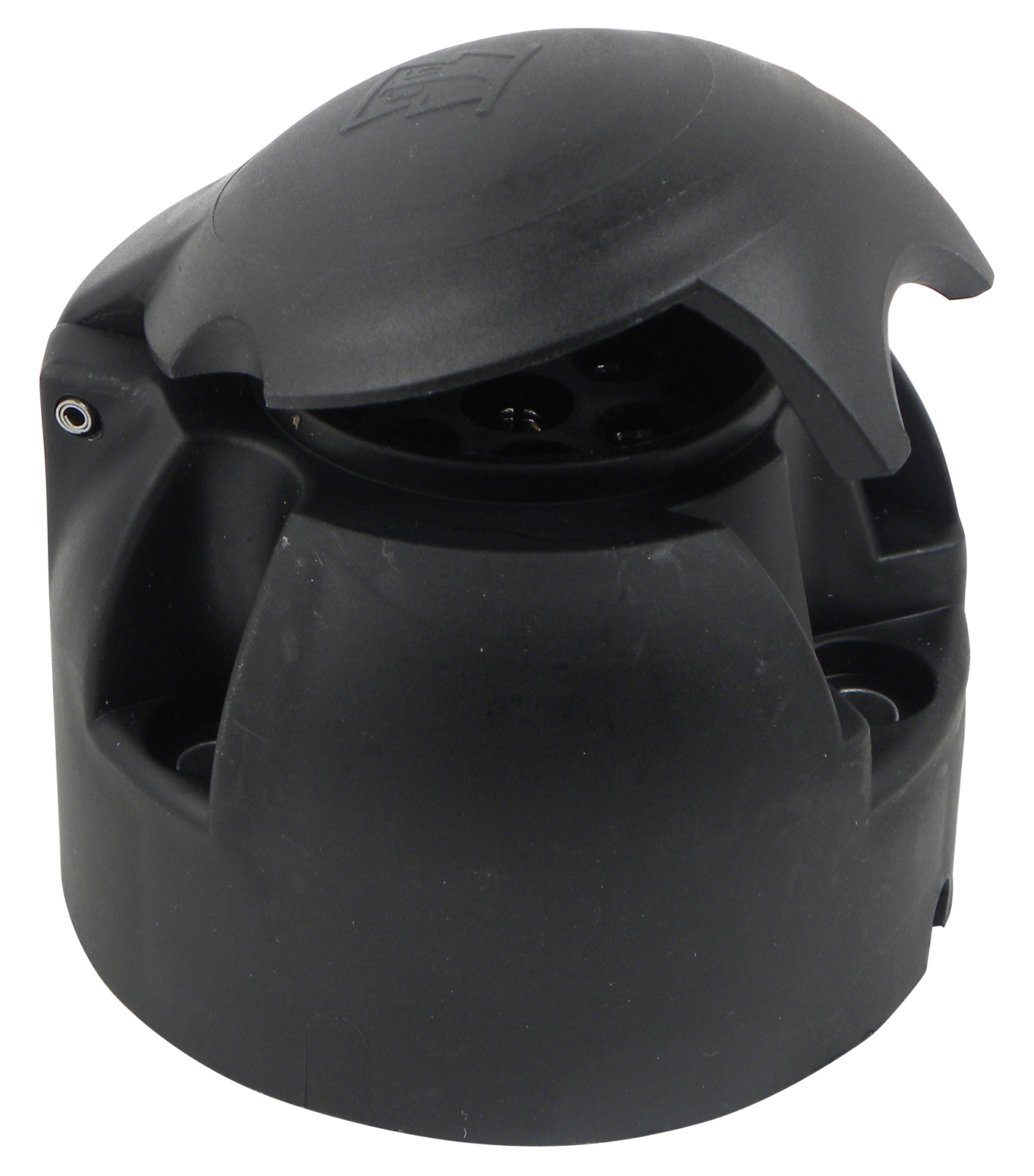

With plug contacts for the Fendt plug (wiring harness) Can be used instead of Fendt: G716900070010 Standards: ISO 1724 - Type N Voltage: 12 V Housing material: Reinforced plastic Number of poles: 7 Contact connection: Plug contact 2.1 mm Protection class: IP44

With lid, especially for Steyr Plus series, LxWxH: 120x45x30 mm.

Suitable for Steyr

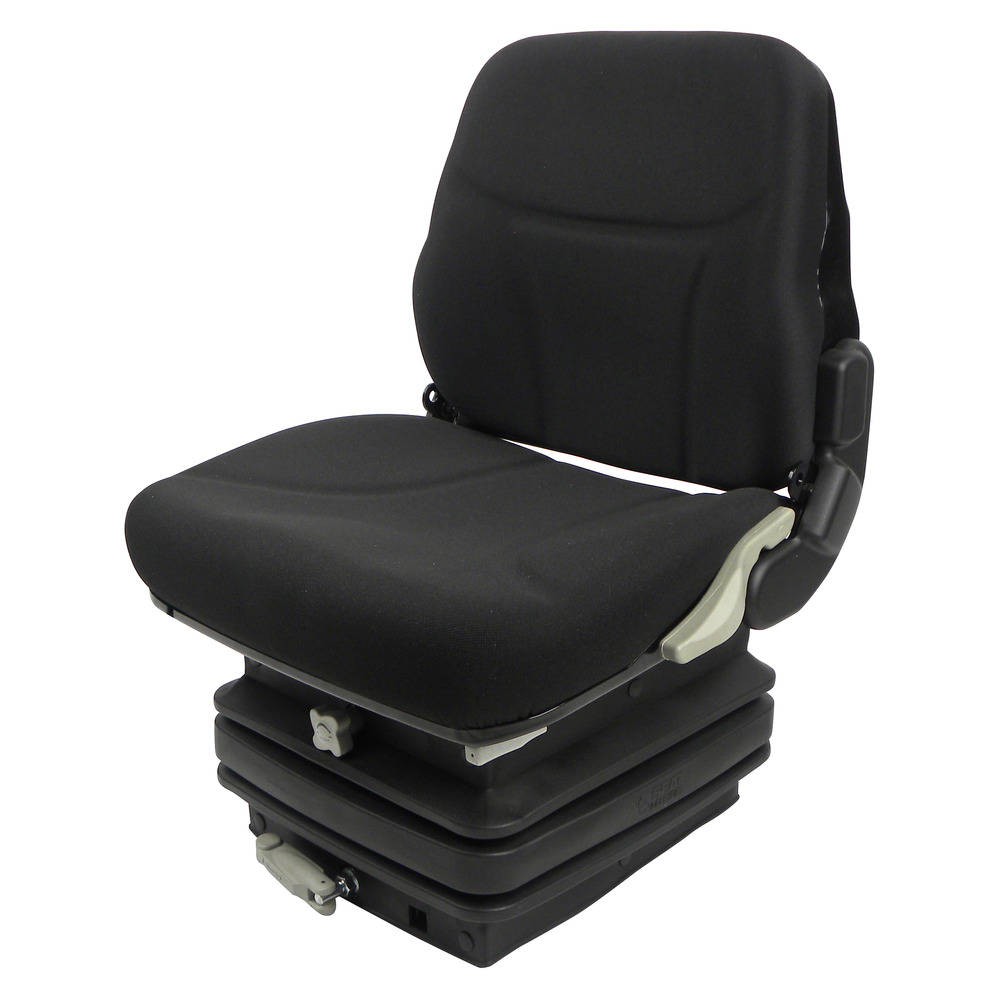

High-quality, ergonomic comfort seat with horizontal base plate, ball bearings, black velor fabricTechnical data:Spring travel: 100mmWeight adjustment: 50-120kgHeight adjustment: 60mmLongitudinal adjustment: 240mmBackrest adjustment: 0-73 (folds forward)

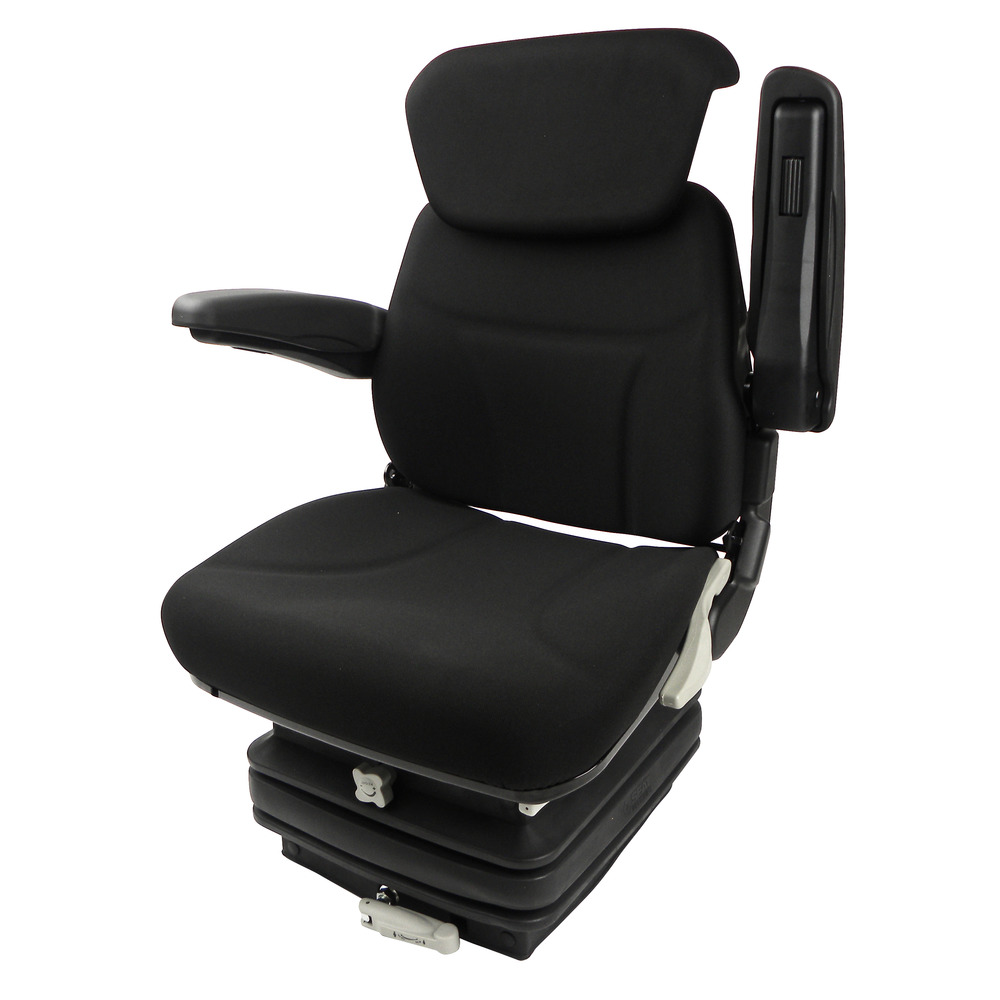

with armrests, with back extension, high-quality, ergonomic comfort seat with horizontal base plate, ball bearings, black velor fabricTechnical data:Spring travel: 100mmWeight adjustment: 50-120kgHeight adjustment: 60mmLongitudinal adjustment: 240mmBackrest adjustment: 0-15

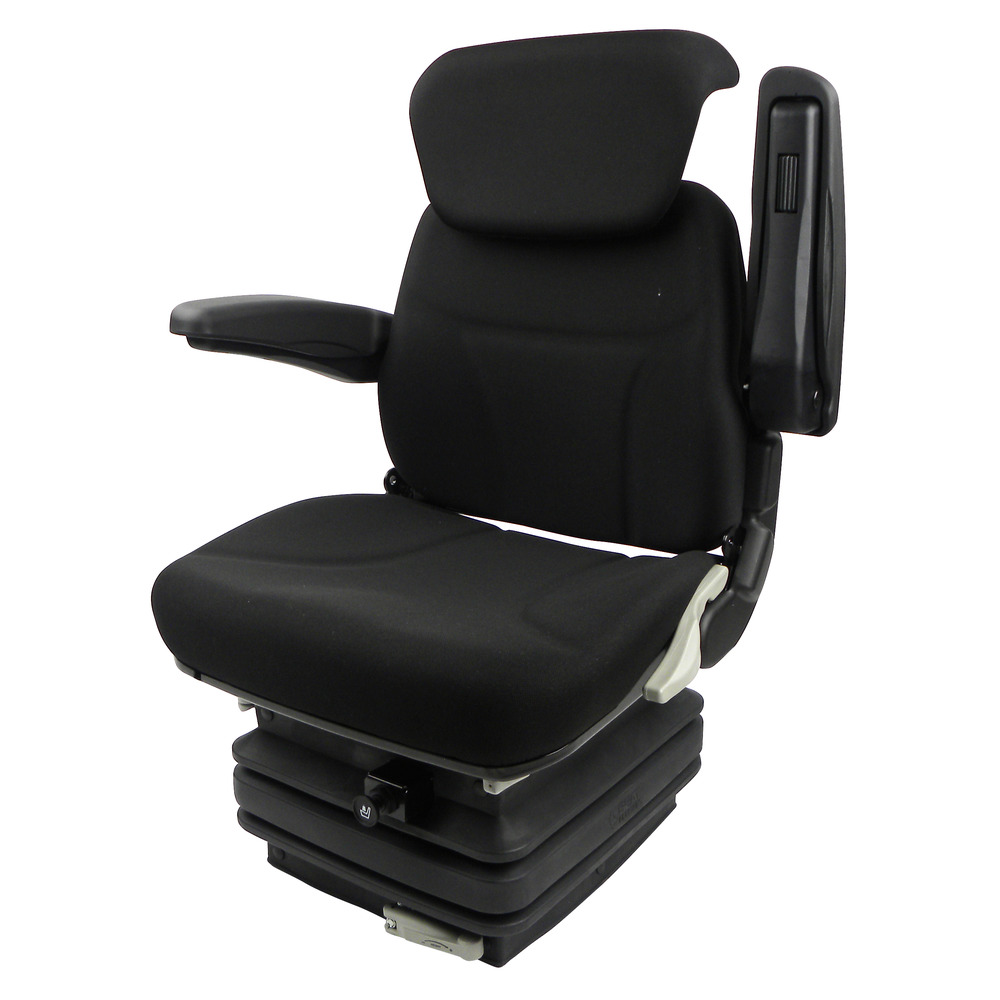

with armrests, with back extension,horizontal suspension, high-quality, ergonomic comfort seat with horizontal base plate, ball bearings, black velor fabricTechnical data:Spring travel: 100mmWeight adjustment: 50-120kgHeight adjustment: 60mmLength adjustment: 240mmBackrest adjustment: 0-15

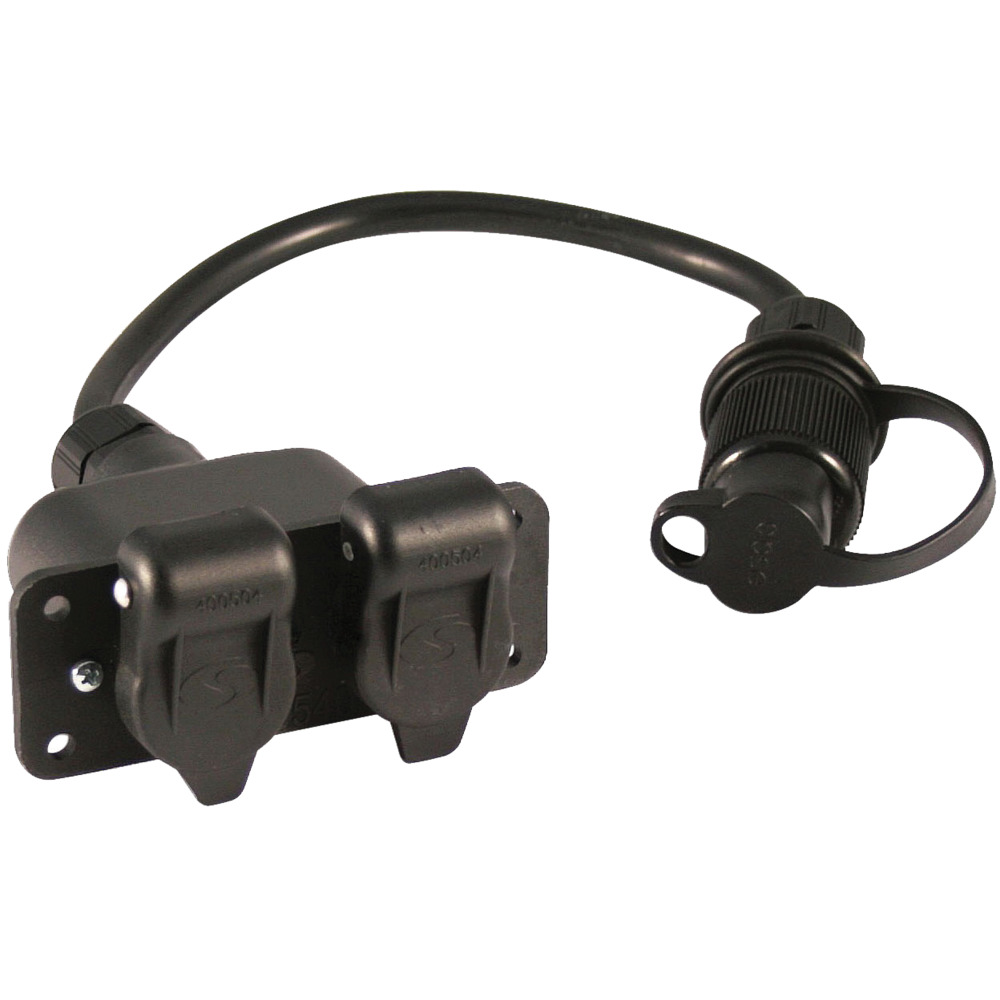

3-pin Plug to 3-pin Double socketmax. 25A, cable length approx. 200mm

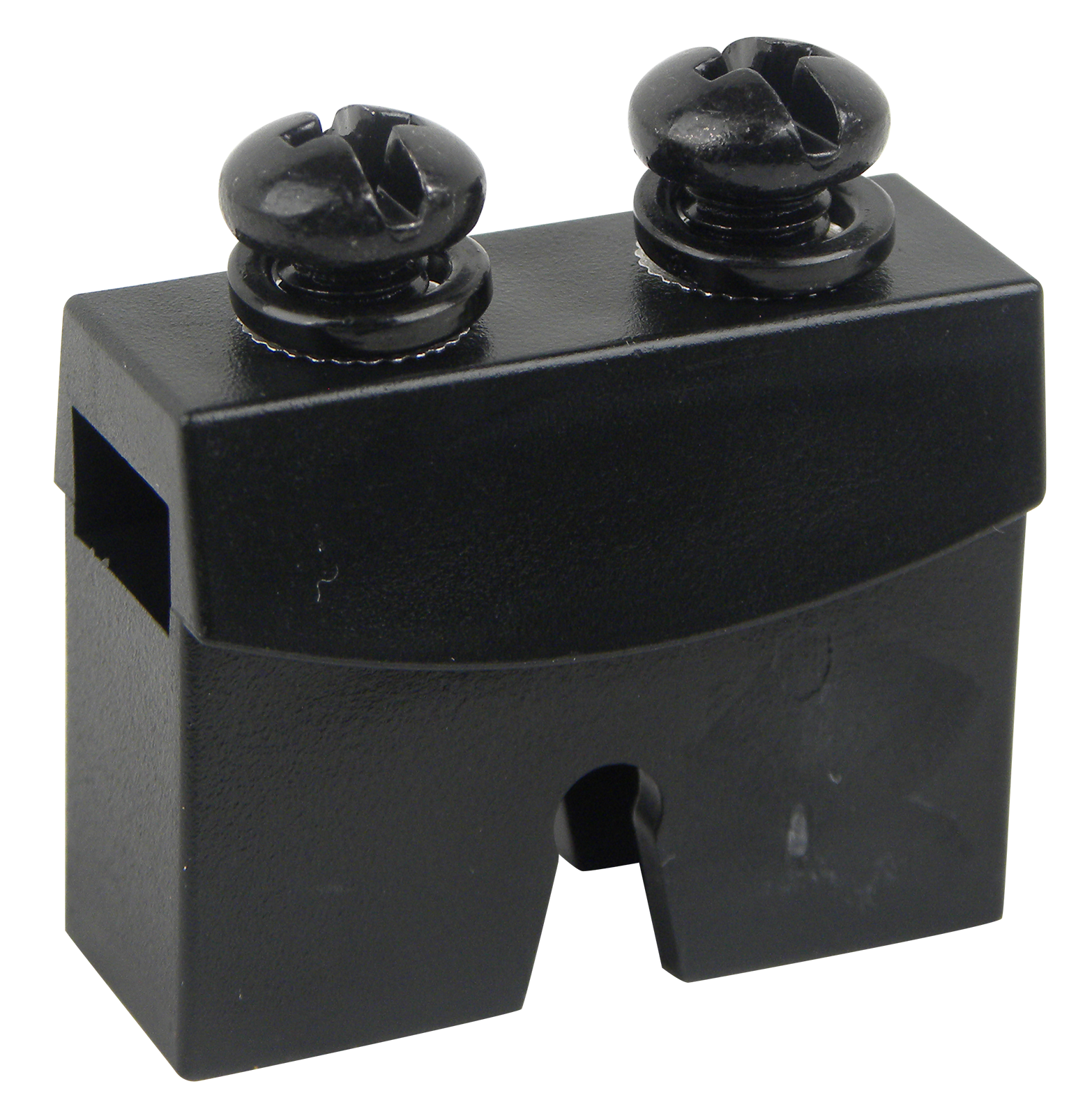

For attaching wiper blades to the wiper arm

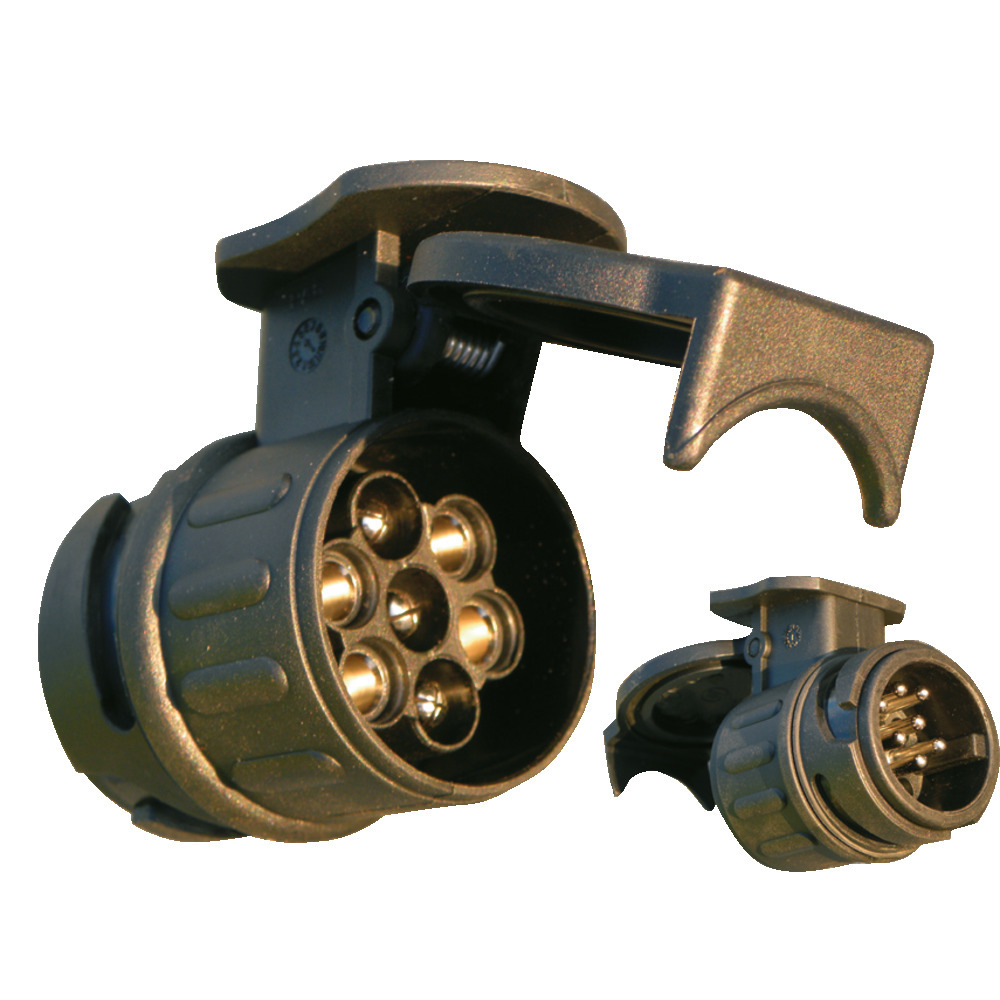

from 13-pin. Socket to 7-pin Plug

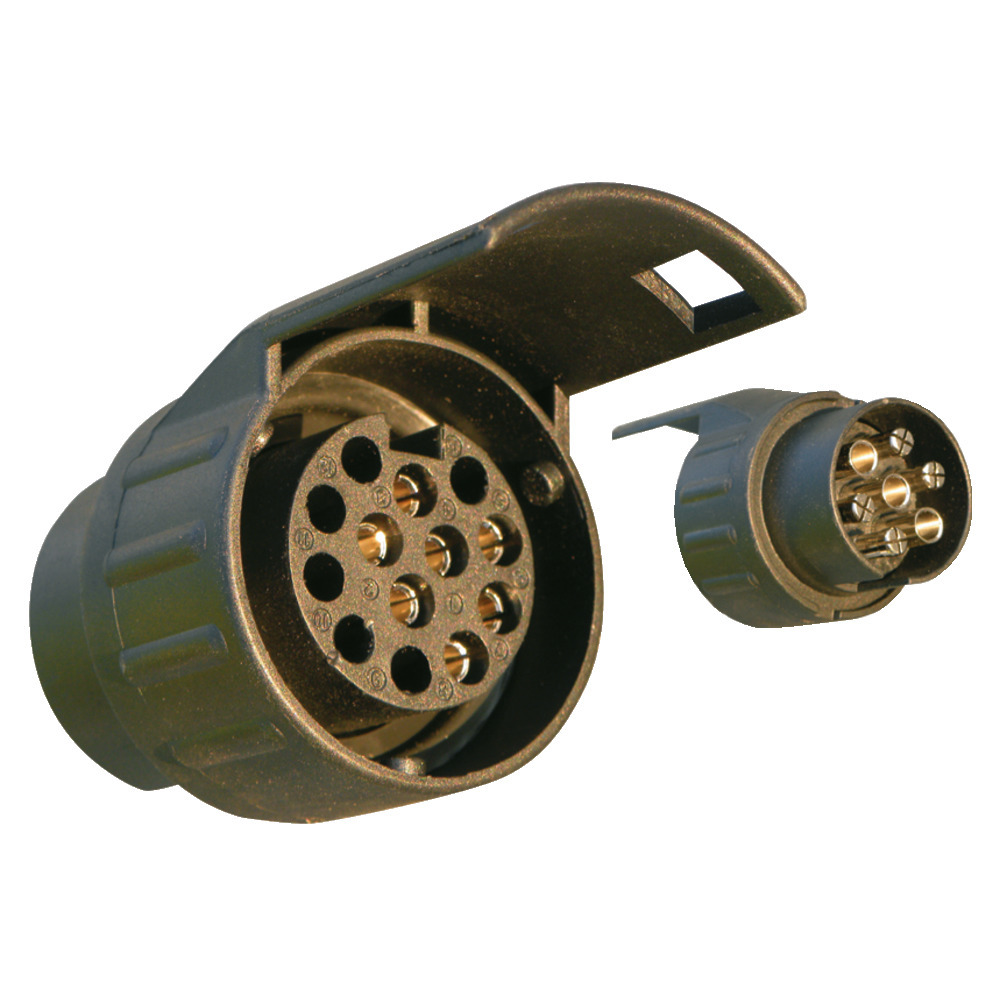

from 7-pin. Socket to 13-pin Plug

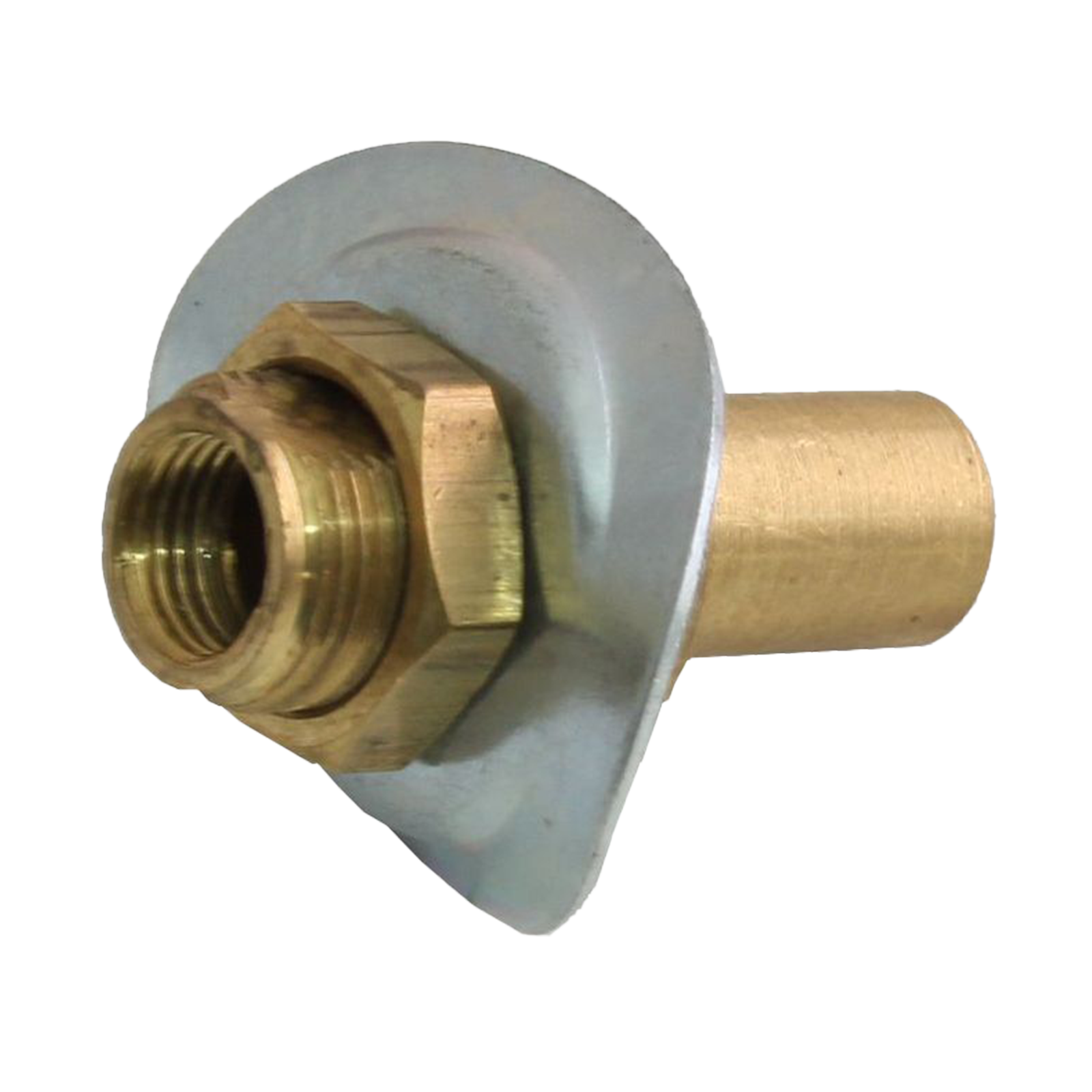

Ideal for retrofitting vehicles without a remote thermometer, for installation in the radiator hose.External thread: M14x1.5mm ~Internal thread: M10x1mm ~

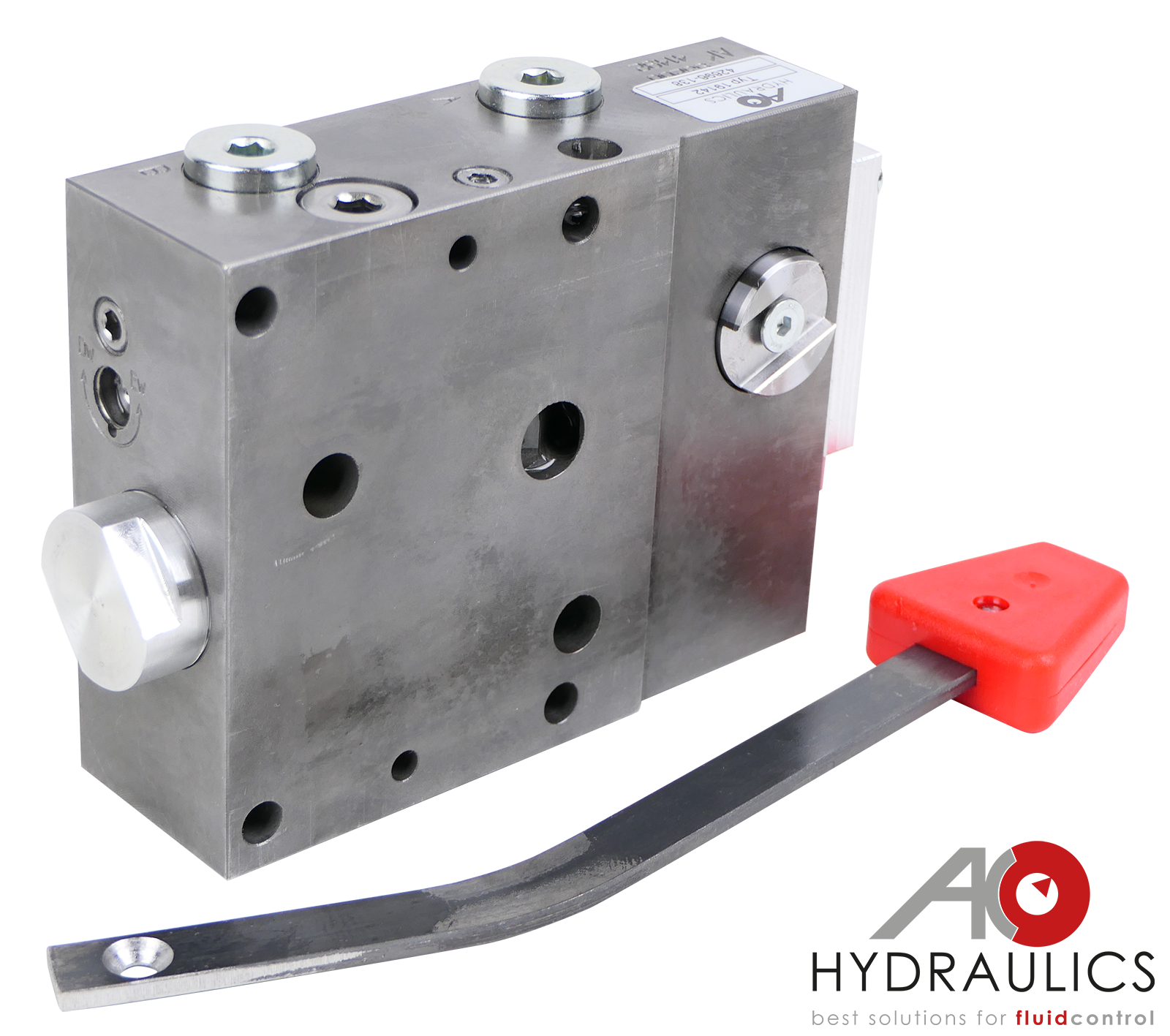

The additional control device is a 5/4-way valve, which is operated manually to control hydraulic consumers. It is a four-position control device that can be used for double and single-acting lifting cylinders. It has slide-sealed cylinder ports A and B. This means that extremely low leakage is permitted at high loads. The consumer connections A and B are located at the top and bottom of the housing. The device has a grid position in the lifting position, which is equipped with a hydraulic-automatic limit switch. If you switch further via the lowering position, the locked floating position is switched on, which is not unlocked hydraulically (consumer connections A and B connected to each other for the return). The floating position can be used as a locked lowering position for both double-acting and single-acting lifting cylinders. The additional control unit can be switched from double-acting to single-acting during operation. The operating lever is included in delivery.Case-IHC: 844S, 846, 946, 1046, 1146, 1246, 743XL-856XL, 955XL-1055XL.Eicher:< /strong> King TigerFendt: 102, 103, 104, 105, 106, 108, 200S, 300, 304, 305, 306, 307, 308, 309, 310, 311, 312, 395GTA, 600, 610, 611, 612, 614, 615. Kramer: all models. Lindner: with Steyr transmission. MB-Trac: all models. Schlter: all models. Steyr: Anniversary series with control hydraulics, Plus series, Series 80.Switchable from single-acting to double-acting ~Hydraulic limit switch in lifting ~< br>Locked floating position as fourth switching position after lowering

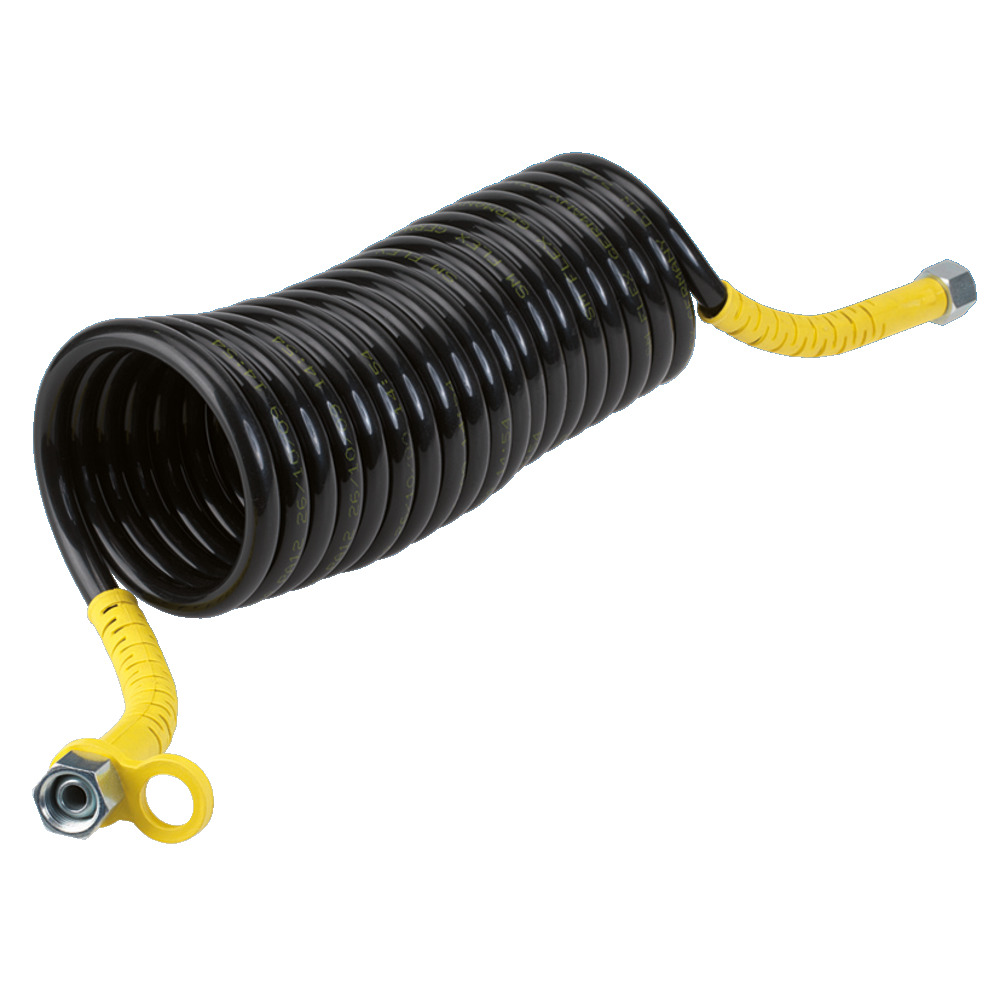

For connecting the towing vehicle to the trailer. Made of polyamide 12 PL, operating pressure 19 bar. 20 turns, working length up to 400 cm, connection M18x1.5 internal thread.

Also suitable for Grammer, Klepp,...

Suitable for Ford/New Holland

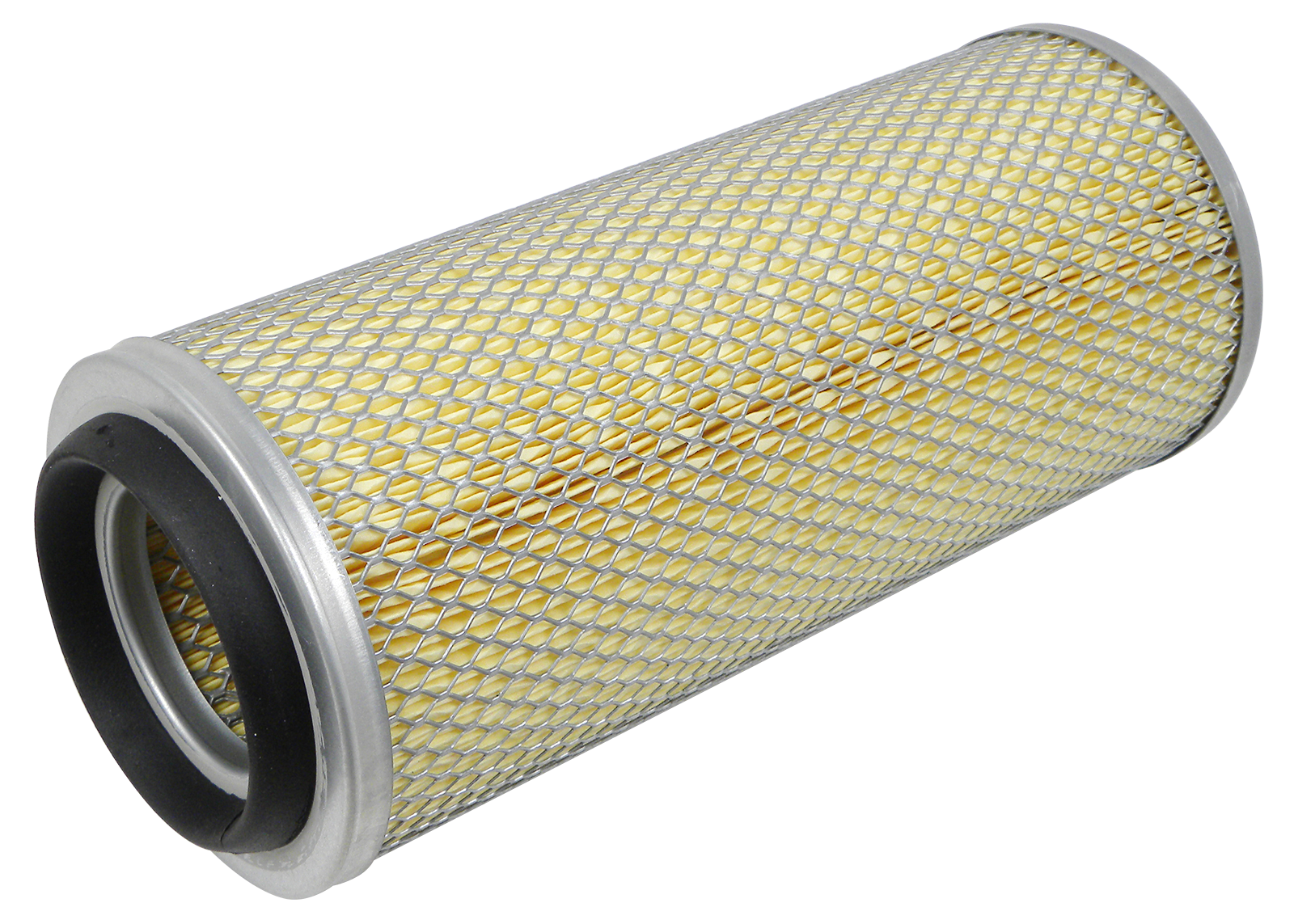

Can be used instead of man: C13114/4Outer diameter: 127mmInner diameter: 64mmLength: 295mmBore: 8.5mm ~

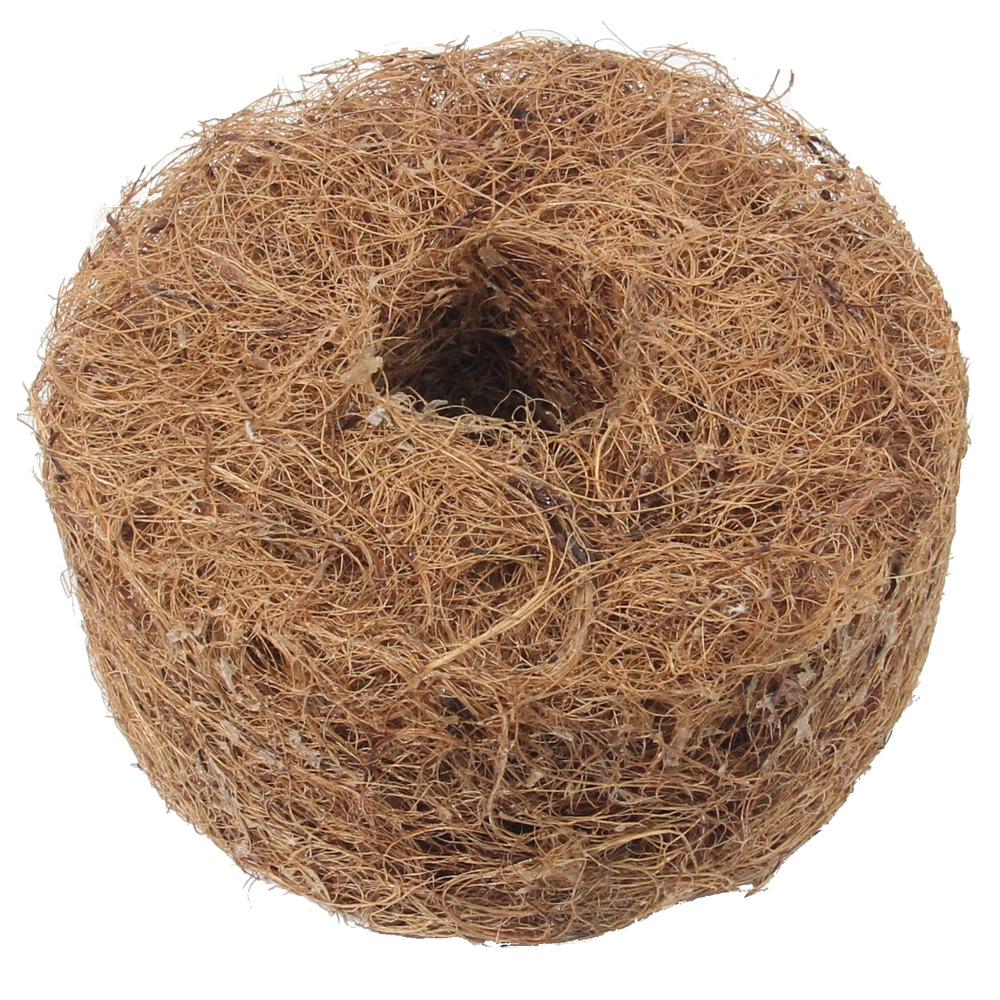

Outer diameter: 150mmInner diameter: 50mmHeight: 90mm

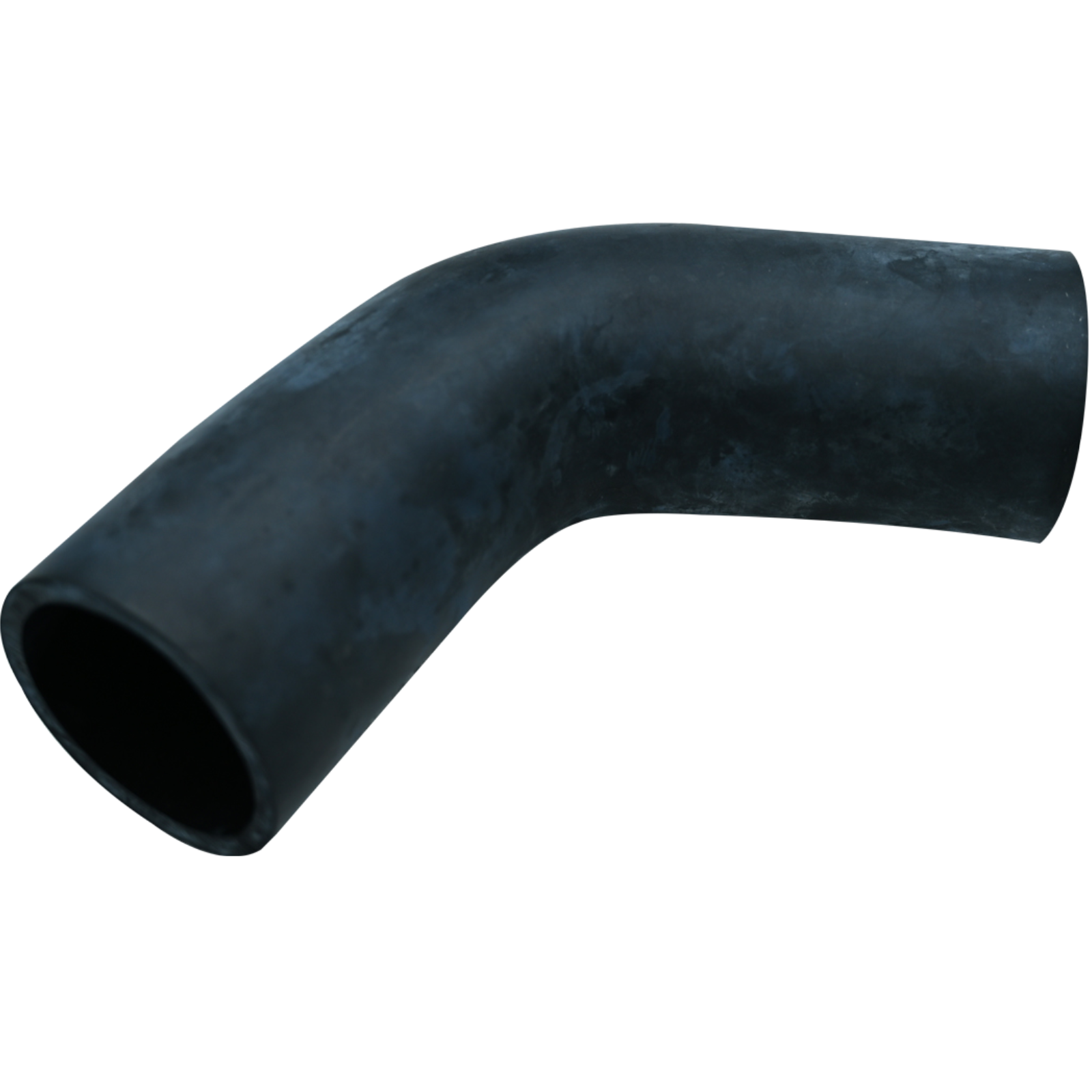

Unterer Luftfilteransaugschlauch

​Outer diameter: ø 62 mmLength: 284 mmInner diameter: ø 17 mm

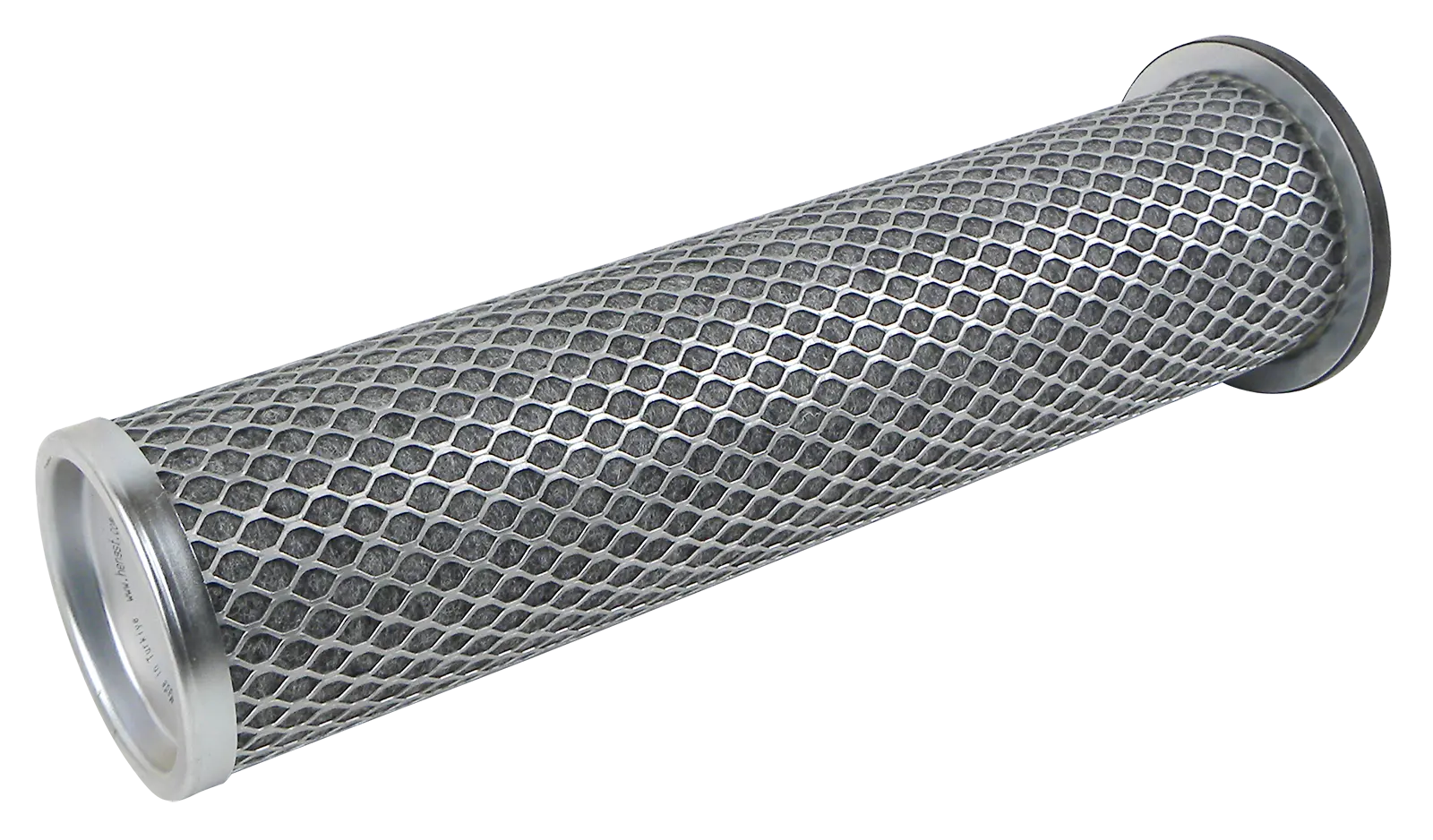

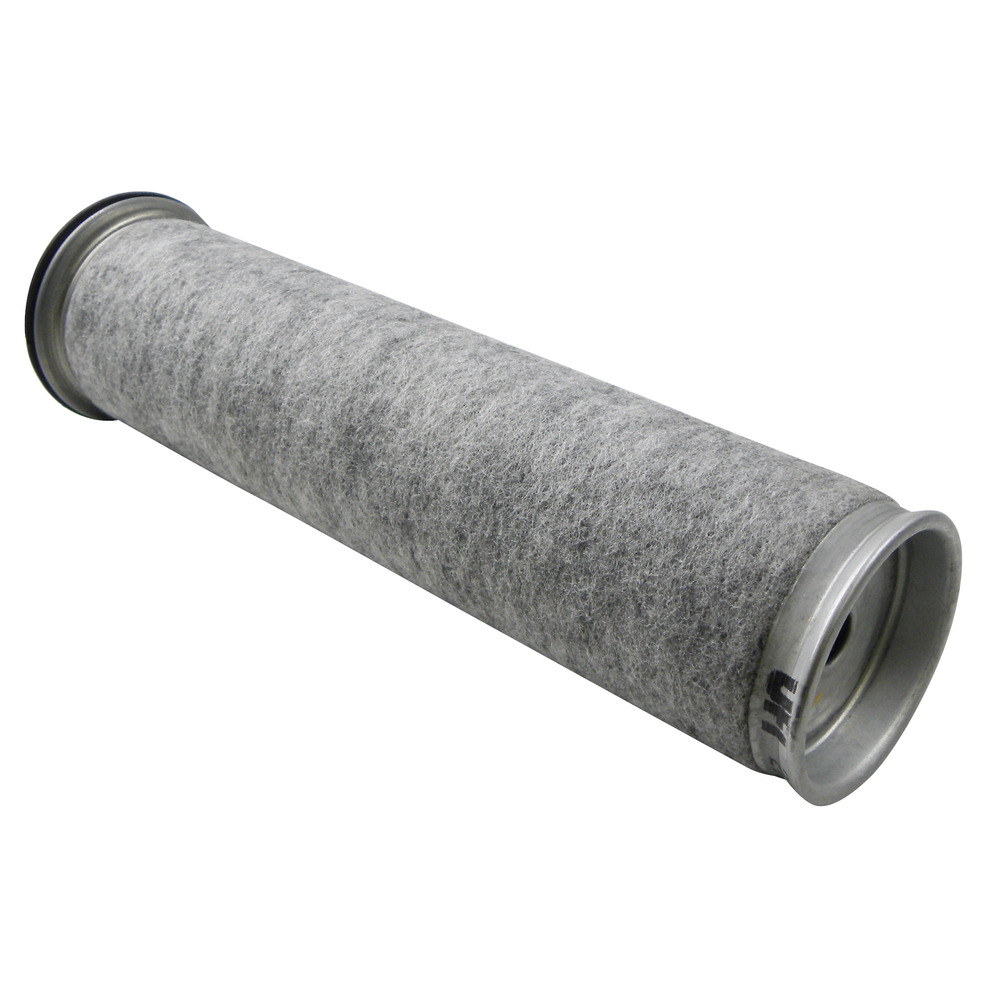

Air filter safety cartridge CF800

​Outer diameter (D) 106 mmOuter diameter 2 (D2) 74 mm Length (L) 355 mm Inner diameter (d) 16 mm
