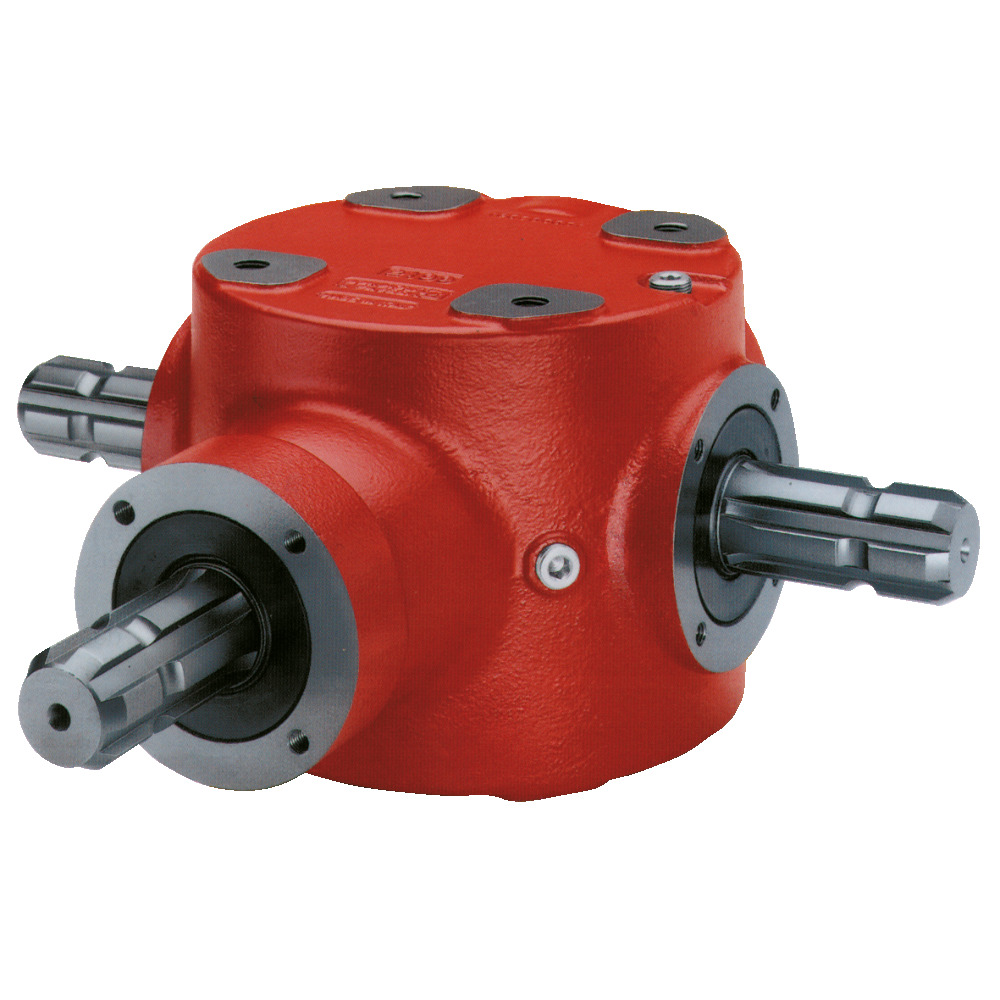

Gearbox S2100 1:1 PTO profile 1 3/8 x 6
Product number:
74325
€1,349.00 *
Freight flat rate:
€29.00
(1) Bewerten
in stock (3-5 working days)
Beschreibung
Product information "Gearbox S2100 1:1 PTO profile 1 3/8 x 6"
Maximum power transmission for professionals: Bondioli & Pavesi S2100 gearboxes
When it comes to absolute reliability in continuous operation, farmers and machine builders worldwide rely on drive technology from Bondioli & Pavesi. With the S2100 series gearboxes, you get robust solutions made of high-quality grey cast iron, specially developed for the toughest mechanical requirements.
Why the S2100 series?
These gearboxes form the backbone of many agricultural machines – from feed mixers to soil cultivation equipment. They impress with:
Maximum load capacity: Thanks to their solid grey cast iron housings, these models offer outstanding stability and vibration damping.
Precise performance: The S2100 is a powerhouse for demanding tasks, delivering up to 81 kW (110 hp) at 540 rpm in a 1:1 transmission ratio, or an impressive 125 kW (170 hp) at 1000 rpm.
Versatile gear ratios: With common gear ratios (e.g. 1.91:1 or 1:1), the gearboxes can be precisely adapted to your machine requirements.
Durability through quality: Developed to the highest industry standards for minimal maintenance intervals and maximum service life.
Technical highlights at a glance, transmission ratio 1:1
Max. power (540 rpm) approx. 81 kW / 110 hp
Max. output torque up to 1431 Nm (at 540 rpm)
Material: High-quality grey cast iron
Application: Mulchers, larger tillers, feed mixers
Ensure original quality for your drive!
Whether as original equipment or as a durable spare part, with Bondioli & Pavesi you are choosing efficiency and safety in the field.
| Drehmoment Ausgang bei 540 U/min (Nm): | 1431 |
|---|---|
| Drehmoment Ausgang bei 1000 U/min (Nm): | 1194 |
| Drehmoment Eingang bei 540 U/min (Nm): | 1431 |
| Drehmoment Eingang bei 1000 U/min (Nm): | 1194 |
| Leistung bei 540 U/min (kW): | 81 |
| Leistung bei 1000 U/min (kW): | 125 |
| Profile: | 1 3/8x6 |
| Übersetzung: | 1 : 1 |
Hersteller
Bondioli + Pavesi Gesellschaft.m.b.H.
Im Neugrund 8
64521
Groß-Gerau
DE
[email protected]
MPN:
Downloads
There are no downloads available for this article
