Install fans correctly
#124025

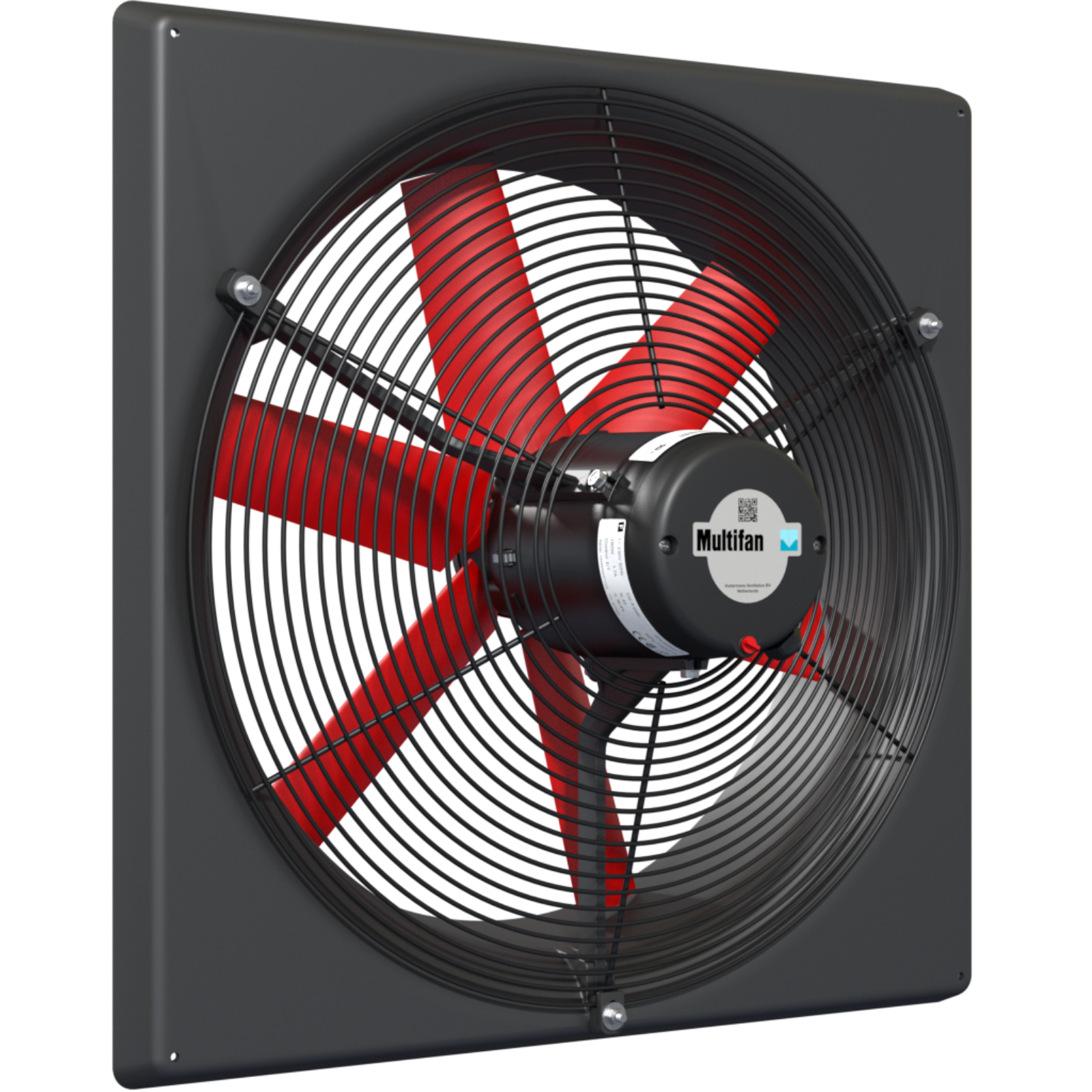

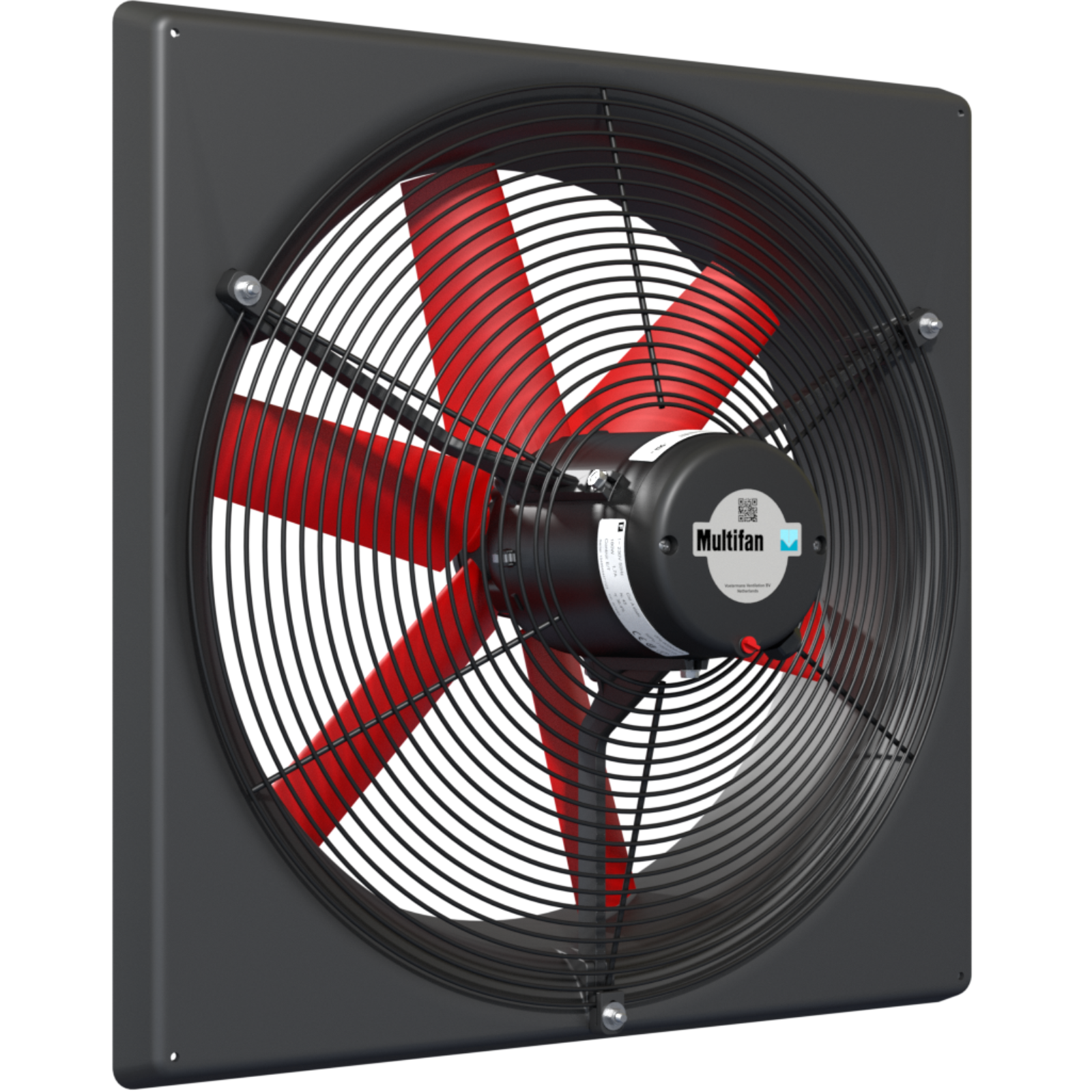

Barn fan 230 volts
Ampere:
0,9/1,6
|
Flügel-Anzahl:
6
|
Luftleistung:
4.900
|
Ø Flügel (mm):
415
Sale and shipment by: FAIE Handels GmbH
?Multifan that can be installed in the side wall of buildings. Wall fans are used for agricultural purposes, for example as fans in greenhouses, pig houses, poultry houses and dairy farms. They can also be used in industry, for example as ventilation in factories and other buildings. The speed of the fans is adjustable and the fans are designed for continuous use in environments where rusting or damp conditions are common, as well as for outdoor use. 3 year guarantee.Technical data: 230 V, 50 Hz, ambient temperature -25 to +40C, protection class IP55For dimensions, see table
Variants from €395.00*
#123471

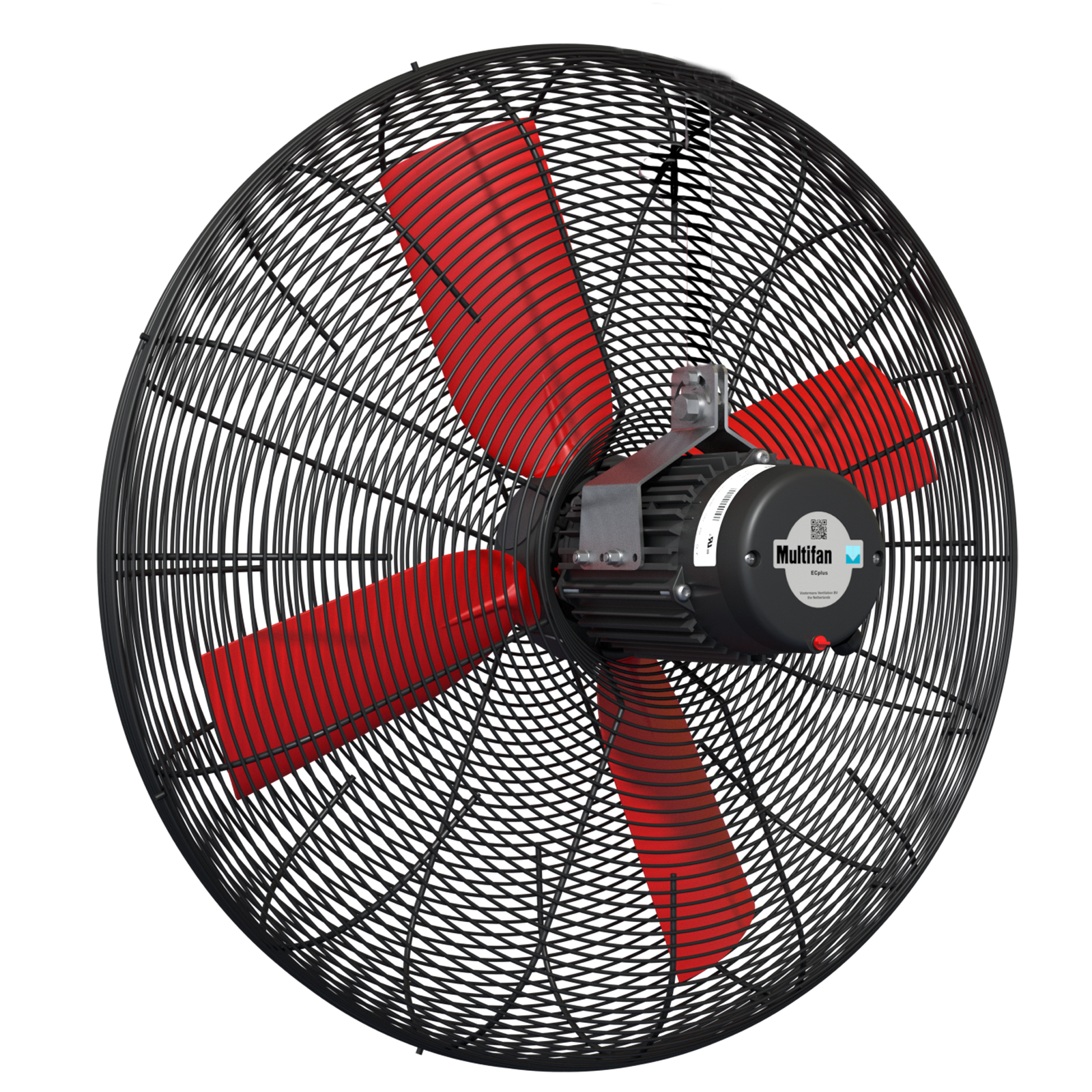

Basket fan 230 V
Flügel-Anzahl:
4
|
Luftleistung:
9.500
|
Stromstärke (A):
1,7
|
Ø Flügel (mm):
630
Sale and shipment by: FAIE Handels GmbH
Compact basket fan. Ideal for use in the stable. Connection 230 volts.
Variants from €395.00*
#123472
Basket fan 230 V
Flügel-Anzahl:
4
|
Luftleistung:
14.650
|
Stromstärke (A):
2,9
|
Ø Flügel (mm):
710
Sale and shipment by: FAIE Handels GmbH
Compact basket fan. Ideal for use in the stable. Connection 230 volts.
Variants from €619.00*
#FA123468

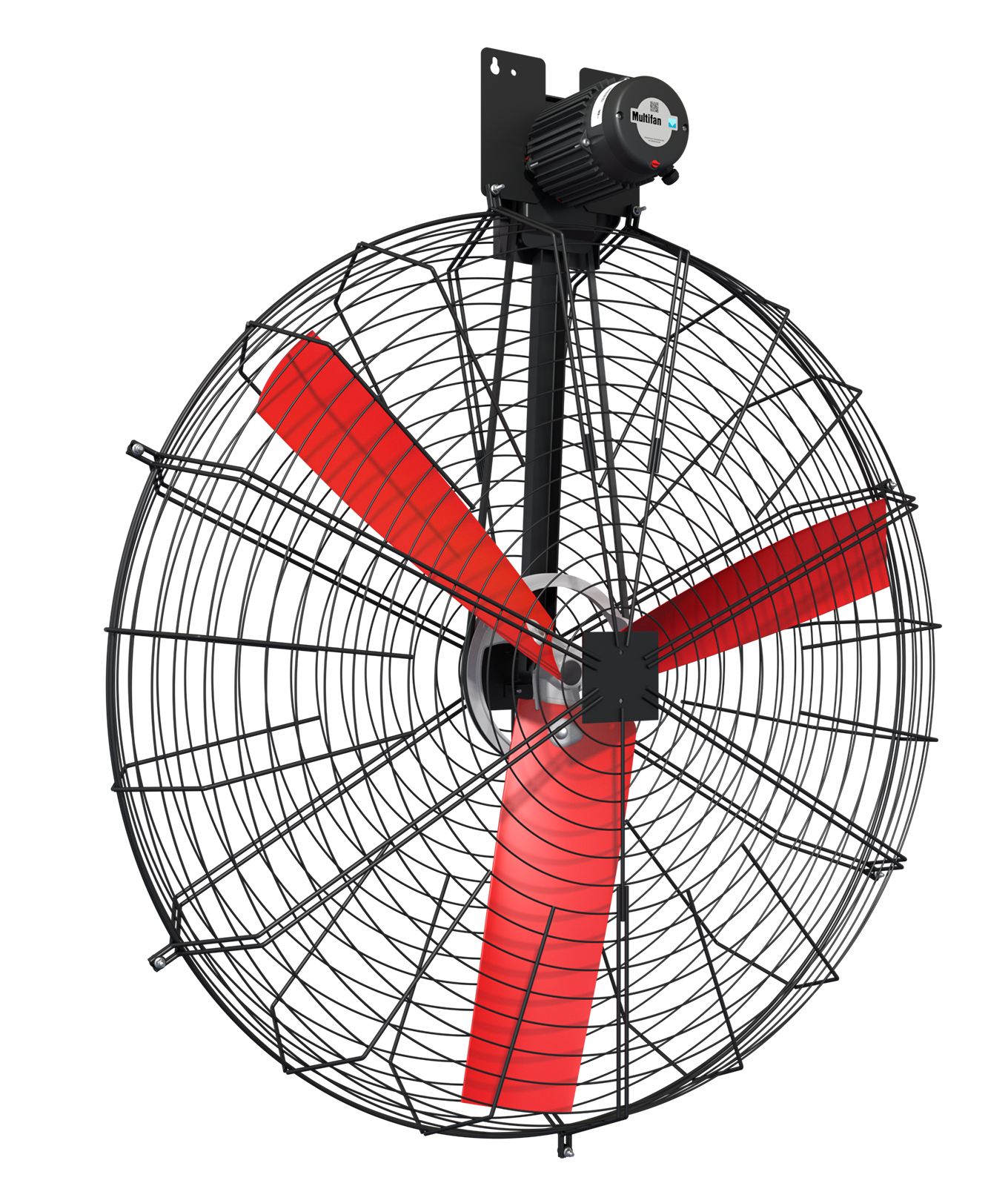

Basket fan Ø 130 cm 400V
Sale and shipment by: FAIE Handels GmbH
Large, powerful stable fan. Suitable for high stables (the stable fan should be installed at least 2.50 m above the ground)Technical data:Voltage: 400 voltsQuantity Blades: 3Diameter blades: 1,300 mmAir output: 40,010 m/hProtection class: IP551.5 amps< /li>630 watts50 HzWeight 41.3 kgSound level ~ 63 db(A) at 2m, 52 db(A) at 7m distanceDimensions: basket 1,390 mm, basket depth 320 mm
#124022
Built-in pipe fan 230 volts
Ampere:
2,2/3,4
|
Flügel-Anzahl:
5
|
Luftleistung:
11.500
|
Ø Flügel (mm):
640
Sale and shipment by: FAIE Handels GmbH
These ~built-in fans can be installed in existing devices and shafts/pipes or fixed in an exhaust duct. They can be mounted both horizontally and vertically. The flexibility of the mounting makes it possible to easily modify the fan so that it is suitable for use in enclosed spaces. Suitable for agricultural use in supply and exhaust air ducts in stables.In addition, they can also be used for a wide variety of industrial applications such as warm air generators, air humidifiers, etc. Advantages: Mounting struts and impeller can be adjusted to any pipe dimension, low power consumption, electronically adjustable with a transformer, dust and splash-proof (IP55), low maintenance, low noise, 3-year guarantee...< br>Technical data: 230 V, 50 Hz, ambient temperature -25 to +40C, protection class IP55For dimensions, see table
Variants from €379.00*
#FA123475
Ceiling bracket for basket fan 71+92 cm
Sale and shipment by: FAIE Handels GmbH
Suitable for basket fan 123472+123474
#FA71218
Vostermans
Ceiling fan PV 600
Sale and shipment by: FAIE Handels GmbH
The ceiling fan ensures optimal air distribution, the aerodynamic aluminum blades (with a curved tip) deliver a maximum amount of air to all corners of the room and heat stress is significantly reduced. Even during colder periods, the ceiling fan works to support the heating system by transporting the warmer air from above in the building downwards.Advantages and technical data: IP55 motor (water and dust resistant), low energy consumption , high air output 21,250 m/h, speed 285 rpm, 150 cm, 230 V connection voltage, 50 Hz, pendulum length min. 152mm, max. 483mm~ 44 dB(A) from a distance of 4 m. The Multifan ceiling fan is CE (minimum height 2.7 m) and CSA tested.
#FA116656

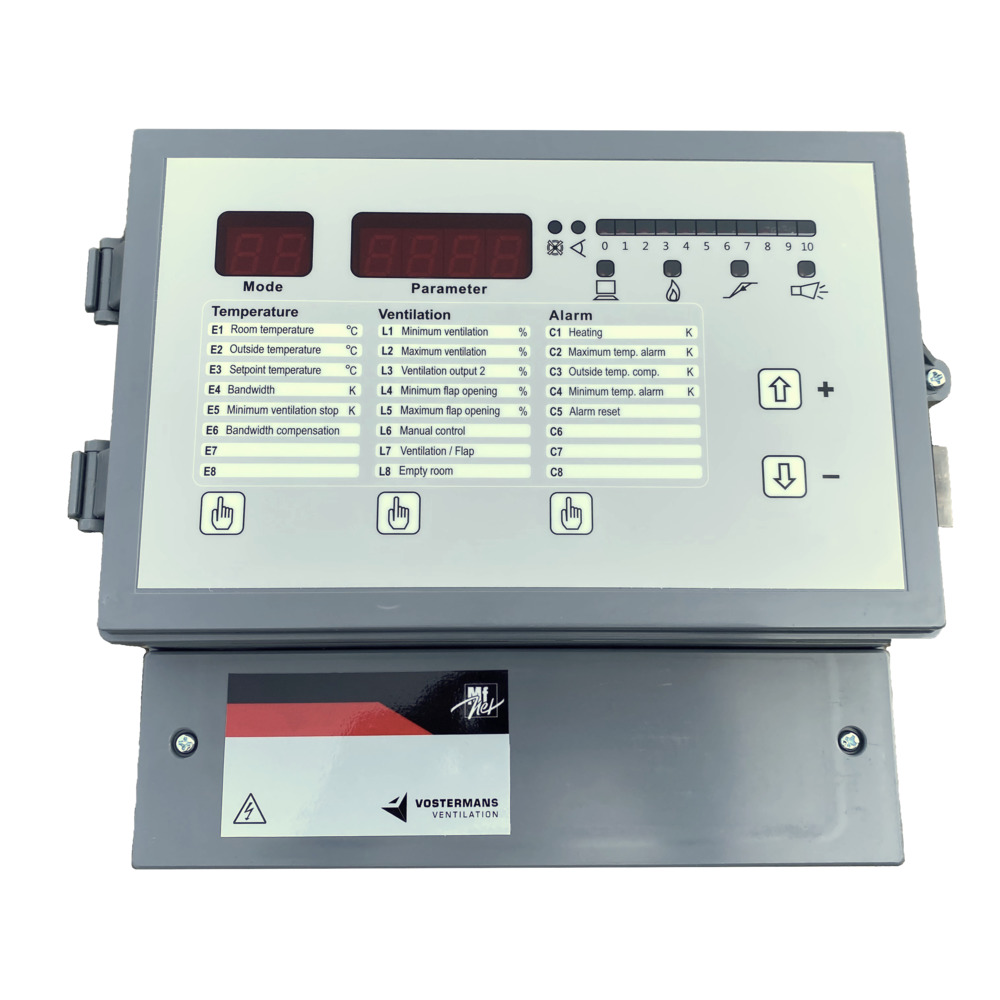

Control device AEW 6.3N
Sale and shipment by: FAIE Handels GmbH
Allows continuous climate control using single-phase fan control based on temperature.Stepless TRIAC control for single-phase fans (max. 6.3 A)0-10V- Output signal for controlling: one or two fan control devices, valve flaps, heating systemsRelay outputs for controlling: alarms, heating systems, a second fanIntegrated voltage and current protection< /li>Reading out the ventilation statusWith bridging switchIncl. two temperature sensors for the inside and outside temperature Equipped with a relay output for alarm function Advantages: Even fan operation, low acquisition costs, easy installation and simple Operation, can be used in new and existing ventilation systems.Settings: Setpoint, minimum and maximum value, bandwidth. Continuously variable fan speed control (max. 6.3 A), independently programmable 0-10V output signal for air inlets or additional controllers. Integrated voltage and current protection, ventilation status reading, 100% bypass switch, including temperature sensor.Technical data: ~Controller type Triac controller, 230 V single-phase, fan Output voltage 70-230 V, fan Output current 0.5-6.3 A, IP54 plastic housing, inputs: temperature sensor, outputs: ventilation controller (6.3 A), 0-10 volts for air inlets or additional controllers. LxWxH: 205 x 235 x 120 mm
#FA116657
Control device AEW-D 10N
Sale and shipment by: FAIE Handels GmbH
Allows continuous climate control using single-phase fan control based on temperature. - Stepless TRIAC control for single-phase fans (max. 10 A)- 0-10 V output signal for control of: One or two fan control devices, valve flaps, heating systems- Relay outputs for controlling: alarms, heating systems, a second fan- Integrated voltage and current protection- Reading out the ventilation status- With bridging switch- Incl. two temperature sensors for the inside and outside temperature- Equipped with a relay output for alarm function Advantages: Even fan operation, low acquisition costs, lighter Installation and easy operation, can be used in new and existing ventilation systems.Settings: Setpoint, minimum and maximum value, bandwidth. Continuously variable fan speed control (max. 6.3 A), independently programmable 0-10V output signal for air inlets or additional controllers. Integrated voltage and current protection, ventilation status reading, 100% bypass switch, including temperature sensor.Technical data: Controller type triac controller, 230 V single-phase, fan output voltage 70-230 V, fan output current max 10 A, IP54 plastic housing, inputs: temperature sensor, outputs: ventilation controller (10 A), 0-10 volts for air inlets or additional controllers. LxWxH: 270 x 225 x 120 mm
#FA19804
Vostermans
Electronic speed controller EW10
Sale and shipment by: FAIE Handels GmbH
Electronic speed controller for smooth fan operation, easy to install and operate!Settings: Manual speed control for continuous control of single-phase fans, on and off switch with integrated signal light.Technical data : Fuse F1 (fan output) 10 A, mains power supply 230 V, 50/60 Hz, fan output voltage 30-220 V, fan output current 1-10 A, IP54 ABS housing, WxHxD: 12.7 x 20.5 x 9.5 cm, outputs: fan connection
There are a few things to consider when installing barn fans. The best option, of course, is to build a new barn, where the fans are already integrated (correctly aligned according to weather and wind conditions). However, various fans can also be easily retrofitted to prevent or mitigate heat stress in cows or other animals. Please never forget that the thermoneutral zone for cows, i.e., their optimum temperature, is between approximately 7 and 17°C!
Here are a few important tips and guidelines:
- Ensure sufficient air movement (draft 2-3 m/s)
- A cooling effect occurs up to approx. 1m/s
- Do not switch on the fan too late; ventilation should start at about 23°C (at a low speed already in spring so that the animals can get used to the draft).
- Never position the fan against the natural wind conditions; it should draw in as cool air as possible (keep the intake side clear)
- In extreme heat, run the fan at a low speed, even at night!
- Priority of installation: above the cubicles, in the waiting area for the milking parlor/robot, above the feeding place
- Install the fan max. 2-4 m from the open wall or install it directly into the closed wall
- The lower edge of the fan should be about 2.5 m above the animals
- Tilt angle forward of about 15-25° so that the fan blows over the back, otherwise it blows too high
- The air flow in the lying area should pass approximately 20cm along the back of the animals
- Distance to the first lying box is best 3-4 m
- The throw performance indicates how many fans you need and at what distances: rule of thumb is 1m throw distance per 10cm rotor diameter
- It is best to secure the fans at three points to prevent them from swinging
Here you can go directly to Stable fan program. We have everything you need:Fans, controls and thermostats, Accessories such as closing flaps and much more.
If you have any questions, please contact our consultants at any time - We are happy to help you!
