Pasture gates and gate systems
When using gates or gate systems (gate handles with elastic rope or Flexigate) in a pasture fence, care should be taken to ensure that the protective effect (current flow) is maintained in all fence sections, even when the gate is open. This can be easily achieved by connecting all rows of conductors (tape, rope, or wire) before and after the gate with couplings, clamps, or connectors. The lowest rows of the two fence sections are then connected underground (under the gate) at a depth of approximately 30-50 cm with an insulated high-voltage cable.
There's also a solution if you don't want the gate conductor to be live when the gate is open (for example, an animal or person could step on it and get an electric shock). As you can see in the diagram, all you need to do is attach a separate insulator to the beginning of the flexible gate, so the gate is only powered from one side—and only when it's closed.
Our offer
#FA103319
KERBL
Band gate handle insulator professional, 4 pieces.
Sale and shipment by: FAIE Handels GmbH
Robust strip insulator with connection board made of stainless steel, for hanging gate handles, as a connection option between the start of the fence and the electric fence device or for branches in the fence. 4 pieces/packFAIE Tip: You can easily connect the electric fence energizer to this insulator using the wire connection clamp (order no. 98210). For example, a greater distance between the device and the fence can be overcome with a high-voltage cable. With the rope/strand quick connector (order no. 98209), ropes or strands can also be easily attached.
#FA102024
KERBL
E-Line goal system ( 3 - 6 m)
Sale and shipment by: FAIE Handels GmbH
The original E-Line system Made in EU for the highest quality standards! Particularly suitable for horse paddocks! Length: 3 - 6 mwith live elastic ropevery practical and handy electric fence door for fence openingsno Clamping of mane or tail hair Stainless steel hooks Correct assembly of the gate system by using 3 gate posts Can be extended to approx. twice the length Set consists of:1 x 7 mm elastic electric rope (3 year guarantee), with connecting hook, with 4 x 0.25 mm stainless steel conductor< /li>1 x robust gate handle 1 x ring insulator 1 x gate handle insulator
#FA40262
KERBL
Electric cattle gate set, 3.60 m
Sale and shipment by: FAIE Handels GmbH
Set consists of:2 rods2 hingesInsulated earth cableCan be operated with any electric fence device and can easily be inserted into existing fence systems. The flexible fiberglass rods are covered with electrically conductive rubber, the insulated handles are for pedestrians. The physical law of the Faraday cage protects the driver from electric shocks. The cattle barrier opens in both directions and closes automatically. Lockable when open!
#FA40263
KERBL
Electric cattle gate set, 5.00 m
Sale and shipment by: FAIE Handels GmbH
Set consists of:2 rods2 hingesInsulated earth cableCan be operated with any electric fence device and can easily be inserted into existing fence systems. The flexible fiberglass rods are covered with electrically conductive rubber, the insulated handles are for pedestrians. The physical law of the Faraday cage protects the driver from electric shocks. The cattle barrier opens in both directions and closes automatically. Lockable when open!
#FA129663
AKO

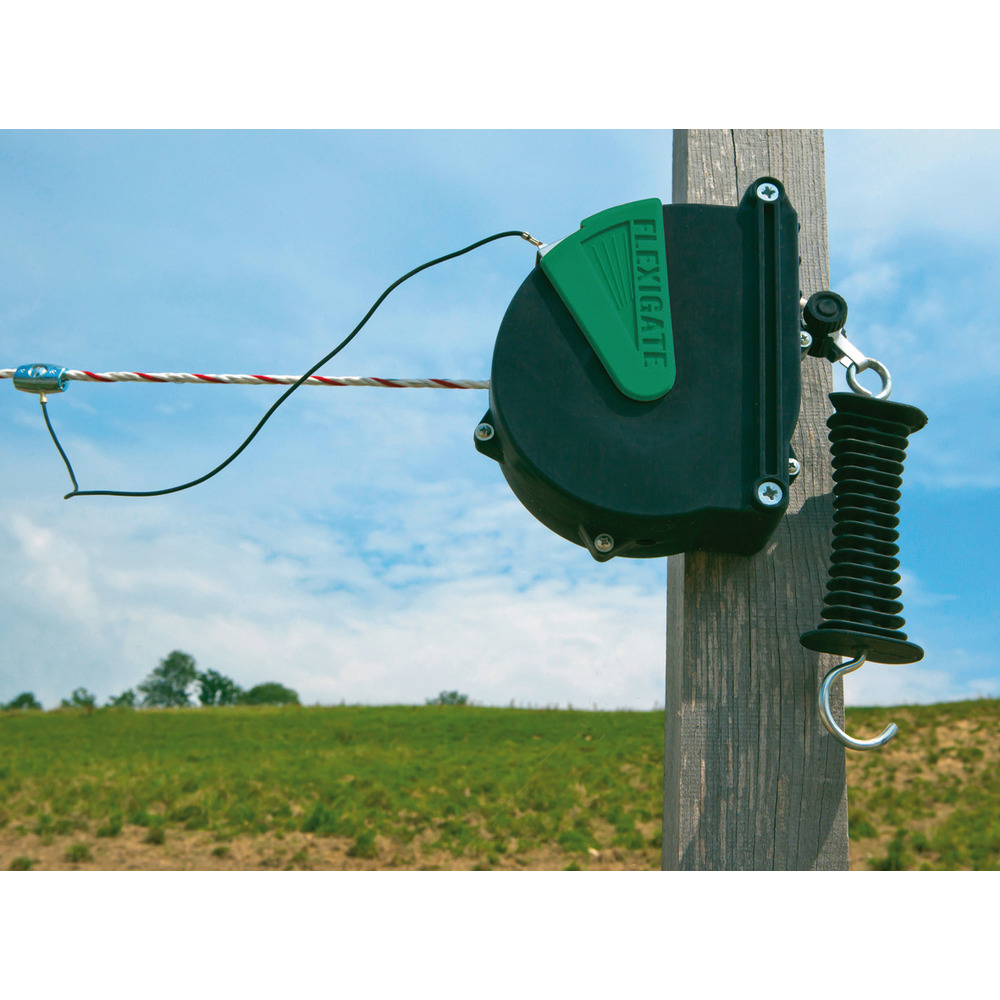

FlexiGate gate system with 6 mm cable
Sale and shipment by: FAIE Handels GmbH
With Flexigate, coupling inputs can be energized easily and conveniently. Each time it is opened, the conductor material is rolled up by a steel spring. Extendable up to max. 7.5 m. Color black/red. With 6 mm rope.Attached DIRECTLY to the wooden post with 2 enclosed wood screwsNo sagging straps or ropesno tripping hazard for humans and animals due to loopingno jamming of mane or tail hairNo twisting of the conductor materialContinuous electrical contactConnection cable not included in the scope of deliveryParticularly suitable for paddocks! Continuous electrical contact!Translated with www.DeepL.com/Translator (free version)
#FA129662
AKO
FlexiGate gate system with hinge 40 mm
Sale and shipment by: FAIE Handels GmbH
With Flexigate, coupling inputs can be energized easily and conveniently.Each time it is opened, the conductor material is rolled up by a steel spring. Extendable up to max. 7.5 m. Color black/red. With 40 mm strap.Attached DIRECTLY to the wooden post with 2 enclosed wood screwsNo sagging straps or ropesNo tripping hazard for humans and animals due to loopsNo jamming of mane or tail hairNo twisting of the conductor materialContinuous electrical contactConnection cable not includedParticularly suitable for paddocks! Continuous electrical contact!
#FA98340
KERBL

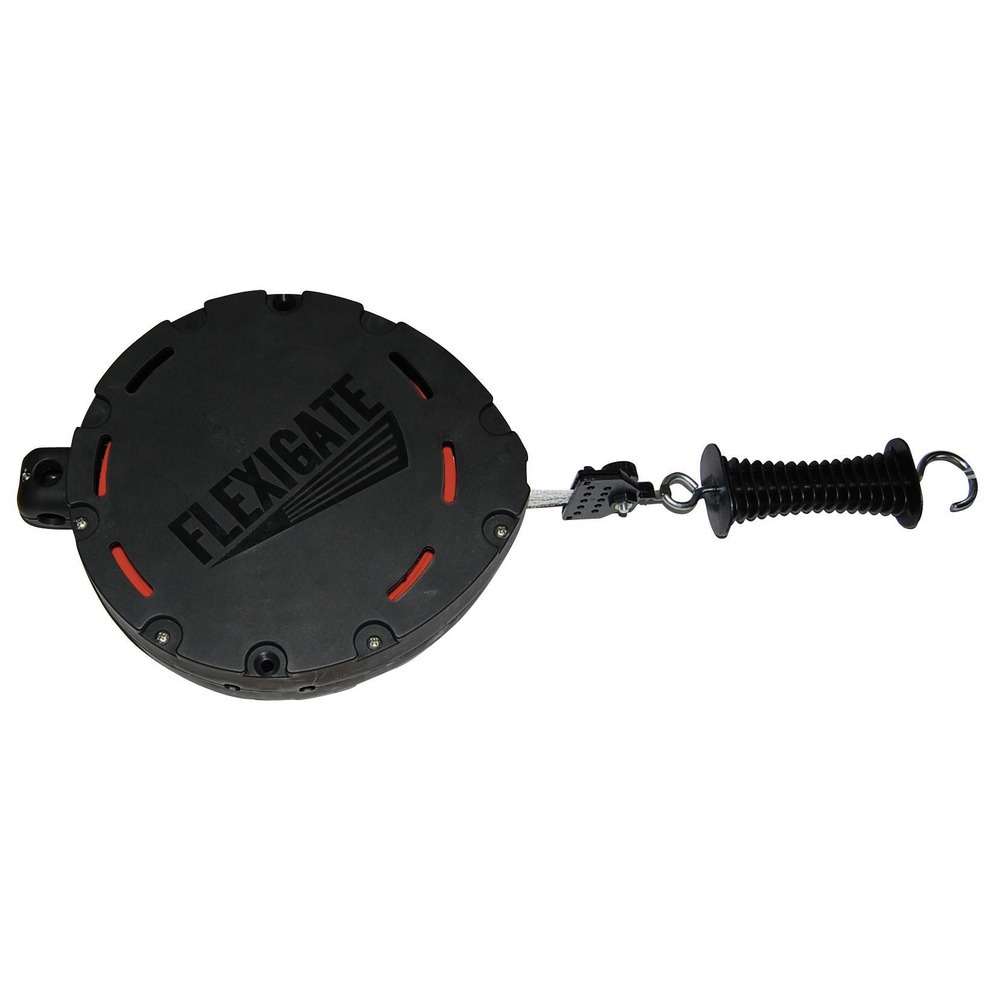

FlexiGate gate system, 19 m
Sale and shipment by: FAIE Handels GmbH
Can be used flexibly and can be extended to a length of up to 19 m! With 20mm band~ Optimum power output thanks to 9 strong stainless steel conductors guarantee maximum security at the gate. High quality workmanship, increased breaking load thanks to strong monofilament threads. Fastening option 1: with 2 included wood screws directly on the wooden post or on a wall or fastening 2: with the included hinge.
#131384
AKO
FlexiGate Premium gate system
Execution:
6 mm Seil
Sale and shipment by: FAIE Handels GmbH
Innovative gate system for entrances up to 6 m wide. Housing and gate handle made from sustainable bio-based plastic – from 100% renewable raw materials.Wood look thanks to small natural wood chips in the bioplastic.Robust housing in a compact and modern design.Connection cable included in delivery enables ideal contact and continuous electrification of the gate.Quick and easy installation on the post using the wood screws provided.High-quality conductor material with our proven TriCond wires ensures optimum conductivity throughout – available with 40 mm wide band or 6 mm rope.The 40 mm wide band can be rotated 90 degrees in the gate handle and can thus be individually adjusted to the mounting direction of the gate handle -> The wide band is always upright and can therefore be seen more easilyContinuous electrical contactExtendable to a length of 6 mCan be mounted on either side (opening to the left or right)The integrated retraction brake ensures controlled retraction of the ladder material and prevents injuries and damage! Delivery includes wood screws and strap or rope connection.Translated with DeepL.com (free version)
Variants from €59.95*
#FA100145
KERBL

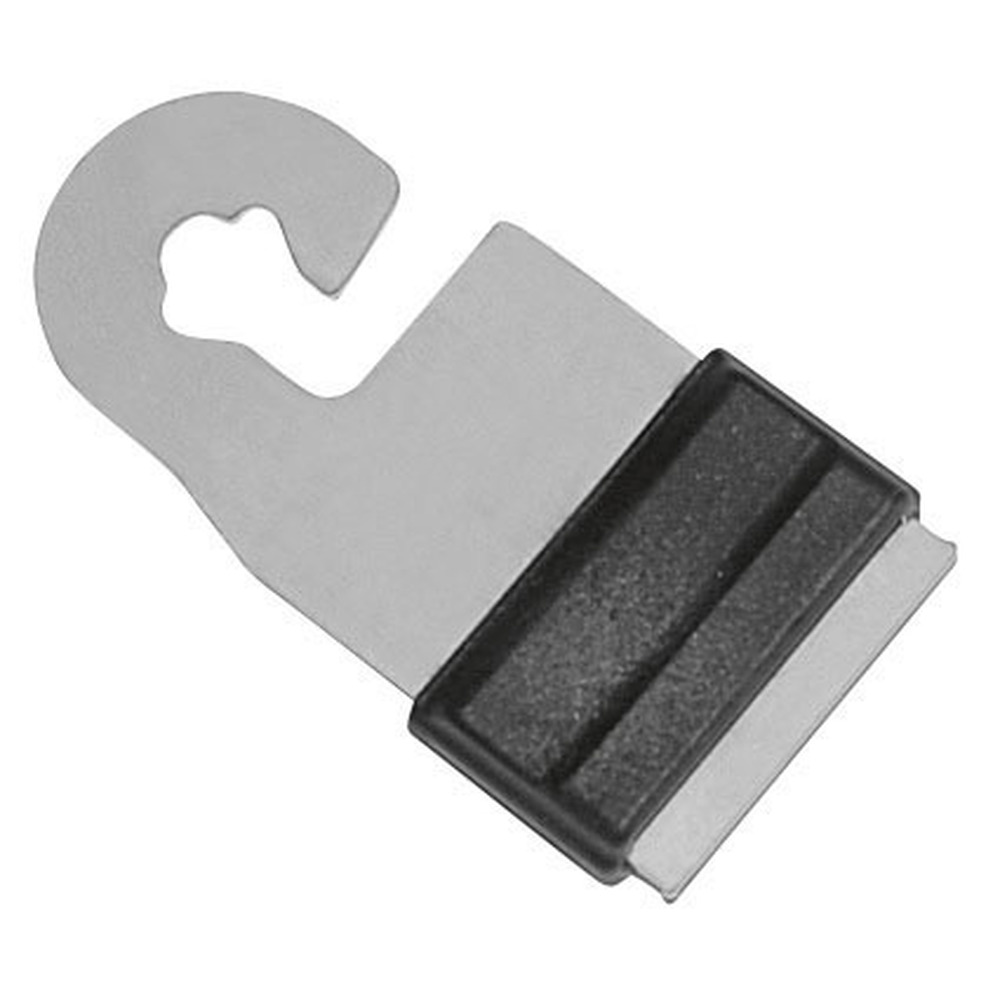

Gate handle connector tape 10-20 mm, 4 pieces.
Sale and shipment by: FAIE Handels GmbH
The stainless steel connectors ensure a secure and quick fixation of the electric fence tape and optimal electrical contact to the connection plate thanks to the durable plastic closure cap =>~ perfect conductivity. The connectors are self-explanatory in their function and can be mounted very quickly and easily on any gate handle or gate insulator. Bands can also be re-tensioned very easily. Made in Germany! Made of stainless steel. 4 pieces/pack
#FA100146
KERBL

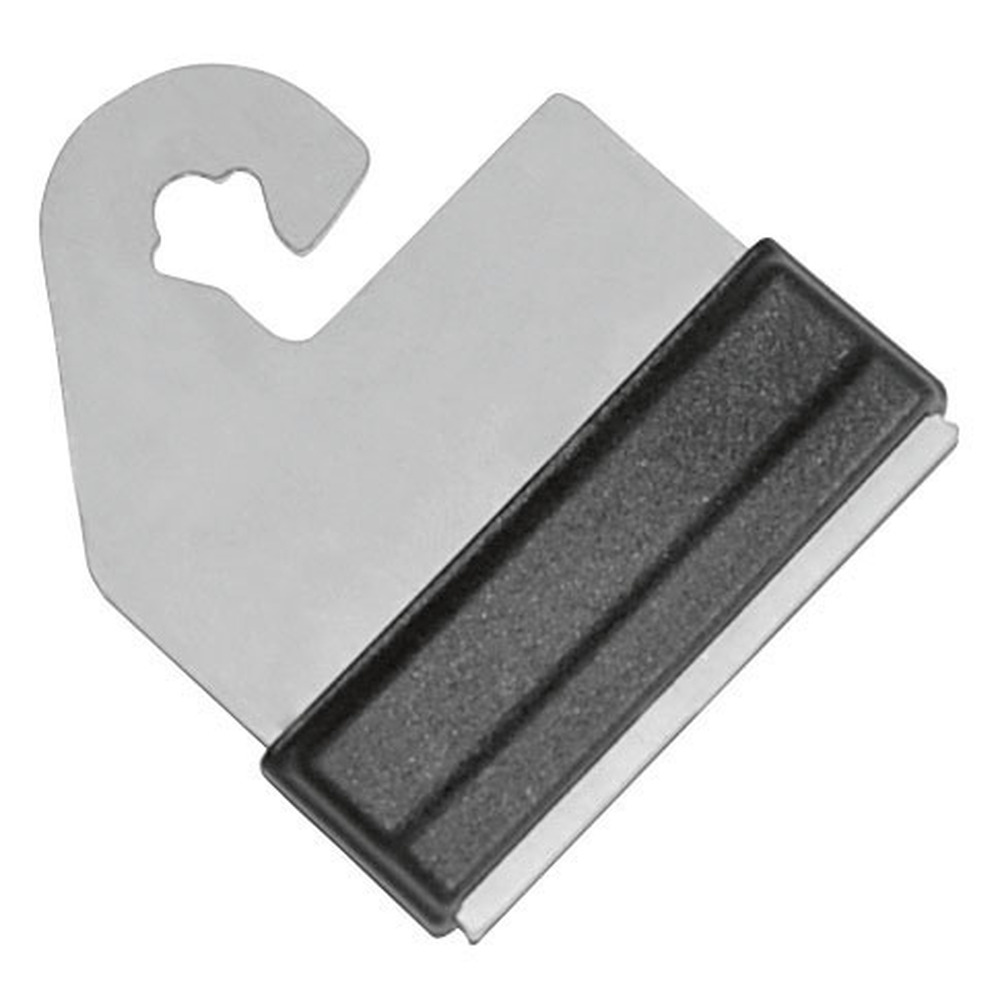

Gate handle connector tape 40 mm, 4 pieces.
Sale and shipment by: FAIE Handels GmbH
The stainless steel connectors ensure a secure and quick fixation of the electric fence tape and optimal electrical contact to the connection plate thanks to the durable plastic closure cap =>~ perfect conductivity. The connectors are self-explanatory in their function and can be mounted very quickly and easily on any gate handle or gate insulator. Bands can also be re-tensioned very easily. Made in Germany! Made of stainless steel. 4 pieces/pack
