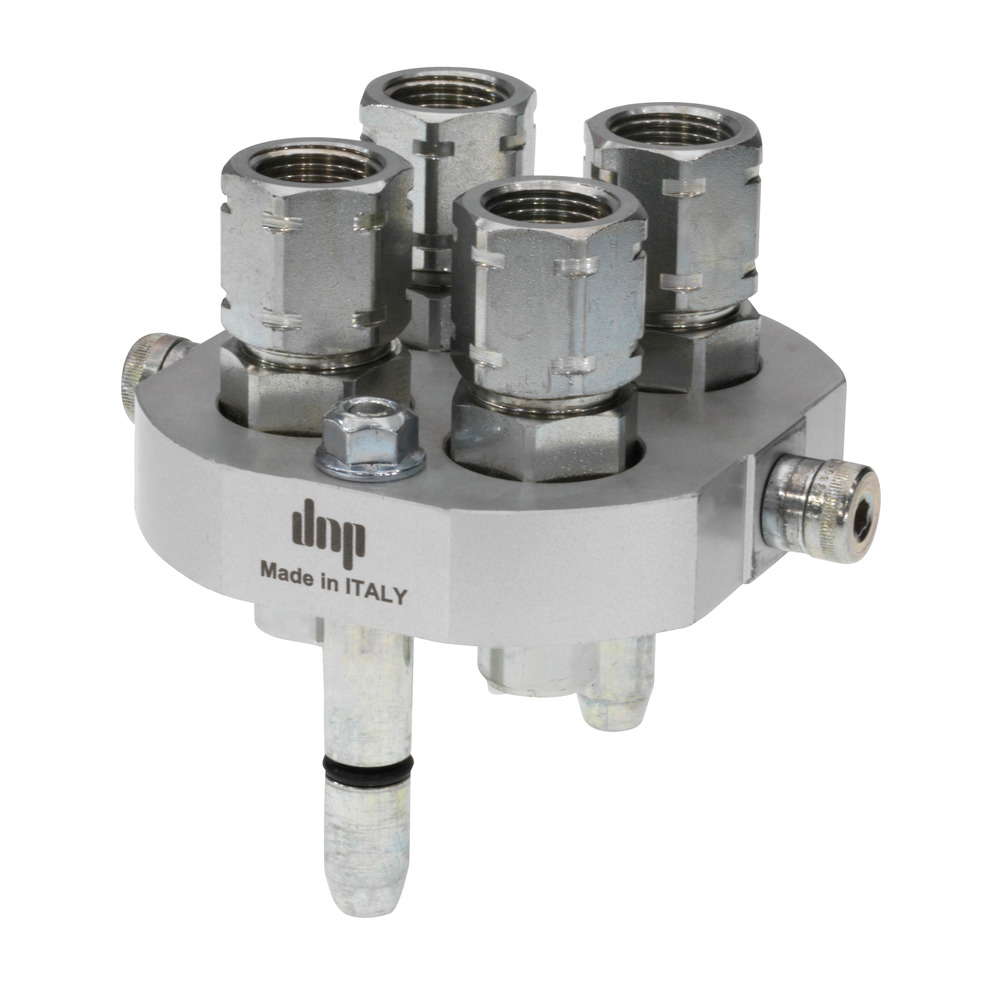

DNP Multi-coupler PSF4 15L M22x1.5 handset
DNP Multi-coupler PSF4 15L M22x1.5 handset
Produkt-Highlights
- Austauschbar mit Faster Multikupplung P506
- Unter Druck bis 200bar kuppelbar !
- Bis max. 46L/min Öldurchfluss möglich
Beschreibung
Product information "Multi-coupler PSF4 15L M22x1.5 handset"
The multi-coupling PSF from dnp was developed to enable coupling under residual pressure on the tool side. The coupling plugs allow the hydraulic lines to be connected up to a pressure of 200 bar! The special seals on the connectors are designed for this application.
The hydraulic lines are connected via flat-sealing coupling elements through which several hydraulic lines can be connected or separated within a very short time. This is done with an operating lever whose guide link is designed in such a way that the operating forces are kept as low as necessary.
The outstanding features of the multi-coupling are the security of connections, quick connection, ability to couple under residual pressure and optimally minimized leakage during the coupling process.
Another advantage is the interchangeability with the Faster multi-coupling P506. Not only are the two halves of the multicoupler interchangeable with Faster P506, but also the plugs and sockets.
Assembly 2/DN13
Pressure max. 250 bar
Flow rate max. 46 l/min
Connection 15L, M22x1.5 external thread
The hydraulic lines are connected via flat-sealing coupling elements through which several hydraulic lines can be connected or separated within a very short time. This is done with an operating lever whose guide link is designed in such a way that the operating forces are kept as low as necessary.
The outstanding features of the multi-coupling are the security of connections, quick connection, ability to couple under residual pressure and optimally minimized leakage during the coupling process.
Another advantage is the interchangeability with the Faster multi-coupling P506. Not only are the two halves of the multicoupler interchangeable with Faster P506, but also the plugs and sockets.
Assembly 2/DN13
Pressure max. 250 bar
Flow rate max. 46 l/min
Connection 15L, M22x1.5 external thread
| Connection: | 15L |
|---|---|
| Flow rate (l/min): | 46 |
| Max. pressure (bar): | 250 |
| Suchnummer: | 108861 |
| Thread: | M22x1,5 |
| can be used instead of DNP: | PSF4.4CEL.3 |
| Ø tube (mm): | 15 |
Hersteller
Dnp Industriale Srl
Via B. Buozzi, 10
20861
Brugherio
IT
[email protected]
GTIN/EAN:
8054960542942
Downloads
There are no downloads available for this article
