Telescopic cylinder with 2 stages and cross bore, without cardan ring, max. nominal pressure 200 bar
Product number:
19905
€429.00 *
% €539.00* (20.41% saved) before: €539.00wenige lagernd (2-4 Werktage)
Sale - Only while stocks last!
Our best price - No further discount possible!
Beschreibung
Product information "Telescopic cylinder with 2 stages and cross bore, without cardan ring, max. nominal pressure 200 bar"

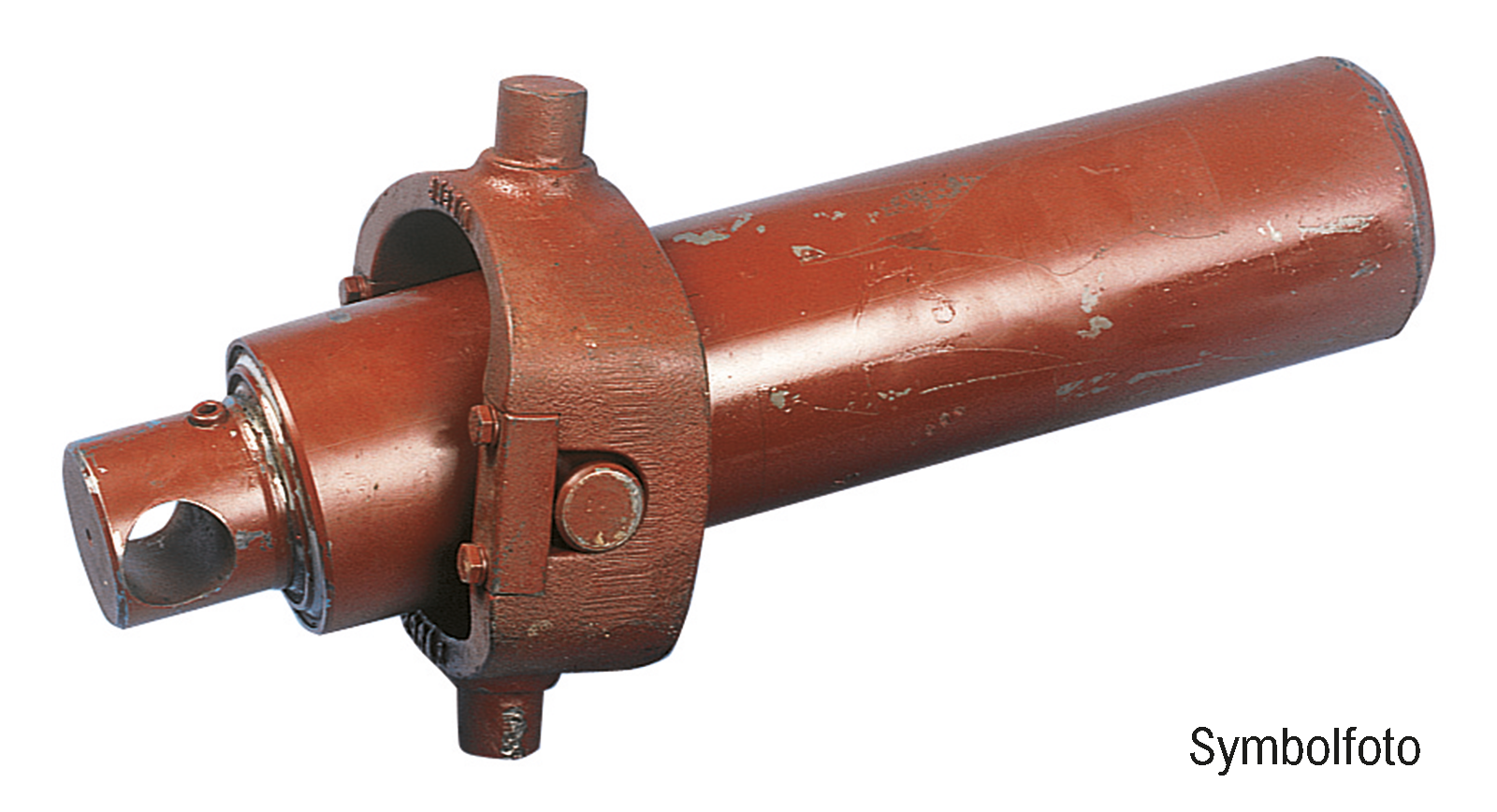

Weber telescopic cylinders in 2-stage design with cross bore and without cardan ring. The telescopic cylinders can be supplied in various lifting heights and cylinder stages.

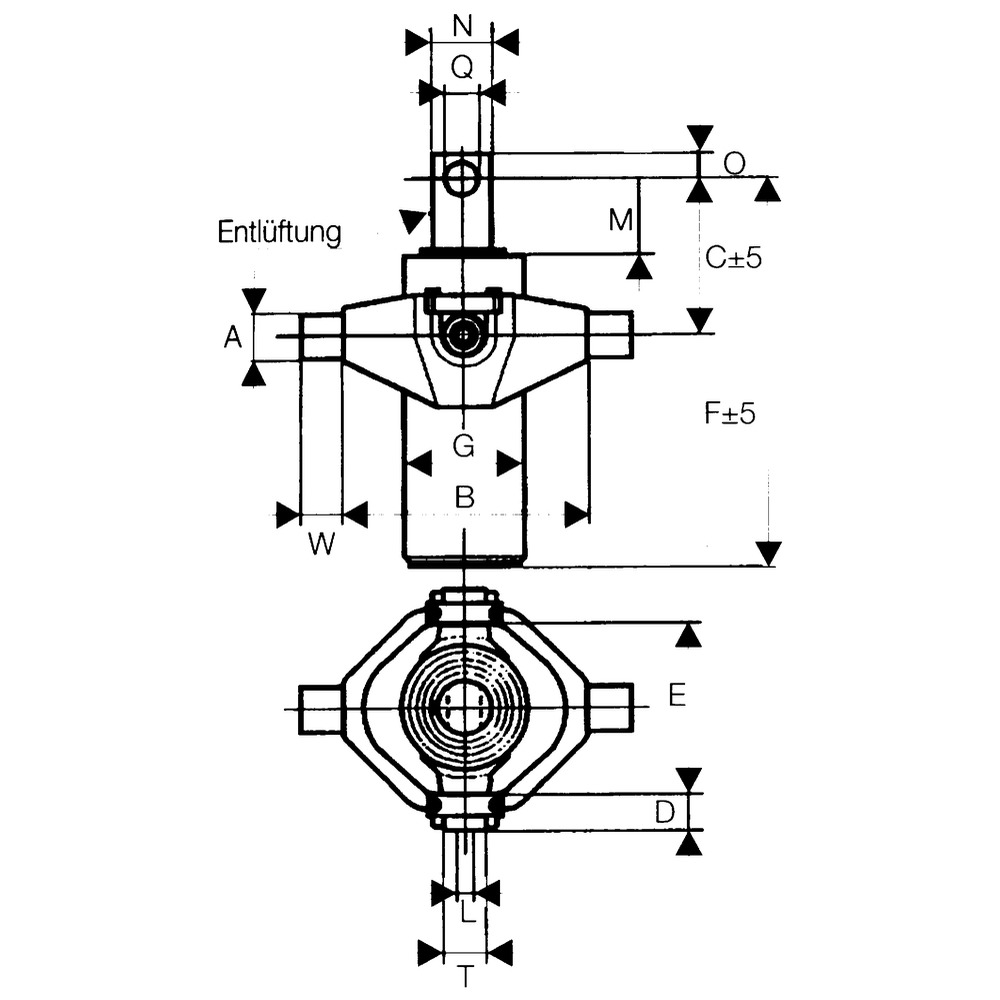

| A (mm): | 25 |
|---|---|
| B (mm): | 152 |
| C (mm): | 100 |
| D (mm): | 25 |
| E (mm): | 98 |
| G (mm): | 80 |
| Hub (mm): | 500 |
| Hubkraft bei 200 bar Stufe 1 (t): | 3,2 |
| Hubkraft bei 200 bar Stufe 2 (t): | 5,7 |
| L (mm): | M16x1,5 mm |
| M (mm): | 27 |
| N (mm): | 41,5 |
| O (mm): | 20 |
| Q (mm): | 25,5 |
| T (mm): | 25 |
| W (mm): | 20 |
| max. Last (t): | 4 |
| Ölvolumen (l): | 1,7 L |
| Ø Stufe 1 (mm): | 45 |
| Ø Stufe 2 (mm): | 60 |
Hersteller
Fahrzeugbedarf Kotz + Co KG
Industriestr. 7
2353
Guntramsdorf
AT
[email protected]
MPN:
Downloads 1
bed_teleskopzylinder.pdf
