Frost monitoring storage room starter set
Our best price - No further discount possible!
Beschreibung
Product information "Frost monitoring storage room starter set"
Frost monitoring / frost monitor / frost alarm for storage rooms with online alarm directly to your cell phone
Prevention of damage caused by frost
Suitable for all storage rooms with frost-sensitive goods, e.g. pesticides, vegetables, potatoes
LoRa radio technology
Consisting of 1 room temperature sensor, 1 gateway for data transmission and an annual license
Can be extended as required
Product description

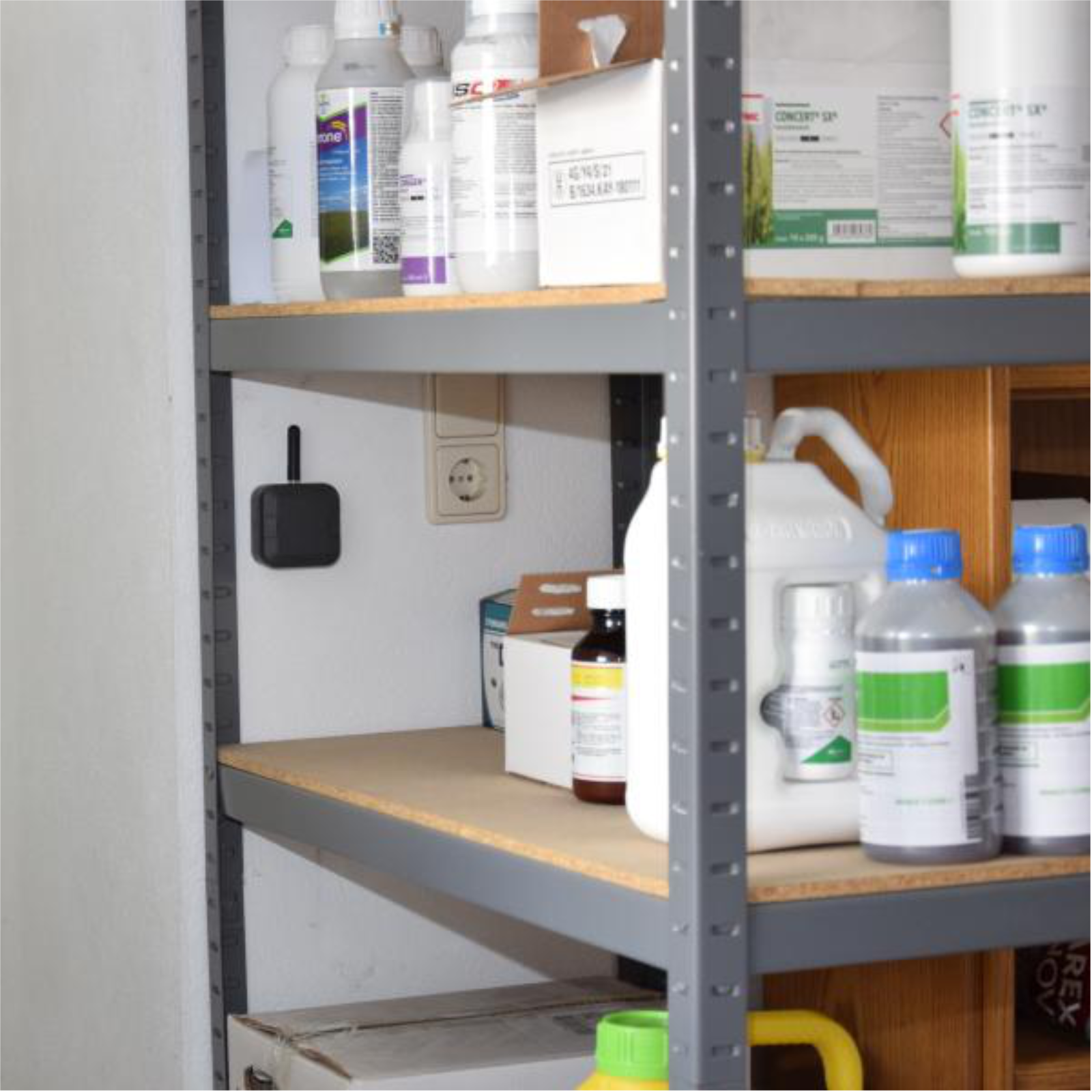

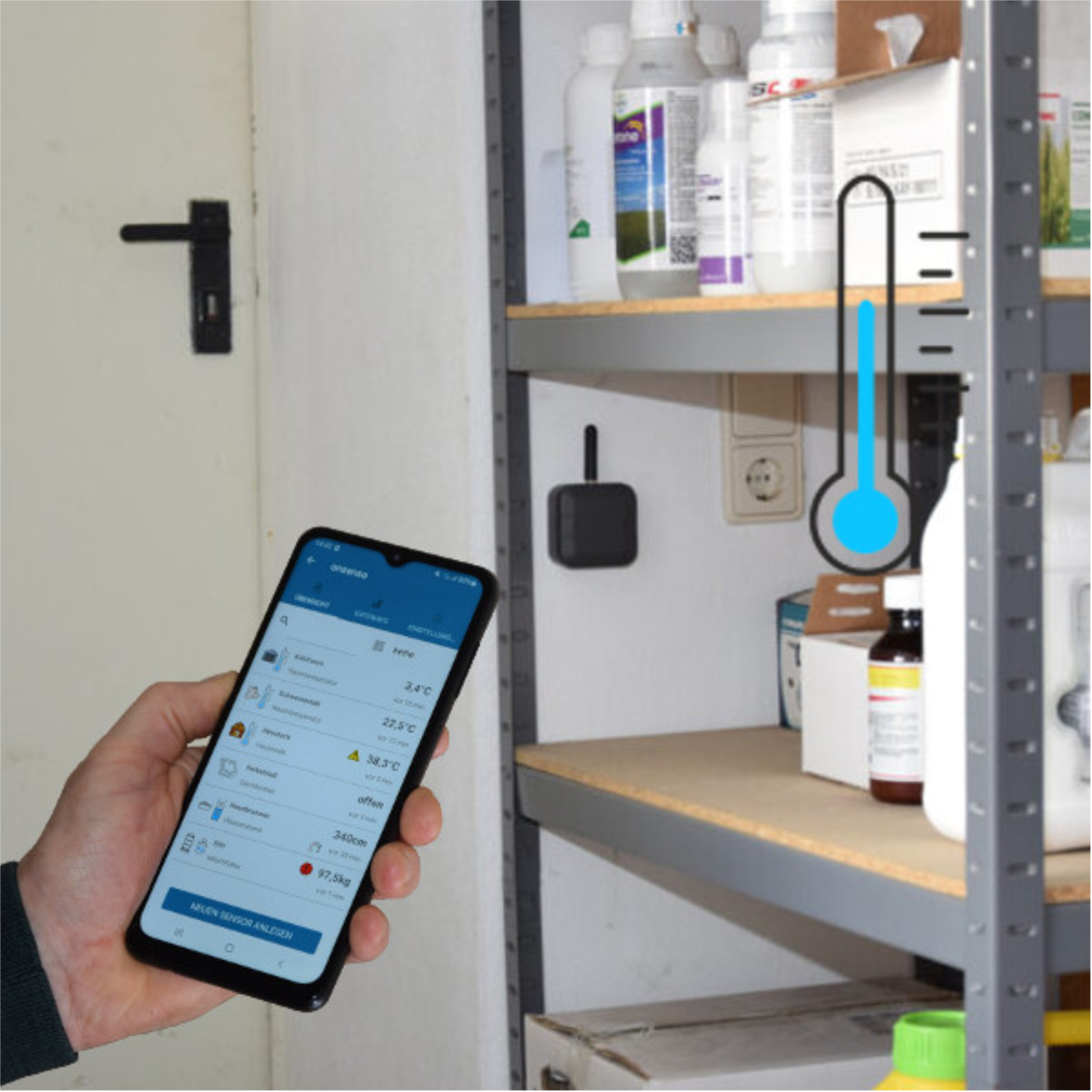

Reliable frost monitoring in the warehouse
The room temperature sensor measures the ambient temperature in the warehouse and sends the measured values to the cloud.
You are automatically alerted if the temperature falls below the set limit value.
Protect your valuable stock
Frost-sensitive products spoil or become unusable if the storage temperature is too low. The Onsenso frost alarm protects you from expensive damage.
No power supply and no wiring required in the warehouse. The room temperature sensor is battery-operated and does not require an on-site power supply.
The temperature values are sent via LoRa radio.
Individual frost warning or alarm
In the management platform, you can define the temperatures at which warnings or alarms should be generated.

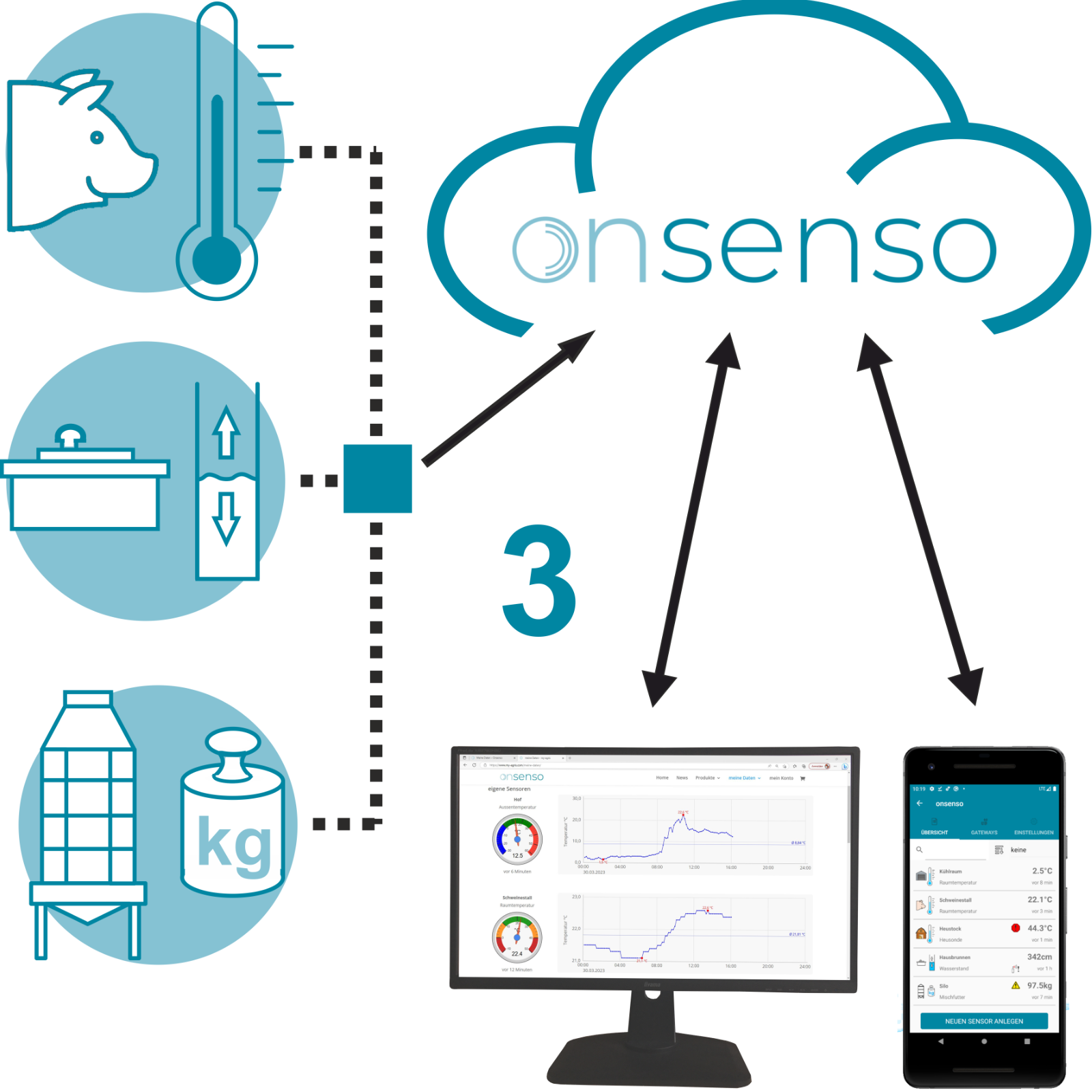

Basis for the Onsenso remote monitoring system
With this set, you have all the components you need to get started with Onsenso remote monitoring, including the gateway and the first annual license.
You can add further sensors or measuring devices at any time and expand your system.
Scope of delivery:
1 ON-N01 room temperature sensor
1 ON-G01 Gateway incl. power supply unit and network cable
1 ON-L03 annual license for up to 3 sensors
Instruction manual
Technical data

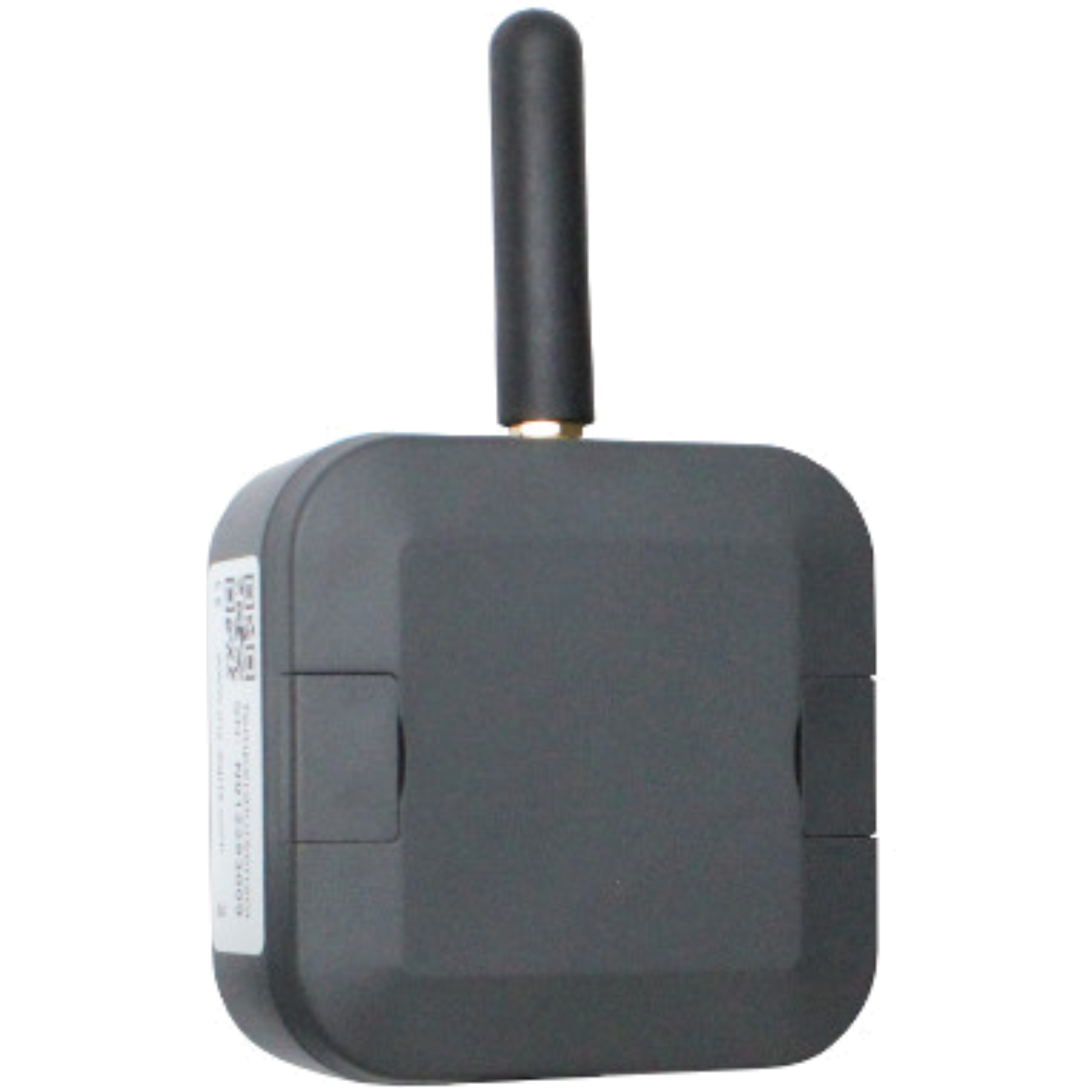

Room temperature sensor:
- ABS plastic housing
- Protection class housing IP67
- Housing dimensions 75 x 75 x 35 mm (L x W x H)
- Temperature sensor in housing
- Measuring range -55 to +125 °C
- Accuracy +/- 1 °C
- Sensor protection class IP68
- Data transmission via LoRa radio technology
- Radio frequency 868 MHz
- AES-128 encryption
- Measuring interval / transmission interval 10 minutes
- Range up to 1,000 m
- Power supply via lithium battery 1 x LS14500 3.6 V
- Battery life approx. 3 years

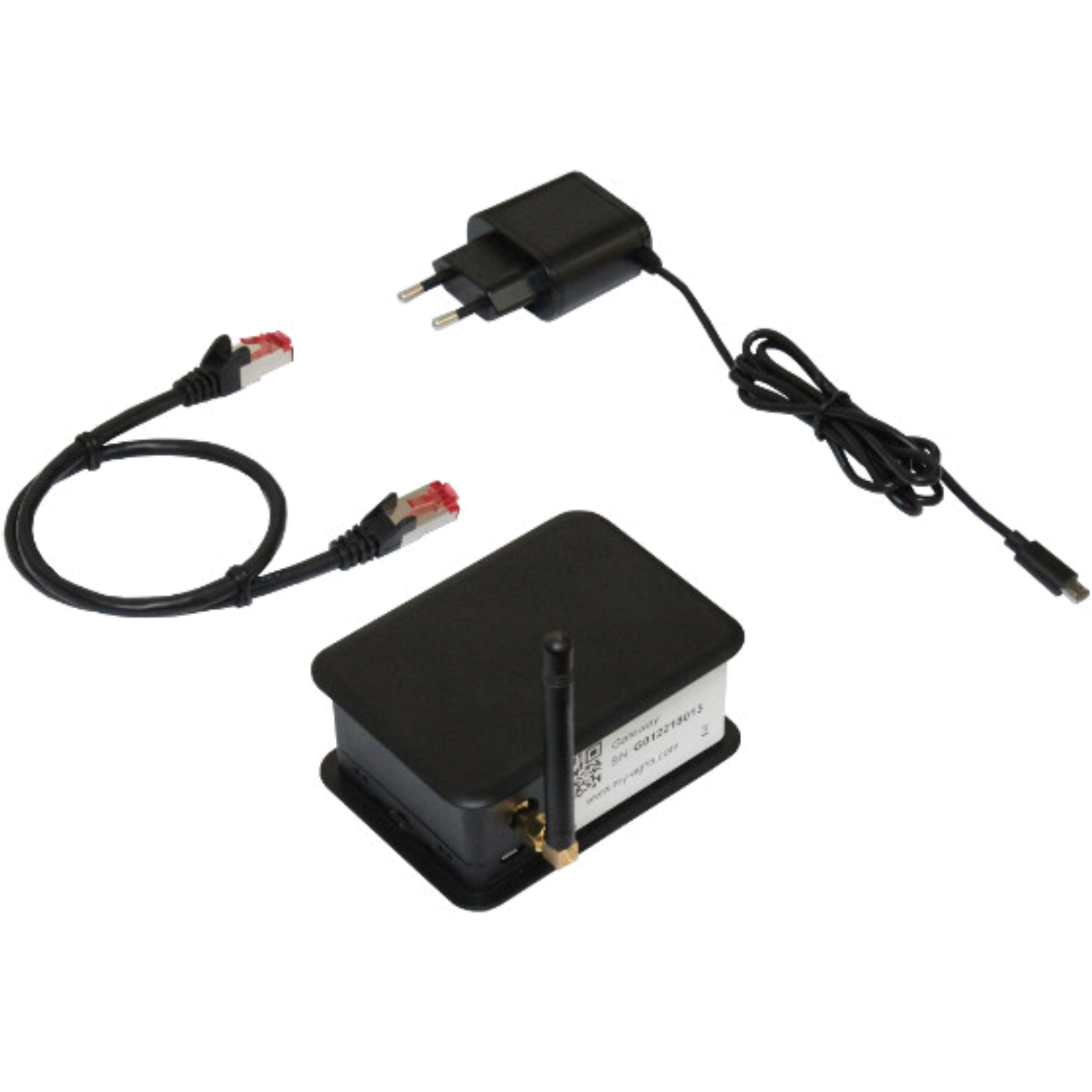

Gateway:
- ABS plastic housing
- Housing dimensions 101 x 74 x 43 mm (L x W x H)
- LAN connection with network cable
- Data transmission from the sensor via LoRa radio technology
- Radio frequency 868 MHz
- AES-128 encryption
- Transmission interval to the server 10 minutes, critical values immediately
- Power supply via 230 V power supply unit
Onsenso server:
- Storage of measured values
- Access to real data only for customers
- Server location Austria
Onsenso web portal:
- User administration
- Creation of gateways and sensors
- Visualization of the measured values
- Defining the alarms

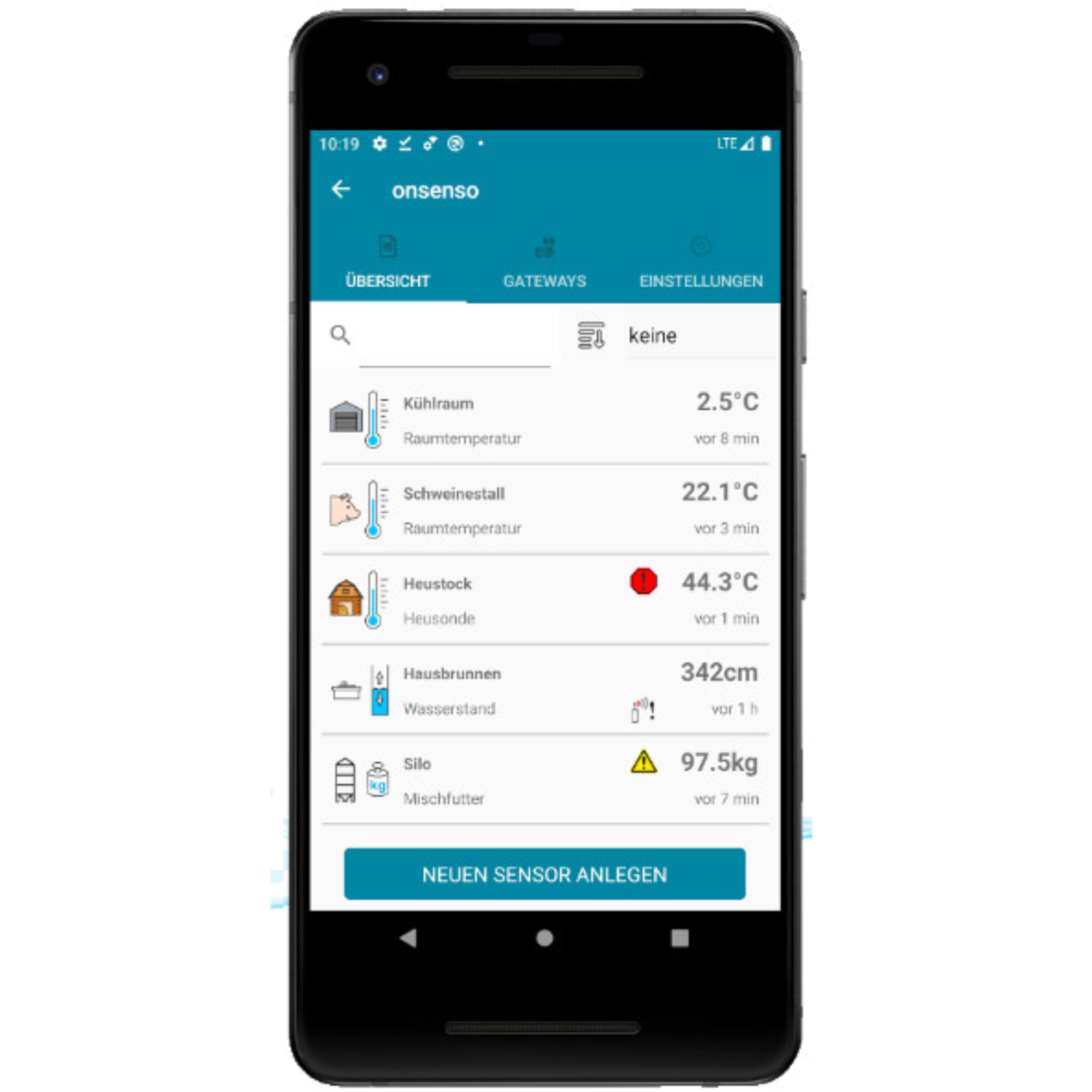

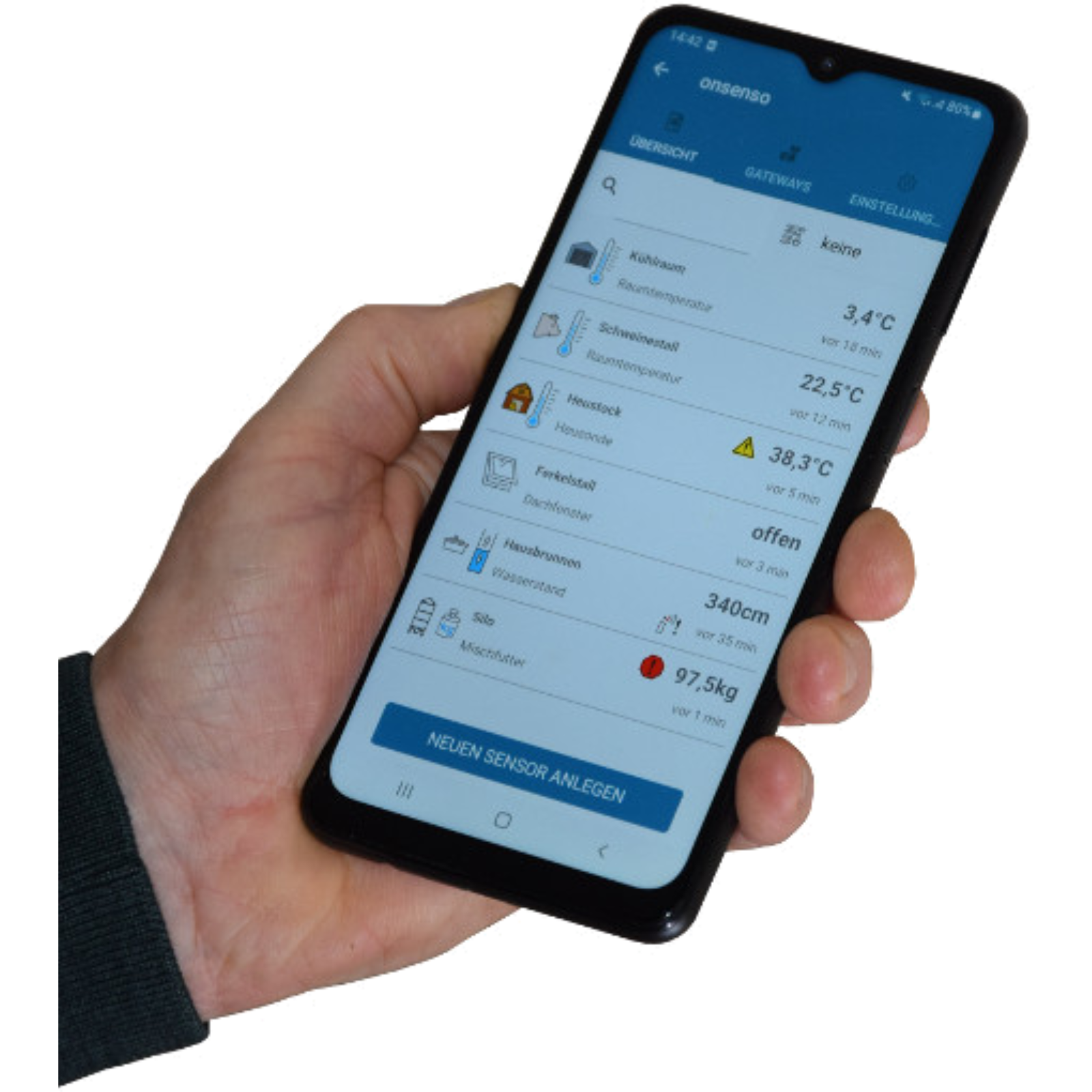

Onsenso mobile app:
- Creating the gateways and sensors
- Visualization of the measured values
- Defining the alarms
- Alerting via push messages
Prerequisite:
Stationary or mobile Internet modem from the cell phone operator with network cable connection for the gateway
ATTENTION: A license is required for operation, which incurs additional costs. (The license is included in the purchase price for the first year)
| Search number: | 129406 |
|---|
Hersteller
Agris GmbH Agrarelektronik Wiegesys.
Pommersdorf 11
3820
Raabs
AT
[email protected]
GTIN/EAN:
9120065911118
