Hydraulic top link with catch hook cat. 3

Product number: 24991

€569.00 *

Content: 1 Stück

Prices incl. VAT plus shipping costs

▶ Leave a review!

detail.deliveryTimeAvailableHR

Ø Bolzen mm / Kat.

25/2

32/3

Questions about the article

article in FAIE catalog

You get 2845 points for this order

Product number	Ø Bolzen mm / Kat.	Unit price	Custom field	Delivery time	Content	Buy

Beschreibung

Product information "Hydraulic top link with catch hook cat. 3"

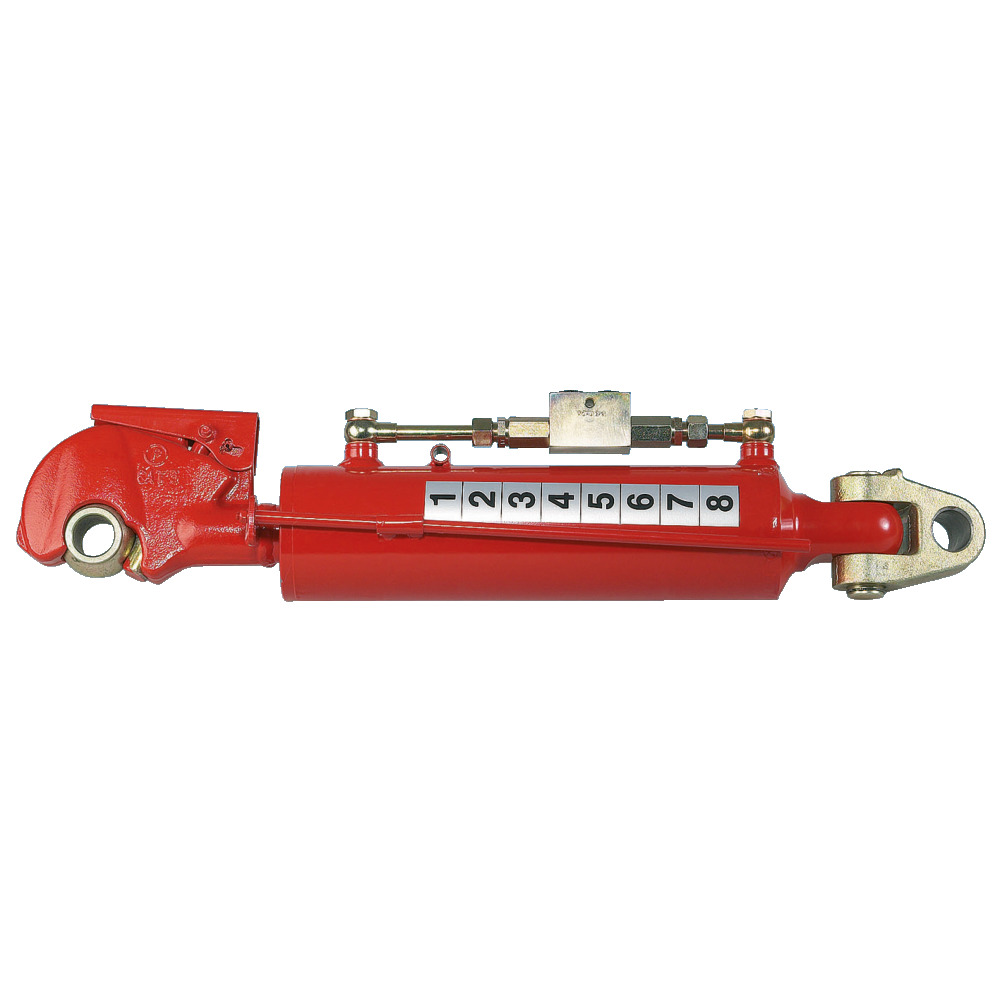

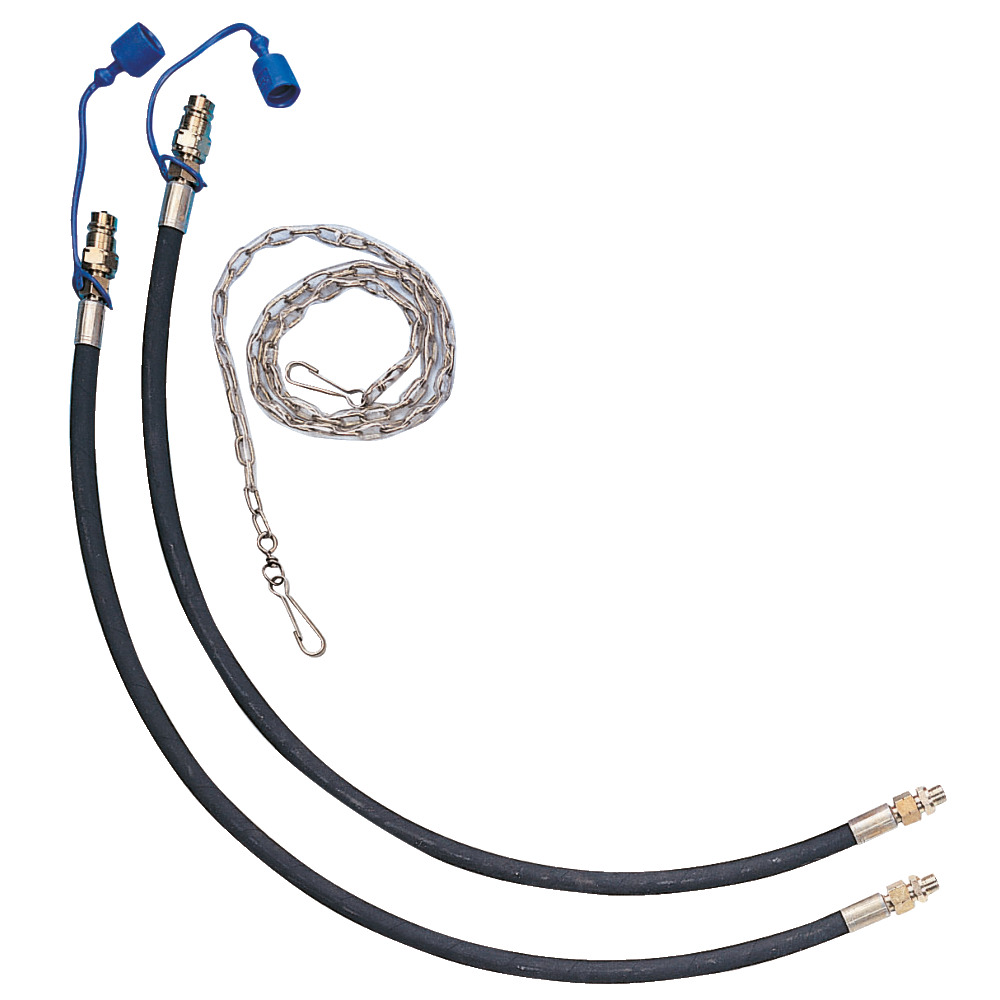

Hydraulic top link with cat. 3 catch hook and articulated head support. Particularly suitable for mounting heavy implements. The top link is supplied with a hydraulically unlockable non-return valve (locking block). The connection hoses are complete with plug, dust protection and the appropriate screw-in connector for the locking block. The actuation chain for the catch hook and the top link ball are included in the scope of delivery. Suitable for tractors up to approx. 250 hp, piston Ø K = 90 mm, piston rod Ø S = 45 mm, pushing force 11451 kg, pulling force 8588 kg.

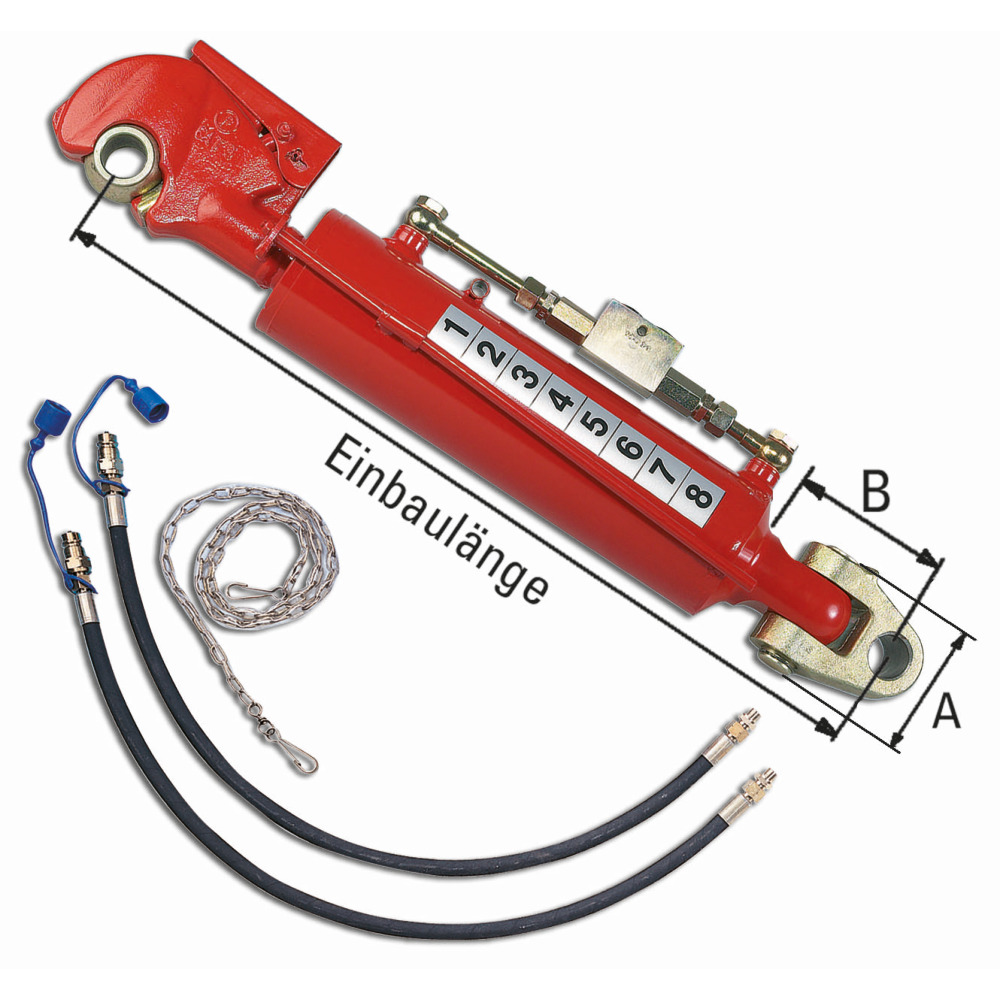

The specified lengths always refer to the centre of the pin to the centre of the pin!

A (mm):	100
B (mm):	140
Installation length EL (mm):	660
Stroke (mm):	270
Ø bolt (mm / cat.):	32,3/3
Ø outer pipe (R)(mm):	105

Hersteller

Faie Handelsgesmbh
Handelsstraße 9
4844 Regau
AT
[email protected]
MPN:

Downloads

pros_hy-oberlenker.pdf
