Maintenance of chainsaws
Source: Prüfer, M. (2015): Wartung und Pflege der Motorkettensäge. Waldpost 2015/2016 , Zeitung für Waldbesitzer in Sachsen: 22 -23. Fottner, T. (2020): Motorsäge richtig warten. Landwirt-media.com, Link: https://www.landwirt-media.com/motorsaege-richtig-warten/
Good care and regular service not only increase the lifespan of vehicles, but also chainsaws require proper maintenance. A chainsaw in good condition ensures consistent performance and can prevent accidents while working, as well as reducing the operator's physical strain. Furthermore, a well-maintained saw requires less fuel and lubricant.
Maintenance requires:
- The original tool supplied with the chainsaw
- pliers and screwdriver
- Brush for cleaning
- suitable saw chain file
- Read the operating instructions carefully and follow the manufacturer’s instructions!
In general, maintenance work can be divided into daily, weekly, and long-term maintenance. The maintenance interval should be adjusted to the intensity of use of the saw. If you have any technical questions, be sure to consult your FAIE specialist.
- Daily check after using the chainsaw:
After each use, a thorough cleaning of the saw is recommended. Sawdust, any skewered pieces of wood, and other work residue should be removed. In particular, the cooling fins (especially at the exhaust connection) and the air intake openings in the fan housing should be cleared.
Inadequate cooling can lead to the dreaded "piston seizure"! The engine must be able to breathe freely.
Dirty air filters lead to:
- increased fuel consumption
- increased exhaust emissions, loss of performance
- higher engine wear
Starting difficulties: Visual inspection: Check all components for tightness, cracks, and other damage. The chain should also be checked for cracks, deformation, or signs of uneven wear. Additionally, the throttle trigger and throttle lockout must be checked for proper function. The chain brake should also be tested and cleaned. The start-stop switch should also be checked. Also, make sure the fuel tank is leak-proof!
Before starting the saw, you must check the chain for sharpness and tension.
- Weekly work after use
The starter rope and recoil spring should be checked for proper function and damage. The damping system should also be inspected. The clutch drum bearings should also be lubricated if necessary. The air filter, carburetor, and cooling fins should also be cleaned more thoroughly. Finally, the spark plug should be checked for contamination, as this could indicate problems with the fuel mixture or carburetor settings.
- Long-term work
The fuel and oil tanks should be cleaned internally; the fuel filters and lines should also be checked and replaced if necessary. Spark plugs should be cleaned, and the electrode gap should be checked. Additionally, cables and connections should be checked for tightness and insulation. The clutch and the chain brake band should also be inspected for damage, excessive wear, and worn springs.
Your chainsaw may require different maintenance intervals or maintenance tasks. You can find information about this in your machine's manual. Alternatively, you can also ask your dealer or specialist directly.
You can find all products on this topic here: Chainsaw spare parts
Our offer
7 %
#FA98912
Stihl
AK 20 36V 3.9Ah battery
Sale and shipment by: FAIE Handels GmbH
Compact battery with even longer performance, compatible with the Stihl devices MSA 120 C-BQ, FSA 56, HSA 45~ BGA 56 and Viking MA 235. Weight 1.2 kg, battery energy 118WhSuitable charger: Faie No. 98992
5 %
#FA98914
Stihl
AK 30 36V S 4.8 Ah battery
Sale and shipment by: FAIE Handels GmbH
The most powerful in its performance class! With a powerful 4.8 Ah, also suitable for harder or longer use.Compatible with the Stihl devices MSA 120 C-BQ, FSA 56, HSA 45, BGA 56, and Viking MA 235. Weight 1.3kg, battery energy 180WhSuitable charger: ~ Faie No. 98992
15 %
#FA98911
Stihl
Akku Stihl AK10 36V 2,0Ah
Sale and shipment by: FAIE Handels GmbH
Basis Akku für Stihl Akku Geräte, kompatibel mit den Stihl Geräten MSA 120 C-BQ, FSA 56, HSA 45 & BGA 56, sowie Viking MA 235.Gewicht nur 0,8kg, Akku Energie 72Wh
4 %
#117896
Stihl
Battery AP
Leistung:
337 Wh
|
Execution:
AP 500S
|
Gewicht (g):
2000
Sale and shipment by: FAIE Handels GmbH
36 volt lithium ion battery for the STIHL AP battery system PROFI.The STIHL AP system supports you in your daily gardening, landscaping and tree care tasks. The matching AP lithium-ion batteries help you to use STIHL cordless tools for even the most demanding jobs. Four LED lights keep you constantly informed about the battery charge status. Thanks to the new Power Laminate technology, the STIHL AP 500 S battery offers you double the number of possible charging cycles compared to the previous STIHL batteries. The power output has also been increased again compared to the STIHL AP 300 S. The STIHL AP 500 S battery can also be integrated into the STIHL connected fleet management system. This gives you transparency about the actual operating time at all times.
Variants from €235.00*
#FA109457
Stihl
Battery AS 2 10.8 volts
Sale and shipment by: FAIE Handels GmbH
Compatible with the STIHL battery AS 2. With operating status display (LED flashing pattern).Lightweight, compact and powerful 10.8 V battery. Compatible with all 10.8 V devices from the STIHL AS system (not HSA 25). 28 Wh battery energy. Weight 220 g.High performance thanks to 28Wh energy contentCan be used in all 10.8 V products of the AS systemPowerful, versatile 10.8 V battery Lightweight and compact with a weight of only 220 g Technical dataRated voltage (V) V 11 Weight kg 0.22 Capacity battery pack Ah 2.6 Energy content Wh 28
4 %
#FA98990
Stihl
Battery charger AL 101
Sale and shipment by: FAIE Handels GmbH
Charger for the STIHL AS 2, AP &~ AK batteries, Lithium Ion PRO system,Cable storage with practical Velcro strap, wall mounting possible.Connection 230V, power consumption 0.1 kW, charging current 1.6 A, weight 0.7 kg.Charging time AK 10: <~cbht />~ 80 min 1)Charging time AK 20: <~cbht />~150 min 1)Charging time AK 30: <~cbht />~205 min 1)Loading time AP 100:<~cbht />~ 90 min 1)Charging time AP 200:<~cbht />~165 min 1)Charging time AP 300:< ~cbht />~250 min 1)1) Charging time in minutes to 100% capacity
2 %
#FA109430
Stihl
Chainsaw 220 C-BQ battery
Sale and shipment by: FAIE Handels GmbH
The powerful cordless chainsaw with Stihl quick chain tensioning (B) has a felling bar and a strong-cutting, low-kickback 3/8? STIHL Picco Super chain. The high chain speed of up to 24 m/s ensures rapid work progress. Recommended battery - AP 300 S. Delivery loose, ~ without battery and charger. Technical data:Weight: 3.6 kgWeight without battery: 2.9 kg Nominal voltage: 36 VBar length: 40 cmSaw chain pitch: 3/8?PSound pressure level dB(A): 89 Sound power level dB(A): 100Battery technology: lithium-ion AP systemBattery runtime with AP 200/300: up to max. 42 minutes/45 minutesBattery life with AP 300 S: up to max. 48min Battery life with AR 2000/3000: up to max. 160 min/200 min
5 %
#124531
Stihl
Chainsaw MS 162
Kettenteilung:
3/8" P
|
Nutbreite (mm):
1,3
|
Nutbreite (mm):
1,1
|
Sword length (cm):
35
Sale and shipment by: FAIE Handels GmbH
The new entry-level chainsawfor private property maintenance. No matter whether you want to saw firewood, cut fruit trees or fell smaller trees , the light and robust STIHL MS 162 chainsaw is suitable for occasional use in a wide variety of applications.The powerful STIHL 2-MIX motor and the narrow 3/8"P saw chain ensure good cutting performance with low consumption at the same time.Thanks to the single lever operation, you can control all functions such as start, operation and stop with just one hand. After the stop is pressed, the lever automatically springs back into the operating position. Further comfort features include a stress-relieving anti-vibration system and ~the safe and easy retightening of the chain through the side chain tension.Technical data: ~Displacement: 30.0 cm ~Performance : 1.2 kW / 1.6 HP ~Weight without rail and chain: 4.5 kg ~
Variants from €179.95*
3 %
#124534
Stihl
Chainsaw MS 172
Kettenteilung:
3/8" P
|
Nutbreite (mm):
1,3
|
Sword length (cm):
30
Sale and shipment by: FAIE Handels GmbH
Compact and versatile! ~Firewood saws, maintenance work on your own property or in gardening and landscaping and light forestry work. ~The 1.9 hp MS 172 impresses in all applications perfect technology and comfortable equipment.:The standard STIHL 3/8'' P saw chain ensures precise cuts with its narrow kerf.With the STIHL MS 172 chainsaw you can work thanks to the STIHL Anti-vibration system is gentle on muscles and joints.Your chainsaw runs quietly and evenly. The single-lever operation is particularly convenient, allowing you to carry out all functions with just one hand. If you take a break from work, the chainsaw is ready to start again straight away. The combination lever with stop function springs back into the operating position automatically cm ~Power: 1.4 kW / 1.9 HP ~Weight without rail and chain: 4.5 kg ~The STIHL MS 172 has the above for maintaining your petrol chainsaw In addition, there is a diagnostic socket.This will provide your local STIHL specialist dealer with information about the machine version, running time as well as repair and maintenance instructions.
Variants from €289.00*
8 %
#124535
Stihl

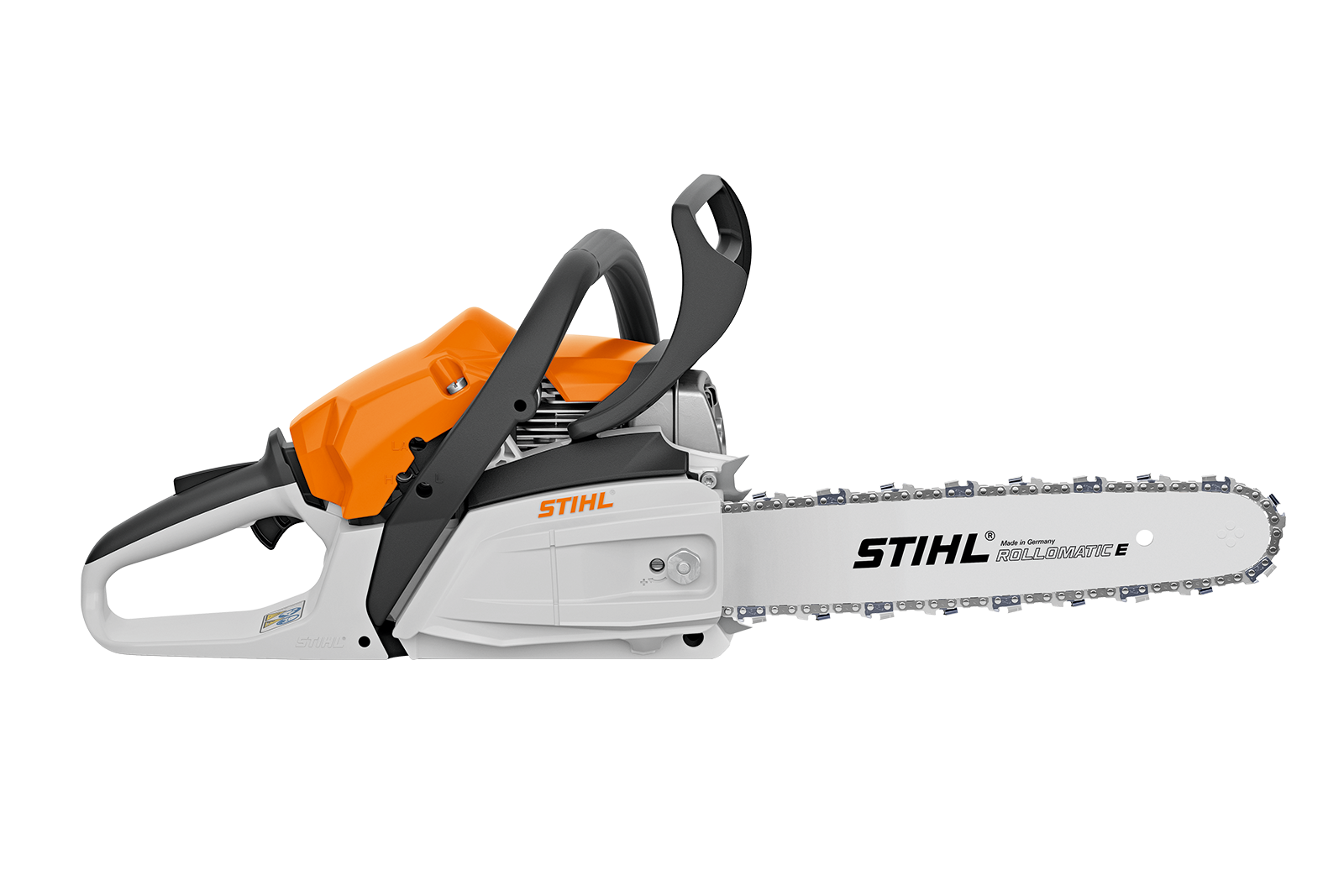

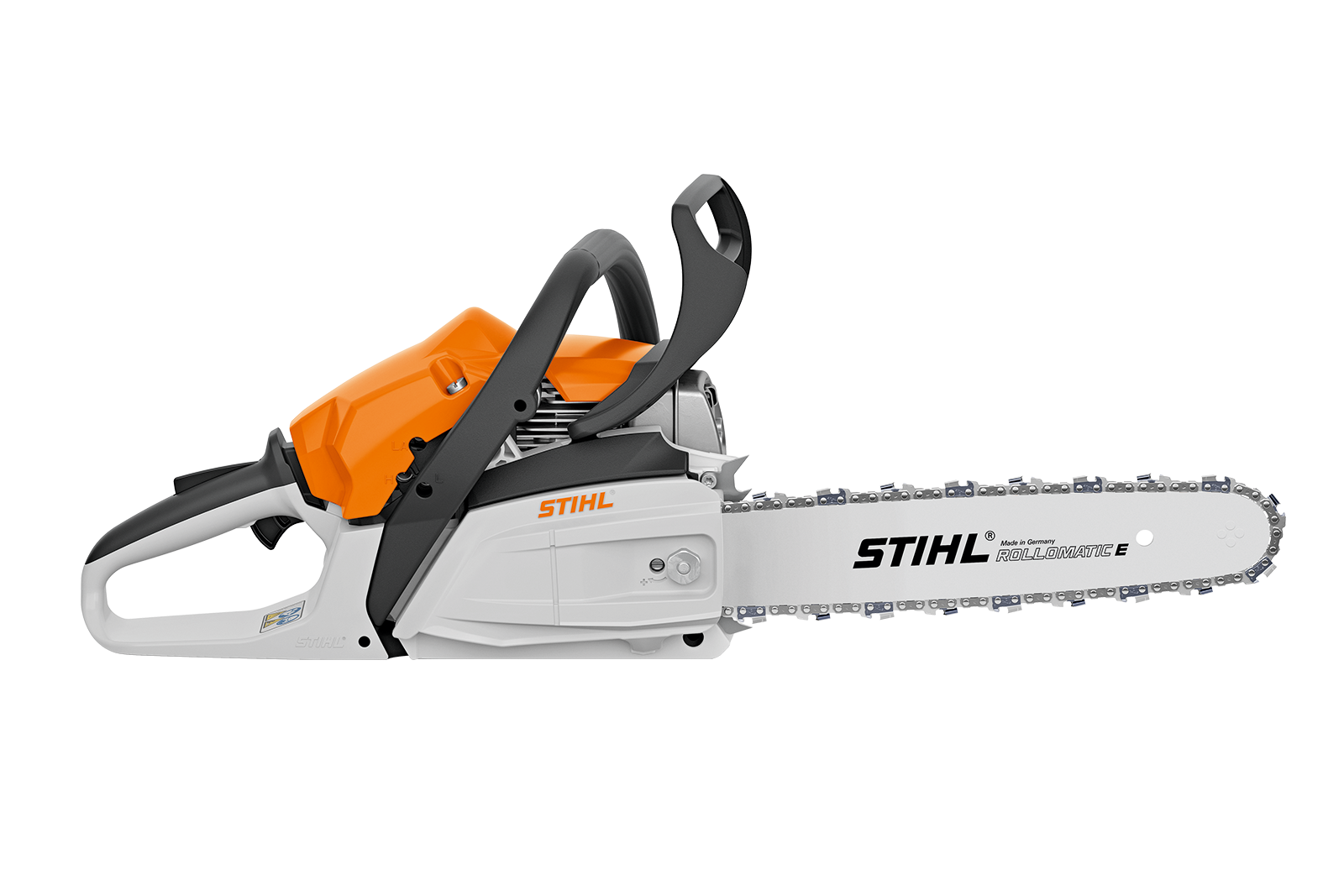

Chainsaw MS 182
