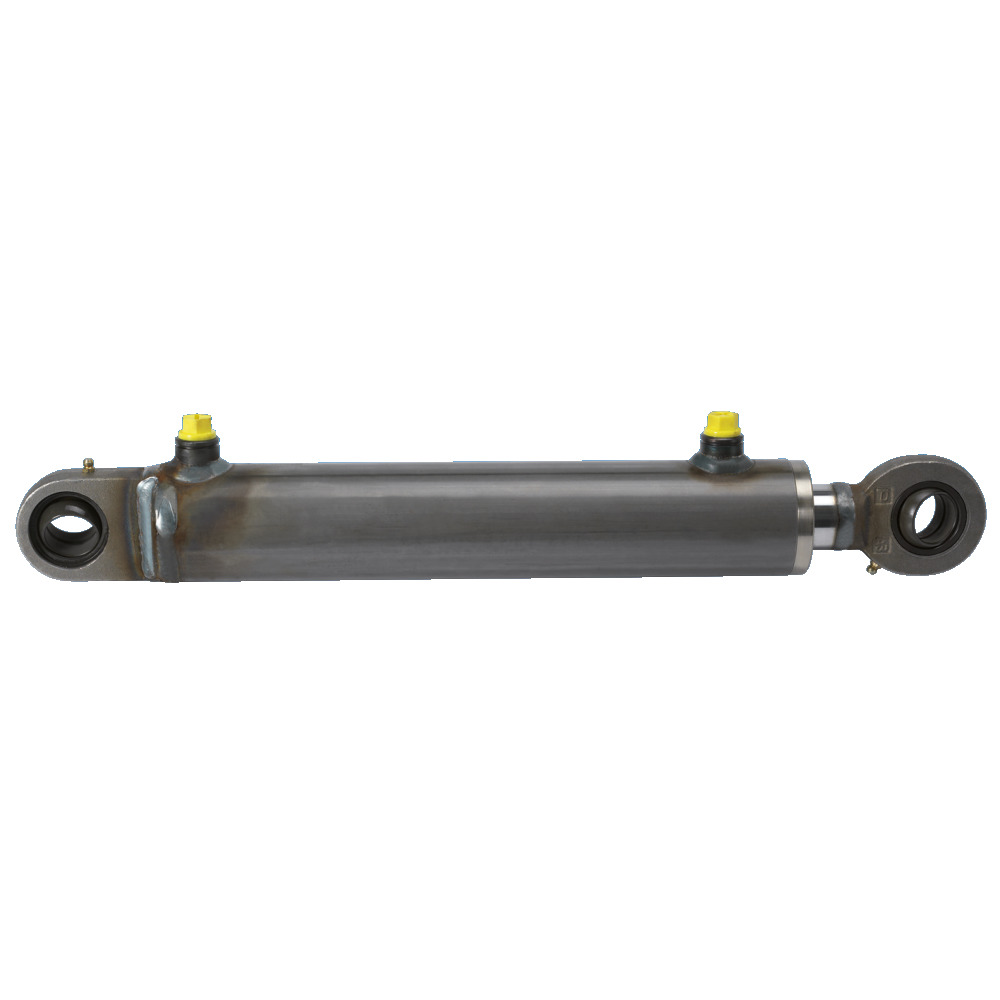

Hydraulic cylinder piston � K = 25 mm, piston rod � S = 16 mm
Hydraulic cylinder piston � K = 25 mm, piston rod � S = 16 mm
Beschreibung
Product information "Hydraulic cylinder piston � K = 25 mm, piston rod � S = 16 mm"
Bolt d=16 mm, connection G=R1/4", T=35 mm, U=15 mm, pressure force 883 kg, tensile force 521 kg at 180 bar, nominal pressure 250 bar.
Joint eye 16 mm with lubrication hole on both sides .
Joint eye 16 mm with lubrication hole on both sides .

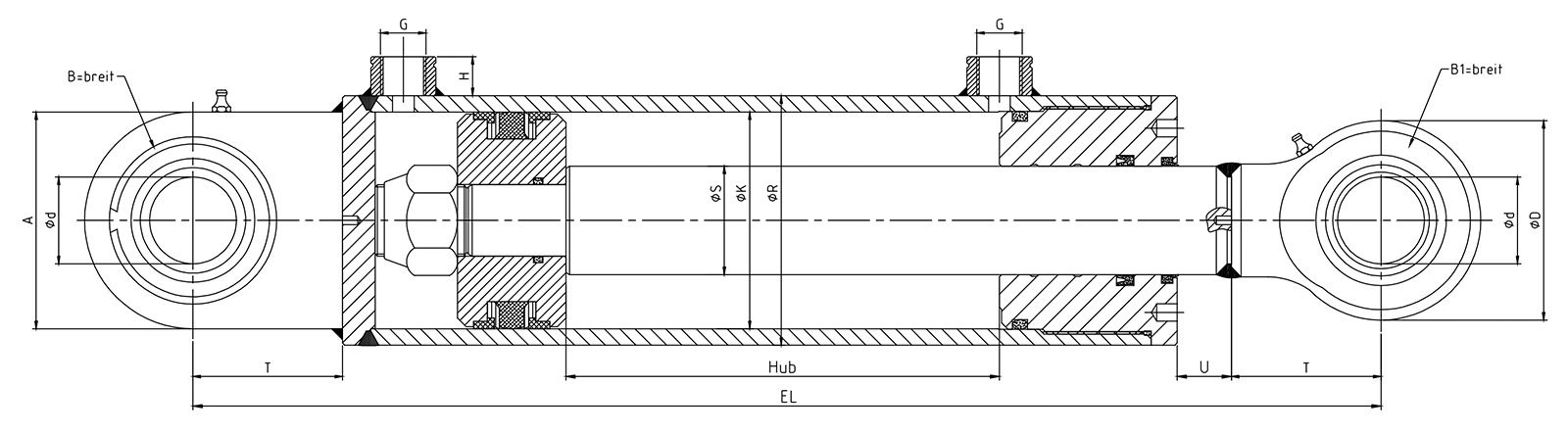

| A (mm): | 46 |
|---|---|
| B (mm): | 14 |
| B1 (mm): | 14 |
| Installation length EL (mm): | 456 |
| Stroke (mm): | 300 |
| Ø D (mm): | 46 |
| Ø outer pipe (R)(mm): | 35 |
