Diesel tank fill level monitoring starter set
Diesel tank fill level monitoring starter set
Product number:
FA129411
€379.00 *
Content:
1
Stück
available within 14 working days
Our best price - No further discount possible!
Beschreibung
Product information "Diesel tank fill level monitoring starter set"

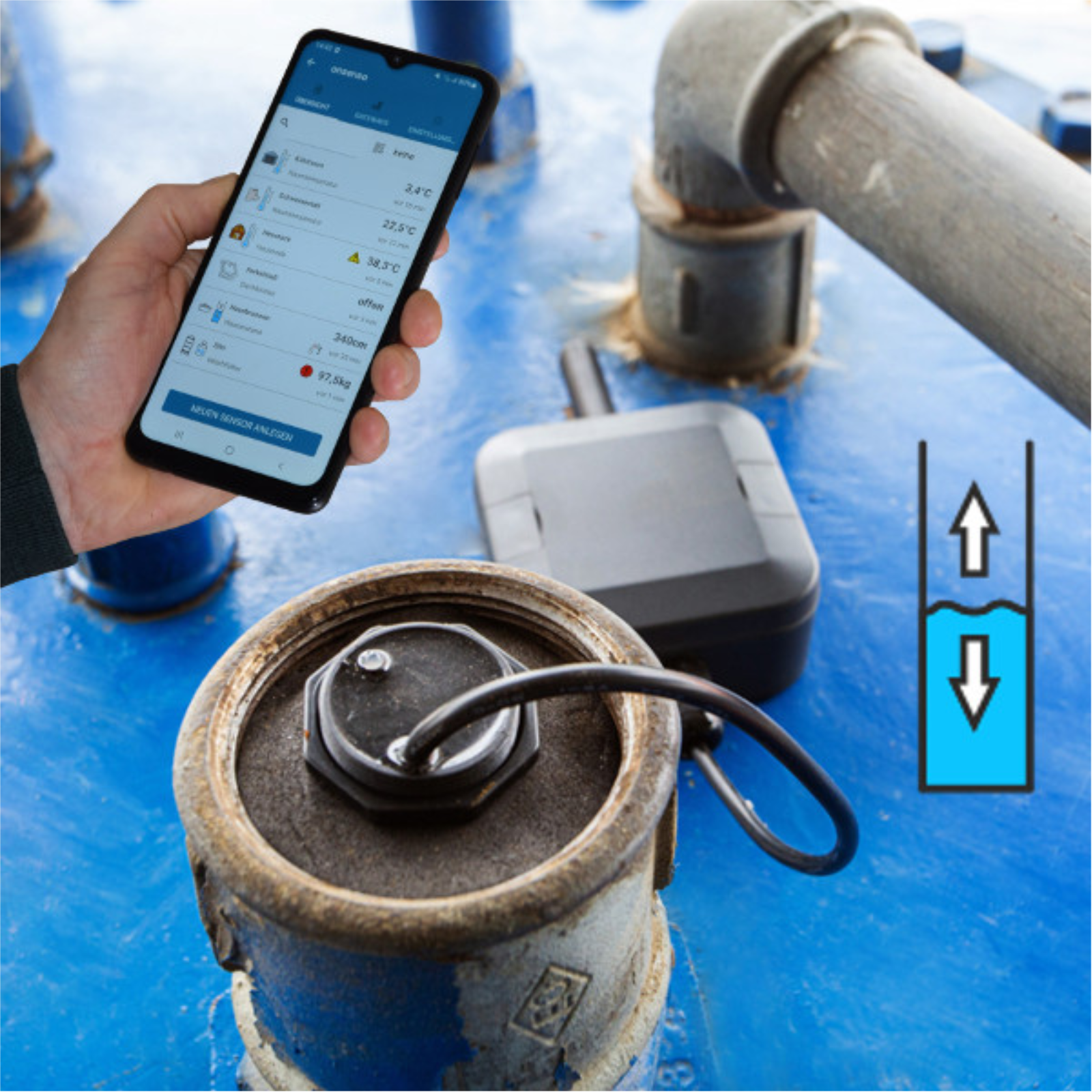

Set for monitoring the fill level of tanks
Measurement of the fill level with automatic conversion to the fill quantity
Fuel level available on your cell phone at all times
Push message for timely reordering if the minimum fill level is not reached
Product description:
Reliable and convenient monitoring of your diesel tank
The onsenso monitoring system measures the fill level and converts it to the available fill quantity. You can check your fuel level at any time on your PC or cell phone.
Timely reordering
If the level falls below the set minimum quantity, the information for reordering is sent via push message or e-mail. The system can be set so that the message is also sent to external persons - your supplier, for example.
Secure data management
Data is transmitted in encrypted form exclusively via your own onsenso gateway directly to the onsenso server. Only you (and persons authorized by you) can view and evaluate your measurement results with your access data.

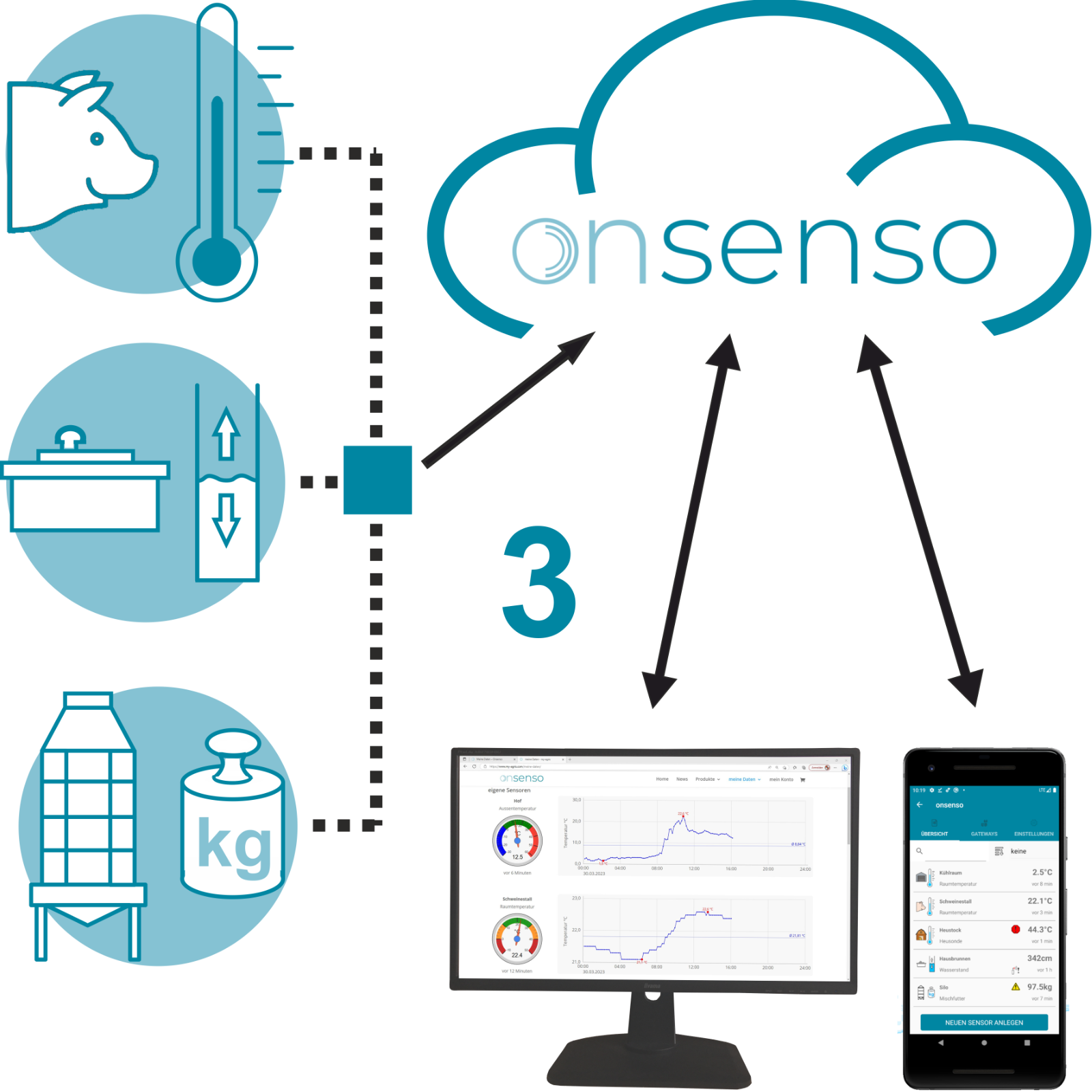

Basis for the onsenso remote monitoring system
With this set you have all the components you need to get started with Onsenso remote monitoring, including the gateway and the first annual license. You can add further sensors or measuring devices at any time and expand your system.
Scope of delivery:
- 1 level sensor incl. battery
- 1 gateway incl. power supply unit and network cable
- 1 annual license for up to 3 sensors
- Instruction manual

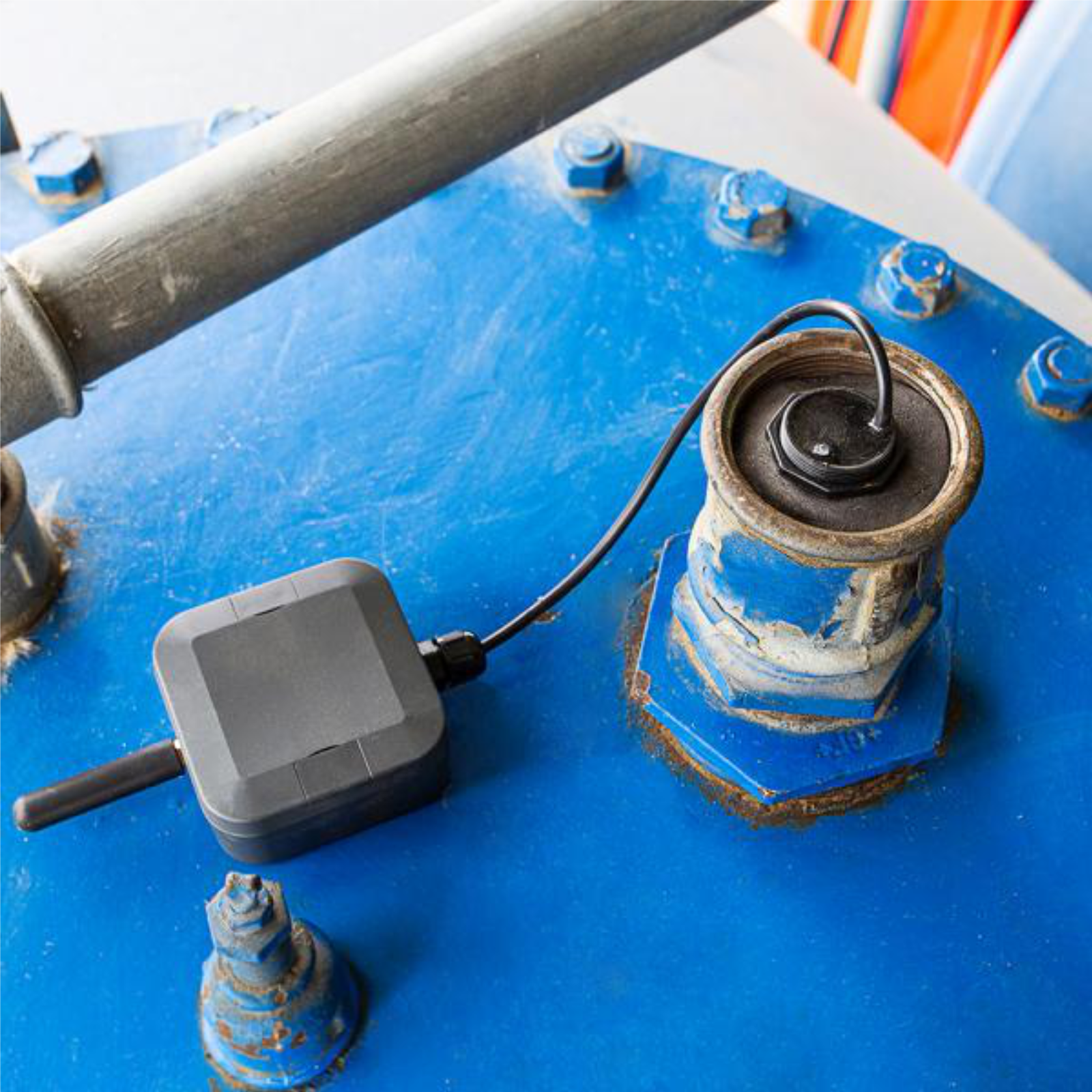

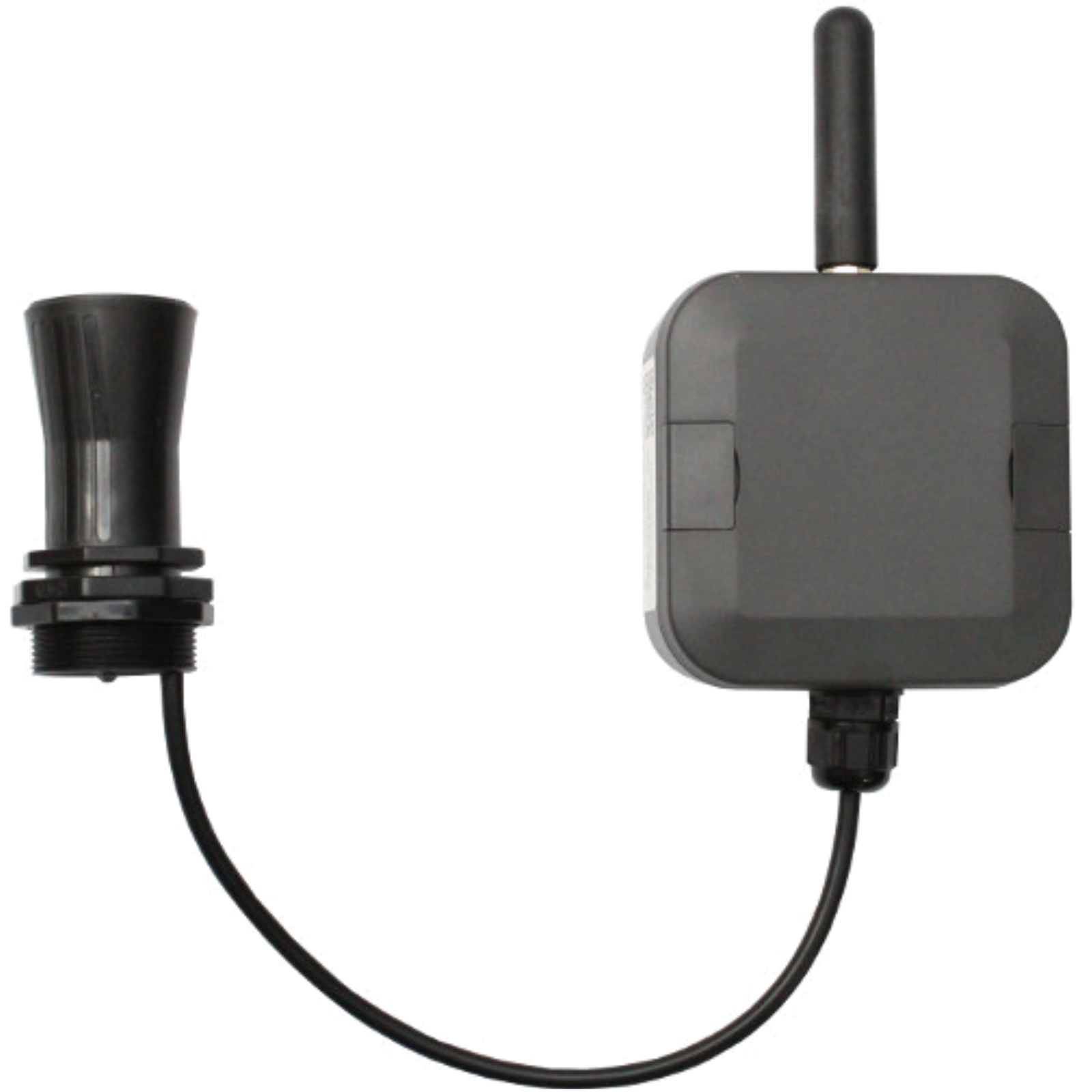

Sensor:
- ABS plastic housing
- Protection class housing IP67
- Housing dimensions 75 x 75 x 35 mm (L x W x H)
- Sensor measuring range 28 to 750 cm
- Distance measurement with infrared technology
- Sensor protection class IP67
- Cable length 0.3 m
- Sensor dimensions 31 x 66 mm (diameter x length)
- Mounting diameter 22 mm
- Operating temperature -15 to +60 °C
- Data transmission via LoRa radio technology
- Radio frequency 868 MHz
- AES-128 encryption
- Measuring interval / transmission interval 60 minutes
- Range up to 1,000 m
- Power supply via lithium battery 1 x LS14500 3.6 V
- Battery life approx. 2 years

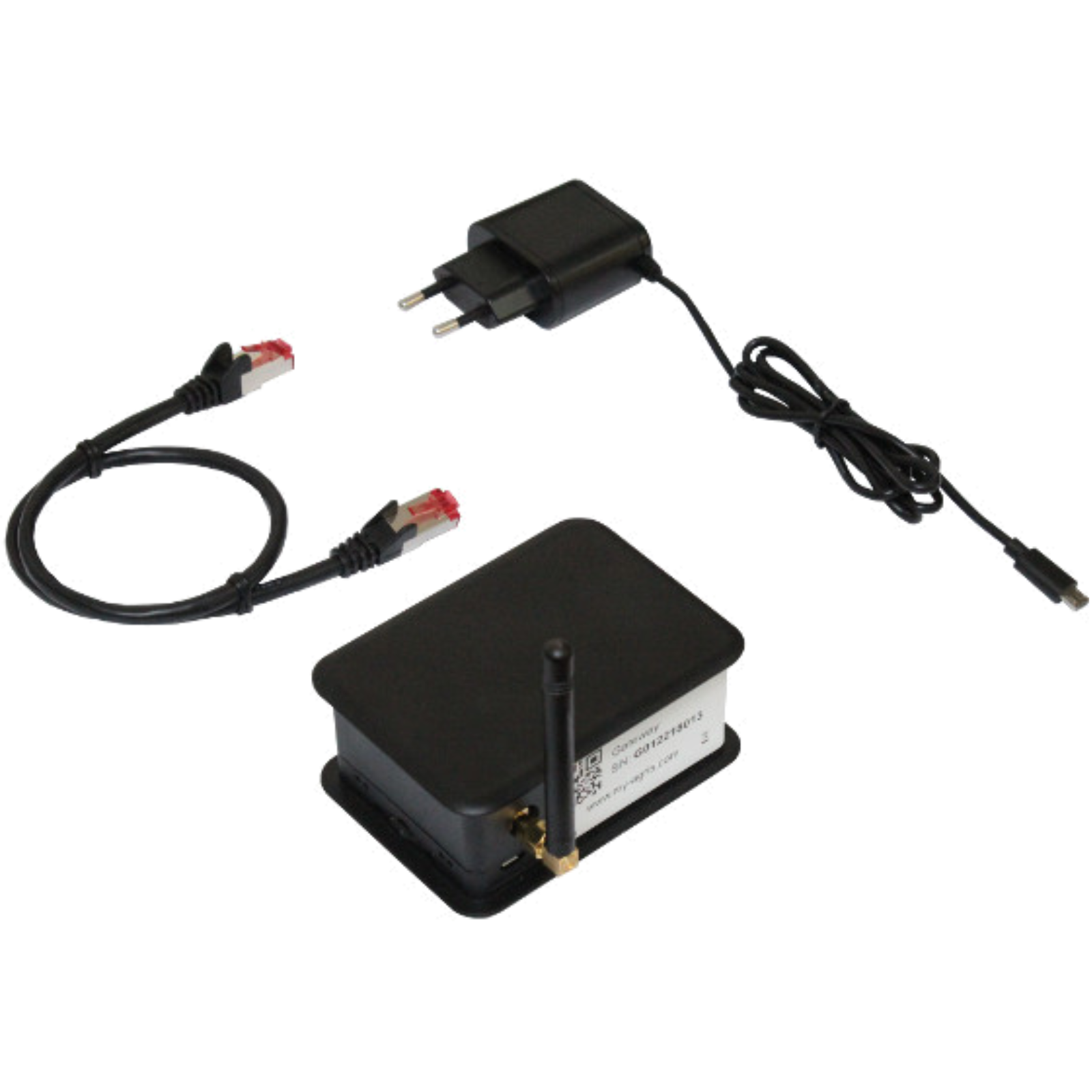

Gateway:
- ABS plastic housing
- Housing dimensions 101 x 74 x 43 mm (L x W x H)
- LAN connection with network cable
- Data transmission from the sensor via LoRa radio technology
- Radio frequency 868 MHz
- AES-128 encryption
- Transmission interval to the server 10 minutes, critical values immediately
- Power supply via 230 V power supply unit
Onsenso server:
- Storage of measured values
- Access to real data only for customers
- Server location Austria
Onsenso web portal:
- User administration
- Creation of gateways and sensors
- Visualization of the measured values
- Defining the alarms

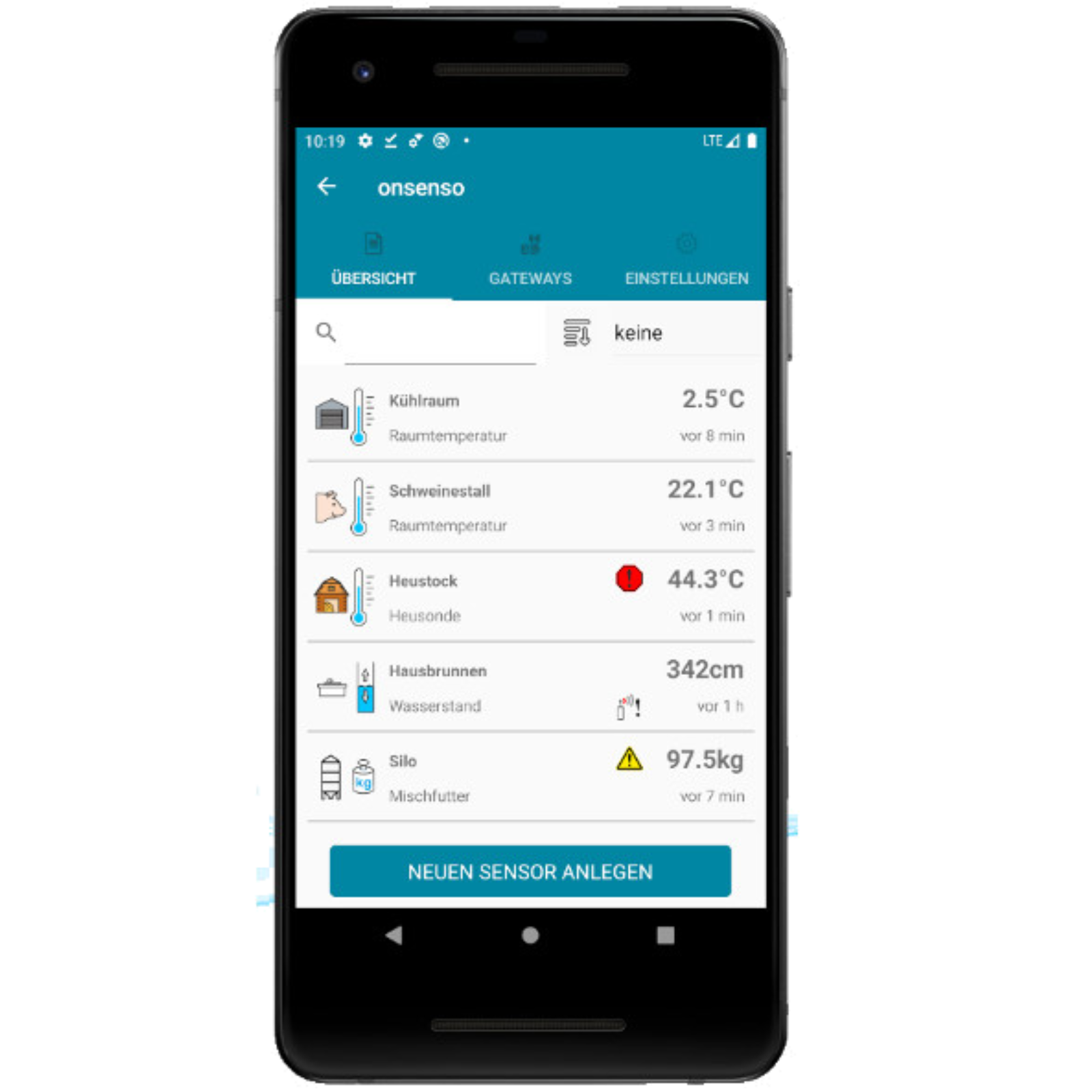

Onsenso mobile app:
- Creating the gateways and sensors
- Visualization of the measured values
- Defining the alarms
- Alerting via push messages
Prerequisite:
Stationary or mobile Internet modem from the cell phone operator with network cable connection for the gateway
ATTENTION: A license is required for operation, which incurs additional costs. (The license is included in the purchase price for the first year)
