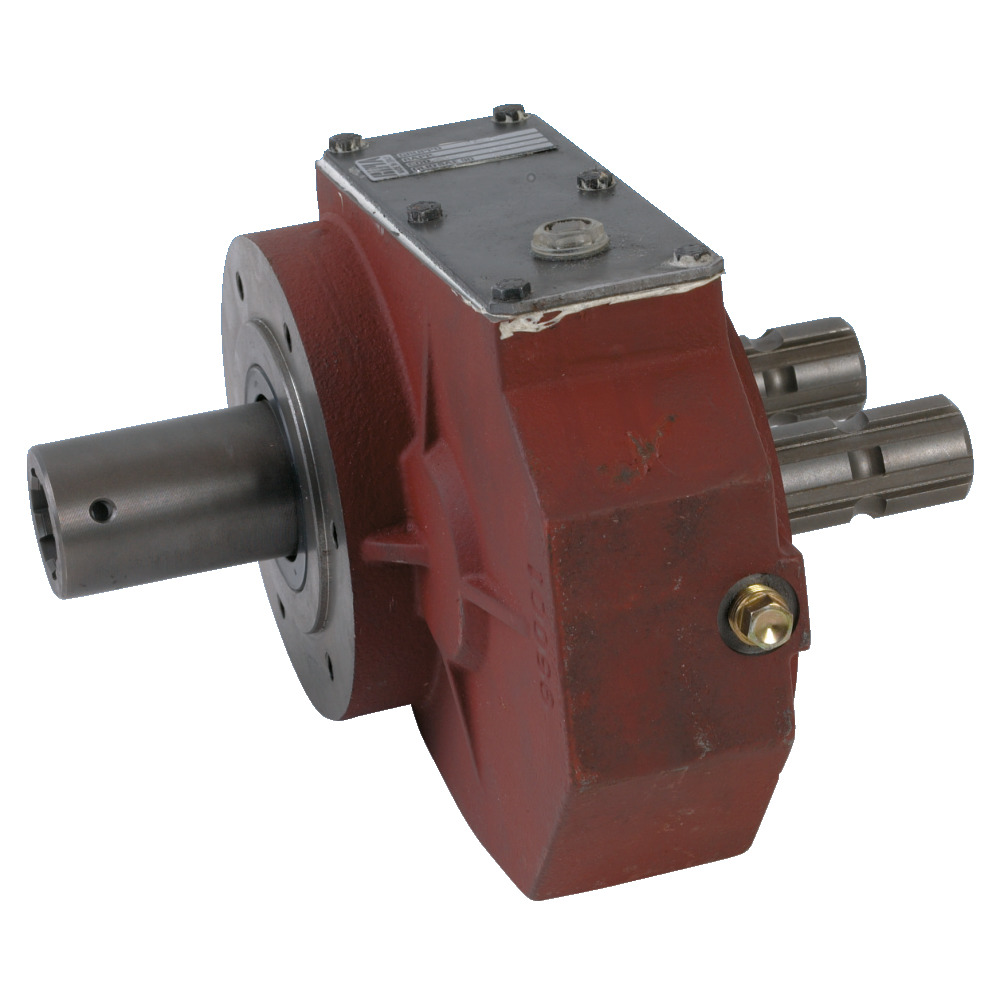

Bondioli & Pavesi Reversing gear M5, 1:1
Bondioli & Pavesi Reversing gear M5, 1:1
Beschreibung
Product information "Reversing gear M5, 1:1"
Technical data: 22 kW, 540 rpm, 395 Nm
Input connection: 1-3/8x6 (inner profile)
Output connection: 1-3/8x6
1. Output shaft: direction of rotation remains the same
2nd output shaft: reversal of direction of rotation
In general, torque peaks of up to 2 times the nominal torque do not cause any damage to the individual gear components. However, complete integrity can only be guaranteed by a suitable safety device.
Input connection: 1-3/8x6 (inner profile)
Output connection: 1-3/8x6
1. Output shaft: direction of rotation remains the same
2nd output shaft: reversal of direction of rotation
In general, torque peaks of up to 2 times the nominal torque do not cause any damage to the individual gear components. However, complete integrity can only be guaranteed by a suitable safety device.
| Power at 540 rpm: | 22 |
|---|---|
| Suchnummer: | 30449 |
| Torque input at 540 rpm (Nm): | 397 |
| Torque output at 540 rpm (Nm): | 395 |
Hersteller
Bondioli + Pavesi
Im Neugrund 8
64521
Groß-Gerau
DE
[email protected]
MPN:
