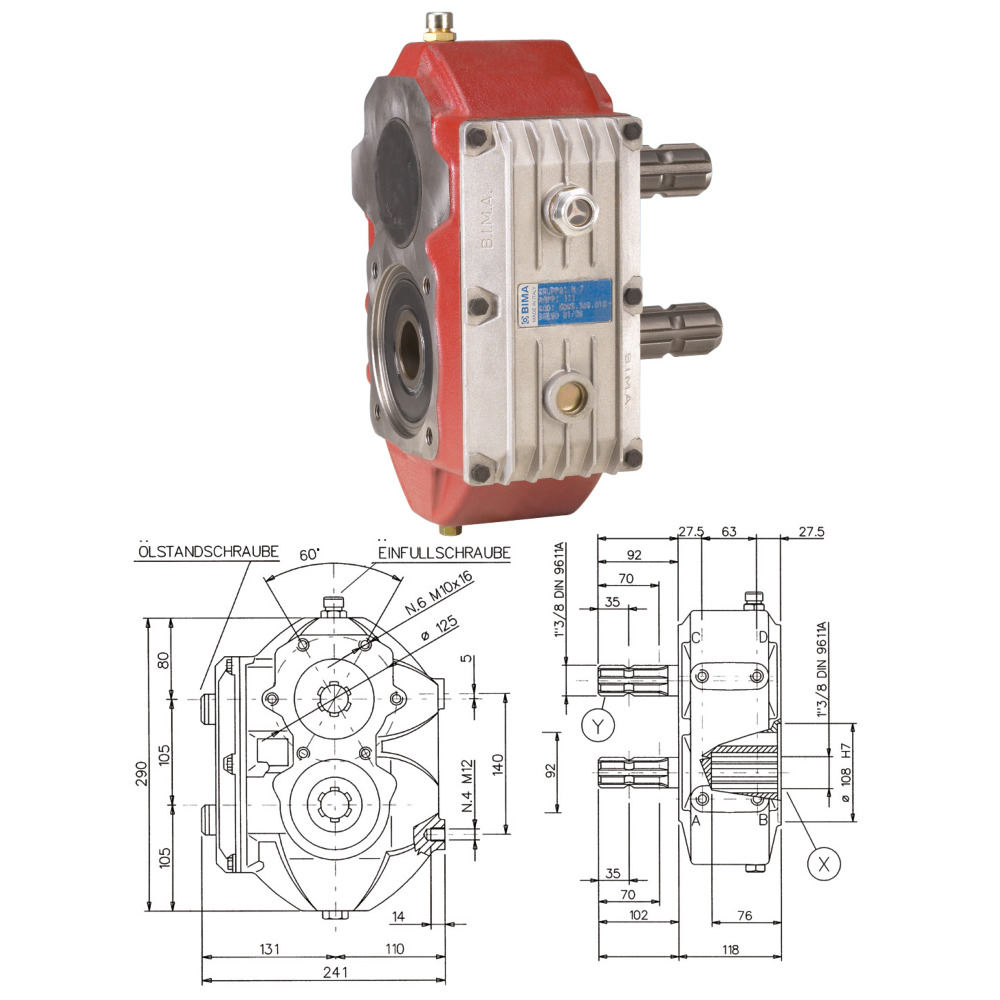

Bondioli & Pavesi Reversing gear M7 1:1
Bondioli & Pavesi Reversing gear M7 1:1
Beschreibung
Product information "Reversing gear M7 1:1"
Reversing or reversing gear to change the direction of rotation with through drive.
Input Y:
540 rpm
Power: 51.5 kW
Torque: 910 Nm
Connection 1 3/8x6
Reversal of direction of rotation
Possibility with through drive 1:1 (direction of rotation remains the same).
In general, torque peaks up to 2 times the nominal torque do not lead to any damage to the individual gear components. However, complete integrity can only be guaranteed by a suitable safety device.
Input Y:
540 rpm
Power: 51.5 kW
Torque: 910 Nm
Connection 1 3/8x6
Reversal of direction of rotation
Possibility with through drive 1:1 (direction of rotation remains the same).
In general, torque peaks up to 2 times the nominal torque do not lead to any damage to the individual gear components. However, complete integrity can only be guaranteed by a suitable safety device.
| Suchnummer: | 38132 |
|---|
Hersteller
Bondioli + Pavesi
Im Neugrund 8
64521
Groß-Gerau
DE
[email protected]
MPN:
Downloads
There are no downloads available for this article
