Scraper floor parts & front loader tines

Bucket tooth for welding made of boron steel

Bushing centric

Bushing eccentric

Chain screw M10x50, strength 8.8

Chain screw M10x50 for chain pitch 10x31, 10x35, 10x38 11x31 and 11x35. Suitable for scratching floors from Claas, Krone and Mengele. The scraper floor screw has a strength of 8.8.

Chain sprocket 10x31 open, bore �40mm, KN12mm outer �127mm, in GG25

Chain sprocket/sprocket suitable for Mengele with threaded hole for worm screw

Chain sprocket 10x31 open, bore �40mm, KN12mm outer �135mm, in GGG60

Chain sprocket/sprocket in GGG60 version for particularly heavy use. With threaded hole for worm screw.

Chain sprocket 10x31 open, bore �40mm, KN12mm, outer �127mm suitable for crown

Chain sprocket/sprocket suitable for crown for driving the scraper floor. Suitable for the scraper floor chain with dimensions of 10x31mm. The chain sprocket has 6 teeth in an open design.The hole for mounting on the drive shaft has a diameter of 40 mm with a 12 mm wide keyway. The total width of the chain sprocket is 55 mm.

Chain sprocket 10x31 open, bore �40mm, KN12mm, outer �135mm, in GGG60

Chain sprocket/sprocket in GGG60 version for particularly heavy use.

Chain sprocket 10x31 open, bore �50mm, KN14mm outer �135mm, in GGG60

Chain sprocket/sprocket in GGG60 version for particularly heavy use. With threaded hole for worm screw.

Chain sprocket 8 x 31 open, bore ø 35mm, KN 10mm, outer ø 110mm

Chain sprocket / sprocket for loading wagons and manure spreaders suitable for Kirchner, Landsberg, Pöttinger etc.

Chain sprocket 8x31 open, bore �40mm, KN12mm, outer �113mm

Chain sprocket/sprocket for loading wagons and manure spreaders suitable for Kirchner, Landsberg, Pttinger etc.

Chain sprocket 9x31 closed, bore �40mm, KN12mm outer �135mm, in GGG60

Chain sprocket/sprocket in GGG60 version for particularly heavy use.

Chain sprocket suitable for Mengele manure spreader

Chain sprocket/sprocket suitable for Mengele with threaded hole for worm screw

Deflection pulley 10x31 open, bore �25mm, outer �110mm

Deflection wheel/deflection roller suitable for Mengele loading wagons and manure spreaders

Deflection pulley 10x31 open, bore �30mm, outer �128mm

Deflection wheel/deflection roller suitable for Mengele loading wagons and manure spreaders

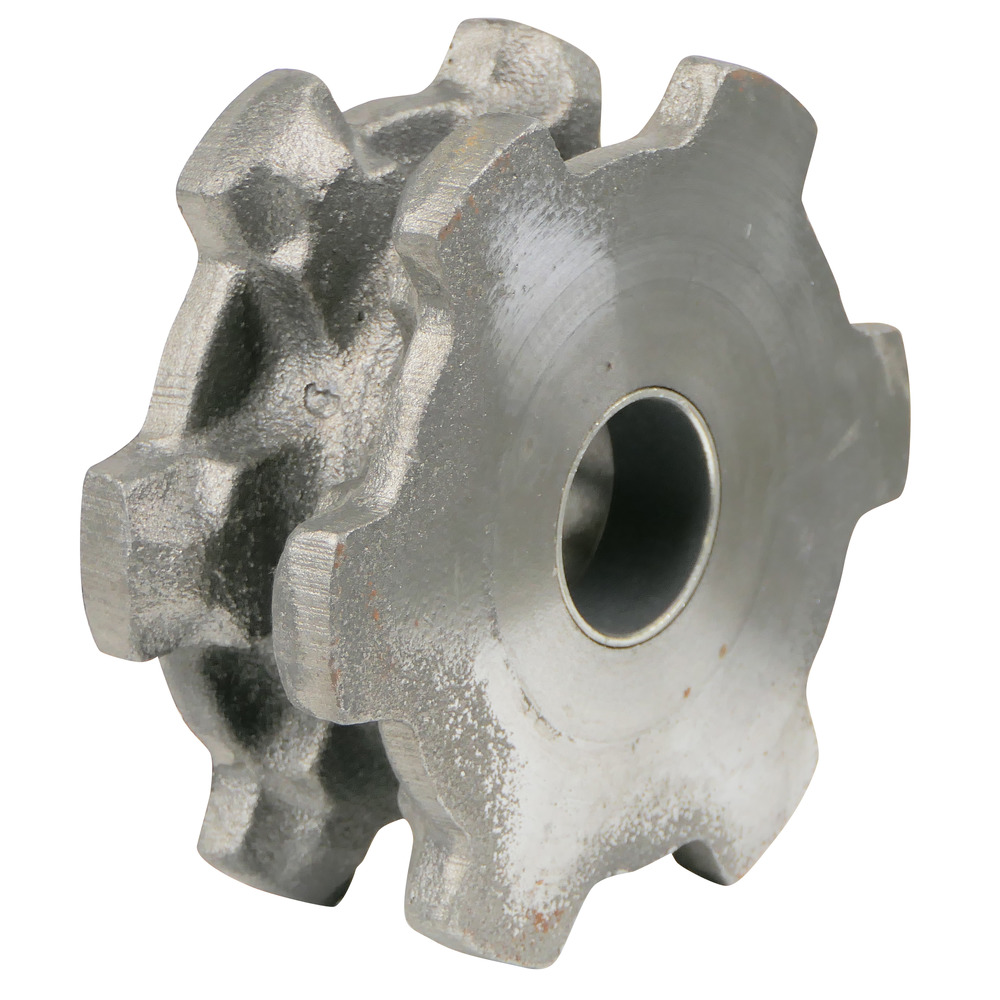

Deflection pulley 10x31 open, bore Ø35mm, outer Ø135mm, in GGG60

Deflection wheel/deflection roller in GGG60 version for particularly heavy use.

Deflection pulley 8x31 open, bore �25mm, outer �110mm

Deflection wheel/deflection roller suitable for Mengele loading wagons and manure spreaders

Deflection pulley 8x31 open, bore �30mm, outer �110mm

Deflection wheel/deflection roller for loading wagons and manure spreaders suitable for Kirchner, Landsberg, Pttinger etc.

Deflection pulley 9x31 closed, bore �30mm, outer �135mm, in GGG60

Deflection wheel/deflection roller in GGG60 version for particularly heavy use.

Deflection pulley 9x31 open, bore �30mm, outer �115mm

Deflection wheel/deflection roller for loading wagons and manure spreaders suitable for Kirchner, Landsberg, Pttinger etc.

Euro mount weldable, delivery 1 pair

Euro mount weldable with a left and a right plate. The hook and eye are welded onto an 8mm thick steel plate. The holder is delivered blank in order to achieve an optimal welding result. The plates must be welded all around, including the square hole at the height of the hook, with a weld seam of 6mm diameter.The maximum load is limited to 2500kg. Delivery includes 1 pair

Front loader tine suitable for Weidemann, square profile

Made of spring steel 55Si8, partly C45. All tines with tapered nut and quality guarantee.

Front loader tines for easy DIY construction

No conical nut necessary.

Front loader tines suitable for Hydrac

60.4003.800, double T-profileMade of spring steel 55Si8, partly C45. All tines with tapered nut and quality guarantee.
