Hy. hoses, pipes, fittings

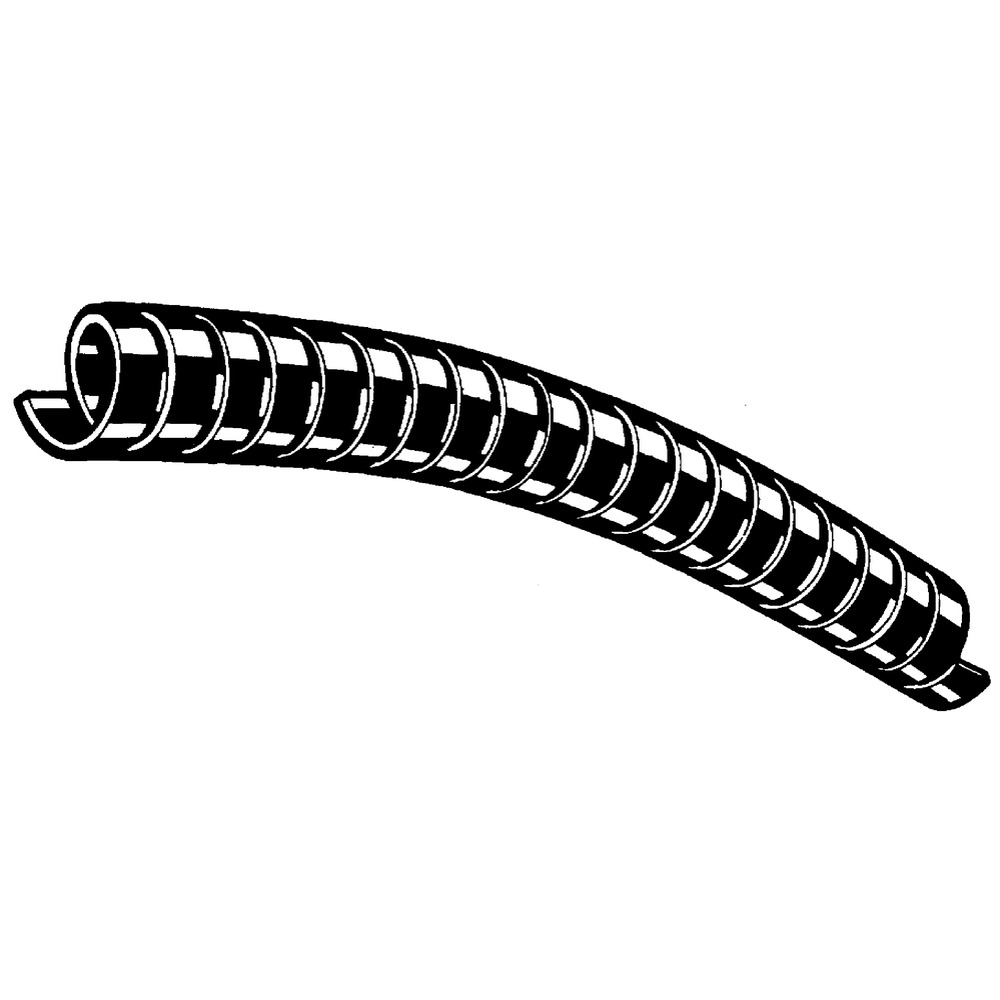

HDPE abrasion protection for hydraulic hoses
Cost-effective abrasion protection spiral made from 100% recycled HDPE. Price per meter.

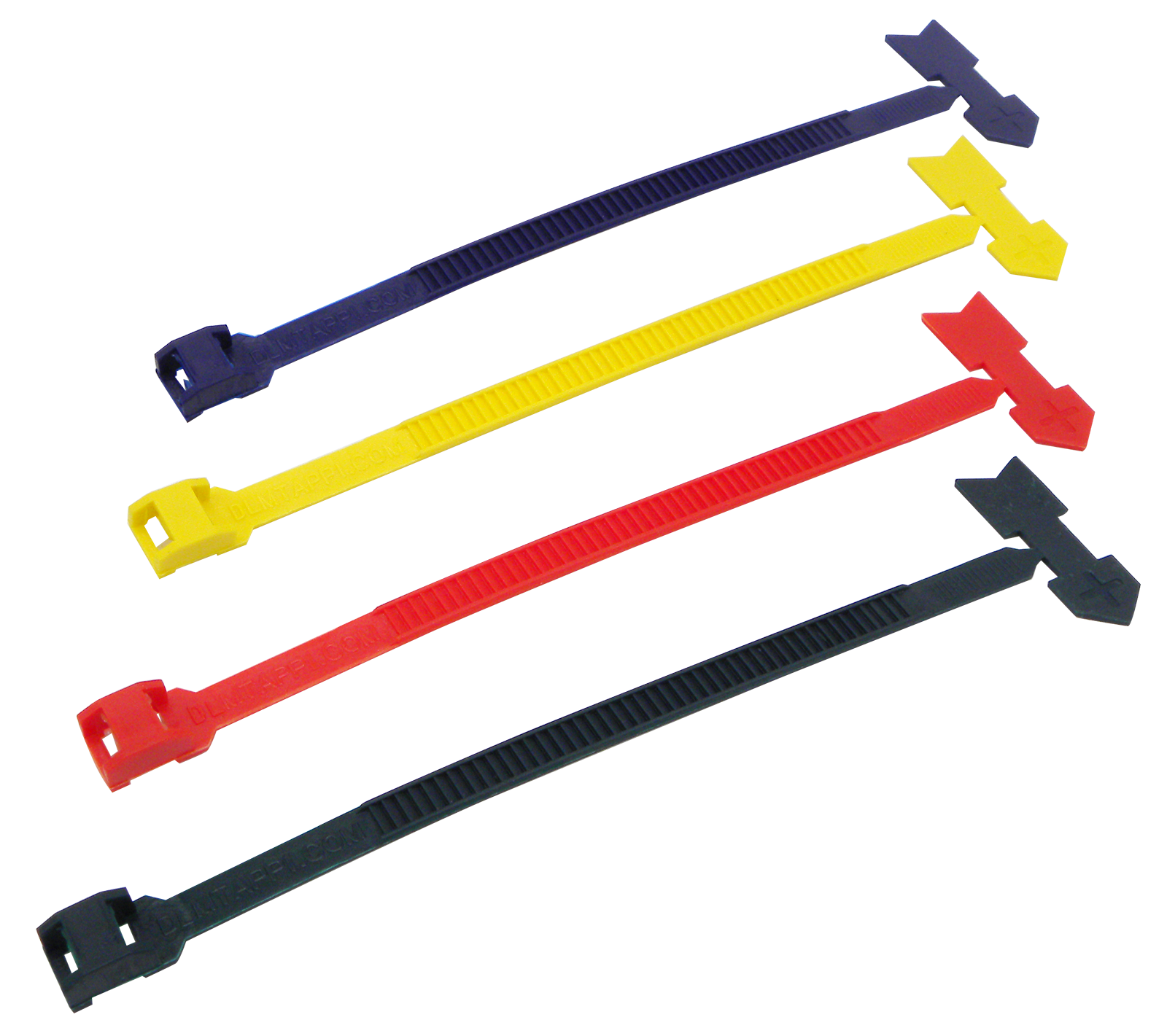

Hose marking
Marking arrow for identifying hose lines, arrow (alternately marked with - and +) and plastic fastening tab. Commercially available cable ties can also be used for assembly.
Maintenance plug 3 in 1, diameter 2 - 42mm
STOPPFIXX maintenance plug set "3 in 1" in red signal color for closing unpressurized lines during repairs and maintenance. Thanks to the 3 in 1 principle, the smallest plug is in the middle plug and these two are then contained in the larger maintenance plug, you always have the right diameter at hand. If the medium size M of the maintenance plugs is in use, the largest STOPPFIXX can be closed with the dust cap and the size S cannot be lost. Due to the adhesive effect, the plugs can be used continuously from 2 - 42mm!Temperature resistant from -45 to +120CSilicone-free, resistant to most oils and chemicals.
Pipe bending pliers with roller
For bends up to 90, for bendable steel and stainless steel pipes. Up to a maximum wall thickness of 1.5 mm.
Ready-to-install hydraulic hose nominal width DN06, connection 8L, M14x1.5 mm
Tractor 2K with union nut on both sides, 2 high-tensile steel wire meshes, thin synthetic top rubber, high flexibility, extremely small bending radius, low weight. max. operating pressure 400 bar, minimum bending radius 45 mm, weight 275 g/m, outer diameter 13.1 mm< br>Applied standards: EN 857 2SC, ISO 11237 2SC, SAE 100 R16S
Ready-to-install hydraulic hose nominal width DN08, connection 10L, M16x1.5 mm
Tractor 2K with union nut on both sides, 2 high-tensile steel wire meshes, thin synthetic top rubber, high flexibility, extremely small bending radius, low weight. max. operating pressure 350 bar, minimum bending radius 55 mm, weight 330 g/m, outer diameter 14.7 mm< br>Applied standards: EN 857 2SC, ISO 11237 2SC, SAE 100 R16S
Content: 2.5 m (€9.80 / 1 m)
Ready-to-install hydraulic hose nominal width DN08, connection 1x straight, 1x 90� bent, 10L, M16x1.5
Tractor 2K with union nut on both sides, 2 high-tensile steel wire meshes, thin synthetic top rubber, high flexibility, extremely small bending radius, low weight. max. operating pressure 350 bar, minimum bending radius 55 mm, weight 330 g/m, outer diameter 14.7 mm< br>Applied standards: EN 857 2SC, ISO 11237 2SC, SAE 100 R16S
Content: 1.5 m (€12.20 / 1 m)
Ready-to-install hydraulic hose nominal width DN10, 1 straight connection, 1 connection 90� bent
Tractor 2K with union nut M18x1.5 on both sides, tube 12L, 1 straight connection, 1 connection 90 bent, 2 high-tensile steel wire meshes, thin synthetic top rubber, high flexibility, extremely small bending radius, low weight.max. Operating pressure 330 bar, minimum bending radius 65 mm, weight 395 g/m, connection 12L, M18x1.5 mmApplied standards: EN 857 2SC, ISO 11237 2SC, SAE 100 R16S
Content: 1.9 m (€12.58 / 1 m)
Ready-to-install hydraulic hose nominal width DN10, connection 12L, M18x1.5 mm
Tractor 2K with union nut M18x1.5 on both sides, tube 12L, 2 high-tensile steel wire meshes, thin synthetic top rubber, high flexibility, extremely small bending radius, low weight.max. Operating pressure 330 bar, minimum bending radius 65 mm, weight 395 g/m, outer diameter 16.8 mm Applied standards: EN 857 2SC, ISO 11237 2SC, SAE 100 R16S
Content: 1.1 m (€14.55 / 1 m)
Ready-to-install hydraulic hose nominal width DN12, connection 15L, M22x1.5 mm
Tractor 2K with union nut M22x1.5 on both sides, tube 15L, 2 high-tensile steel wire meshes, thin synthetic top rubber, high flexibility, extremely small bending radius, low weight.max. Operating pressure 275 bar, minimum bending radius 80 mm, weight 510 g/m, outer diameter 20.3 mmApplied standards: EN 857 2SC, ISO 11237 2SC, SAE 100 R16S
Content: 1.3 m (€16.88 / 1 m)
Ready-to-install hydraulic hose nominal width DN12, connection 1x straight/1x90� curved, 15L, M22x1.5 mm
Tractor 2K with union nut M22x1.5 on both sides, tube 15L, 2 high-tensile steel wire meshes, thin synthetic top rubber, high flexibility, extremely small bending radius, low weight.max. Operating pressure 275 bar, minimum bending radius 80 mm, weight 510 g/m, outer diameter 20.3 mmApplied standards: EN 857 2SC, ISO 11237 2SC, SAE 100 R16S
Ready-to-install hydraulic hose, nominal width DN06, connection 8L, M14x1.5, 1x straight, 1x 90� bent
Tractor 2K with union nut on both sides, 2 high-tensile steel wire meshes, thin synthetic top rubber, high flexibility, extremely small bending radius, low weight. max. operating pressure 400 bar, minimum bending radius 45 mm, weight 275 g/m, outer diameter 13.1 mm< br>Applied standards: EN 857 2SC, ISO 11237 2SC, SAE 100 R16S
Content: 0.45 m (€22.20 / 1 m)
Seamless hydraulic pipe, galvanized
According to DIN 2391/C NBK, galvanized on the outside, suitable for all pressure levels. Price per meter. Shipping up to a maximum length of 2.0 meters. ~
