Aluminum transition piece Storz to Storz
#118433
Aluminum transition piece Storz to Storz
Bail spacing X (mm): 66 auf 31 | Version: 52-C auf 25-D
Sale and shipment by: FAIE Handels GmbH
Aluminum transition piece Storz to Storz with cast lugs. The seal is made of nitrile rubber. Made in Germany.

Variants from €19.99*
€19.99*
Arizona Medium Gray PVC manure hose in whole rolls
#73629
Arizona Medium Gray PVC manure hose in whole rolls
Bending radius (mm): 400 | Length (m): 30 | Operating pressure (bar): 3,0 | Weight / m: 2,6 kg | Ø inside (mm): 102 | Ø outside (mm): 117
Sale and shipment by: FAIE Handels GmbH
Suitable as a suction and pressure hose. Lightweight, highly flexible PVC hose with a shockproof spiral made of hard PVC and a smooth inner surface. The hose is primarily used as a liquid manure hose, wastewater drainage and in irrigation systems. Can be used in temperature ranges from -25C to +55C. Vacuum load up to 0.9bar.

Content: 30 m (€33.27* / 1 m)

Variants from €935.00*
€998.00*
Ball, black
#39329
Ball, black
Nominal size: DN108 | Size (inch): 4
Sale and shipment by: FAIE Handels GmbH

Variants from €5.39*
€7.90*
Black steel weld-on female
#61879
Black steel weld-on female
B (mm): 112 | Nominal size: DN80
Sale and shipment by: FAIE Handels GmbH
​Weld-on cup including sealing ring.4 inch = DN100, cup width B = 130 mm5 inch = DN120, cup width B = 150 mm6 inch = DN150, cup width B = 180 mm8 inch = DN200, cup width B = 200 mm

Variants from €9.19*
€9.19*
Black steel weld-on male, Italian system
#53419
Black steel weld-on male, Italian system
D (mm): 150 | Nominal size: DN120
Sale and shipment by: FAIE Handels GmbH
Black steel weld-on male without clamping ring. Suitable for the Italian system according to the listed nominal diameters.4 inch = DN100, ball outside diameter D = 130mm5 inch = DN120, ball outside diameter D = 150mm6 inch = DN150, ball outside diameter D = 180mm8 inch = DN200, ball outside diameter D = 243mm

Variants from €3.69*
€5.19*
Blind flange, surface raw
#57217
Blind flange, surface raw
A (mm): 150
Sale and shipment by: FAIE Handels GmbH
Surface untreated.

Variants from €12.90*
€12.90*
Clutch cup for BAUER system
#73651
Clutch cup for BAUER system
B (mm): 180 | Nominal size: HK159
Sale and shipment by: FAIE Handels GmbH
with sealing ring, black3 inch = HK 76, cup width B = 98 mm3 1/2 inch = HK 89, cup width B = 120 mm4 inch = HK 108, cup width B = 145 mm5 inch = HK 133, cup width B = 160 mm6 inch = HK 159, cup width B = 180 mm8 inch = HK 194, cup width B = 230 mm

Variants from €3.70*
€20.90*
Clutch key
#FA52333
Clutch key
Sale and shipment by: FAIE Handels GmbH
Key suitable for all couplings of sizes A/B/C. Easily release clutches with little effort.

€19.99*
Compressor fin for Battioni and Pagani
#18575
Compressor fin for Battioni and Pagani
Version: MEC 3000
Sale and shipment by: FAIE Handels GmbH
Battioni &~ Pagani. ~

Variants from €8.90*
€12.50*

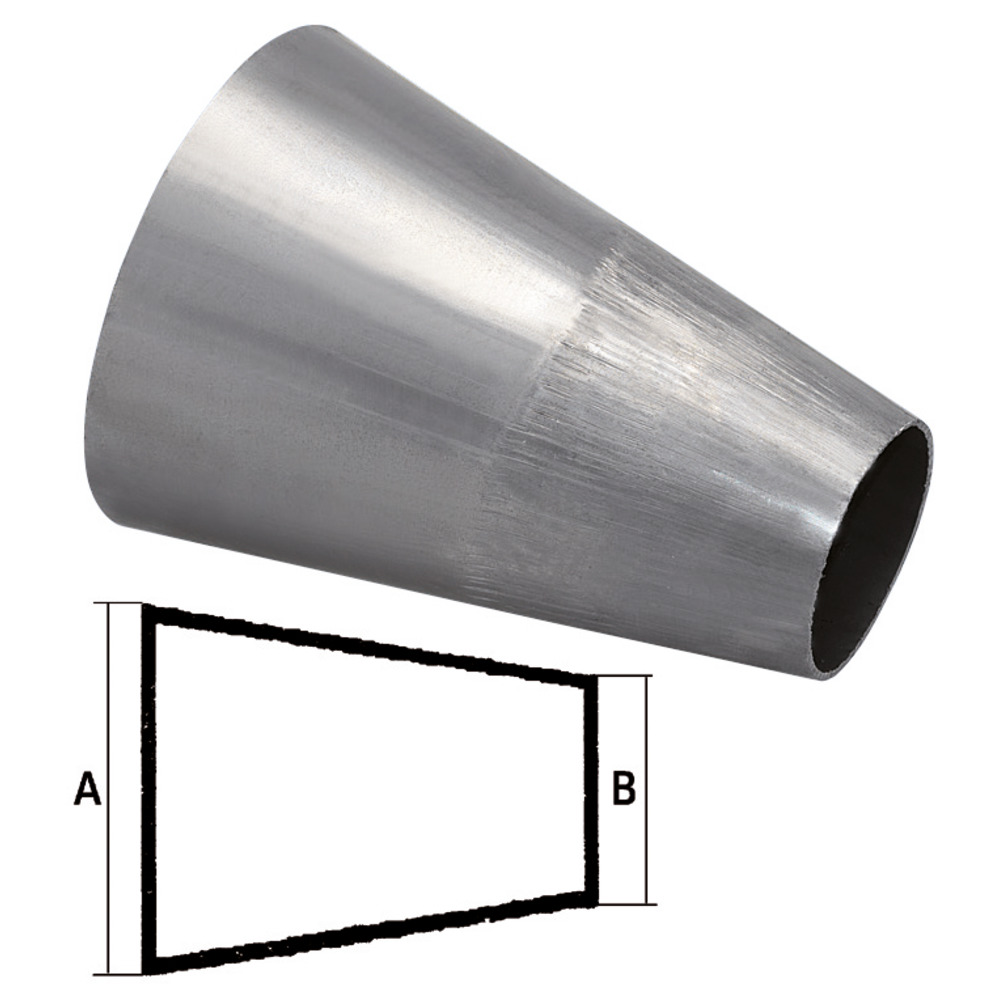

Cone blank, unprocessed
#115648
Cone blank, unprocessed
A (mm): 200 | B (mm): 70 | Length (mm): 220 | Nominal size: DN200
Sale and shipment by: FAIE Handels GmbH
Blank, black unprocessed

Variants from €9.39*
€30.90*
Coupling ball for BAUER system
#73643
Coupling ball for BAUER system
D (mm): 145 | Nominal size: HK108
Sale and shipment by: FAIE Handels GmbH
black, without lever lock ring3 inch = HK76, ball outside diameter D = 98 mm4 inch = HK108, ball outside diameter D = 145 mm5 inch = HK133, ball outside diameter D = 158 mm6 inch = HK159, ball outside diameter D = 180 mm8 inch = HK194, ball outside diameter D = 230 mm

Variants from €2.99*
€7.29*
Double flange elbow 90� 6 radius 195mm
#FA120186
Double flange elbow 90� 6 radius 195mm
Sale and shipment by: FAIE Handels GmbH
Pipe elbow 90 in size 6" with two flange connections. The square 4-hole flange has the dimensions 180x180mm. The hole spacing of the holes is 150x150mm and the holes have a diameter of 13mm. The double flange elbow has a radius of 195mm and a height of 285mm.

€149.00*
Double flange elbow 90� 6 radius 400mm
#FA110013
Double flange elbow 90� 6 radius 400mm
Sale and shipment by: FAIE Handels GmbH
Pipe elbow 90 in size 6" with two flange connections. The square 4-hole flange has the dimensions 180x180mm. The hole spacing of the holes is 150x150mm and the holes have a diameter of 13mm. The double flange elbow has a radius of 400mm and a height of 490mm.

€129.00*
Drag hose end pieces
#105379
Drag hose end pieces
Length (mm): 1000 | Thickness (mm): 4,1 | Ø inside (mm): 50
Sale and shipment by: FAIE Handels GmbH
PVC suction and pressure hose with hard PVC spiral. The high rigidity (Shore hardness 85) of the hose makes it possible to precisely position the end piece on the drag hose distributor near the ground. This ensures optimal and precise spreading of the manure.

Variants from €10.50*
€18.00*
Drip oiler for vacuum pump
#FA27674
Drip oiler for vacuum pump
Sale and shipment by: FAIE Handels GmbH
simple, 1/4? connection.

€27.90*
Drip oiler for vacuum pump
#FA27675
Drip oiler for vacuum pump
Sale and shipment by: FAIE Handels GmbH
double, connection 1/4?.

€29.90*
End cap with ball, galvanized
#771
End cap with ball, galvanized
D (mm): 158 | Nominal size: HK133
Sale and shipment by: FAIE Handels GmbH
3 inch = HK76, ball outside diameter D = 98 mm4 inch = HK108, ball outside diameter D = 145 mm5 inch = HK133, ball outside diameter D = 158 mm6 inch = HK159, ball outside diameter D = 180 mm8 inch = HK194, ball outside diameter D = 230 mm

Variants from €54.00*
€77.00*
End cap with cup and sealing ring, galvanized
#768
End cap with cup and sealing ring, galvanized
B (mm): 180 | Nominal size: HK159
Sale and shipment by: FAIE Handels GmbH

Variants from €19.90*
€37.00*
End coupling with cup and sealing ring, galvanized
#716
End coupling with cup and sealing ring, galvanized
B (mm): 130 | Nominal size: DN100
Sale and shipment by: FAIE Handels GmbH
4 inch = DN100, cup width B = 130 mm5 inch = DN120, cup width B = 150 mm6 inch = DN150, cup width B = 180 mm8 inch = DN200, cup width B = 200 mm

Variants from €17.99*
€17.99*
Exact distributor with ball
#28886
Exact distributor with ball
Inch: 4 | Nominal size: DN108 | Weight (g): 7200
Sale and shipment by: FAIE Handels GmbH
Exact distributor for precise distribution of nutrients. The slurry is sprayed downwards using the impact head distributor.Delivered complete with impact plate.

Variants from €239.00*
€239.00*
Exact distributor with ball
#28878
Exact distributor with ball
Inch: 4 | Nominal size: DN100 | Weight (g): 7500
Sale and shipment by: FAIE Handels GmbH
Exact distributor for precise distribution of nutrients. The slurry is sprayed downwards using the impact head distributor.Delivered complete with impact plate.4 inch = DN100, ball outside diameter D = 130mm5 inch = DN120, ball outside diameter D = 150mm6 inch = DN150, ball outside diameter D = 180mm8 inch = DN200, ball outside diameter D = 243mm

Variants from €219.00*
€219.00*
Exact distributor with cup
#28862
Exact distributor with cup
Inch: 6 | Nominal size: DN150 | Weight (g): 9200
Sale and shipment by: FAIE Handels GmbH
Exact distributor for precise distribution of nutrients. The slurry is sprayed downwards using the impact head distributor.Delivered complete with impact plate and sealing ring.4 inch = DN100, cup width B = 130 mm5 inch = DN120, cup width B = 150 mm6 inch = DN150, cup width B = 180 mm8 inch = DN200, cup width B = 200 mm

Variants from €219.00*
€232.00*
Exact distributor with cup suitable for Perrot
#28868
Exact distributor with cup suitable for Perrot
Inch: 6 | Nominal size: DN159 | Weight (kg): 13,5
Sale and shipment by: FAIE Handels GmbH
Exact distributor for precise distribution of nutrients. The slurry is sprayed downwards using the impact head distributor.Delivered complete with impact plate.

Variants from €298.00*
€298.00*
Flange connection with ball, galvanized
#758
Flange connection with ball, galvanized
D (mm): 145 | Nominal size: HK108/4"
Sale and shipment by: FAIE Handels GmbH
Flange hole pattern 150x150 mm, for size 8" 180x180 mm3 inch = HK76, ball outside diameter D = 98 mm4 inch = HK108, ball outside diameter D = 145 mm5 inch = HK133, ball outside diameter D = 158 mm6 inch = HK159, ball outside diameter D = 180 mm8 inch = HK194, ball outside diameter D = 230 mm

Variants from €89.00*
€89.00*
