Product information "Bottom knife 150 cm 20 blades, instead of Busatis DME 1504 B, 5470.002.41"

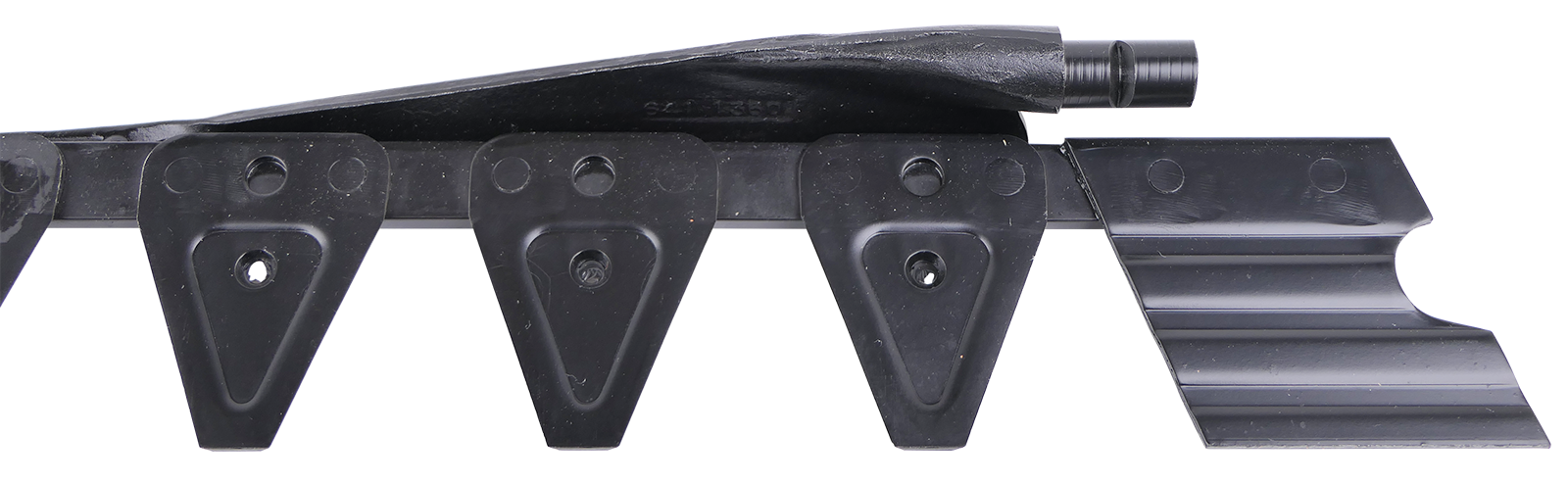

Bottom knife for Busatis BM 321 KW double cutter bar with a total number of 20 blades. Of these, 3 pcs. blades with knob for holding the knife guide arms. The positions of the blades with knob, starting from the cutterhead, are on the 5th, 10th and 15th blade. The last blade is an end blade that is ground on both sides. A cutter head plate is riveted to the lower cutter head. The pitch of the blades from blade centre to blade centre is 76 mm.
The knife is supplied complete with the lower cutter head, on the left-hand side when viewed in the direction of travel.
| Blade pitch (mm): | 76 |
|---|---|
| Length (cm): | 160 |
| Number of blades (pcs.): | 20 |
| Number of mushroom blades: | 3 |
| Suchnummer: | 41369 |
| can be used instead of Busatis: | 5470.002.41, DEM 1504 B |
| can be used instead of ESM: | 265.5840 |
| suitable for Busatis: | Doppelmessermähwerk BM 321 KW |
| suitable for reform: | 2000 |
