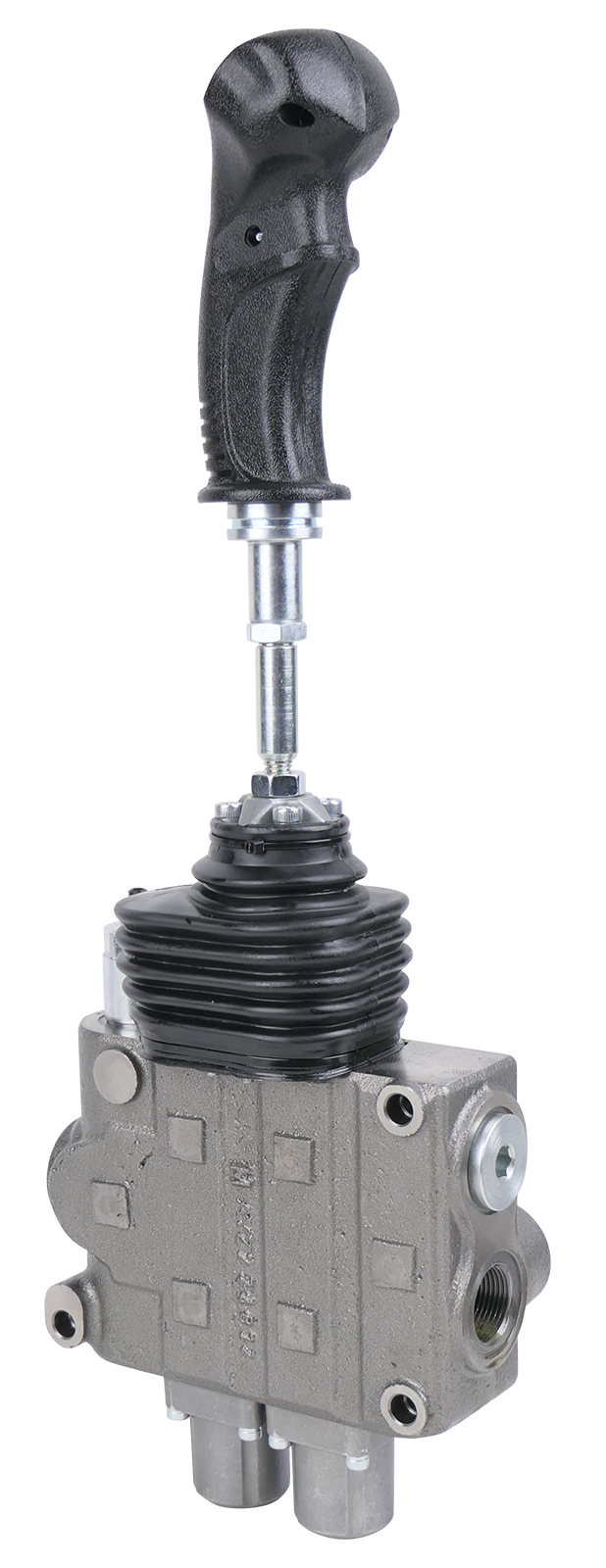

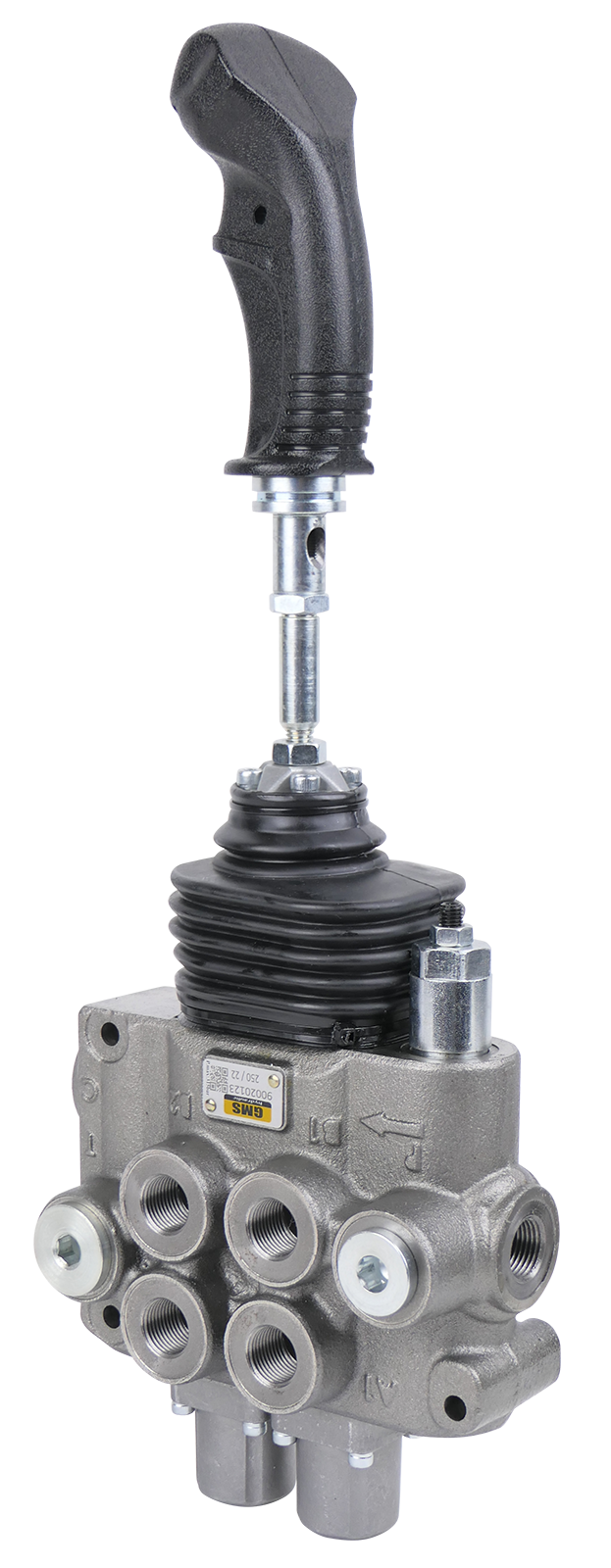

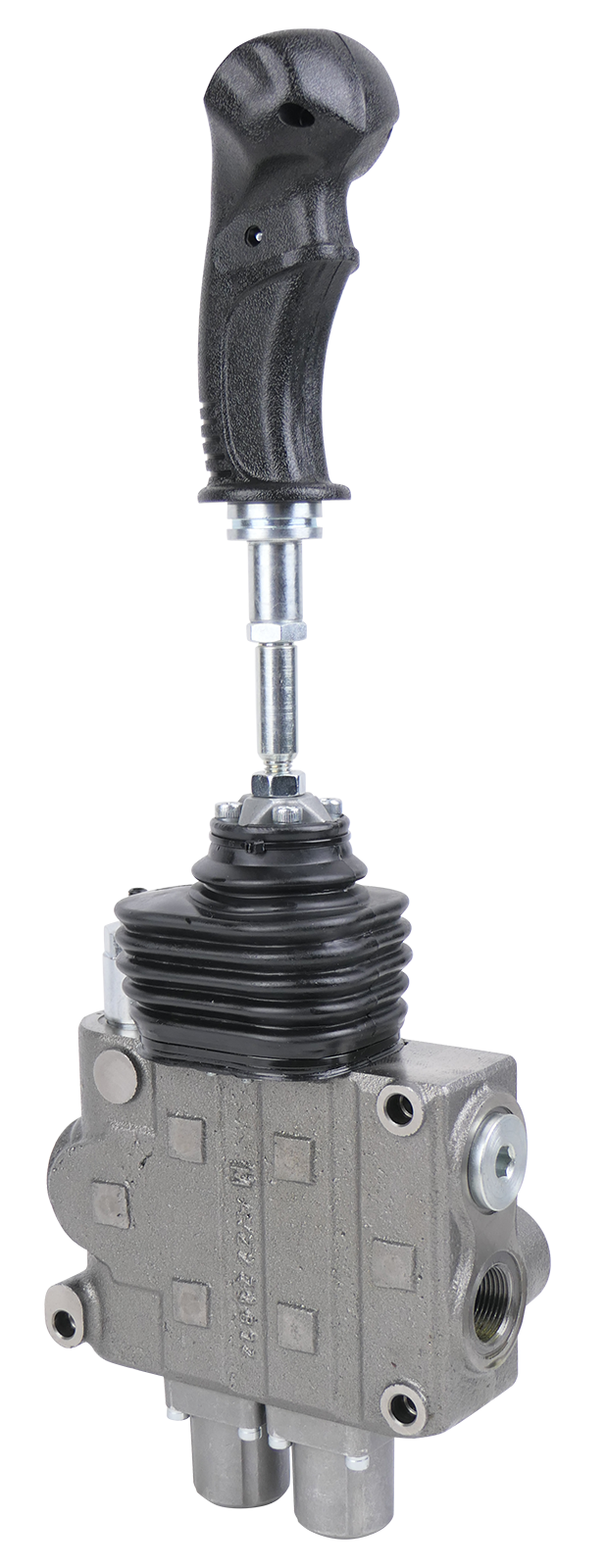

GMS Control valve GM10/2 with joystick handle DW DW with spring return
GMS Control valve GM10/2 with joystick handle DW DW with spring return
Beschreibung
Product information "Control valve GM10/2 with joystick handle DW DW with spring return"
The control valve has a directly mounted cross lever control with a joystick handle.
Mechanical actuation with spring return in standard version. The middle position is designed with a pressureless circulation and the ports A &~ B are blocked. Pressure relief valve at connection P (pump). Negative overlap of the slides.
1. Double-acting control slide DW: H=lifting, 0=middle position, S=lowering
2. Double-acting control slide DW: H=lifting, 0=middle position, S=lowering
Standard version of the valves in parallel connection.
Flow max.: 90 L/min.
Operating pressure: 250 bar
max. Pressure: 315 bar
Relief valve set: 100 bar, adjustable from 20-315 bar

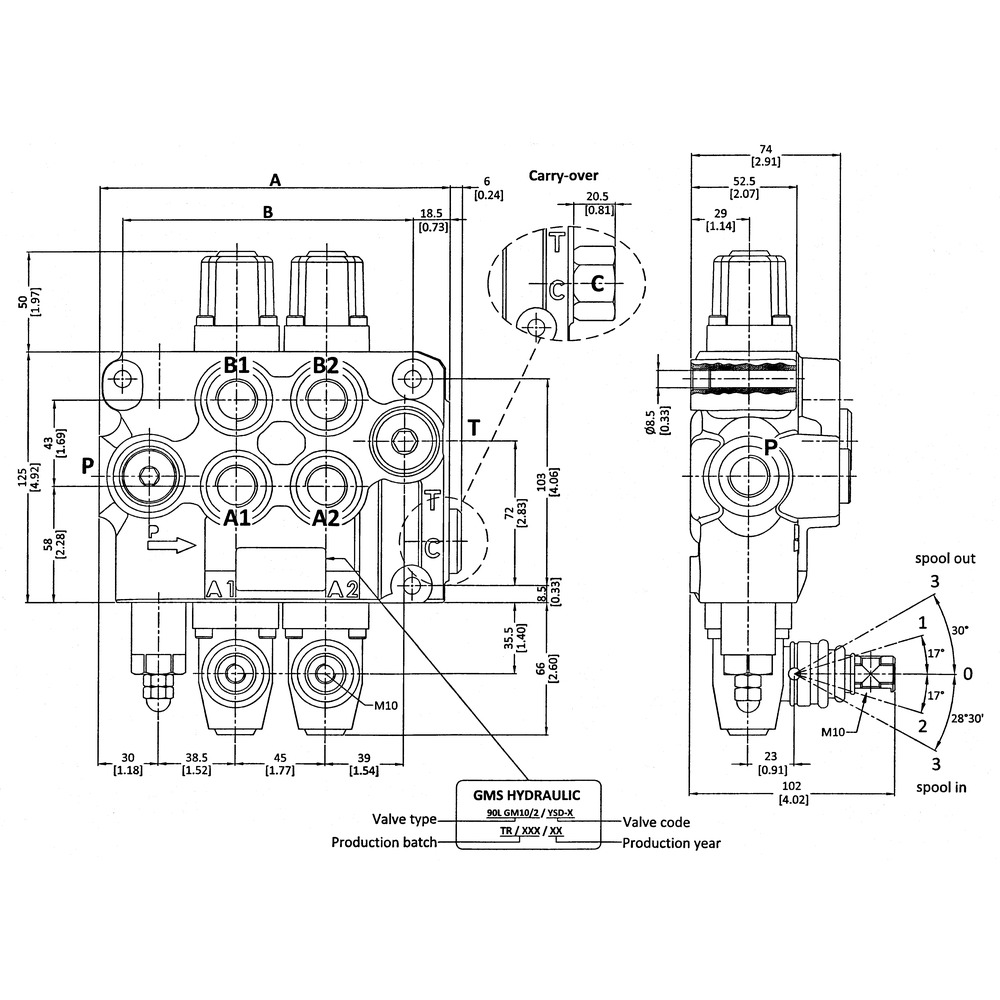

Screw-in thread A, B, P, P2: R1/2?
Screw-in thread T, T2: R3/4?The switching positions listed depend on the respective model of the control valve.
Mechanical actuation with spring return in standard version. The middle position is designed with a pressureless circulation and the ports A &~ B are blocked. Pressure relief valve at connection P (pump). Negative overlap of the slides.
1. Double-acting control slide DW: H=lifting, 0=middle position, S=lowering
2. Double-acting control slide DW: H=lifting, 0=middle position, S=lowering
Standard version of the valves in parallel connection.
Flow max.: 90 L/min.
Operating pressure: 250 bar
max. Pressure: 315 bar
Relief valve set: 100 bar, adjustable from 20-315 bar
Screw-in thread A, B, P, P2: R1/2?
Screw-in thread T, T2: R3/4?The switching positions listed depend on the respective model of the control valve.
| 1st slider: | H/0/S |
|---|---|
| 1st slider home position: | 0 |
| 1st slider version: | doppeltwirkend |
| 2. slider home position: | 0 |
| 2nd slider: | H/0/S |
| 2nd slider version: | doppeltwirkend |
| Flow rate (l/min): | 90 |
| Operating pressure (bar): | 250 |
| Suchnummer: | 118139 |
| Type: | GM10/02 |
