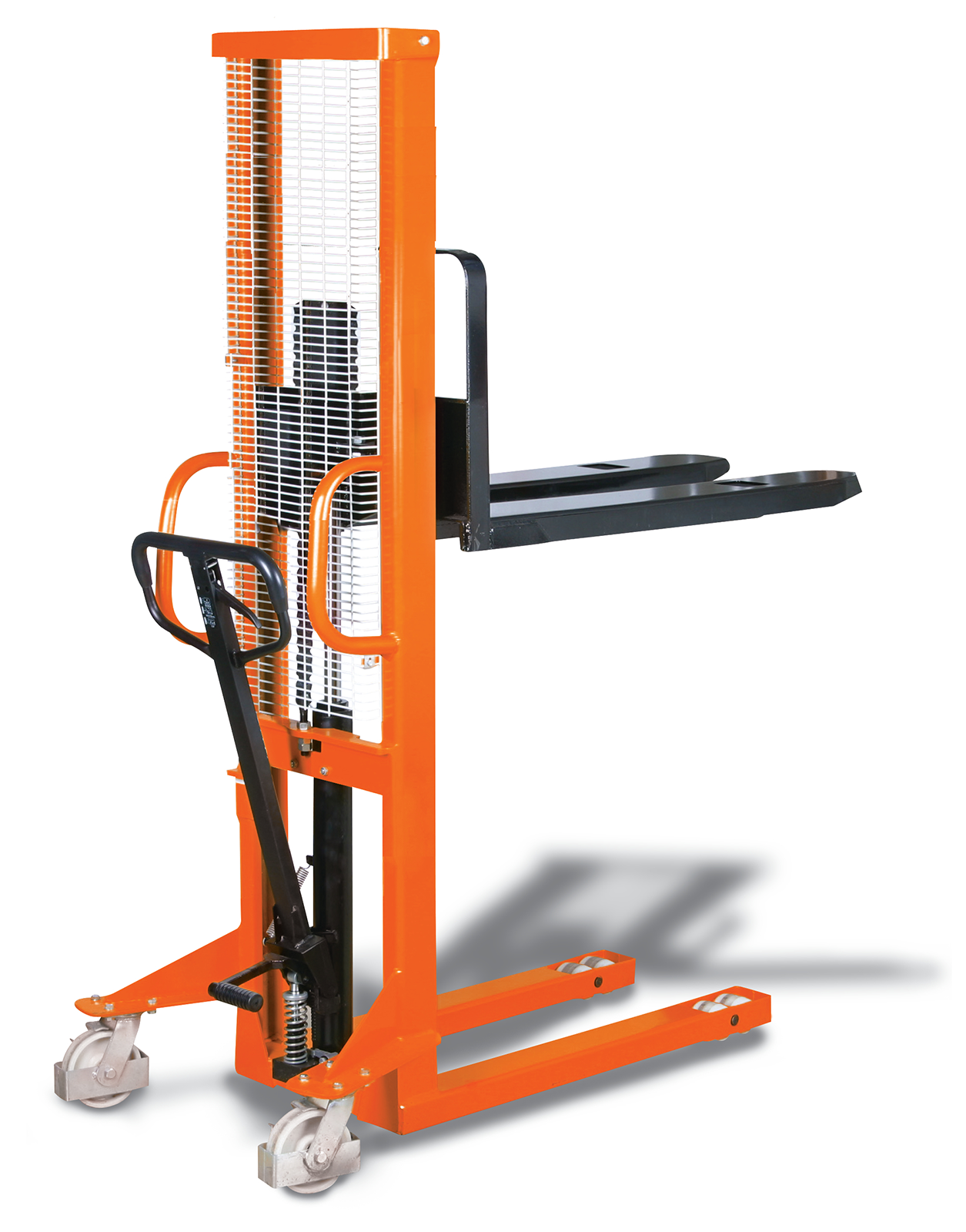

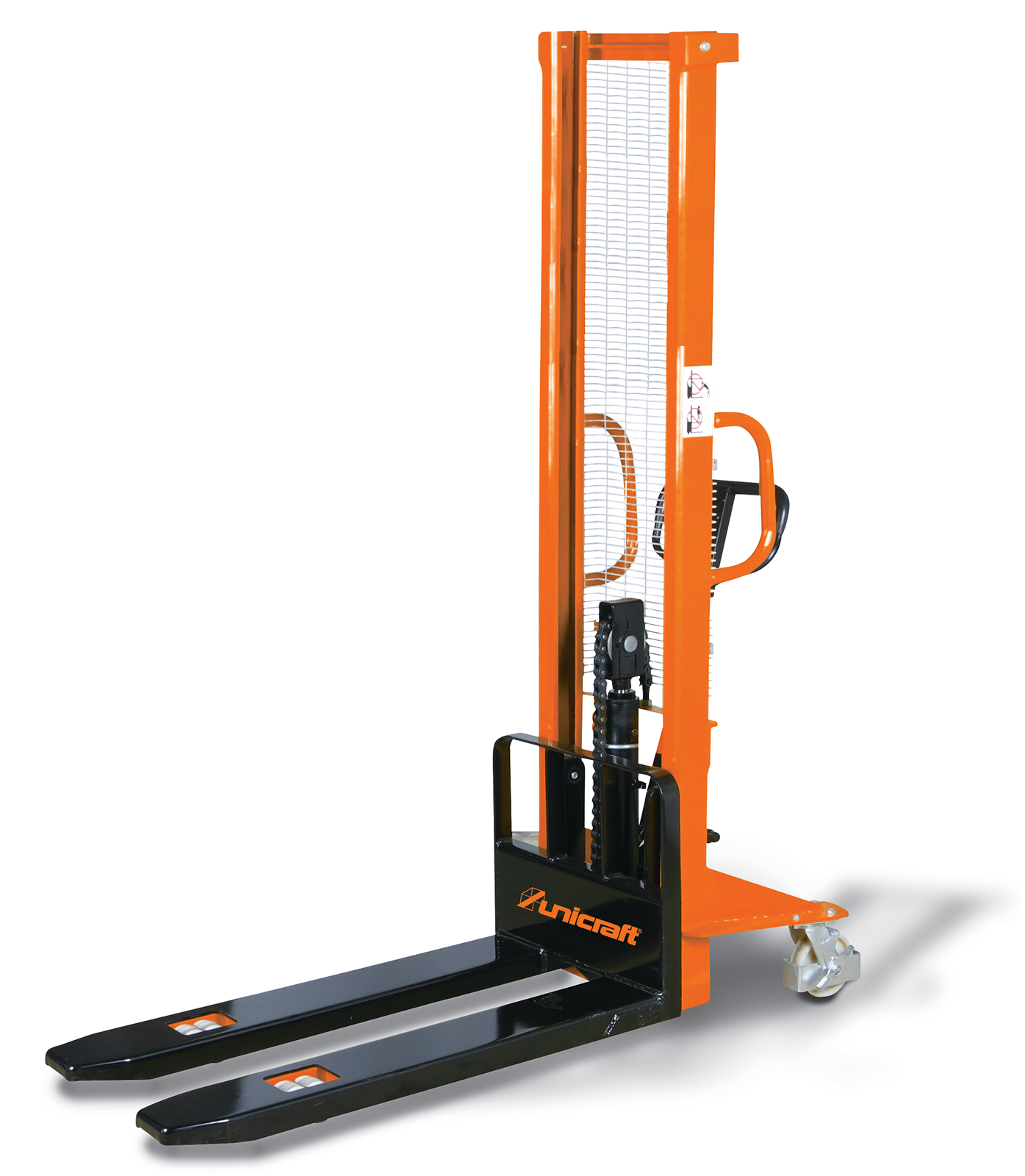

Aircraft GHHW1000 pedestrian stacker
Aircraft GHHW1000 pedestrian stacker
Product number:
FA74894
€1,398.00 *
Freight flat rate:
€99.00
Content:
1
Stück
detail.deliveryTimeAvailableHR
Beschreibung
Product information "GHHW1000 pedestrian stacker"
?Especially suitable for loading and unloading vehicles

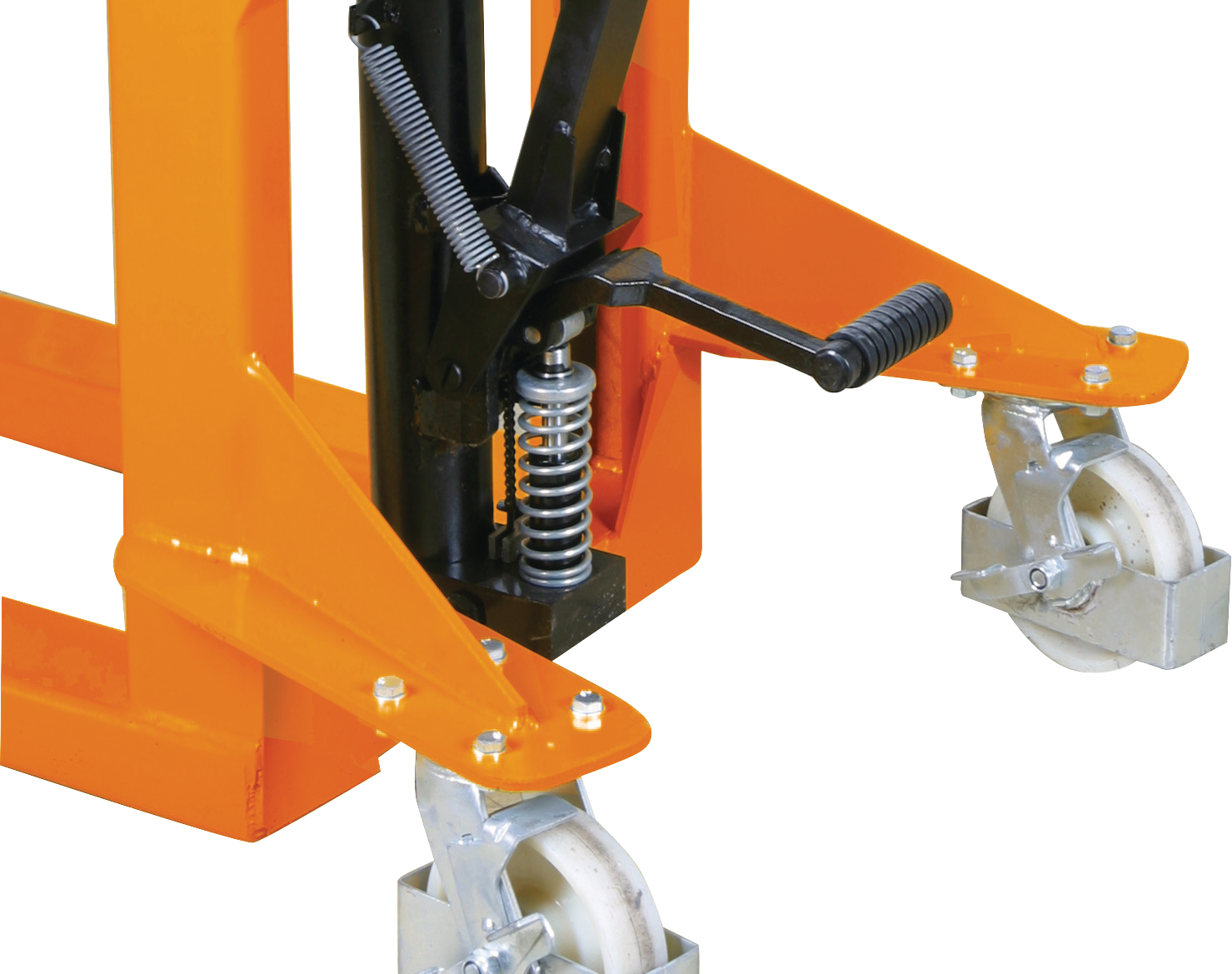

Equipment details:Can also be operated by footThe foot lever enables effortless lifting
High-quality castorsStable construction with large swivel castors and double load castors made of nylonNo sparks due to static charges and no electromagnetic ones Fields, therefore also suitable for flammable or explosive substances

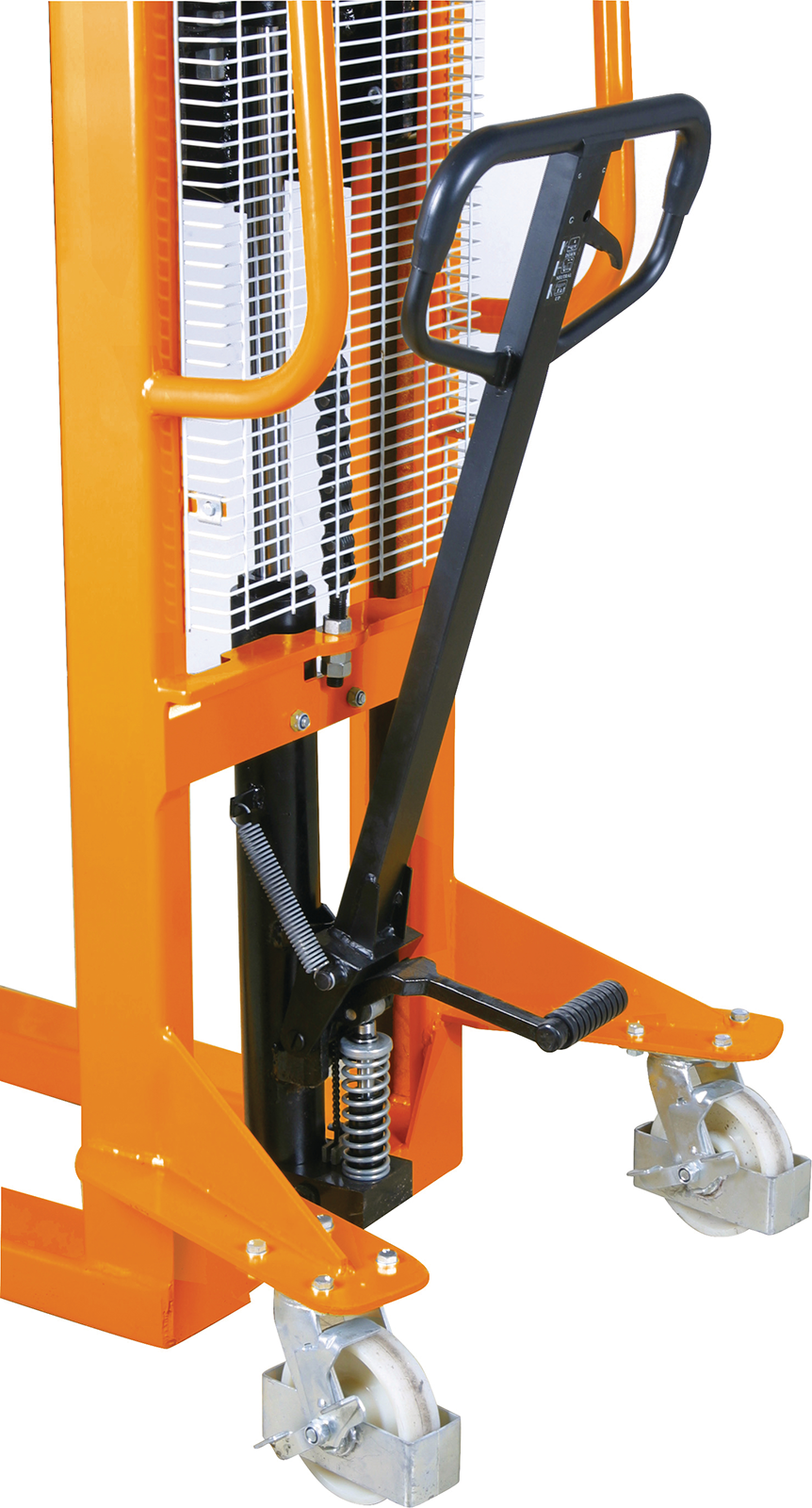

Ergonomic handleThe ergonomically shaped handle can be operated with one handOptimal comfort thanks to plastic coating ~
General information:Load capacity: 1t carrying width : 550mmFork width: 170mm Fork length: 1150mmStroke range: 90 - 1600mm Stroke per pump movement: 22 - 25mmLift speed: 25mm/s Steering angle: 360Turning radius: 1380mm Dimensions and weights:Length (product): ~ approx.1705mm width/depth (product): ~ approx. 755mm height (product): ~ approx.1980mm Weight (net): ~ approx.230kgSwivel castor diameter: 147mm Swivel castor width: 40mmLoad roller diameter: 83mmLoad roller width: 60mm
- Makes handling and transport in the warehouse and at the workplace easier
- Doubly usable for high stacking and short transport
- No sparks due to static charges and no electromagnetic fields, therefore also suitable for flammable or explosive substances
- Robust steel profile construction with high-quality weld seams
- Fixed fork width for stable lifting of the load < li>Economically built lifting device with manually operated hydraulic pump
- Effort-saving lifting is also possible with a foot pedal
- Due to its compact design, it fits well through all door openings and fully occupied warehouses
- Equipped with low-wear rollers and rotating, ball-bearing rear wheels made of nylon for smooth driving characteristics
- Equipped with durable precision mechanics
- The lifting function is particularly easy to operate using the foot and hand levers
Equipment details:Can also be operated by footThe foot lever enables effortless lifting
High-quality castorsStable construction with large swivel castors and double load castors made of nylonNo sparks due to static charges and no electromagnetic ones Fields, therefore also suitable for flammable or explosive substances
Ergonomic handleThe ergonomically shaped handle can be operated with one handOptimal comfort thanks to plastic coating ~
General information:Load capacity: 1t carrying width : 550mmFork width: 170mm Fork length: 1150mmStroke range: 90 - 1600mm Stroke per pump movement: 22 - 25mmLift speed: 25mm/s Steering angle: 360Turning radius: 1380mm Dimensions and weights:Length (product): ~ approx.1705mm width/depth (product): ~ approx. 755mm height (product): ~ approx.1980mm Weight (net): ~ approx.230kgSwivel castor diameter: 147mm Swivel castor width: 40mmLoad roller diameter: 83mmLoad roller width: 60mm
| Suchnummer: | 74894 |
|---|
Hersteller
Aircraft
Gewerbestrasse Ost 6
4921
Hohenzell
AT
[email protected]
GTIN/EAN:
4036351032786
Downloads
There are no downloads available for this article
