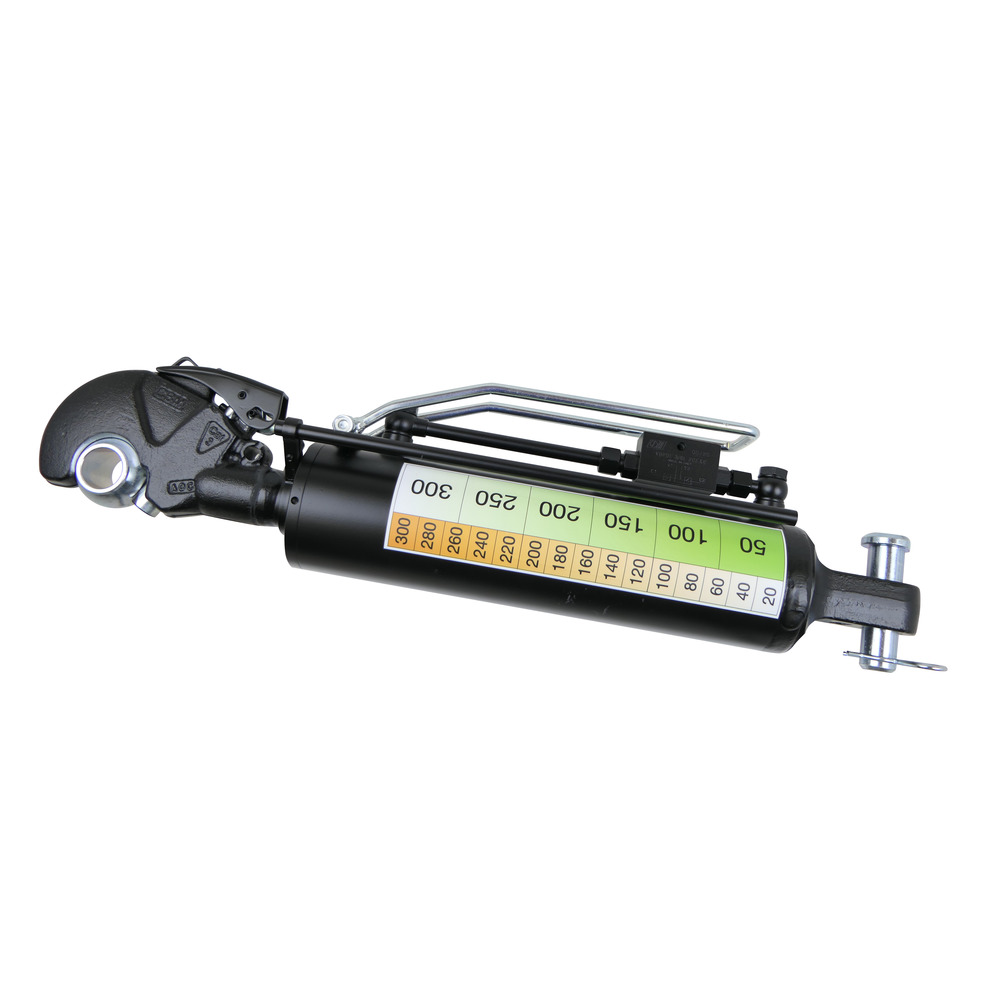

Hydraulic top link with CBM catch hook and with bolt for the joint head
Hydraulic top link with CBM catch hook and with bolt for the joint head
Product number:
FA117355
€439.00 *
Content:
1
Stück
detail.deliveryTimeAvailableHR
Produkt-Highlights
- Komplett ausgestattet mit allen Zubehörteilen inklusive Oberlenkerbügel !
- Einfache Anpassung des Oberlenkers an jedes Anbaugerät !
- Einfache Anpassung d
Beschreibung
Product information "Hydraulic top link with CBM catch hook and with bolt for the joint head"

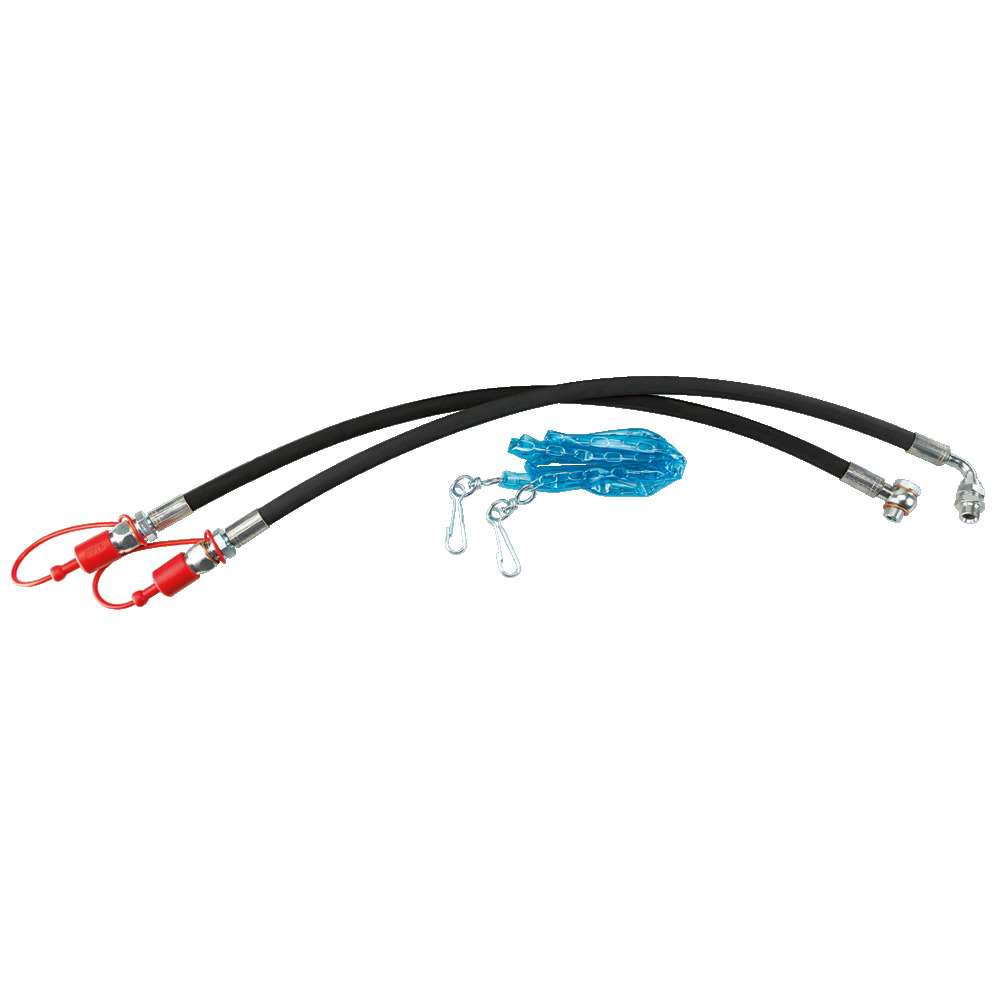

Suitable for tractors up to approx. 250 HP, piston K = 90mm, piston rod S = 45mm, pressure force 11451kg, pulling force 8588kg. With CBM catch hook Cat.3 including ball Cat. 3 32.2mm. Including hydraulically unlockable check valve (locking block), 2 hydraulic hoses with plug and dust caps, actuation chain for catch hook, top link bracket and lift indicator.
Indication of the installation length including joint head.
The specified lengths always refer to bolt centre to bolt centre including the knuckle !
Indication of the installation length including joint head.
The specified lengths always refer to bolt centre to bolt centre including the knuckle !
| A (mm): | 100 |
|---|---|
| B (mm): | 135 |
| Installation length EL (mm): | 700 |
| Length max (mm): | 966 |
| Length min (mm): | 700 |
| Stroke (mm): | 266 |
| Suchnummer: | 117355 |
| Ø outer pipe (R)(mm): | 105 |
Hersteller
Faie Handelsgesmbh
Handelsstraße 9
4844
Regau
AT
[email protected]
MPN:
Downloads
There are no downloads available for this article
Bewertungen
Login
There aren't any asked questions yet.
#FA102310

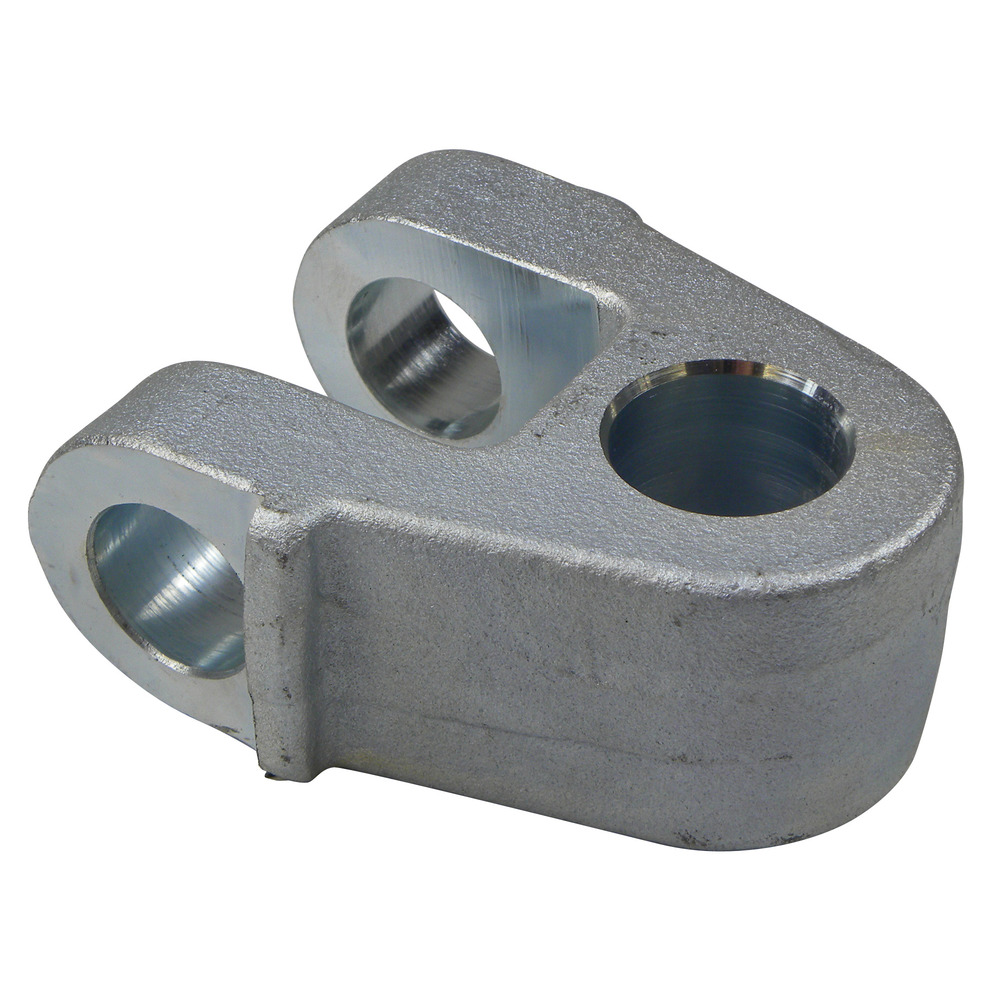

Rod head for hydraulic top link
