Hydraulic top link with CBM catch hook Cat.3 and with bolt for the joint head
Hydraulic top link with CBM catch hook Cat.3 and with bolt for the joint head
Beschreibung
Product information "Hydraulic top link with CBM catch hook Cat.3 and with bolt for the joint head"

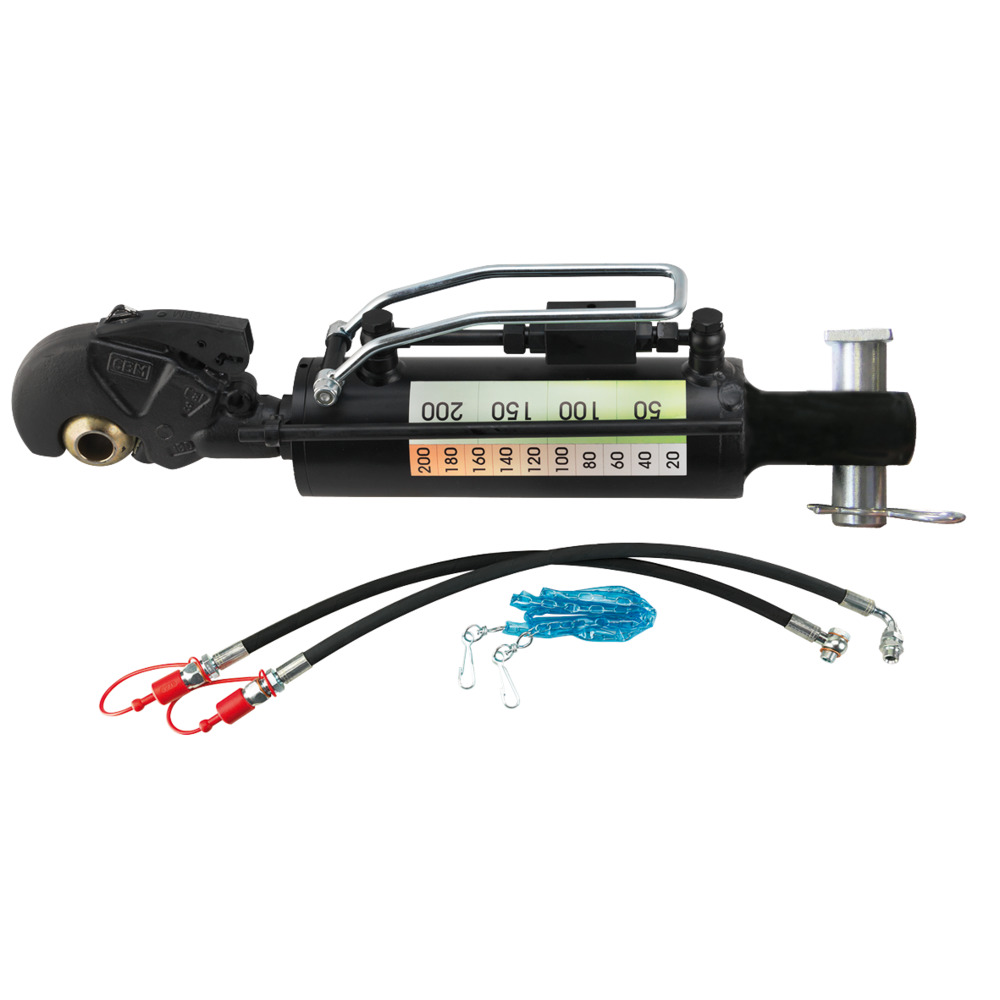

Suitable for tractors up to approx. 250hp, piston K = 90mm, piston rod S = 40mm, pressure force 11451kg, pulling force 9150kg. Suitable for Fiat, Ford, New Holland and Steyr Profi. CBM catch hook cat. 3, with ball cat. 3/2 25mm. Including hydraulically unlockable check valve (locking block), 2 hydraulic hoses with plug, actuation chain for catch hook, top link bracket and lift indicator.
Indication of the installation length including joint head.
The specified lengths always refer to bolt centre to bolt centre including the knuckle !
Indication of the installation length including joint head.
The specified lengths always refer to bolt centre to bolt centre including the knuckle !
| A (mm): | 100 |
|---|---|
| B (mm): | 126 |
| Installation length EL (mm): | 622 |
| Length max (mm): | 807 |
| Length min (mm): | 622 |
| Previous article: | 74317 |
| Stroke (mm): | 185 |
| Suchnummer: | 117353 |
| Ø outer pipe (R)(mm): | 105 |
