• Suitable for use on generators, e.g. in company workshops, schools, metal construction, on construction sites or for farmers
• Protection against moisture, salt spray, corrosion thanks to a sealed circuit board also suitable offshore
• Devices equipped with PFC (power factor correction), VRD (voltage reduction when idle)
• TIG DC function = enables simple TIG welding with contact ignition

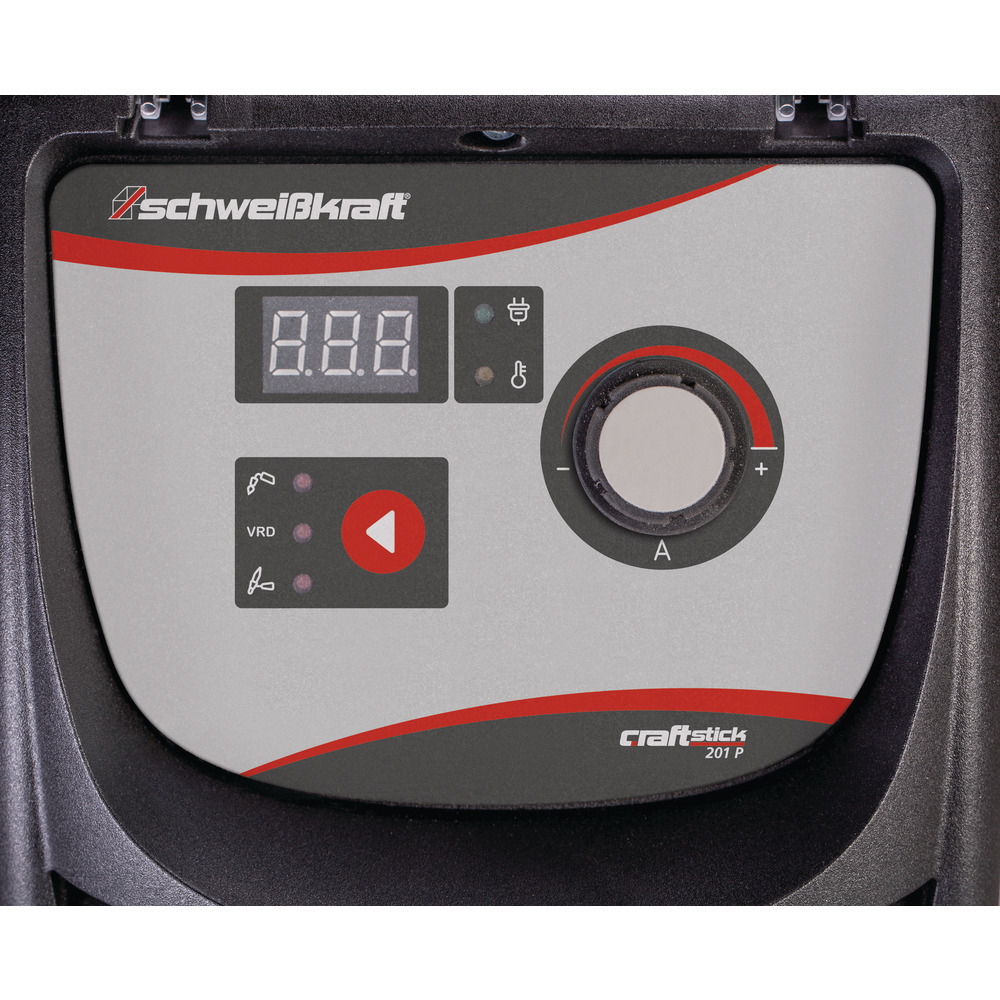

• Precise adjustment of the Welding parameters via digital display
• Can be used universally for welding all common types of electrodes
• Constant deposition performance is achieved through constant welding current
• All devices are constructed using modern inverter technology< /li>
• This allows small and light electrode devices to be manufactured
• This makes them ideal for assembly work (on ladders, on scaffolding, etc.) and, thanks to protection class IP 23, also generally for outdoor work
• At least 30% ED for all devices
• Thanks to the quietly running built-in fans, the heat is dissipated well from the devices and thus a long duty cycle is achieved

• Hot Start: By automatically briefly increasing the welding current, the arc ignites safely and is immediately stable
• Anti-Stick If the electrode accidentally sticks, the welding current is automatically reduced and thus prevents the electrode from burning out
• Arc force control: Through the internal monitoring of the welding current and welding voltage, short circuits are resolved quickly and safely
• This stabilizes the arc and the electrode can can be easily processed

• Length: 365mm
• Width/depth: 150mm
• Height: 28mm
• li>Weight (net): 6.1kg
• Connection voltage: 160-275V
• Power type: AC
• Mains frequency: 50/60Hz
• Power consumption: MMA 31 / TIG 22
• Total power: 7 / 4.8kVA
• Standard: IEC 60974-1:2012
• Protection class: IP23
• Insulation class: H
• EMC class: A
• Marking: CE
• Required generator power: >~7.0kVa
• Power plug: 16A
• Open circuit voltage: 14.5V
• Working temperature: -10 - 40 degrees
• Weldable electrodes: 1.6-4.0mm
• Setting range electrode / TIG: 10-200A
• Duty cycle at max. current 40 TIG DC: 30%
• Duty cycle at max. current 40 electrode: 30%< /li>
• Current at ED 100% 40C TIG DC: 110A
• Current at ED 100% 40C electrode: 110A
• Power consumption TIG DC: 4.8kVA
• Power consumption electrode: 7kVA
• Sheet thicknesses: 1.0 - 8.0mm

Scope of delivery &~ Equipment

• 3m welding cable 16mm with electrode holder
• 3m ground cable 16mm with ground terminal 200 A
