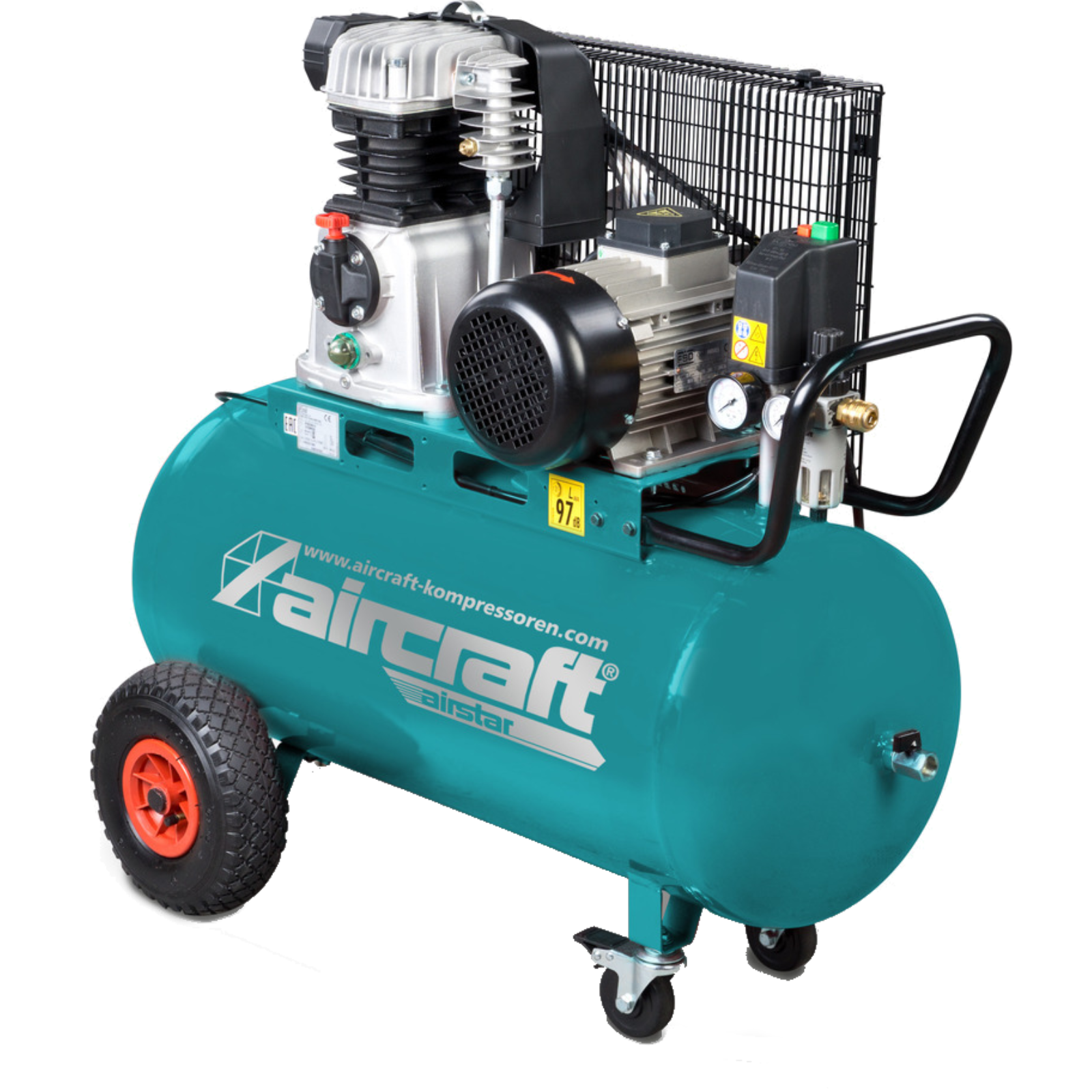

The Airstar 500/90 compressor is a reliable choice for home and hobby. With a belt drive and 2-cylinder high-performance unit made of gray cast iron, it offers durability and performance.
Large fan wheel and cooling air baffle ensure optimal cooling. The electric motor with high torque and motor protection switch ensures safety. The aftercooler with cooling fins lowers the container inlet temperature and reduces moisture. Fully ready for connection and equipped with safety devices, operated with 400 volts, the compressor is versatile. The 90 liter container offers sufficient air supply. Robust design and sturdy belt grille protection ensure safety. The Airstar 500/90 is perfect for workshops, garages and hobby rooms, with enough air volume and pressure for tires, air tools and blowing out surfaces.
Summary: ~

• Compressor for Home and hobby with proven belt drive and 2-cylinder high-performance unit made of gray cast iron
• 2-cylinder high-performance unit made of gray cast iron for a long service life
• Large fan wheel and a cooling air baffle on the cylinder for optimal cooling of the Compressor
• Quality electric motor with high tightening torque
• Electric motor equipped with motor protection switch
• Aftercooler with cooling fins ensures a low container inlet temperature and thus less moisture in the compressed air.
• Stable belt grid protection made of metal
• 400 volt model - standard with phase inverter for easy manual reversal of the direction of rotation
• Compressed air tank equipped with safety valve, tank pressure gauge and condensate drain valve
• With all safety features
• Completely ready for connection

Technical data:
Compressor system: HOS
Maximum volume flow: 500l/min
Filling capacity approx. 375l/min
Maximum pressure: 10bar
Container content: 90l
Cylinder / stages: 2/1
Speed: 1300 1/min
Motor power: 3kW
Electrical connection: 400V
Mains frequency: 50Hz
Weight: 75kg
Dimensions ( lxwxh): 1070 x 475 x 870mm
