Schneider Pallet fork carrier

Product number: FA23296

€459.00 *

Prices incl. VAT plus shipping costs

Freight flat rate: €65.00

▶ Leave a review!

( Delivery time: 2-3 weeks )

Stück

Accesories

Questions about the article

article in FAIE catalog

You get 2295 points for this order

Produkt-Highlights

mit 4 eingeschweißten Buchsen zur Montagemöglichkeit von 4 Schwerlastzinken mit Gewinde M22
mit freier Sicht auf die Frontladerwerkzeuge
Tragfähigkeit 2000kg

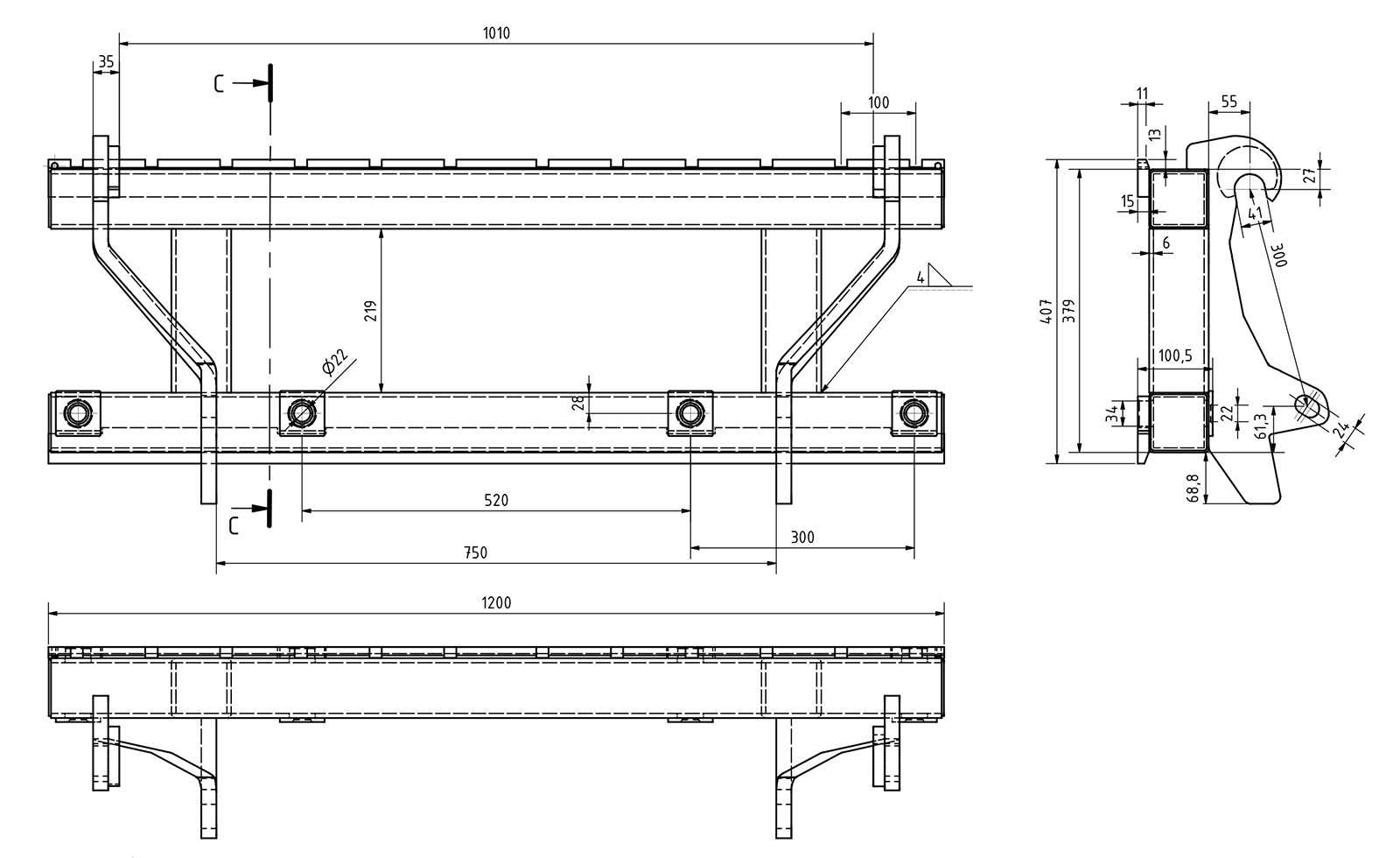

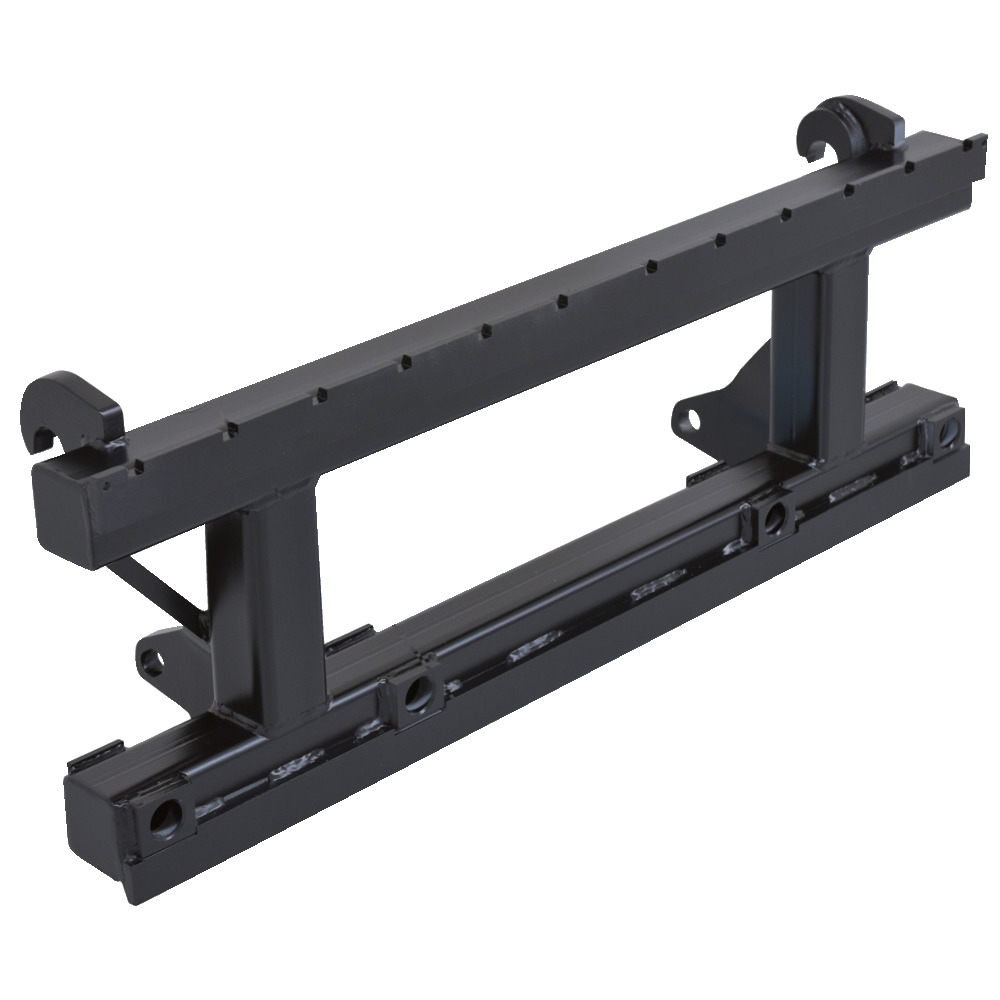

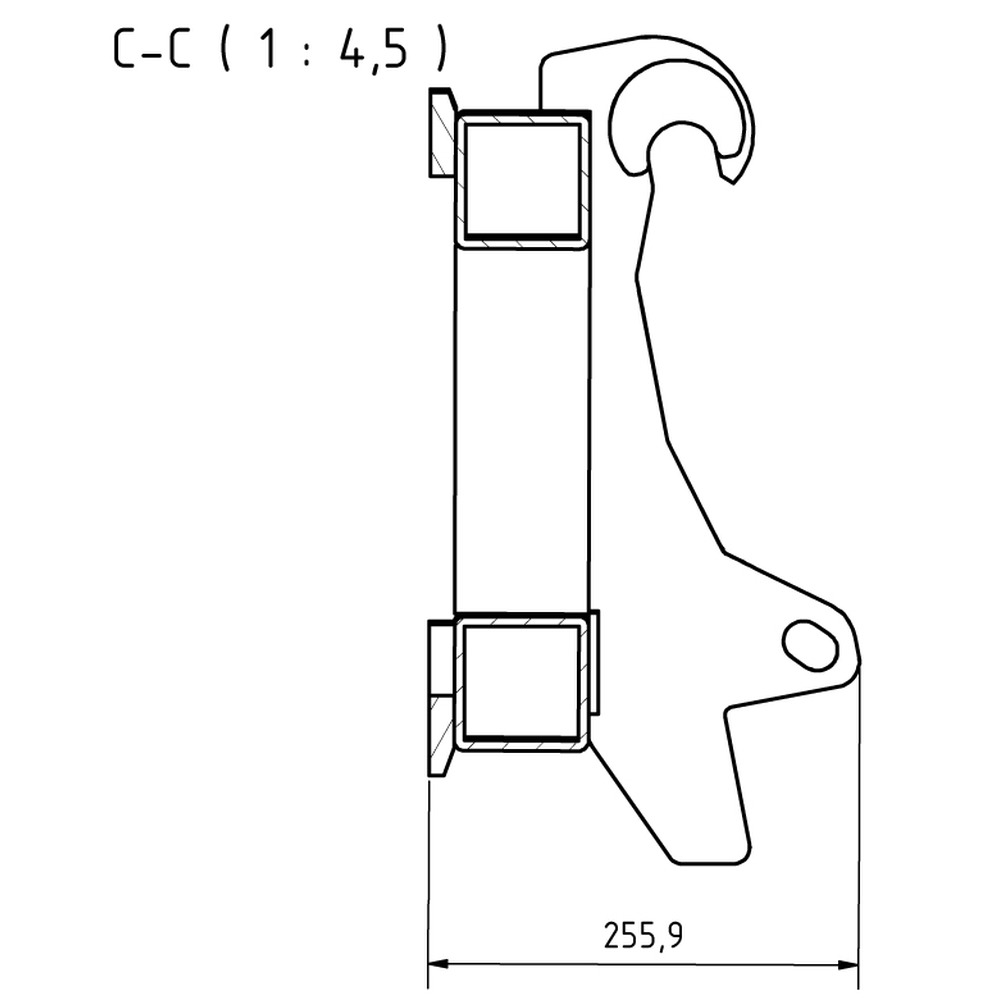

Schneider Pallet fork carrier

Clear view pallet fork carrier 2 t with EURO mount, with 4 welded-in bushings to accommodate front loader tines with M22 thread (FAIE No. 17706). Load capacity 2000 kg, beam width 1200 mm. Suitable for forks ISO 2A and ISO 2B.

Gewicht (kg):	65,70

Downloads

There are no downloads available for this article

Hersteller

Schneider Fahrzeug- und Containertechnik GmbH
Brockhagener Straße 92
33649 Bielefeld

Bewertungen

0 of 0 reviews

Leave a review!

Share your experiences with other customers.

Login

Your email address

Your password

No reviews found. Share your insights with others.

Please enter a valid email address.

Your question *

Please enter a valid question.

I agree that my data will be processed to answer the question. I have taken note of the Privacy Policy and agree to the information described therein.*

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Fields marked with * are mandatory.

There aren't any asked questions yet.

#FA9437

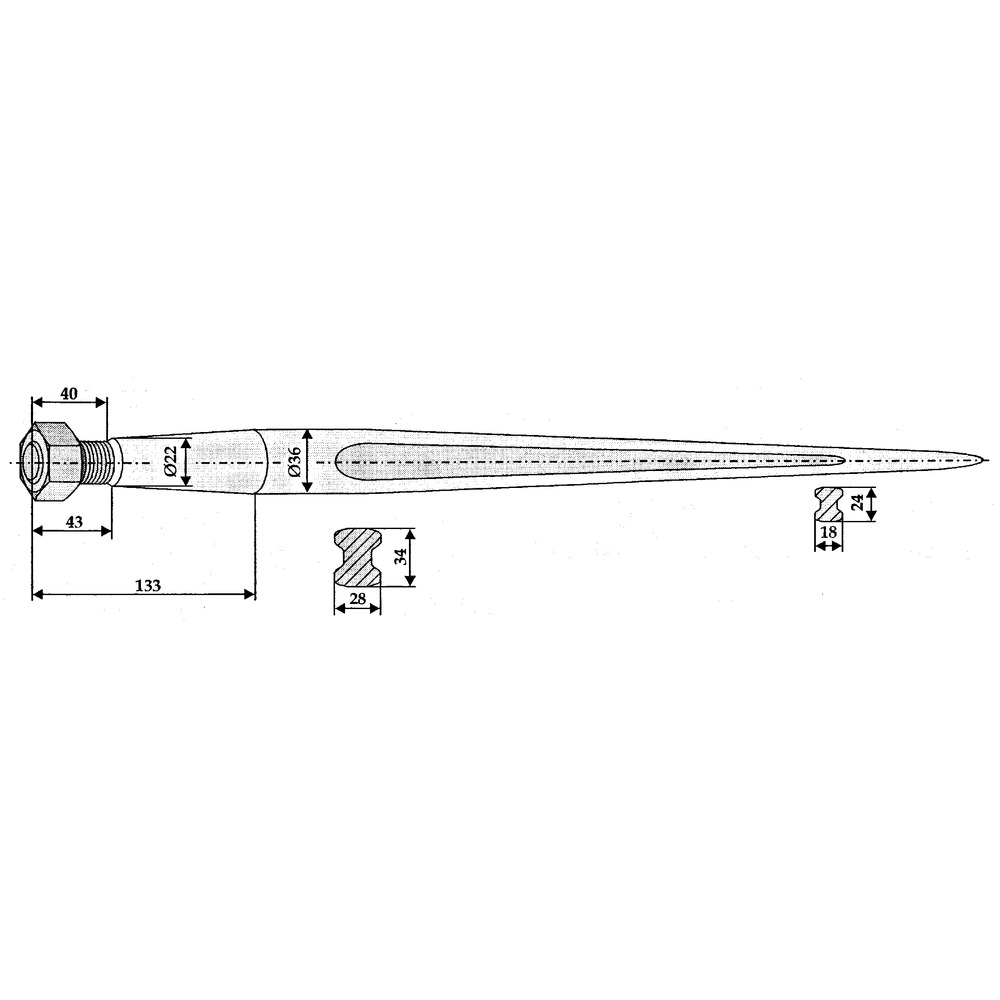

Standard tines

Sale and shipment by: FAIE Handels GmbH

Suitable for Baas, Hauer, Schffer, Weidemann, double T profileMade of spring steel 55Si8, partly C45. All tines with tapered nut and quality guarantee.

Variants from €29.99*

€22.49*

to the product

#FA17706

Large bale tines standard, double T profile

Sale and shipment by: FAIE Handels GmbH

Variants from €42.90*

€34.32*

to the product

#FA70575

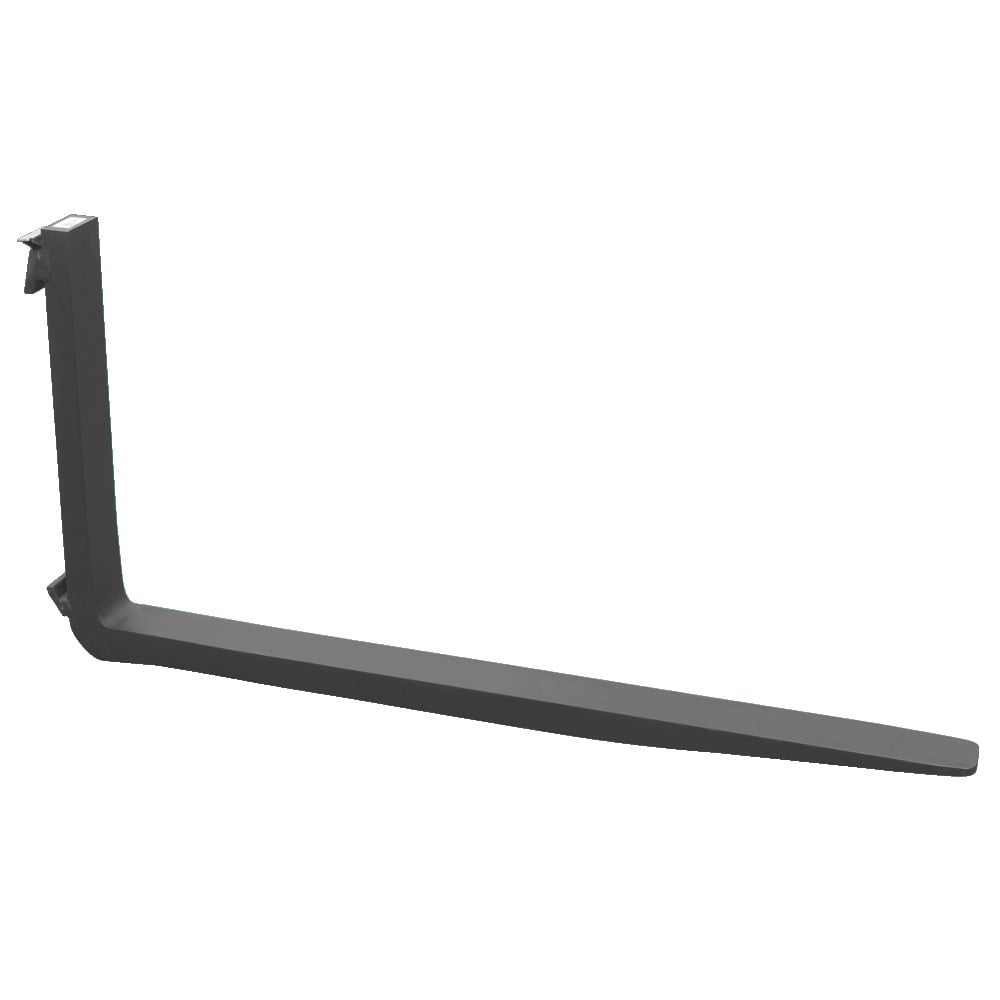

Pallet fork tine according to ISO 2A

Sale and shipment by: FAIE Handels GmbH

Forks suitable for pallet fork carriage according to ISO-2A with ground clearance a=76mm and back length RH=550mm. Cross-section 80x40 mm, load capacity up to 2000 kg of the front loader. The height of the fork carriage b is 407 mm.Price per piece.Quality forks are the tireless helpers that lift and lower heavy loads around the clock every day. The requirements are enormous and varied. Because the variety is so enormous, we concentrate on VETTER quality forks.

Variants from €205.00*

€175.20*

to the product
