Reduction gearbox 2 : 1 Gr.2 for oil engines with SAE-A connection flange and shaft-ø 25 mm
Beschreibung
Product information "Reduction gearbox 2 : 1 Gr.2 for oil engines with SAE-A connection flange and shaft-ø 25 mm"

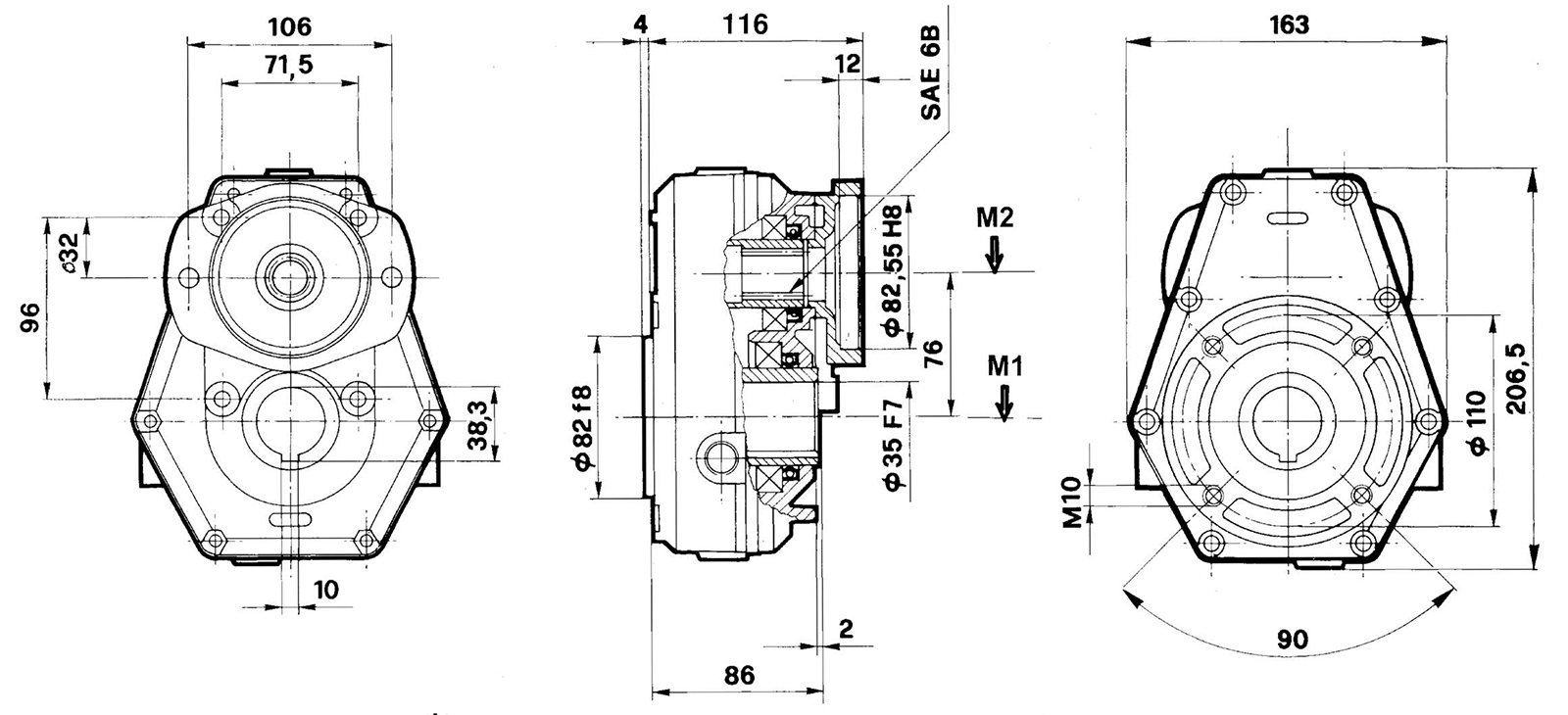

The 95000 series reduction gearbox is a compact gearbox designed for use with hydraulic motors. The gearbox has a reduction ratio of 2:1, which means that the speed at the output of the gearbox is 2 times slower than the speed at the input. The direction of rotation of the output shaft is the reverse of the direction of rotation of the input shaft (viewed at the visible shaft end). The gearbox is equipped with a robust aluminium housing. The input side has a bore with a diameter of 25 mm and a keyway of 8 mm. The connecting flange is suitable for oil motors with an SAE-A flange.
The output side is a hollow shaft with a diameter of 35 mm and a keyway of 10 mm. Four M10 holes with a bolt circle diameter of 110 mm are arranged on the output side for fastening the gearbox.
Please fill up and check the oil level before commissioning the gearbox.
The maximum power transmission is 10 kW.
- Compact and robust
- High-quality workmanship
- High torque
- Long service life
- Universal application possibilities
| Drehmoment Ausgang (Nm): | 176 |
|---|---|
| Drehmoment Eingang (Nm): | 88 |
| Drehzahl Ausgang (U/min): | 200 |
| Drehzahl Eingang (U/min): | 400 |
| Search number: | 123802 |
Hersteller
Oleodinamica Borelli
Via L. Galvani 2
42011
Bagnolo in Piano(RE)
IT
[email protected]
MPN:
