Schneider SWR hydraulic locking conversion kit
Produkt-Highlights
- Einfache Montage !
- Gerätewechsel von der Kabine aus !
Schneider

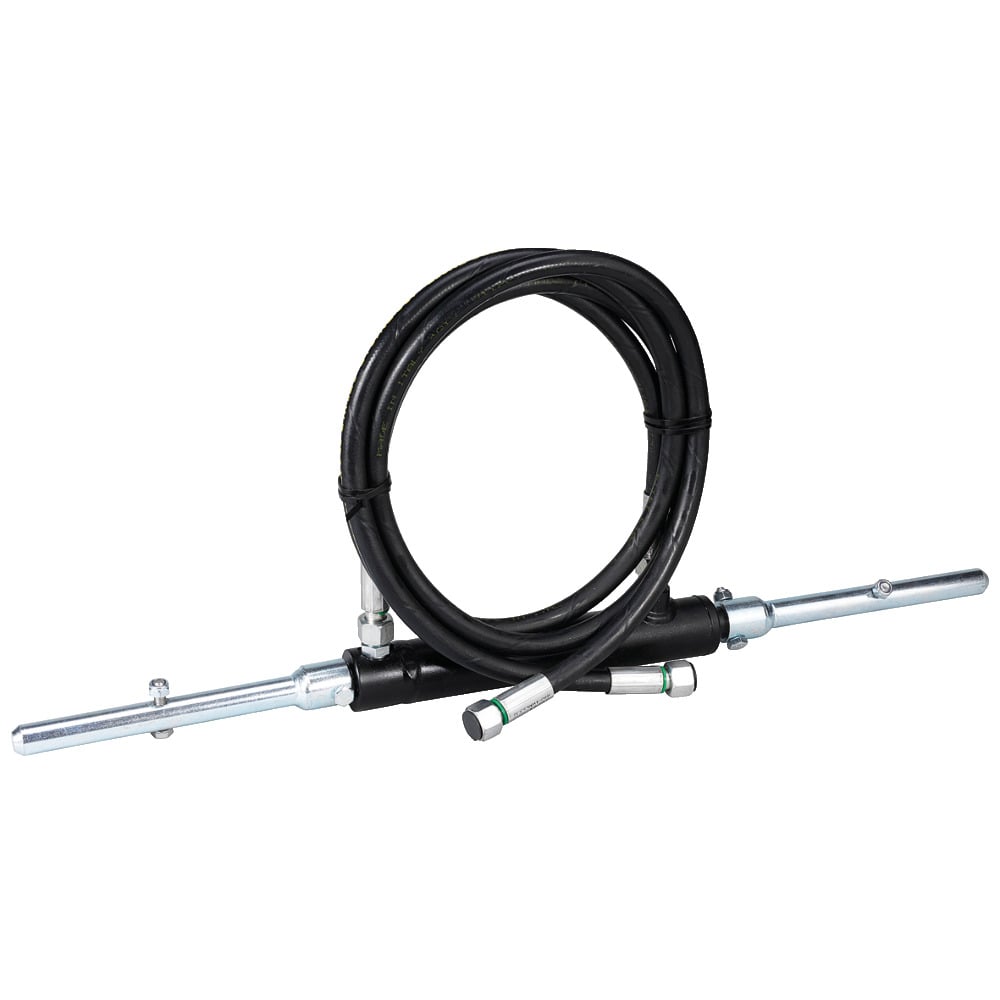

SWR hydraulic locking conversion kit
For converting the mechanical locking to a hydraulic locking of the implements with a double-acting cylinder. Including 1.5 m hose, connection M18x1.5/12L union nut.
In conjunction with guide no. 103099 (see accessories) you can attach this conversion kit to any quick-change frame. The installation length L(min) is 714mm. With the stroke of 150mm, the maximum length L(max) is 864mm. The locking bolt has a diameter of 20mm.
We would like to point out that the hydraulic control circuit for the locking cylinder has a flow rate of 10-15L/min. and the maximum pressure should be limited to 160bar.
In conjunction with guide no. 103099 (see accessories) you can attach this conversion kit to any quick-change frame. The installation length L(min) is 714mm. With the stroke of 150mm, the maximum length L(max) is 864mm. The locking bolt has a diameter of 20mm.
We would like to point out that the hydraulic control circuit for the locking cylinder has a flow rate of 10-15L/min. and the maximum pressure should be limited to 160bar.
| Hub (mm): | 150 |
|---|---|
| Length (mm): | 714 |
| L min - L max: | 714 - 864 mm |
| Ø Bolzen (mm): | 20 |
Downloads 1
dat_umruestsatz_79158
Hersteller
Schneider Fahrzeug- und Containertechnik GmbH
Brockhagener Straße 92
33649 Bielefeld
Brockhagener Straße 92
33649 Bielefeld
Bewertungen
Login
There aren't any asked questions yet.
#FA103099

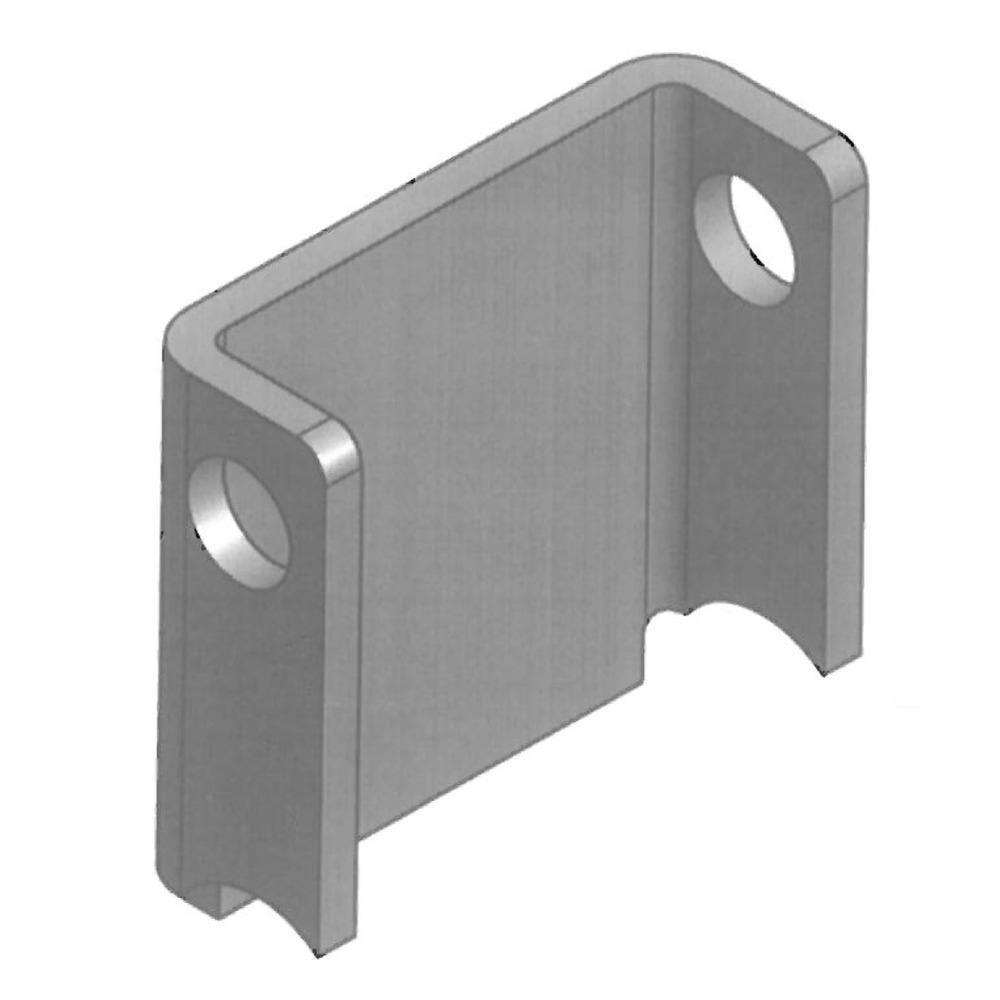

U-profile guide for the locking bolts to the quick-change frame
Sale and shipment by: FAIE Handels GmbH
U-profile guide to the locking bolts to the quick-change frame. The U-profile can be welded onto any quick-change frame in order to be able to use the hydraulic locking Faie No. 79158.The guides of the mechanical locking, if these do not correspond, are cut off from the frame and the U-profile is welded on again.
