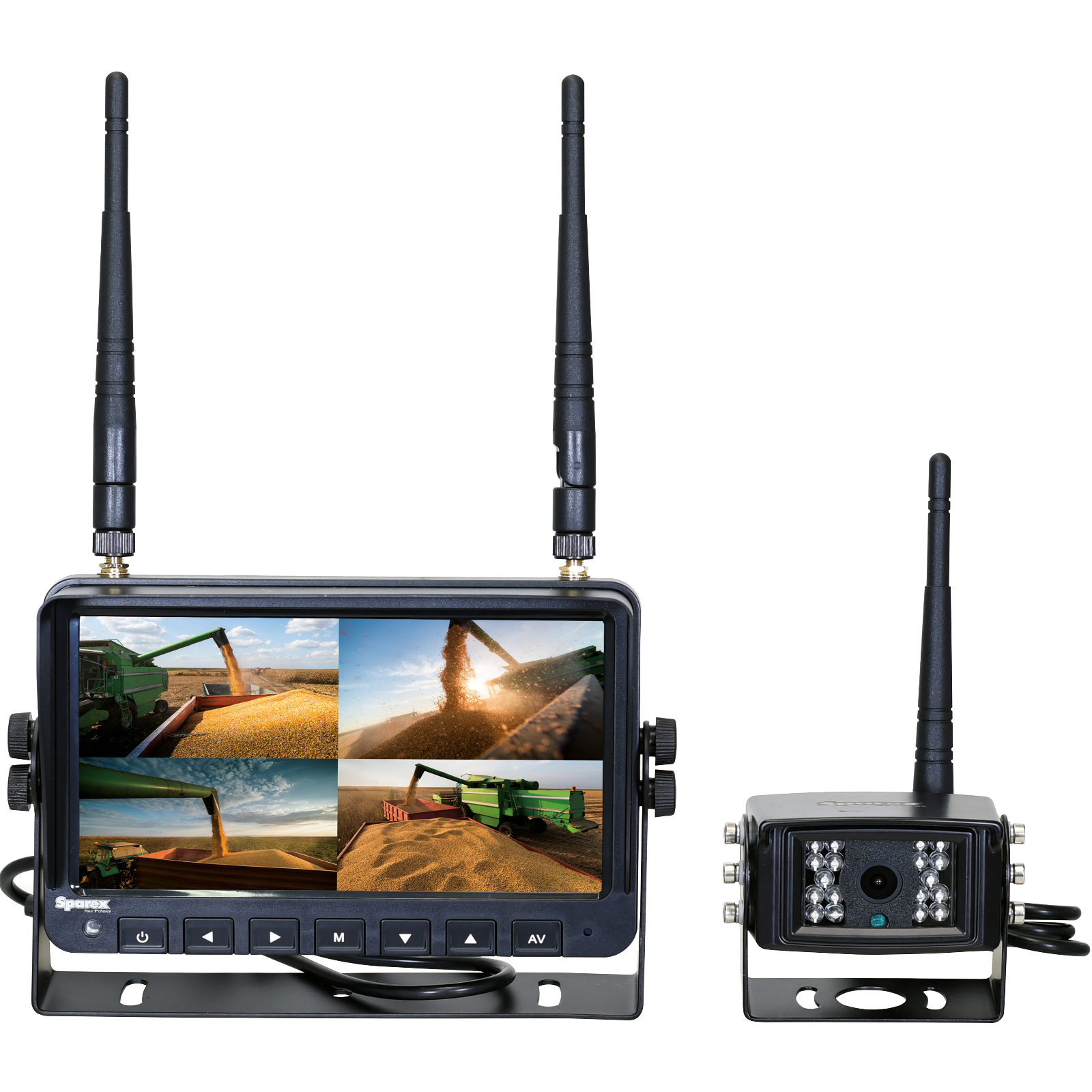

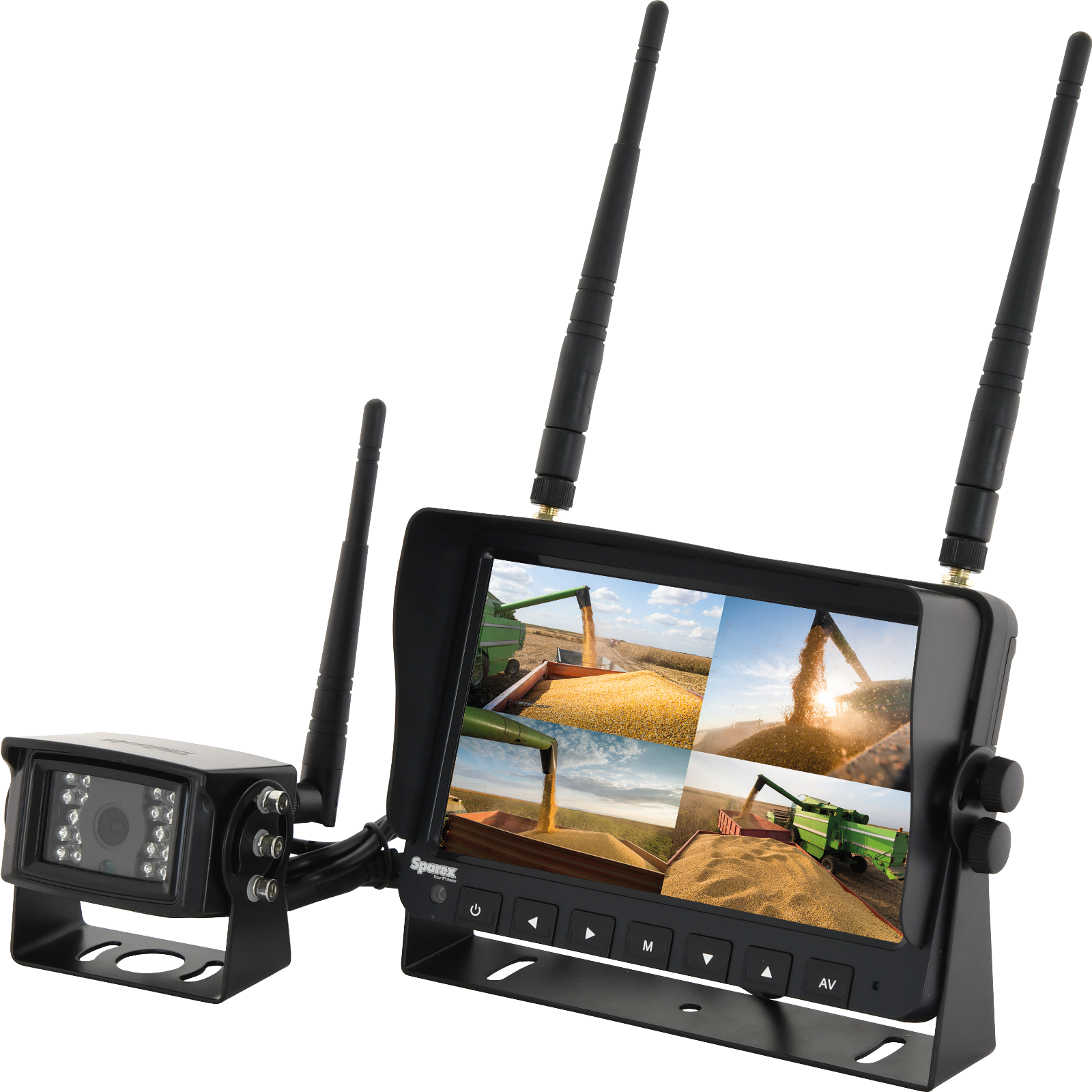

Wireless camera system 4QUAD split 7” monitor HD
Beschreibung
Product information " Wireless camera system 4QUAD split 7” monitor HD"

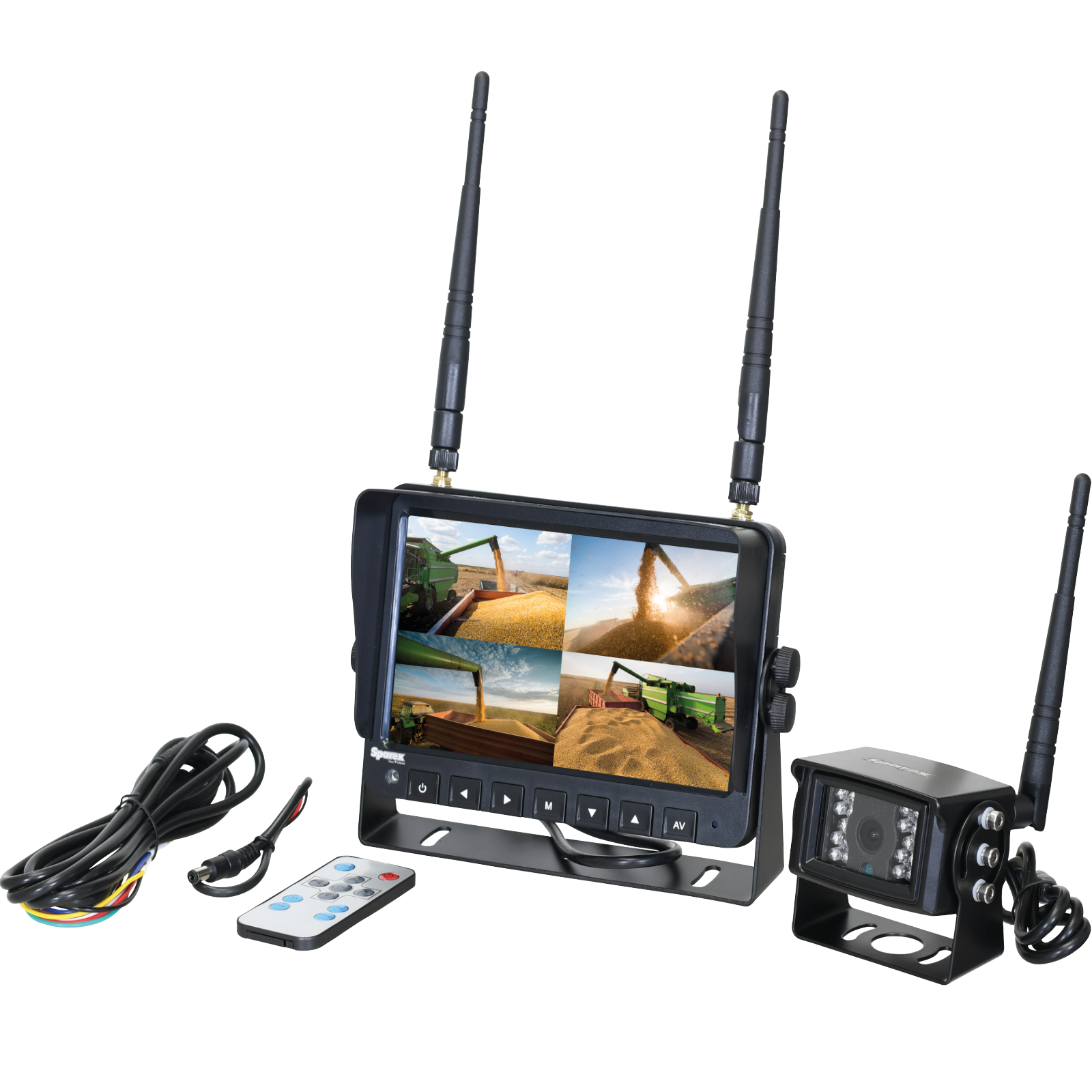

Includes: 1 x 7 inch digital wireless 4QUAD split HD monitor with audio and DVR function, 1 x digital wireless CMOS camera with microphone, 1 x detachable sun visor, 1 x adjustable bracket, 1 x manual
Max. Max. number of cameras: 4
Maximum transmission distance: up to 70 m
Temperature range: -20°C to +70°C
Night vision
Camera viewing angle: 120°
Volt: 10-32V
Technical data
Resolution: 800 (RGB) x 480
Recording function: Yes
Frame rate (FPS): PAL: 25, NTSC: 30
Width: 177 mm
Color coding: PAL/NTSC
Frequency: 2.4GHz
Functions: 4 ways video input
Brightness: 450cd/㎡
Height: 122 mm
Camera IP rating: IP69K
Camera viewing angle: 120°
Camera type: CMOS
Connectivity: Analog (CVBS)
Contrast: 500:1
Maximum number of cameras shown on screen: 4
Maximum transmission distance: 70 m (under optimal conditions)
Monitor size: 7''
Monitor IP rating: IP54
Monitor type: LCD
Night vision: Yes
Optimum Transmitting Distances: up to 40m
Fits SD card format: Support maximum 128G SD card
Quad screen: Yes
Loop option: No
Mirror function: Yes
Depth: 30 mm
Touchscreen: No
Connection type: Wireless
Volt (V): 10-32V
Certification: CE, EMC, RoHS, E9, UKCA, RED
