​Mounting kit for Bowden cable actuation for GMS control valves, with 4-hole flange and a bolt circle of ø 45 mm, Supplied without Bowden cable!

Mounting lever for changing the blades on the mowing discs and mowing drums.

Mounting mandrel for mounting the rubber grommets for the injection lines/fuel lines without damaging/cutting the rubber grommets.

270x145mm, hole spacing 105x55mm

160x145mm, hole spacing 105x55mm

for telescopic mirrors, with 4 holes 9 mm, hole spacing 55 mm, LxWxH: 136x50x21 mm

Complete with banjo bolts, tube 12 mm, length eg 0-169mm refers to the installation length including locking block.

To build a mounting strip, 2 end pieces are required. This mounting strip can be supplemented as desired with additional intermediate pieces.

Mounting strip plug-in systemColour: BlackTo build a mounting strip, 2 end pieces are required.This mounting strip can be expanded as desired using additional intermediate pieces.

Assembly tool for Bestgrip spikes, with 6 mm hexagonal holder for cordless screwdriver.

For coupling front and rear implements, material fine-grain steel QSTE380 (St52-3). Made from frame profiles 60x60x5mm.

For coupling front and rear implements, material fine-grain steel QSTE380 (St52-3). Made from frame profiles 60x60x5mm.

For coupling front and rear implements, material fine-grain steel QSTE380 (St52-3). Made from frame profiles 60x60x5mm.

For coupling front and rear implements, material fine-grain steel QSTE380 (St52-3). Made from frame profiles 60x60x5mm.

For coupling front and rear implements, reinforced version.

Mowing blade with 20 blades, suitable for the ESM Universal Beam SC with hinged blade holders. The blade head can be secured to the blade using two M8 screws, spaced either 50.9 mm or 152.7 mm apart. In the centre of the M8 threaded holes is a hole with a diameter of 8.1 mm to accommodate the centring pin from the blade head. In the area of the threaded holes, the rivet heads are ground flat. Four guide strips are fitted to the mower blade. The guide strips are positioned above the 1st/2nd, 6th/7th, 14th/15th and 19th/20th blades.

Mower blade with 20 blades suitable for ESM Universal-C cutter bar. Depending on the version, the cutter head is attached to the blade with 2 M8 or 4 M8 bolts at a distance of 50.9 mm and 152.7 mm. There are 4 guide rails on the cutter bar. Guide rails are fitted above the 2nd/3rd, 7th/8th, 13th/14th and 18th/19th blades. The rivets are ground in the area of the cutter head holder.

Mower blade with 20 blades suitable for ESM Universal-SC cutter bar. Depending on the version, the cutter head is attached to the blade with 2 M8 or 4 M8 screws at a distance of 51 mm and 153 mm. There are 4 guide rails on the cutter bar. Guide rails are fitted above the 1st/2nd, 6th/7th, 14th/15th and 19th/20th blades. A reinforcement strip with a thickness of 5 mm is fitted in the area of the cutter head holder.

Mower blade with 20 blades suitable for ESM municipal cutter bars. The knife head is attached to the knife with 4 M8 screws, each 50.8mm apart. There are 4 pin supports on the mower blade to accommodate the rocker arms. The tenon carriers are positioned over 2nd/3rd, 6th/7th, 14th/15th. and 18th/19th Blade.

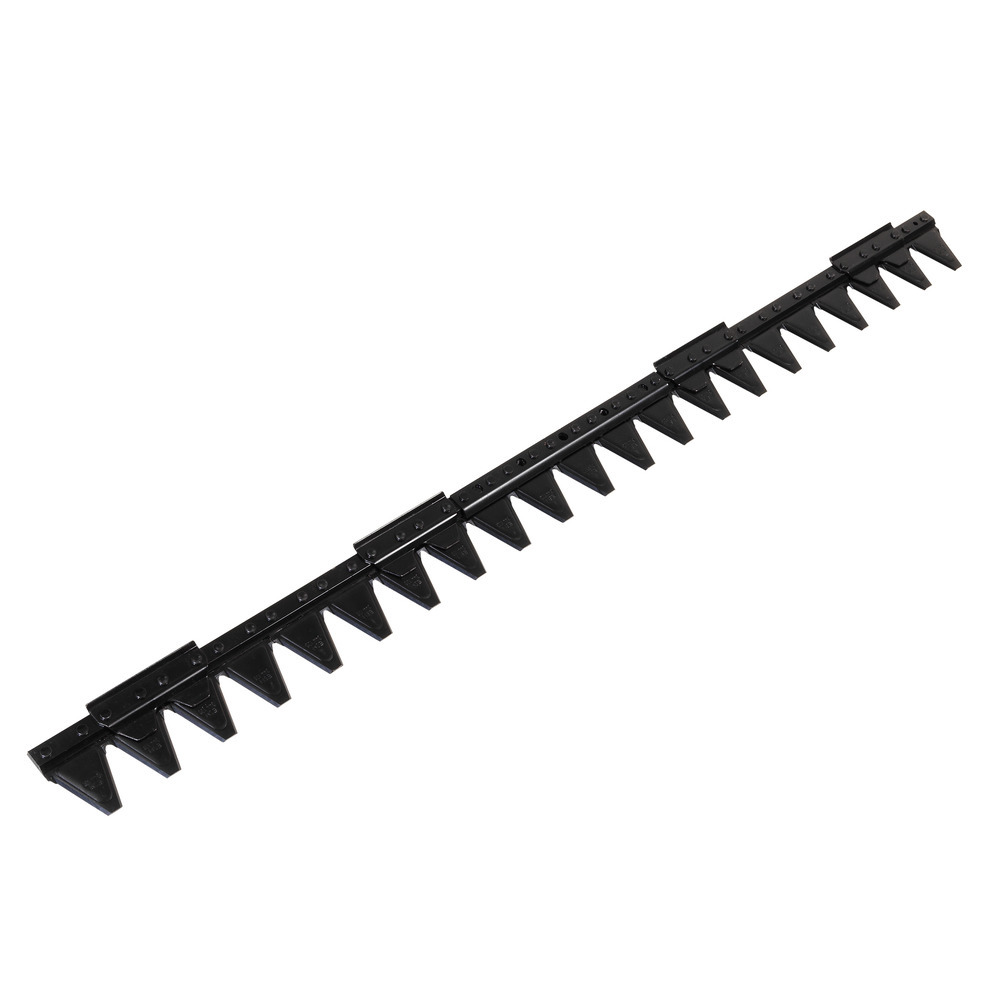

Mower blade ESM 107cm 21 blades for universal bar C. 2 threaded holes M8 with hole spacing 101.6mm and 4 guide strips over 2. &~ 3rd Blade, 7th &~ 8th Blade, 14th &~ 15th Blade and 19th &~ 20. Blade. Original ESM mower blade suitable for Aebi, Agria, Bucher, Gutbrod, Holder, Nussmller Rasant, Rapid, Reform, Vogel &~ Noot and many others.

Mower blade with 21 blades suitable for ESM universal bar SC with hinged blade holder. The cutter head is attached to the blade with 2 M8 screws at a distance of 101.6 mm. In the centre of the two M8 threaded holes is a hole with Ø 8.1mm to accommodate the centring bolt on the cutter head. There are 4 guide rails on the mower blade. Guide rails are attached to the mower blade. The guide rails are positioned over the 2nd/3rd, 7th/8th, 14th/15th and 19th/20th blades.

Mower blade with 23 blades suitable for ESM municipal cutter bars. The cutter head is attached to the blade with 2 M8x18 bolts at a distance of 101.6 mm. There are 4 pivot supports on the mower blade to hold the rocker arms. The pivot supports are positioned between the 2nd and 3rd, 8th and 9th, 15th and 16th, and 21st and 22nd blades.

Mower blade with 23 blades suitable for ESM Universal-S cutter bar. The cutter head is attached to the blade with 2 M8 bolts at a distance of 101.6 mm. There are 4 guide rails on the cutter bar. Guide rails are fitted above the 2nd/3rd, 8th/9th, 15th/16th and 21st/22nd blades. A 6 mm thick reinforcement strip is fitted in the area of the cutter head holder. There is an 8 mm diameter hole in the centre of the reinforcement strip to accommodate a centring device.
