Agricultural machinery

Mower blade suitable for Steyr original Phantom cutter bars. The mower blade has 25 blades and is supplied complete with the cutter head 192720212.25 blades 192720252 serrated, 1 spring plate 192720295, 1 cutter head 192720212Austrian quality product

Upper knife 30 blades, including 6 mushroom blades

Bottom knife 31 blades, including 5 mushroom blades and 1 end blade

33 blades DIN 75, 6 cleaning plates AM8731/2

Mowing blade suitable for Steyr original cutter bars. The mowing knife has 20 blades DIN 80 with 5 cleaning plates 1800720018. The cleaning plates are riveted on the 4th, 7th, 11th, 15th and 19th blade, starting from the knife head. The knife head blade is not counted as a blade. The knife head 180a720056 is made of malleable cast iron.Austrian quality product

Mower blade suitable for Busatis-Gebusa cutter bar BK 001, BK 003, BK 004, BK 006, BK 007, BK 008, BK 009, BK 015 and BK 016. The mower blade has 20 blades DIN 80. Of these, 5 blades are guide blades GB 543. The guide blades are the 5th, 9th, 13th, 17th and 19th blades starting from the knife head. The knife head blade is not counted as a blade.Austrian quality product

15 serrated blades, 4 guide rails, B590.48928.0

Mower blade with 18 blades suitable for ESM universal bar SC with hinged blade holder. The cutter head is attached to the blade with 2 M8 bolts at a distance of 101.6 mm. The cutter head attachment is from the centre. There are 4 guide rails on the mower blade. Guide rails are attached to the cutter blade. The guide rails are positioned over the 1st/2nd, 5th/6th, 13th/14th and 17th/18th blades.

Mower blade ESM 92cm 18 blades for universal bar C. 2 threaded holes M8 with hole spacing 101.6mm and 4 guide strips above 1. &~ 2nd blade, 6th &~ 7th Blade, 12th &~ 13th Blade and 17th &~ 18. Blade. Original ESM mower blade suitable for Aebi, Agria, Bucher, Gutbrod, Holder, Nussmller Rasant, Rapid, Reform, Vogel &~ Noot and many others.

Mower blade ESM 97cm 19 blades for universal bar C. The 4 threaded holes M8 have a hole spacing of 101.6mm and 203.2mm. The 4 guide bars are above the 2nd &~ 3rd blade, 6th &~ 7th Blade, 13th &~ 14th Blade and 17th &~ 18. Blade mounted. Original ESM mower blade suitable for Aebi, Agria, Bucher, Gutbrod, Holder, Nussmller Rasant, Rapid, Reform, Vogel &~ Noot and many others.

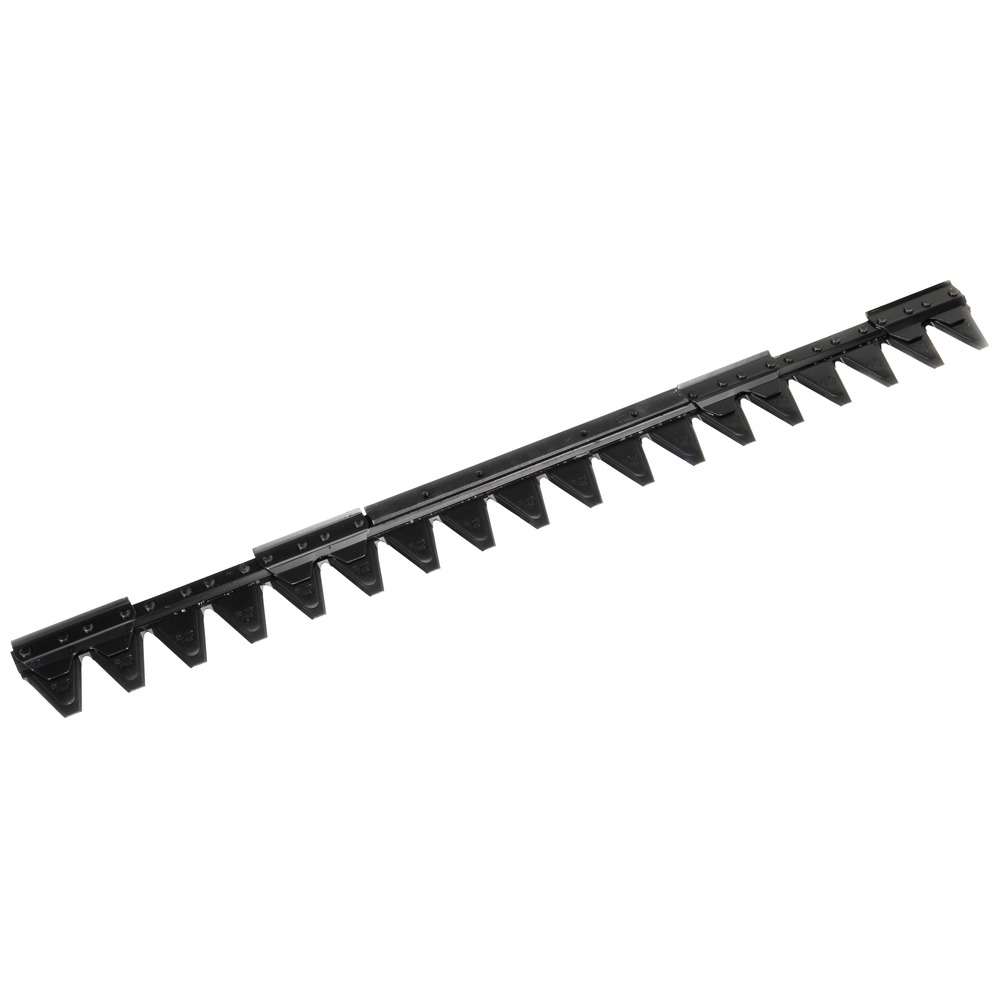

Mower blade ESM 97cm 19 blades for universal bar C. With reinforcement bar length 253mm and thickness 2.5mm. 2 threaded holes M8 with hole spacing 101.6mm and 4 guide strips over 2. &~ 3rd blade, 6th &~ 7th Blade, 13th &~ 14th Blade and 17th &~ 18. Blade. Suitable for Aebi, Agria, Bucher, Gutbrod, Holder, Nussmller Rasant, Rapid, Reform, Vogel &~ Noot and many others.

19 blades 59015, 4 guide strips, B590.59031.0

Mower blade with 19 blades suitable for ESM universal bar SC with hinged blade holder. The cutter head is attached to the blade with 2 M8 screws at a distance of 101.6 mm. In the centre of the two M8 threaded holes is a hole with Ø 8.1mm to accommodate the centring bolt on the cutter head. In the area of the threaded holes, the rivet heads are ground flat. There are 4 guide rails on the mower blade. Guide rails are attached to the mower blade. The guide rails are positioned over the 2nd/3rd, 6th/7th, 13th/14th and 17th/18th blades.

19 serrated blades, 4 guide rails, B590.48926.0

25 blades DIN 75, 8 cleaning plates AM8731/2, 2 cleaning plates AM23328/2

19 blades DIN 75, 6 cleaning plates AM8731/2, 2 cleaning plates AM23328/2

21 blades DIN 75, 8 cleaning plates AM8731/2, 2 cleaning plates AM23328/2

19 blades DIN 80, 4 cleaning plates 1250

21 blades DIN 80, 6 cleaning plates 1250

21 blades DIN 75, 6 cleaning plates AM8731/2

19 blades DIN 75, 4 cleaning plates AM8731/2

Bottom knife, 24 bladesOverall length including cutter head: 2025 mmLength of cutter back:         1995 mmCutter head 5840.055.01, 345.0770  Cutter head projection beyond cutter back: 26 mm  Cutter head length: 400 mm  Blade head spigot diameter: 18 mm  Blade head viewed in the direction of travel: leftTotal number of blades: 24, of which 4 are mushroom blades  Position of the mushroom blades relative to the blade head    6th, 11th, 16th and 20th bladesBlade spacing (centre to centre): 84 mmESM No. 265.6130Busatis No. 5471.500.65

Upper blade, 27 bladesOverall length including blade head: 1975 mmLength of blade back: 1884 mmBlade head 5840.040.01, 345.0550 Blade head projection beyond blade back: 90 mm Blade head length: 400 mm Blade head pin diameter: 18 mm Blade head viewed in the direction of travel: leftTotal number of blades: 27, including 5 mushroom blades Position of the mushroom blades relative to the blade head 3rd, 9th, 15th, 21st and 25th bladesBlade spacing (centre to centre): 70 mmESM No. 262.6130Busatis Nr. 5461.500.65, 5460.500.65

2 threaded holes LA=100 mm.Suitable for AGRIA 1700, 2300, 2400, 3300, 5400, 6000, BM3600.
