Agricultural machinery

Automated workflows in manufacturing, testing, controlling and regulating require the highest precision. This is where our multi-coupling 2-way set comes into play: It allows you to effortlessly connect several oil hydraulic lines at the same time. The fixed arrangement of the coupling elements eliminates confusion and the duration of the coupling process is shortened enormously. There are neither fluid losses nor air inclusions during the coupling and uncoupling phases~ even at ~ Presence of pressure. Incorrect connections are virtually impossible.The multi-coupling 2-way set is used here:Hydraulic equipment for agricultural machinesHydraulic equipment for forestry machinesHydraulic equipment for conveyor machinesHydraulic equipment for commercial vehiclesComponents on test benches for hydraulic systemsCooling or heating when molding plastic and metal< li>Hydraulic systems in industrial applicationsHydraulic systems for special transport vehicles ~Scope of delivery / technical data:Complete with fixed and loose parts Assembly 2, DN10Pressure max. 350 barFlow 45 L/minConnection R1/2" female

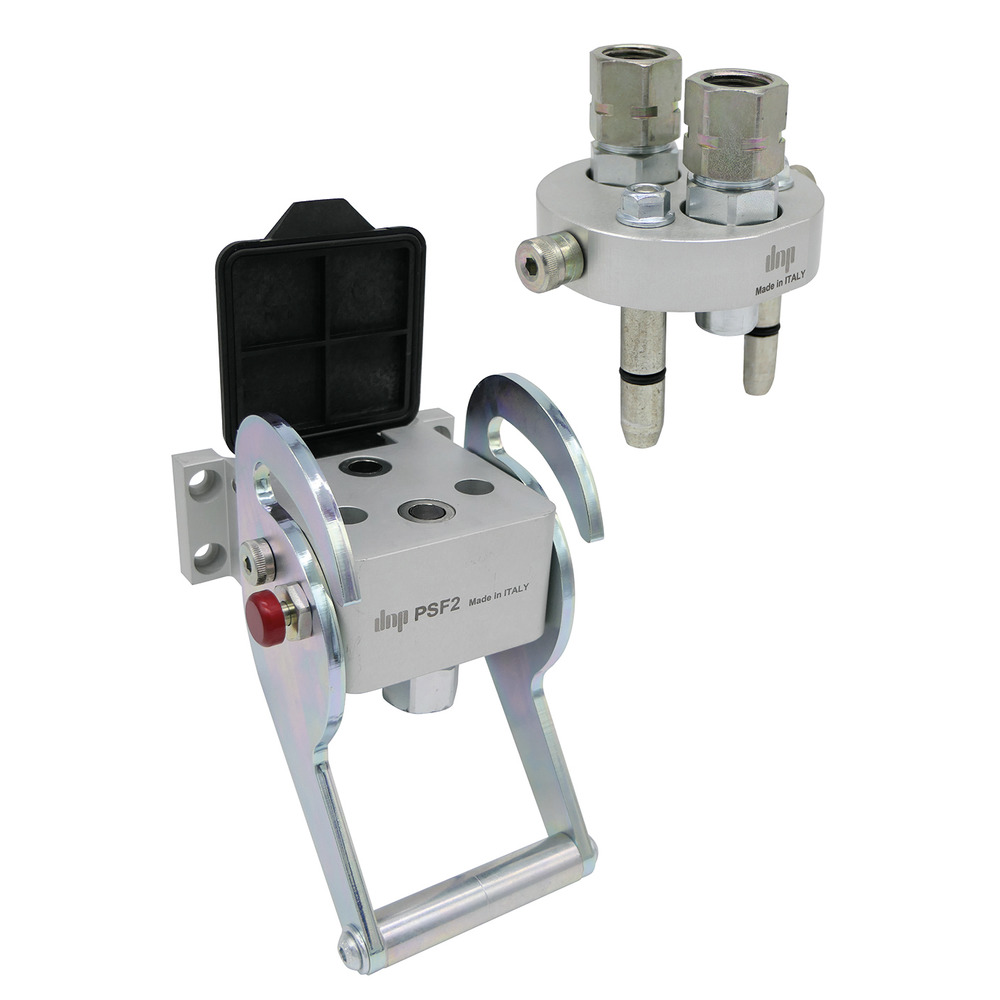

The multi-coupling PSF from dnp was developed to enable coupling under residual pressure on the tool side. The coupling plugs allow the hydraulic lines to be connected up to a pressure of 200 bar! The special seals on the connectors are designed for this application.The hydraulic lines are connected via flat-sealing coupling elements through which several hydraulic lines can be connected or separated within a very short time. This is done with an operating lever whose guide link is designed in such a way that the operating forces are kept as low as necessary.The outstanding features of the multi-coupling are the security of connections, quick connection, ability to couple under residual pressure and optimally minimized leakage during the coupling process. Another advantage is the interchangeability with the Faster multi-coupling P206. Not only are the two halves of the multi-coupler with Faster P206 interchangeable, but also the plugs and sockets.Assembly 2/DN10Pressure max. 250 barFlow rate max. 80 l/minConnection R1/2?IG

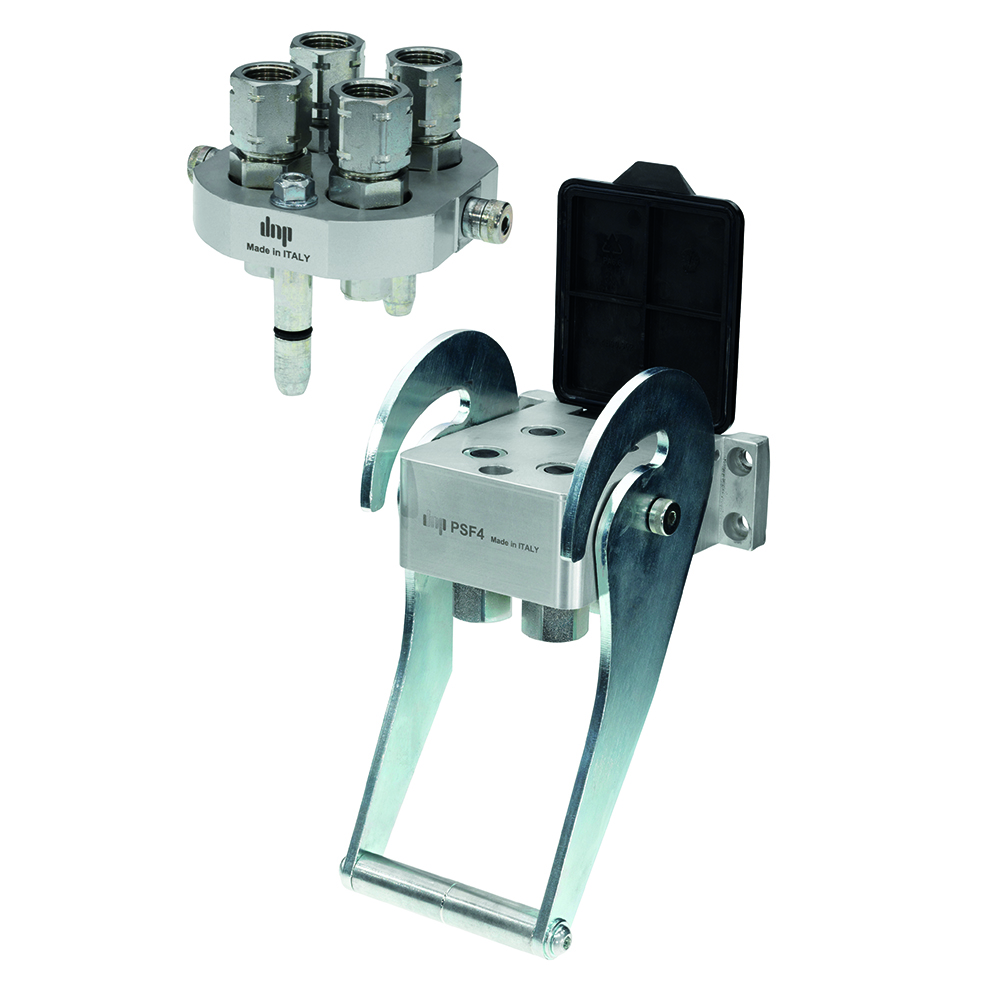

The multi-coupling PSF from dnp was developed to enable coupling under residual pressure on the tool side. The coupling plugs allow the hydraulic lines to be connected up to a pressure of 200 bar! The special seals on the connectors are designed for this application.The hydraulic lines are connected via flat-sealing coupling elements through which several hydraulic lines can be connected or separated within a very short time. This is done with an operating lever whose guide link is designed in such a way that the operating forces are kept as low as necessary.The outstanding features of the multi-coupling are the security of connections, quick connection, ability to couple under residual pressure and optimally minimized leakage during the coupling process. Another advantage is the interchangeability with the Faster multi-coupling P506. Not only are the two halves of the multi-coupler with Faster P506 interchangeable, but also the plugs and sockets.Assembly 2/DN10Pressure max. 250 barFlow rate max. 46 l/minConnection R1/2?IG

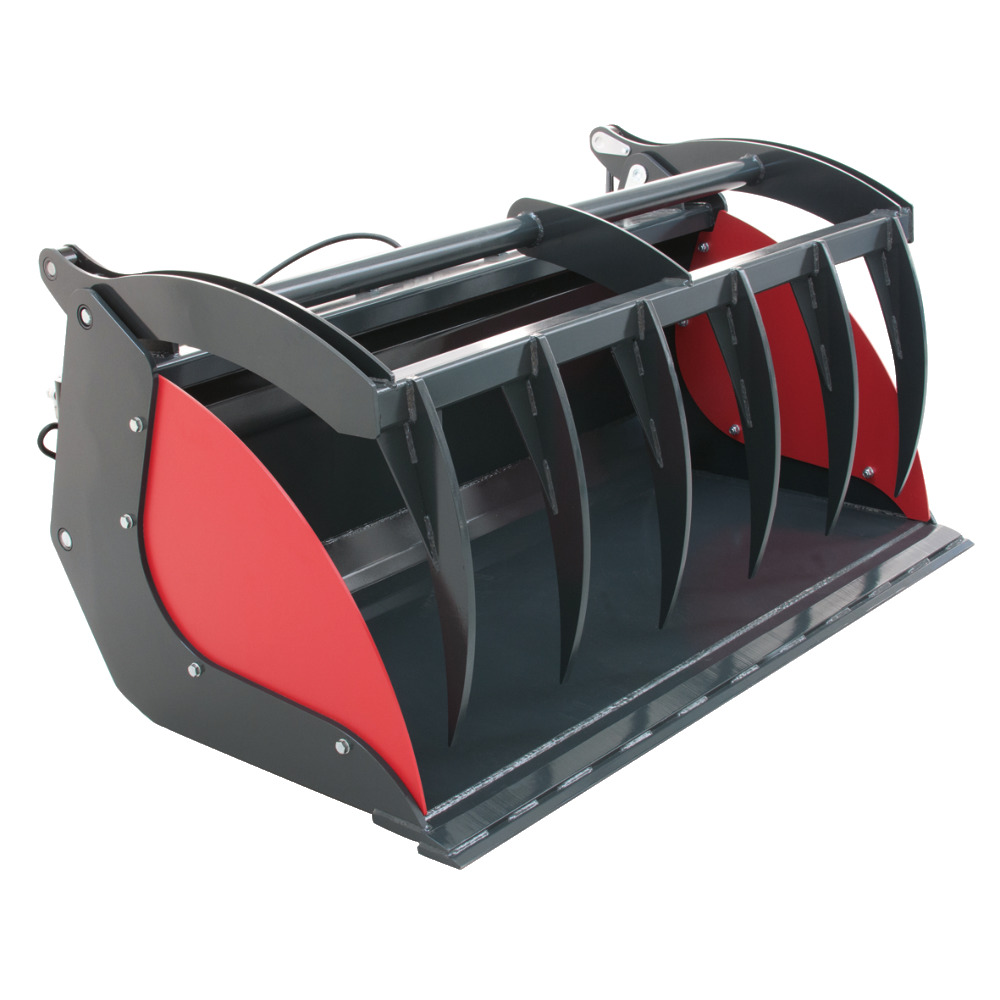

The Schneider multi-grab shovel for universal use is suitable for loading shrub cuttings, manure or other loose or bulky loads. The screwable side covers prevent loss of loads. The multi-grab bucket is available for front loaders such as telescopic and wheel loaders with the new perforated plate holder for a wide range of vehicles (order attachment brackets separately). The high opening width means that the edge of the bucket can be moved up to a wall when the gripper is open.Bucket plate 8 mm thick, without side plates, plug BG3, double scraper edge 500 HB, bottom of the bucket with skids, 1,100 mm high

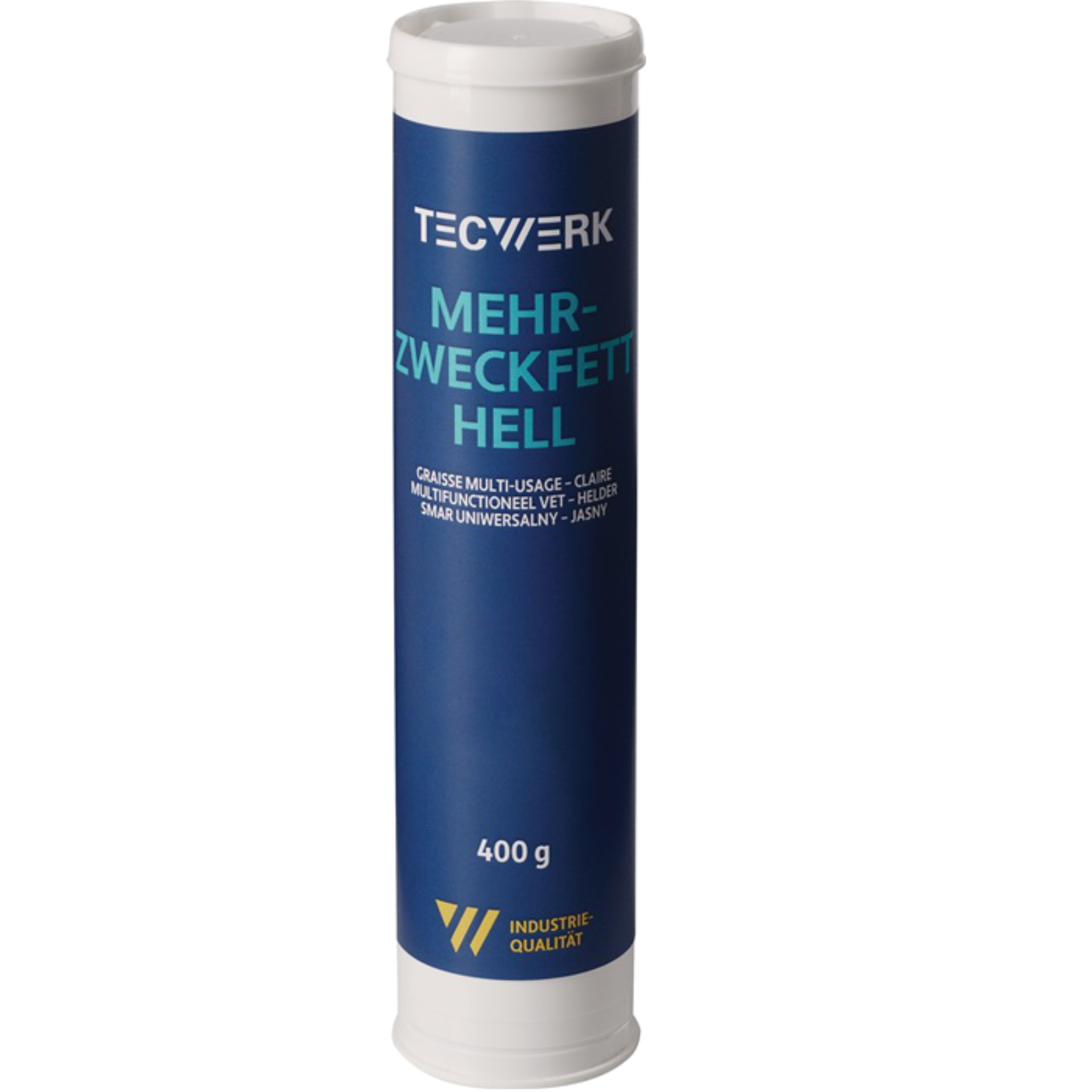

bright silicone and resin-free lithium soapy, water-resistant, flex-stable, oxidation-resistant can be used at low to high speeds, at low and high temperatures, as a universal grease for general machine lubrication as well as for demanding lubrication points temperature-resistant from -30 C to + 120 C Dropping point: >~180 C DIN 51 502: K 2 K-30 Consistency class according to DIN 51 818: NLGI class 2 for the lubrication of plain and rolling bearings in construction machinery, conveyor systems, etc. as a lubricating grease in Construction and agricultural machinery Other technical properties Color: light Temperature: -30 C to +120C

BALLISTOL multi-purpose grease is characterized by the wide temperature range from -30C to +120C ~ and very good water resistance. This means it offers reliable long-term lubrication, good sealing and problem-free conveyability in central lubrication systems. It is resistant to wet and dusty environments as well as to cold and hot water. BALLISTOL multi-purpose grease reduces friction and wear, has a high pressure absorption capacity, is resistant to aging and flexing, and it also protects against corrosion. Does not contain silicone and does not become resinous.Typical uses:Automotive &~ Motorcycle Sliding and rolling bearings Construction and agriculture Industrial machines

With 2 hydraulic connections, flow max. 40 l/min, max. pressure 250 bar, hydraulic connection G1/2"~ IG

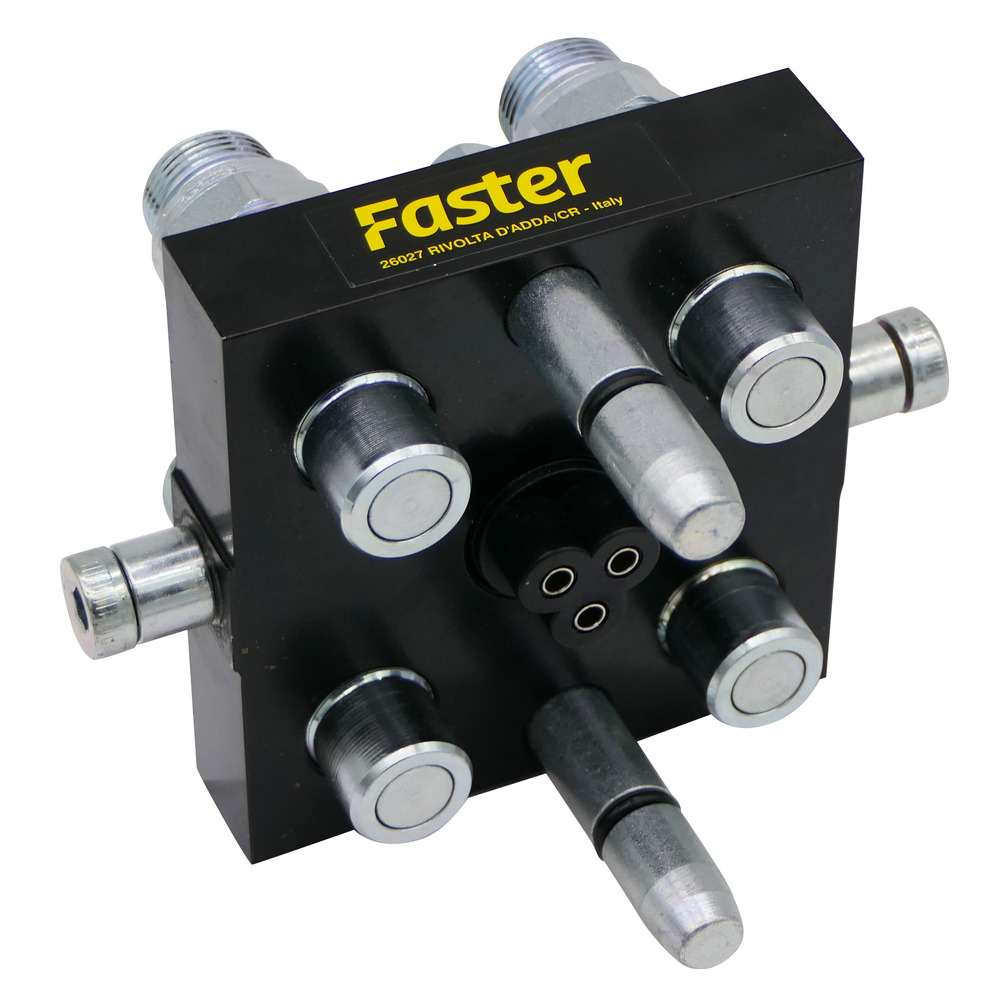

With 4 hydraulic connections and 1 3-pin electric coupling. Hydraulic connection G1/2?IG

With 4 hydraulic connections and 1 3-pin electric coupling. Hydraulic connection M22x1.5 AG 15L

With 4 hydraulic connections, flow rate max. 40 l/min, max. pressure 250 bar, hydraulic connection M22x1.5 AG 15L

With 4 hydraulic connections, flow rate max. 40 l/min, max. pressure 250 bar,Hydraulic connection G1/2?IG

With 2 hydraulic connections, flow max. 70l/min., max. pressure 250 bar, hydraulic connection G1/2"~ Female thread, can be coupled under pressure.

Through various combination options by reconnecting the supplied PTO shaft stub, gear ratios of 1:1, 1:2 or 2:1 can be achieved while maintaining or changing the direction of rotation. This results in 6 different possible uses. The PTO shaft stub is fixed in the hollow shafts by circlips.44 kW at 540 rpm or 1000 rpm.PTO shaft connections: 3x 1 3/8 x 6Generally, torque peaks are up to 2 times higher of the nominal torque does not cause any damage to the individual gear components. However, complete integrity can only be guaranteed by a suitable safety device.

244x138x60 mm, mit 5-poligem Bajonettanschluss, mit Lampen

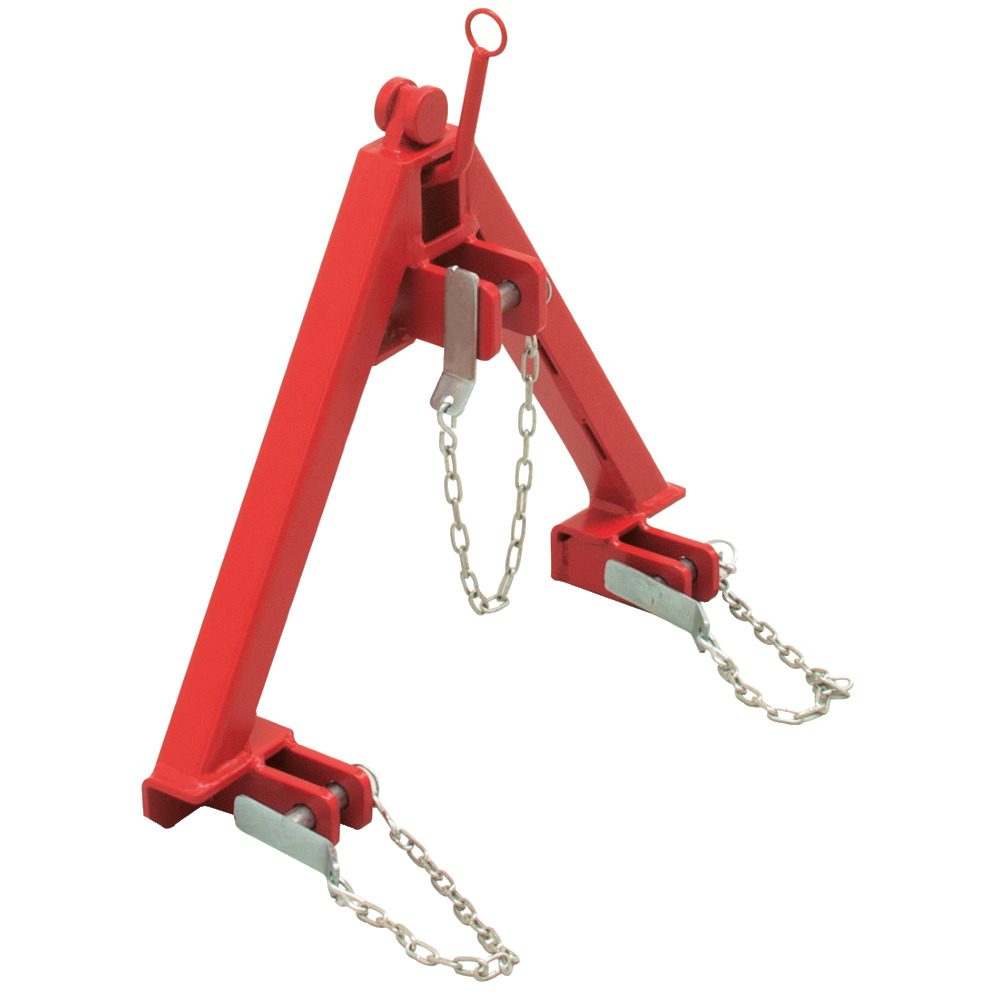

For coupling front and rear implements, material fine-grain steel QSTE380 (St52-3). Made from frame profiles 60x60x5mm.

For welding to the attachment.

Suitable for type RM58, 158, 110, 111, 111S, 112, 131.

Color: black - silver labeled Size 98x78 mm

Color: black - silver labeled Size 110x100 mm

Dimensions: 145x50 mmNote unshod!

Lieferung per Stück

Lieferung per Stück

Lieferung per Stück
