Agricultural machinery

Especially suitable for the front PTO to change the direction of rotation and reduce the speed from 1000 rpm to 526 rpm. The gearbox is installed on the device side.Input Y:540/1000 rpm26.4/39.7 kW 477/386 NmConnection 1 3/8x6Output X:284/526 rpm895/725 NmConnection 1 3/8x6 inner profile Reversal of direction of rotationPossibility with through drive 1:1 (direction of rotation remains the same). In general, torque peaks of up to 2 times the nominal torque do not cause any damage to the individual gear components. However, complete integrity can only be guaranteed by a suitable safety device.

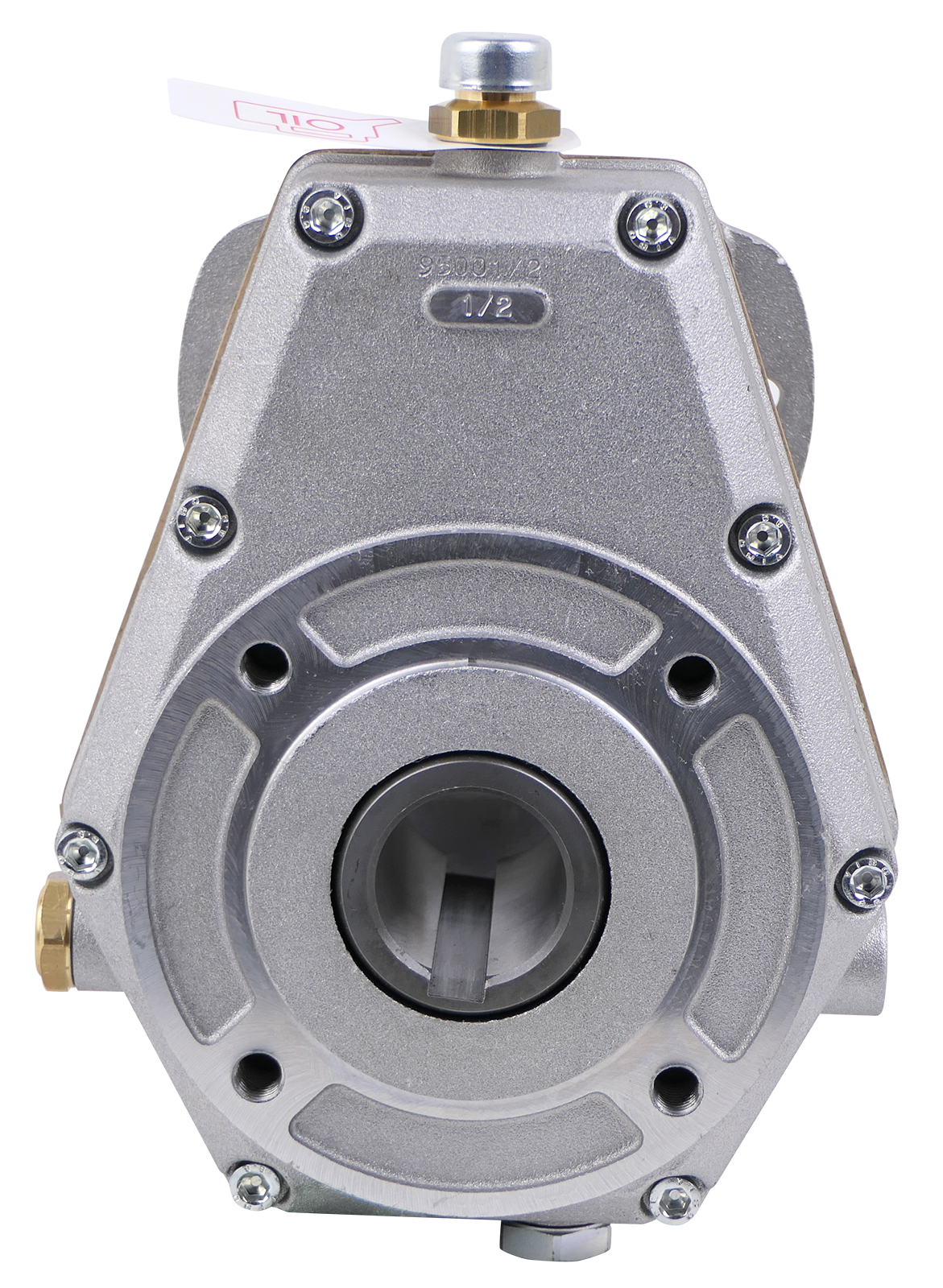

​The 95000 series reduction gearbox is a compact gearbox designed for use with hydraulic motors. The gearbox has a reduction ratio of 2:1, which means that the speed at the output of the gearbox is 2 times slower than the speed at the input. The direction of rotation of the output shaft is the reverse of the direction of rotation of the input shaft (viewed at the visible shaft end). The gearbox is equipped with a robust aluminium housing. The input side has a bore with a diameter of 25 mm and a keyway of 8 mm. The connecting flange is suitable for oil motors with an SAE-A flange.The output side is a hollow shaft with a diameter of 35 mm and a keyway of 10 mm. Four M10 holes with a bolt circle diameter of 110 mm are arranged on the output side for fastening the gearbox. Please fill up and check the oil level before commissioning the gearbox. The maximum power transmission is 10 kW.Compact and robust High-quality workmanship High torque Long service life Universal application possibilities

​The 96071 series reduction gearbox is a compact gearbox designed for use with hydraulic motors. The gearbox has a reduction ratio of 3:1, which means that the speed at the output of the gearbox is 3 times slower than the speed at the input. The direction of rotation of the output shaft is the reverse of the direction of rotation of the input shaft (viewed at the visible shaft end). The gearbox is equipped with a robust aluminium housing. The input side has a bore with a diameter of 25 mm and a keyway of 8 mm. The connecting flange is suitable for oil motors with an SAE-A flange.The output side is a hollow shaft with a diameter of 35 mm and a keyway of 10 mm. Four M12 holes with a bolt circle diameter of 110 mm are arranged on the output side for fastening the gearbox. Please fill up and check the oil level before commissioning the gearbox. The maximum power transmission is 20 kW.Compact and robust High-quality workmanship High torque Long service life Universal application possibilities

52x12cm

With screw M5.

With screw hole 6 mm.

With screw hole 6 mm.

With screw M5.

for gluing, 60x40mm

Regelgestänge für Einspritzpumpe zu Steyr T80, T84, T86Pos.Nr 41

white, connection DC 0.8 m cable, WxHxD: 100x70x56mmHole spacing: 70mm

​Suitable for Mahle/Iskra alternators: MG121/IA1497, MG122/IA1494, MG143/IA1323, MG2/IA1043, MG225/IA1357, MG26/IA1191, MG267/IA1159, MG275/IA1515, MG28/IA1242, MG29/IA1215, MG3/IA1057,                                                                      MG31/IA1244, MG36/IA1412, MG37/IA1383, MG4/IA1095, MG468/IA1417, MG474/IA1384, MG484/IA1196, MG490/IA1058, MG51/IA1350, MG52/IA1117, MG53/IA1197,                                                                        MG54/IA1402, MG570/IA1044, MG571/IA1111, MG573/IA1085, MG574/IA1110, MG575/IA1169, MG577/IA1126, MG610/IA1565, MG619/IA1577, MG693/IA1579, MG735/IA147 MG738/IA1245, MG752/IA1552, MG756/IA1537, MG757/IA1538, MG760/IA1578, MG762/IA1637, MG829/IA1594, MG830/IA1664, MG831/IA1665, MG9/IA1349, MG735/IA1476,

Hole spacing 55mm, bore diameter 5mm, voltage 14 volts, charging current 65A

Bei Handhebel am Hydraulikblock

Passend zu Typ 116, 316 Mittelschnitt

Automatic folding, galvanized, reinforced solid rubber wheel, extended stroke, with mounting plate (without clamp holder)

For ESM universal folding beam suitable for Reform, BCS, Aebi, Tielbrger, Viking and many other brands.

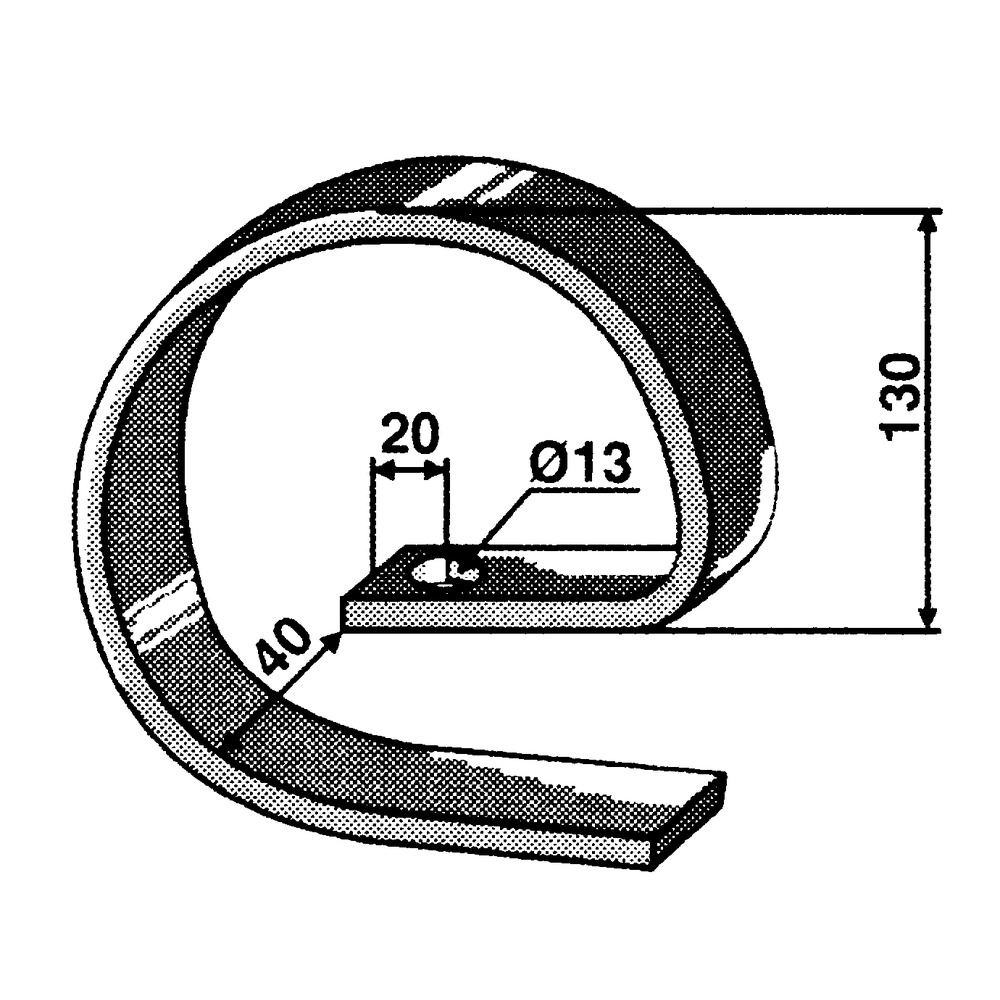

for cultivating harrow tines 32x10 and 32x12

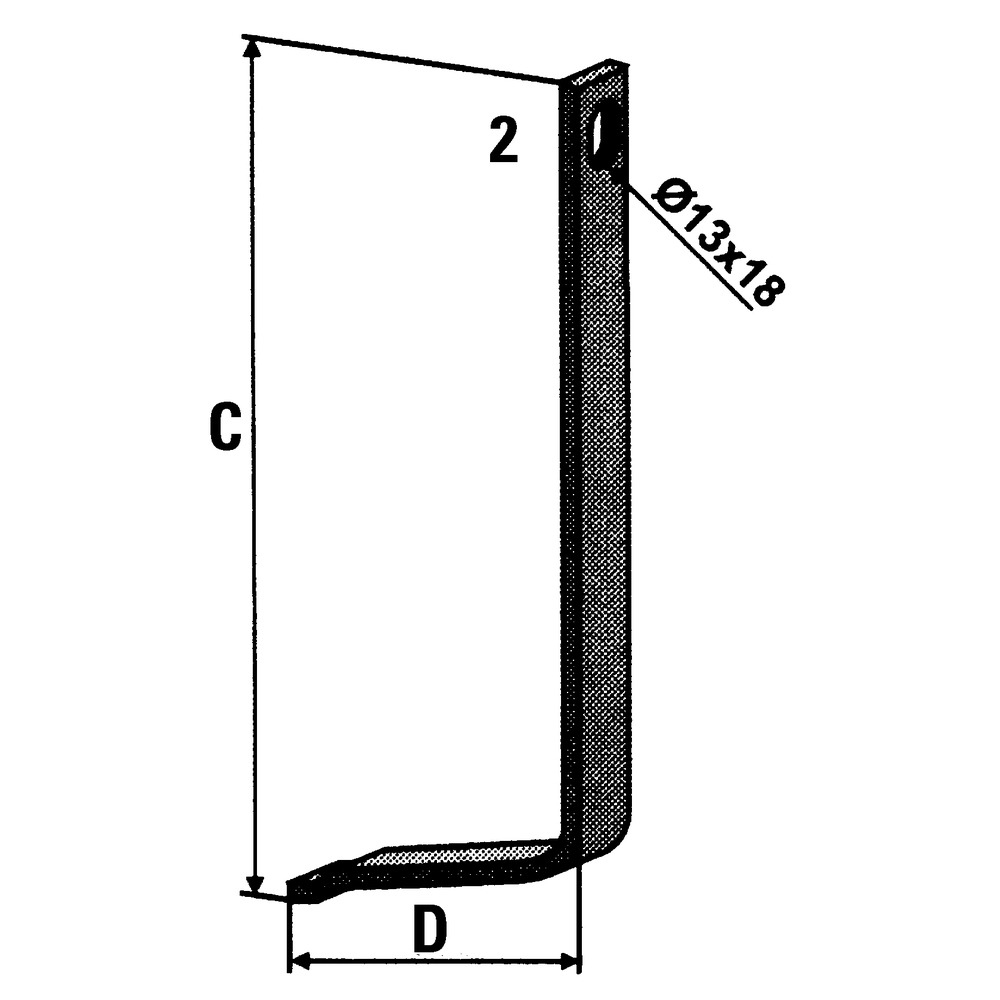

​The reinforcement spring for the large spring tine (45 x 12 mm) with an integrated eyelet at the end serves to stabilise the tine during soil cultivation, prevent it from bending sideways, and thereby ensure a consistent working depth. This spring supports the main tine and is fitted directly into the bend of the large spring tine. If a reinforcement spring is fitted retrospectively, the tine holder must also be replaced, depending on the frame size.

Suitable for ESM universal beam C
