Agricultural machinery

Working width 135 mm.

Working width 200 mm.

In agricultural technology, scraper floors are often driven with a hydraulic drive via an oil motor in conjunction with a scraper floor gear. These drives can be found in loading wagons, manure spreaders and also in chopping wagons. For this purpose, gearboxes with a high reduction ratio and a high transferable torque are used. The gearboxes are supplied with different diameters for the drive shaft. A hydraulic motor with a shaft diameter of 25 mm and an SAE-A flange is used on the input side. The design of the hydraulic motor depends on the required speed of the scraper floor shaft and the available liter output of the hydraulic pump. In general, torque peaks of up to 2 times the nominal torque do not cause any damage to the individual gear components. However, complete integrity can only be guaranteed by a suitable safety device.

Suitable for Steyr

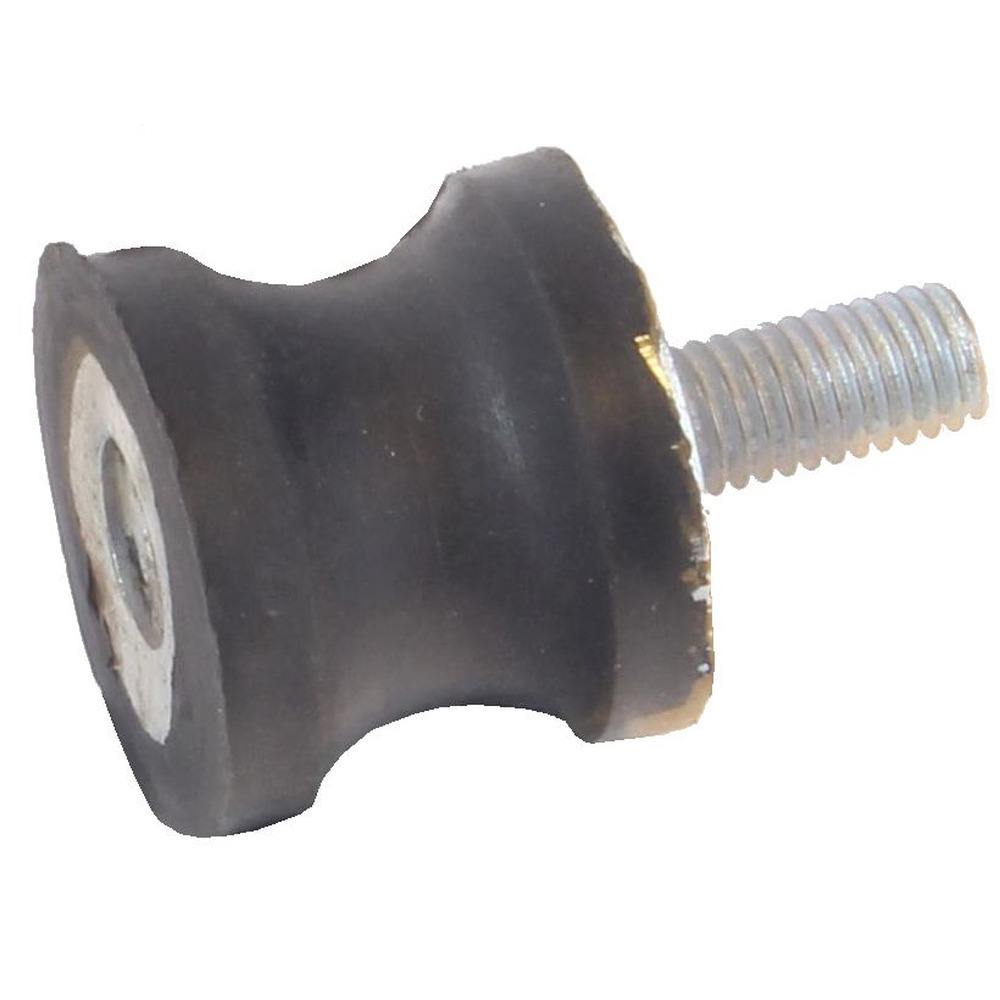

Version: M8 thread

For attaching the side engine cover

Gummipuffer für Sitz Steyr Plus Serie

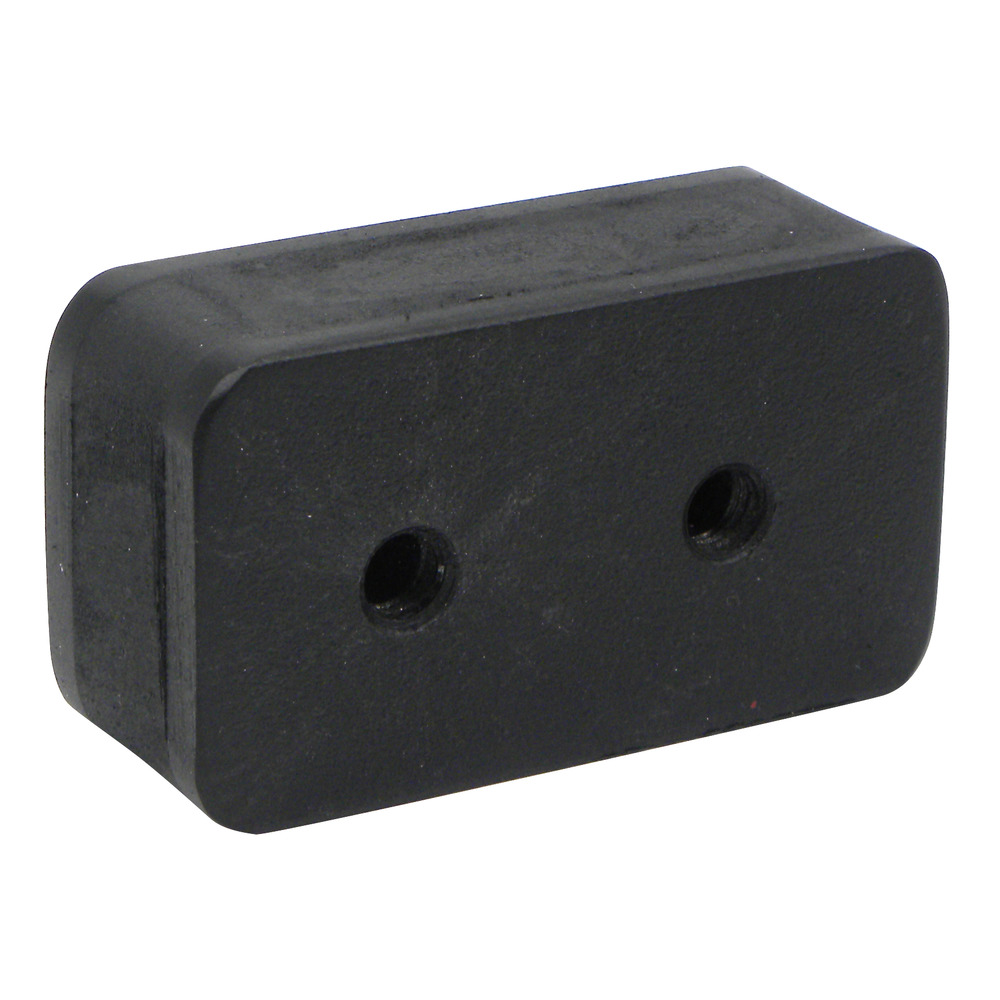

Bearing block for headlight holder, suitable for right and left, Dimensions: 70x40x26, thread M8

​Matching top trim stripColor: Beige

Dimensions: 38x59x13

Rubber cross for the flexible claw couplings from OMT

Outer diameter: 15 mmInner diameter: 9 mmLength: 34 mm

With 2 fabric inserts for higher pressures, thickness 5 mm, 180x180x5 mm, hole spacing 150x150 mm.

With 2 fabric inserts for higher pressures, thickness 5 mm, 228x228x4 mm, hole spacing 180x180 mm.

Inner diameter: 10mm

Inner diameter: 6mm

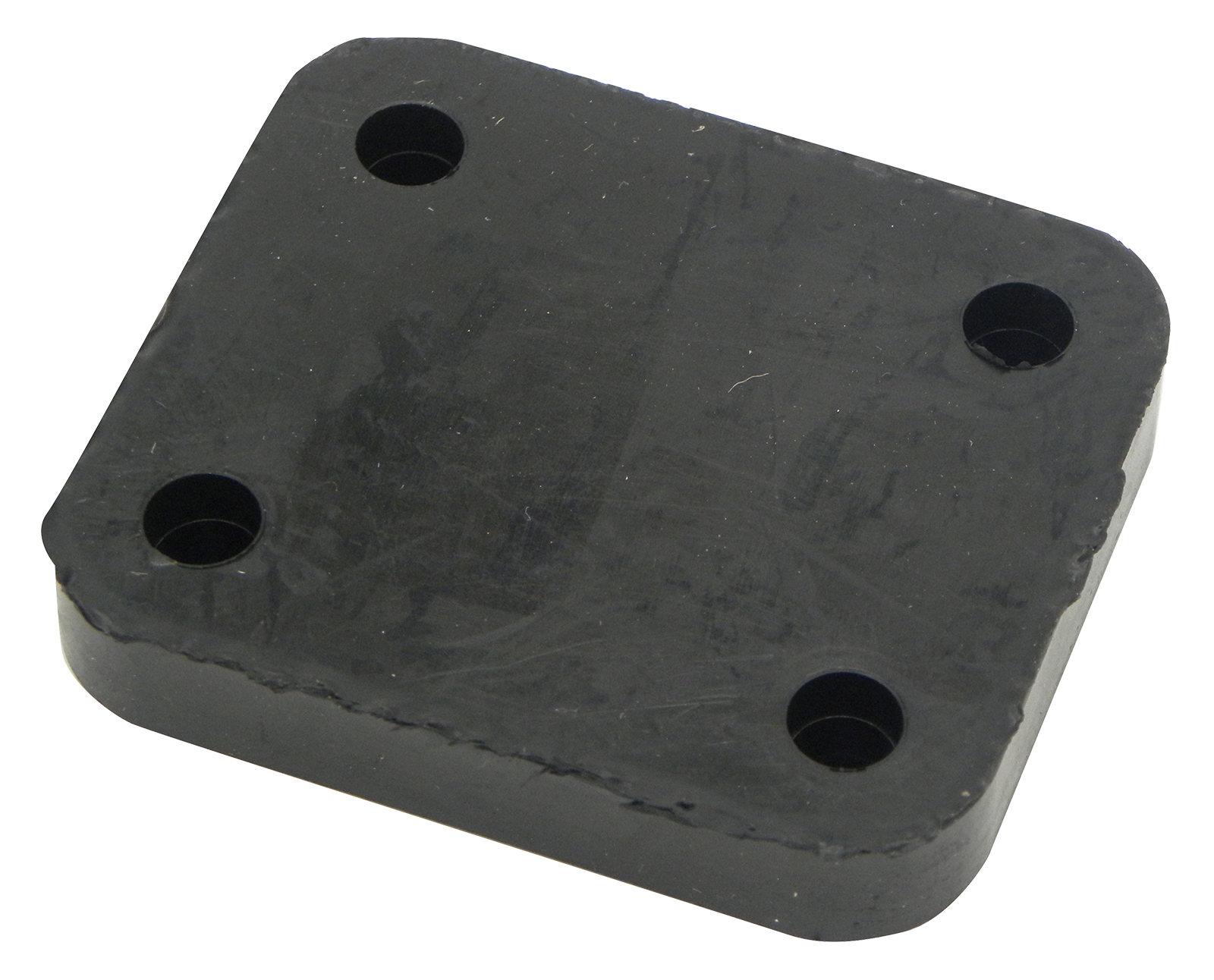

Dimensions 65x55mm4 hole mounting

Use between oil bath air filter and intake manifold 50 x 50mm

Spare parts set suitable for FASTER oil collection system.

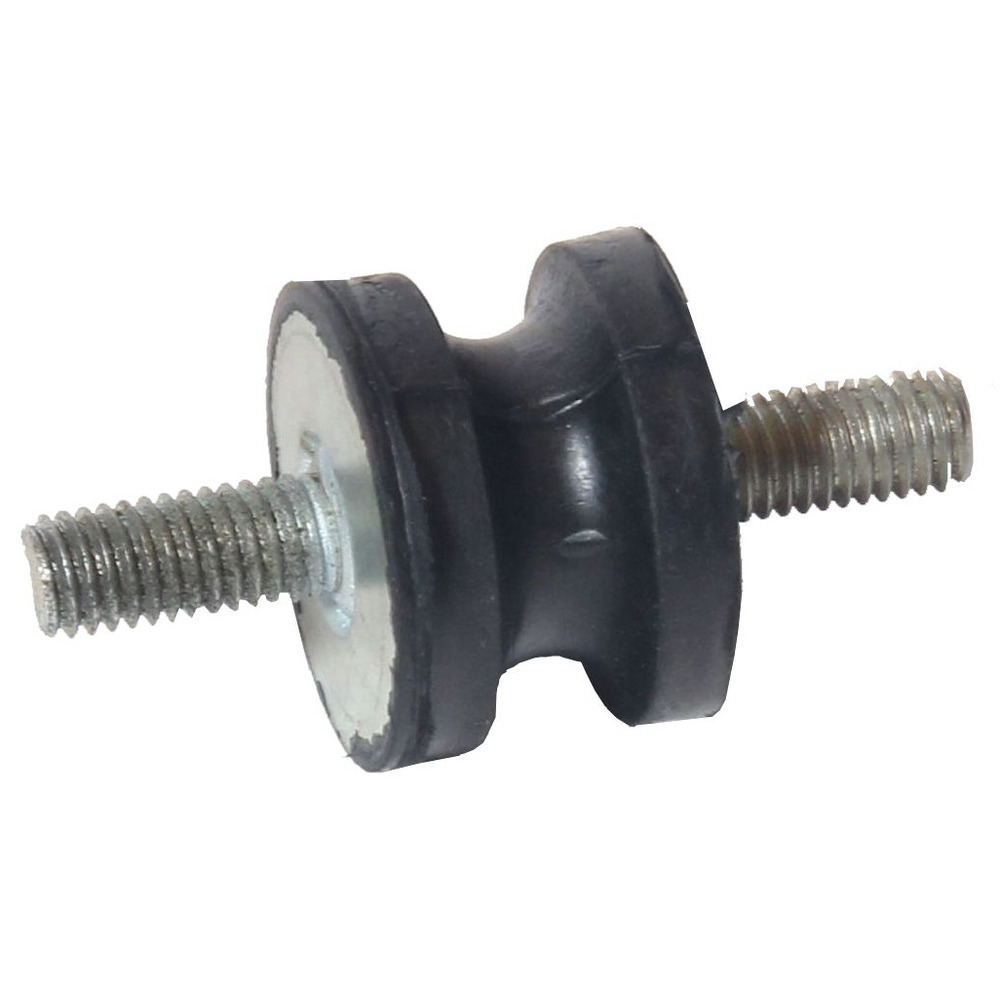

For attaching the side engine cover

Rubber ring for diesel tap and gap oil filter for Steyr: T80, T84, T86, T180 partlyPos.No 10

Durchmesser: ø 60 mm

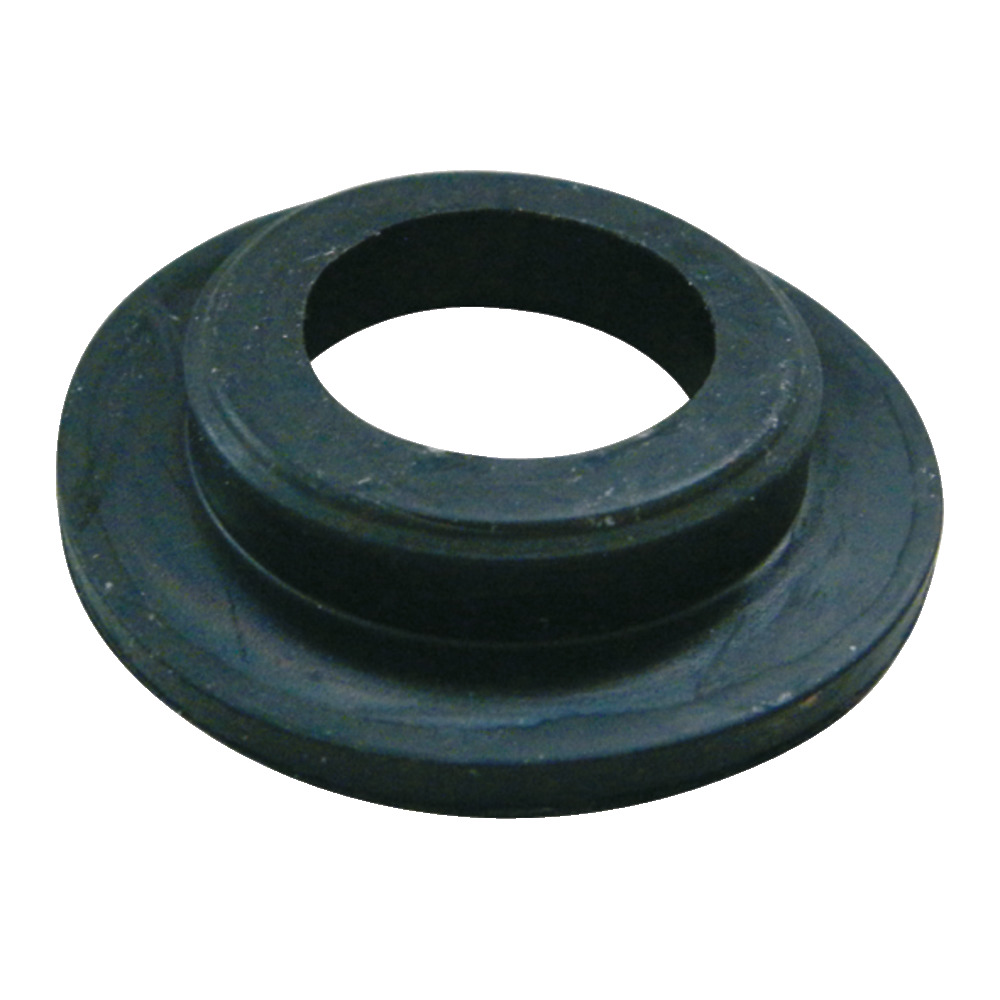

Rubber seal for coupling heads without valve
