Agricultural machinery

Version with 4 switching positions ~

with switch lighting when used with order no. 21735

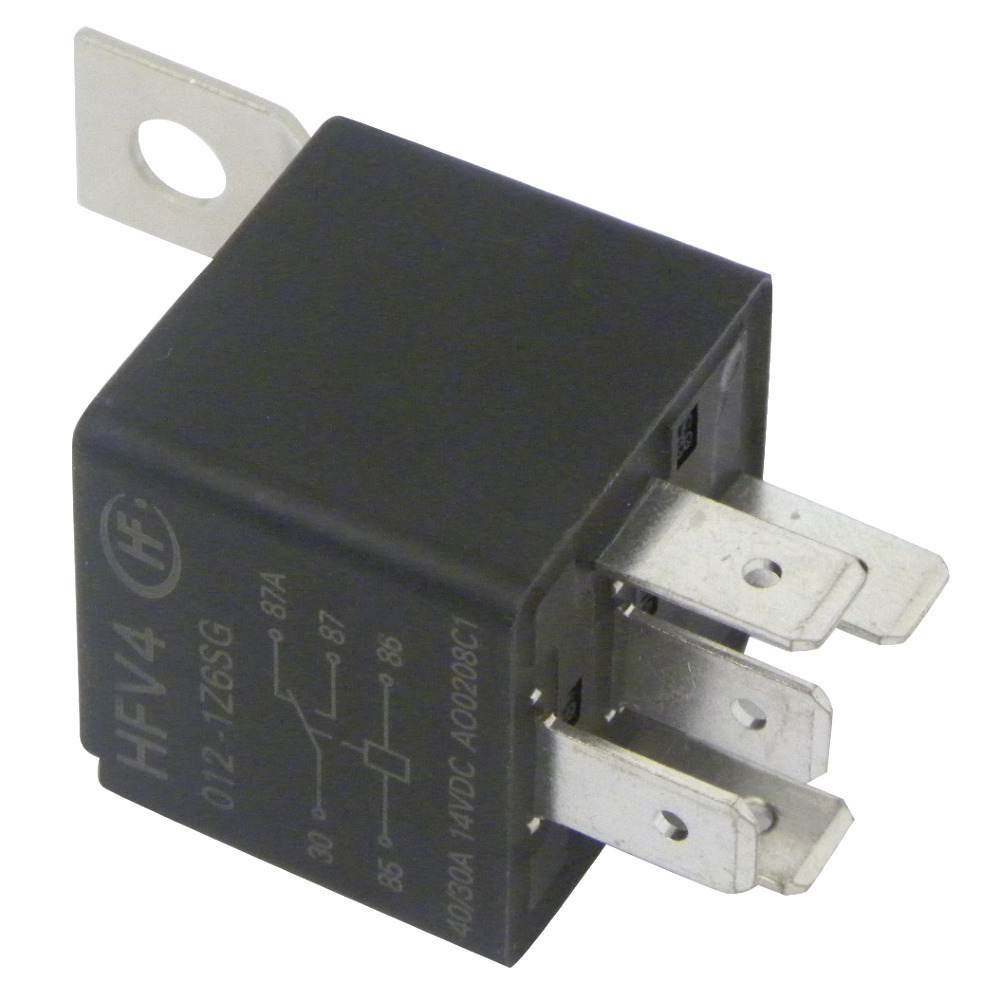

The switch-on relay separates the working current from the switching current. This means that large working currents can be switched with relatively small control circuit currents. There is no direct contact between the control and working groups. The controls and wiring can therefore be kept small in the control circuit.Connections:30 directly from the battery87 consumers87a Consumer 2, rest position, constantly supplied with power via 3085 Ground86 of switch, switching current87, 87a changeover function

The switch-on relay separates the working current from the switching current. This means that large working currents can be switched with relatively small control circuit currents. There is no direct contact between the control and working groups. The controls and wiring can therefore be kept small in the control circuit.Connections:30 directly from the battery87 consumers87a Consumer 2, rest position, constantly supplied with power via 3085 Ground86 of switch, switching current87, 87a changeover function

Use: for the powershift HL

For converting the mechanical locking to a hydraulic locking of the implements with a double-acting cylinder. Including 1.5 m hose, connection M18x1.5/12L union nut.In conjunction with guide no. 103099 (see accessories) you can attach this conversion kit to any quick-change frame. The installation length L(min) is 714mm. With the stroke of 150mm, the maximum length L(max) is 864mm. The locking bolt has a diameter of 20mm.We would like to point out that the hydraulic control circuit for the locking cylinder has a flow rate of 10-15L/min. and the maximum pressure should be limited to 160bar.

Thinner for painting synthetic resin varnishes

Suitable for bird &~ Noot plow body M350, MPK400, MPK430, UL430, ULST430, UN300, UN350, UN400, UN430, UST400, WL430, WL430 PLUS, WS350, WS400, WX400 PLUS, WY350, WY400, WY400 PLUS

Suitable for plow bodies B, C, BS40, BS42, US35, US40

Can be used right and left

Can be used right and left

M10x65.

Supplied with corrugated sealing ring, gasket and adapter

Complete with connection cable set, 0-4000 rpm, Ø 80 mm, with adapter ring for 100 mm diameter.The signal for RPM measurement is supplied via terminal W from the alternator.10-32V analog LCD tachometer with stepper motor technology, 4000 rpm, white LED illumination, and an orange hour meter.Drilling template with 100.5 mm diameter, IP65 rated on the front.Operating temperature -20°C to +90°C.Programmable via two buttons on the back of the instrument.4-pin Molex Minifit Jr. connector.90 cm connection cable included.EMC: ISO 7637-2 ISO 2575Technical specifications:Rated voltage: 10-32 VDisplay type: analog - digitalWidth: 10 cmOperating temperature: -20° / +85° CScale: 0-4000 RPMBore diameter: 100 mm

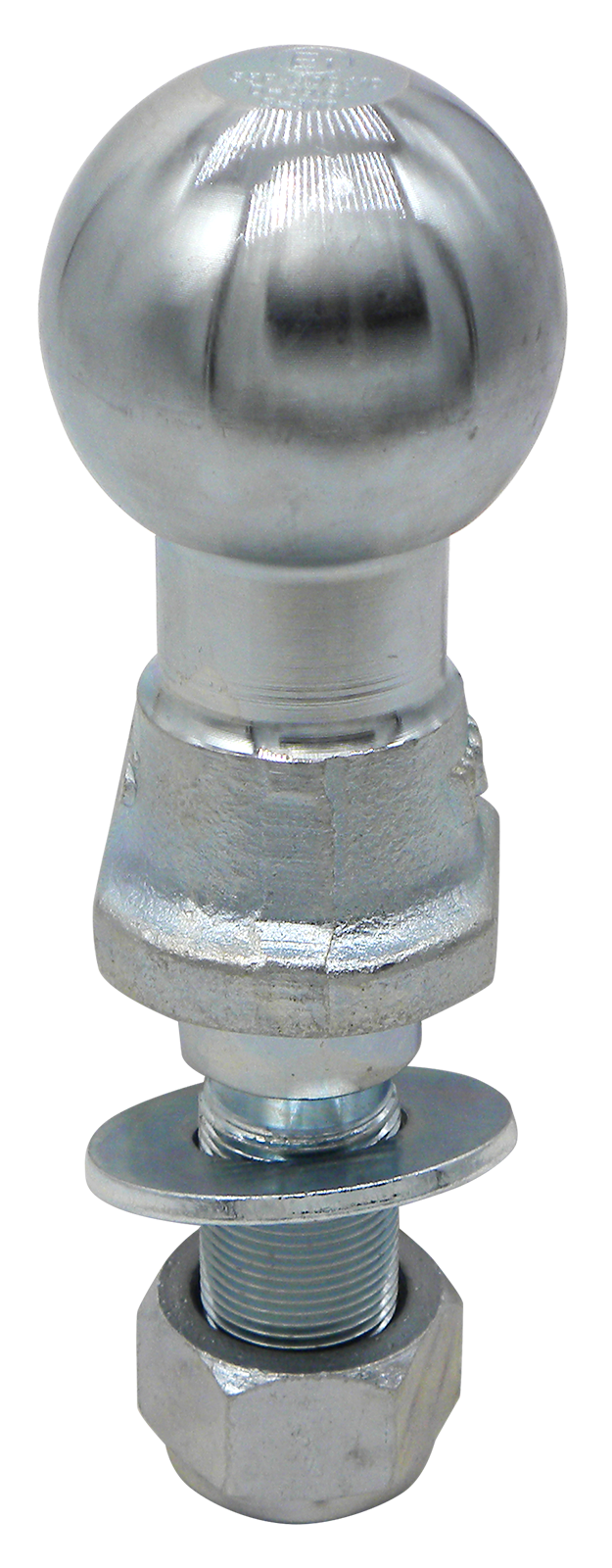

(Without testing) Thread 19 mm, A: 19 mm, B: 70 mm, ball 50 mm, recommended trailer load 500 kg!

Tested according to DIN 74058 and ISO. Complete with self-locking nut. Permissible trailer load 3500 kg, tongue load 100 kg. Thread M22x1.5, A: 26 mm, B: 65 mm.

82 mm, 2 screws M5, screw spacing 45 mm, base plate metal
