Agricultural machinery

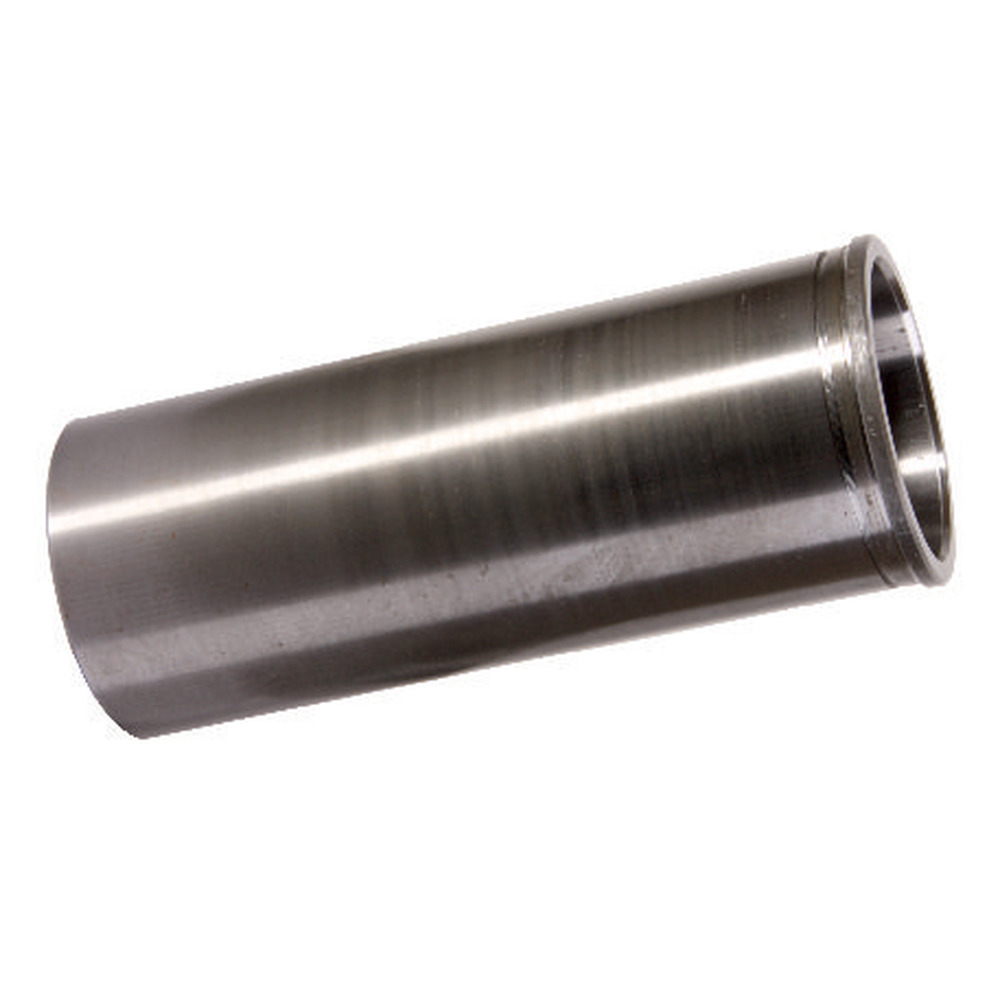

Innendurchmesser: 85 mmAussendurchmesser: 97 mmLänge: 241 mm

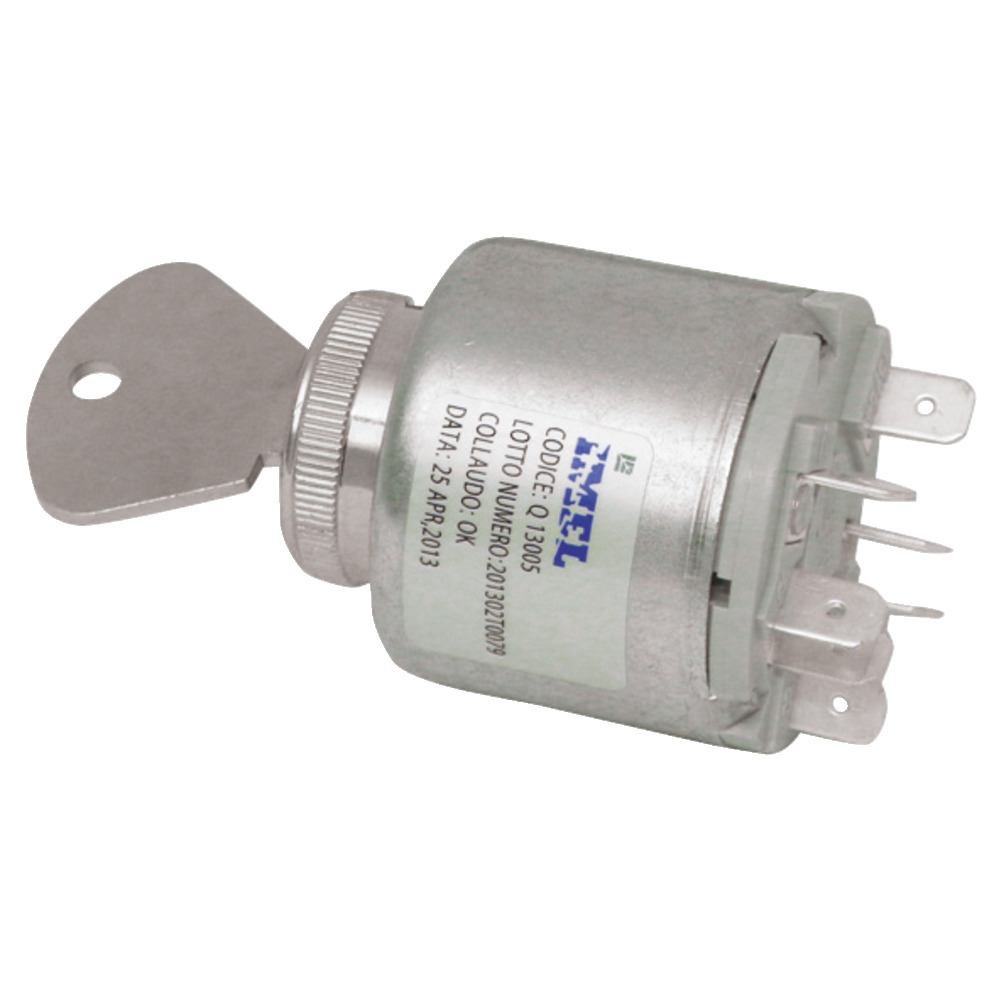

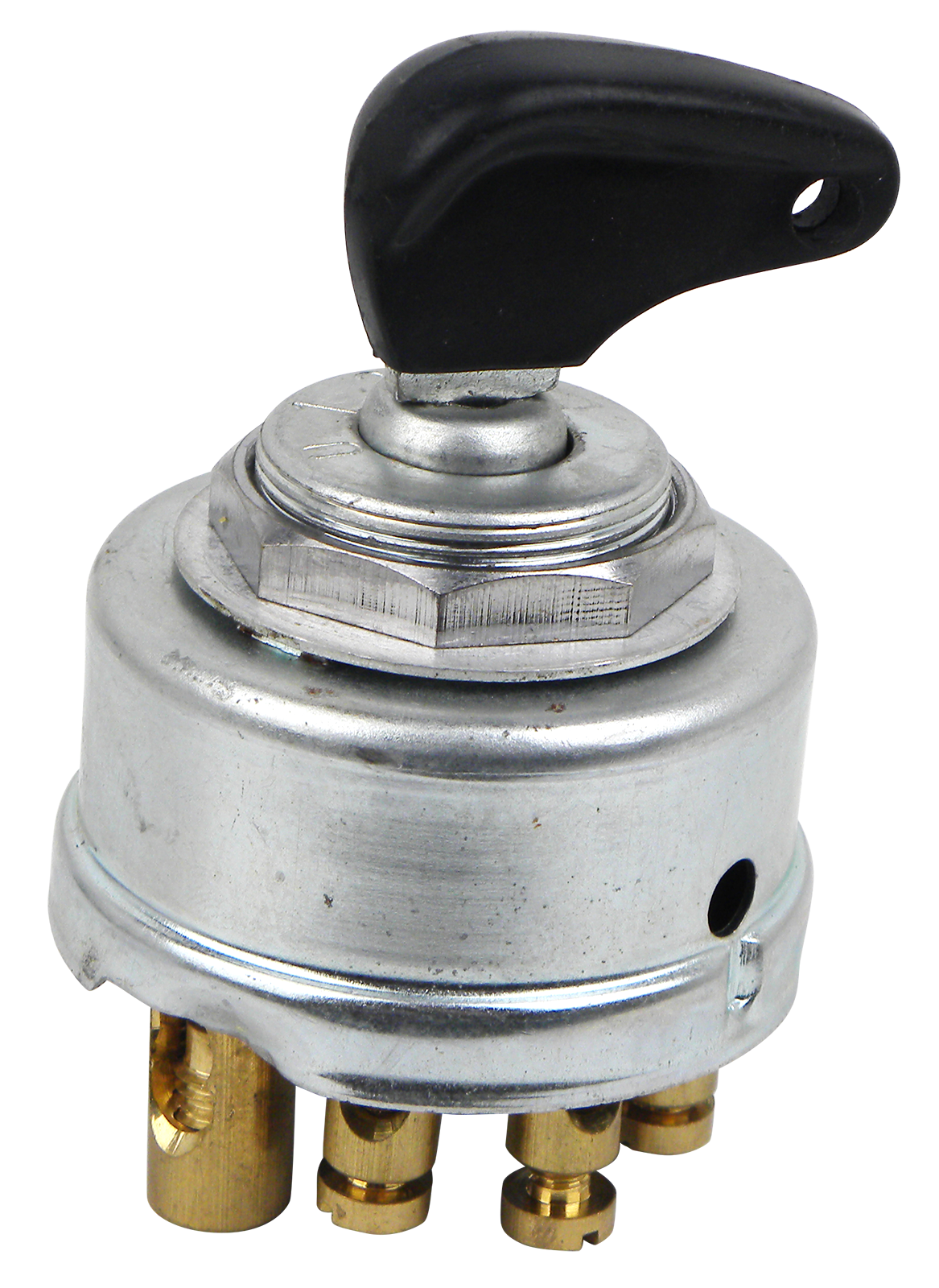

Version: for screwing 12 V / 24 V, nut M26 x 1 26.5 mm with recess 33.5 mm x 7.5 mm (twist-proof) for wall thickness up to 2 mm. Key can be removed in any position 250 W (terminal 15), 100 W (terminal 56a, 56b), 150 W (terminal 58). Switch positions: 0 = Off 01 = Ignition on 1 = Marker light 2 = Low beam 3 = High beam. with screw terminals 15, 30, 30, 56a, 56b, 58, 58~ Housing 48 mm

6 ports

with 7 connections, for insertion hole 19mm

Number of contacts: 7

Einbauöffnung: ø 27mm

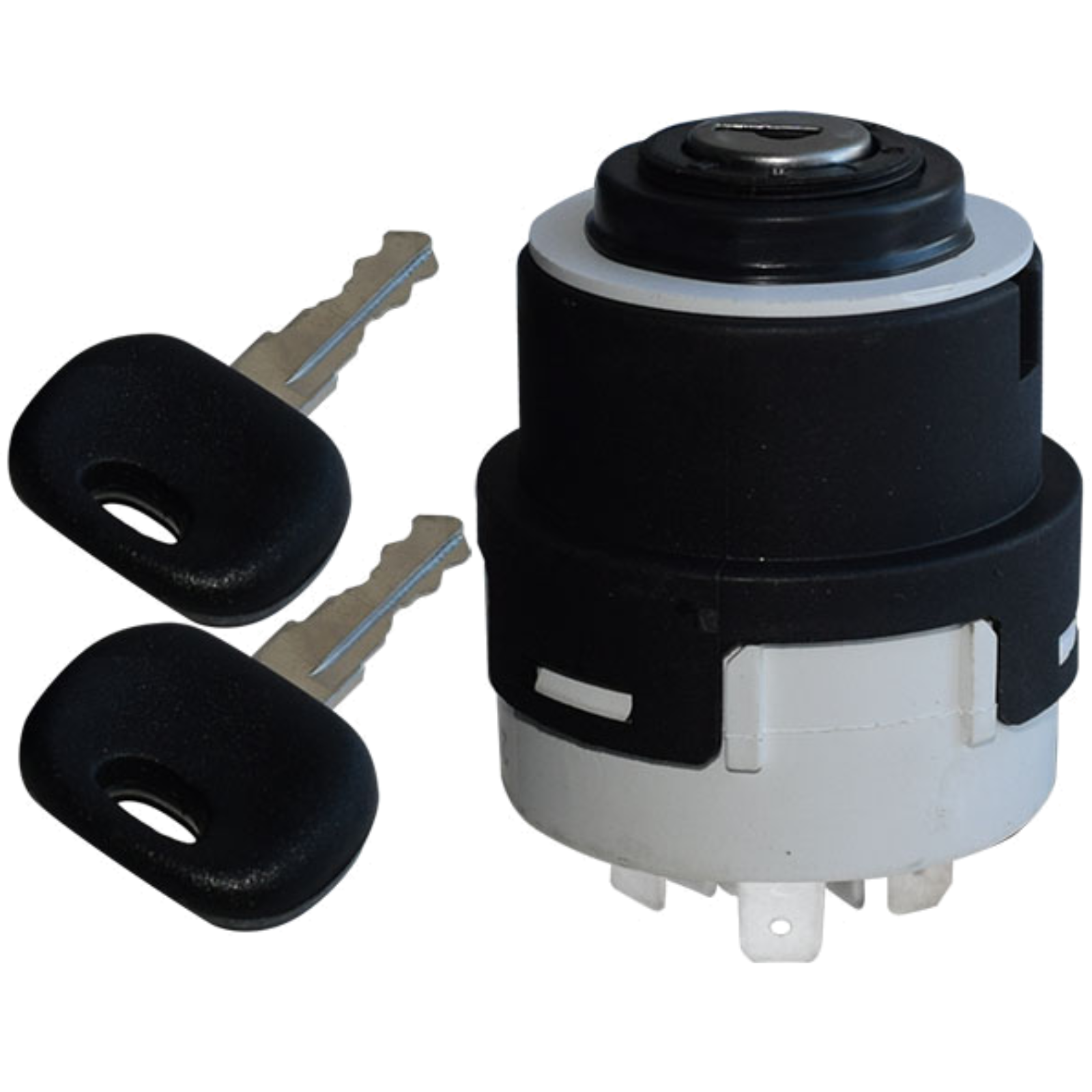

4 switching positions with preheating, suitable for Lamborghini, Same, 40 mm, mounting hole 22 mm

Passend zu Massey Ferguson 135, 240

Passend zu Massey Ferguson MF35

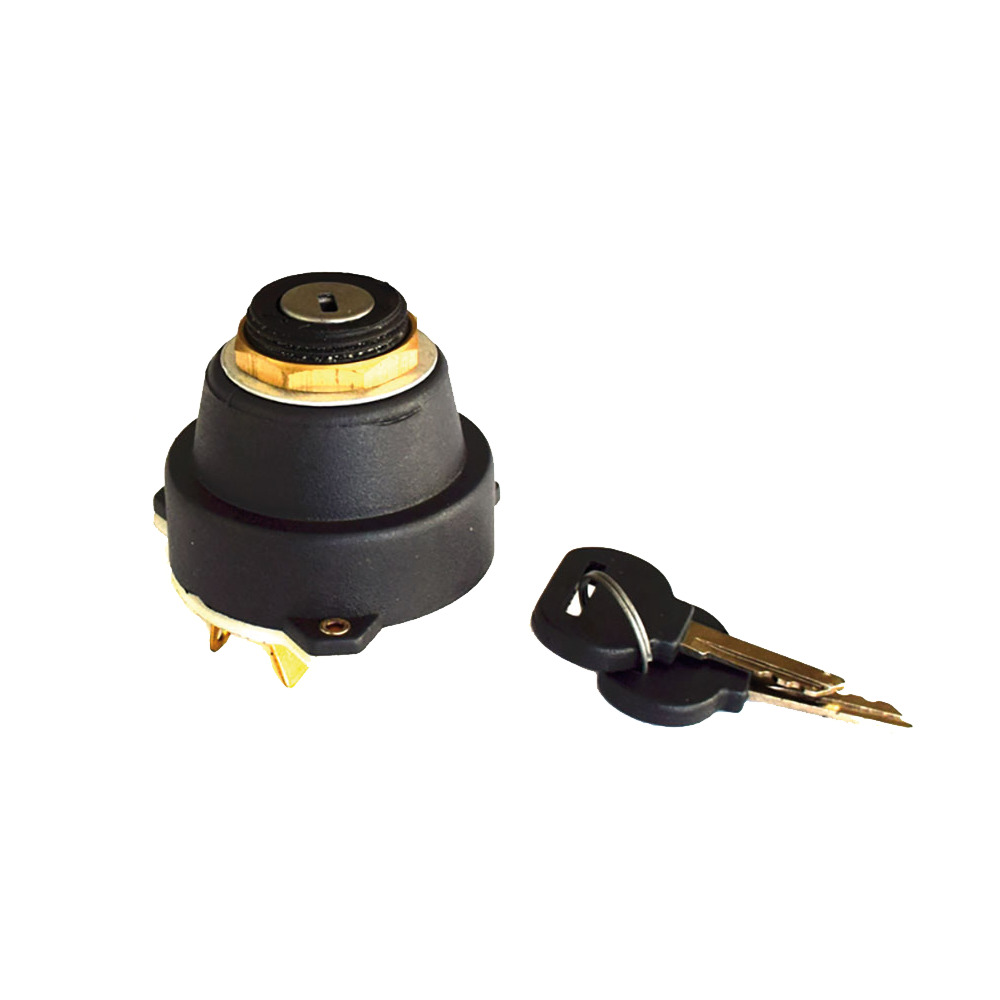

Zündschloss passend zu John DeereAusführung: 5 Anschlüsse

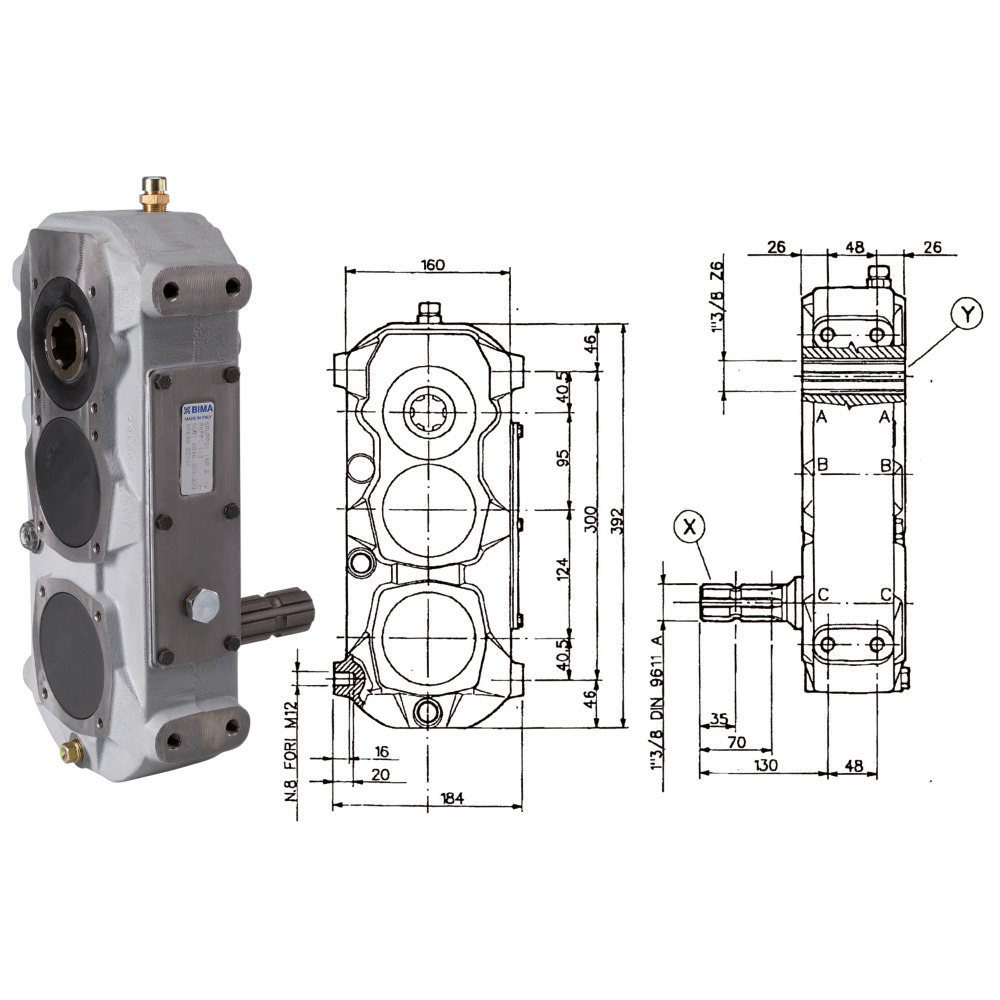

Gear ratio 1:2, same direction of rotation, weight: 26 kgInputx: 540 rpm, 51.5 kW, 928 Nm, connection 1 3/8"x6 stubsOutput y: 1080 rpm, 460 Nm, connection 1 3/8"x6 inner profileIn general, torque peaks up to 2 times the nominal torque do not cause any damage to the individual gear components. However, complete integrity can only be guaranteed by a suitable safety device.

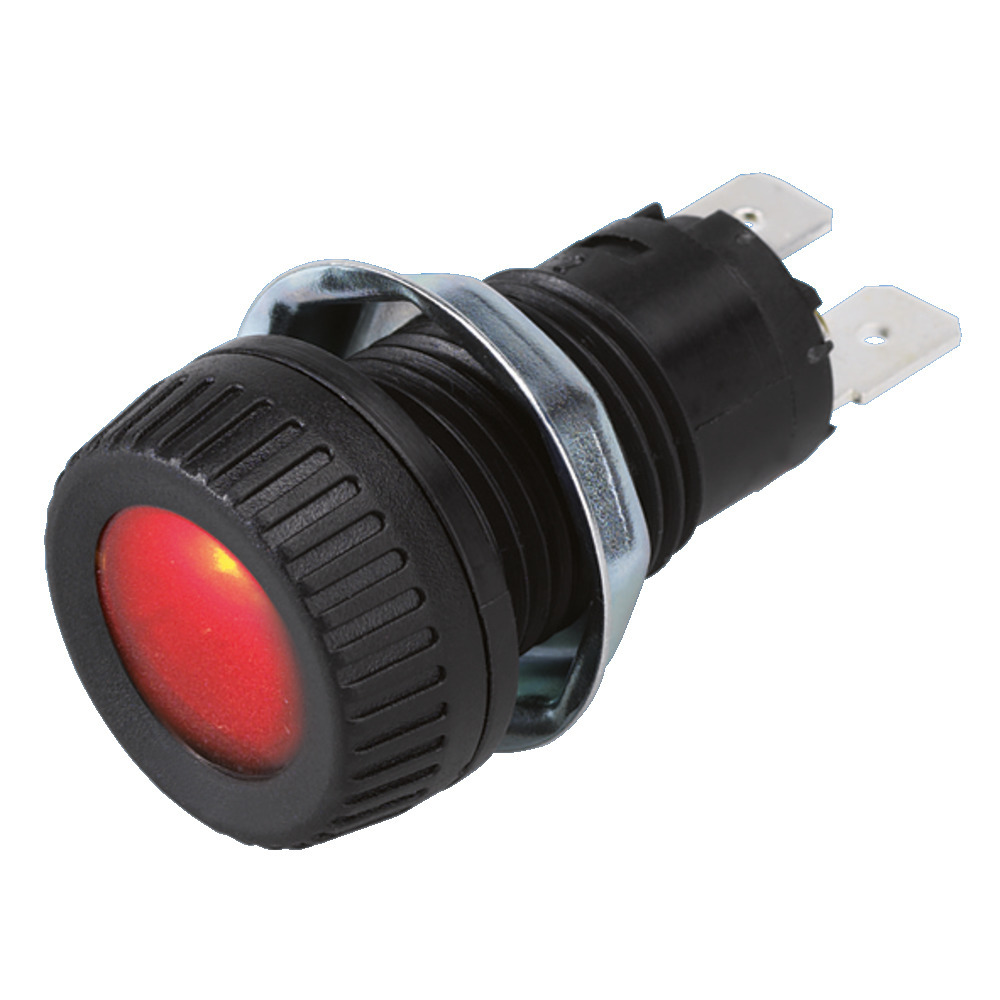

Flat plug connection, silver-plated, BA9s socket for 2W light bulb. (without bulb)

For Steyr Plus. Installation dimensions: 210x20 mm (without lamp holder)

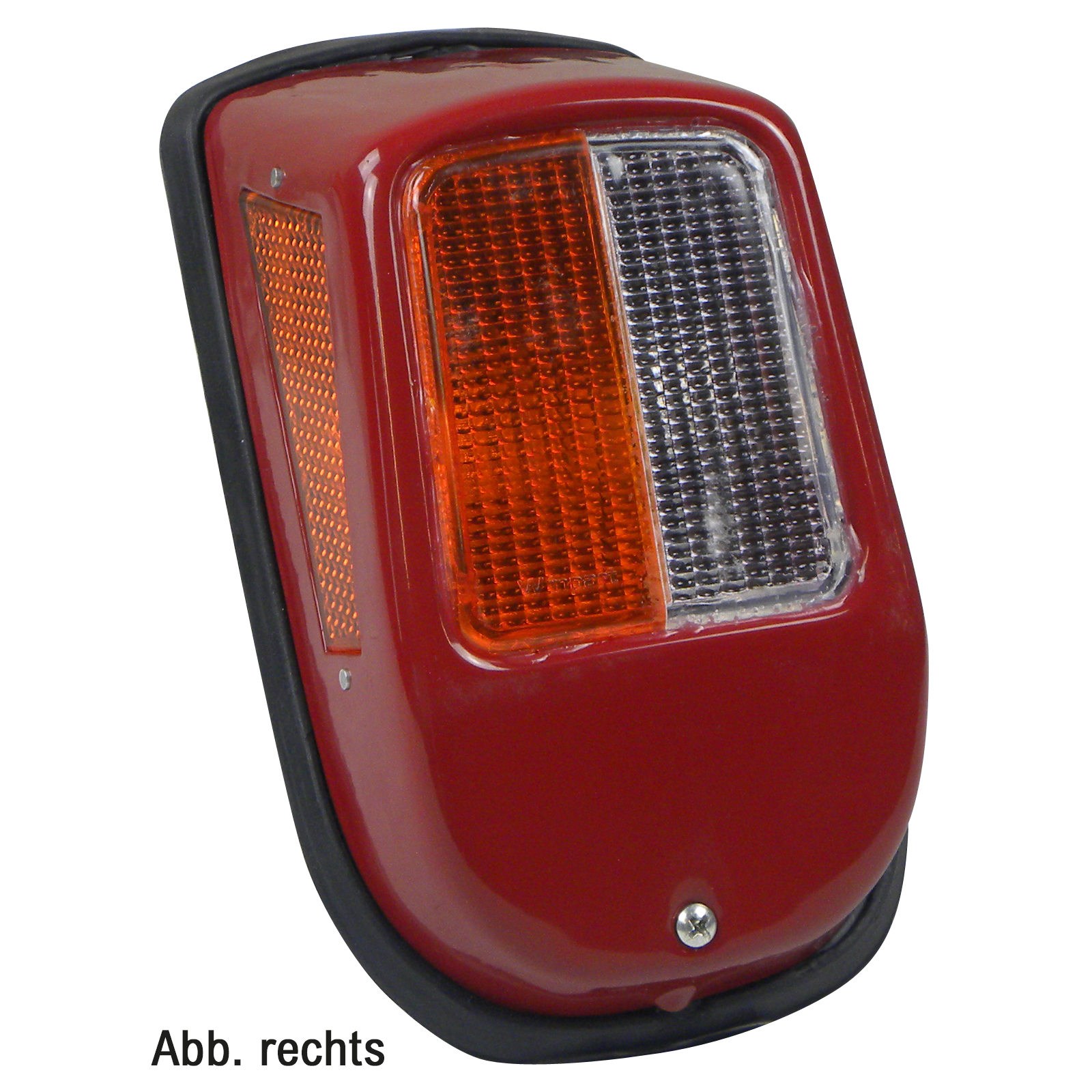

Multi-chamber light specifically for the Steyr Plus series. With reflector 207x120 mm, 2 screws M5x20 mm, distance 45 mm. For front installation.

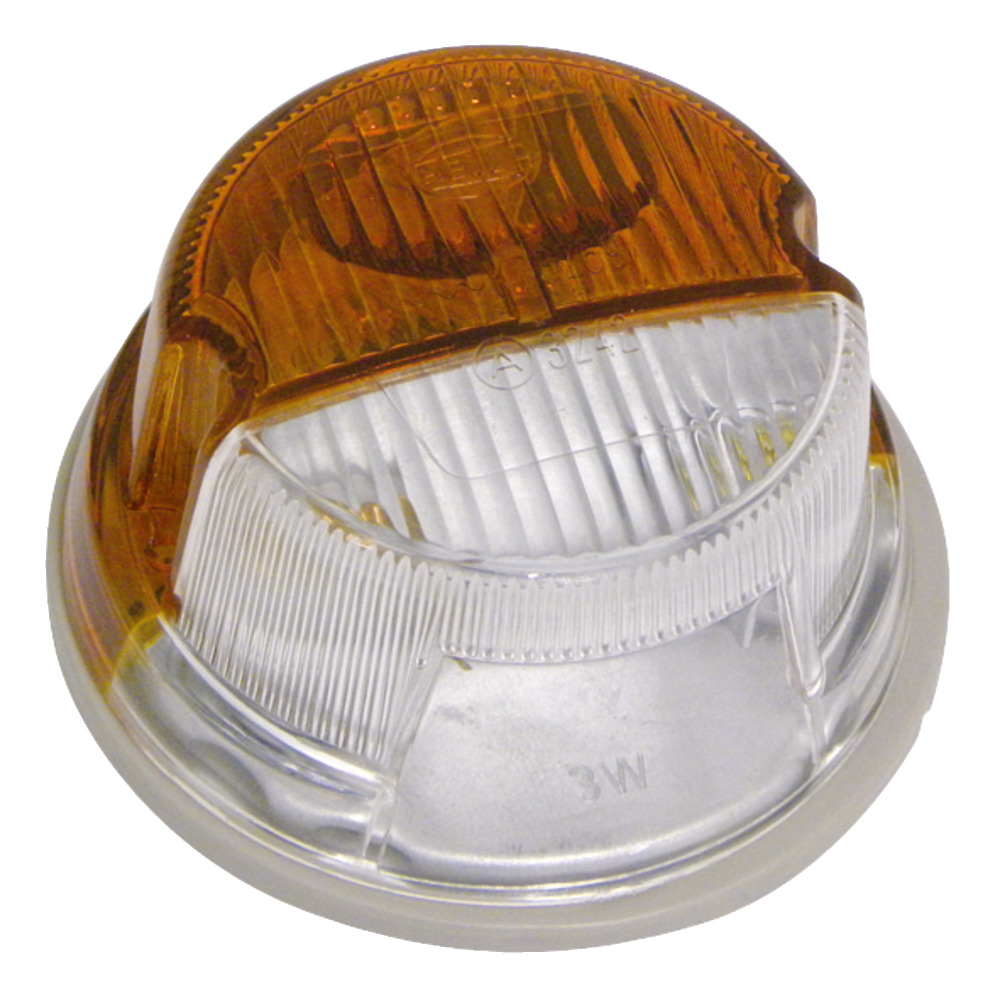

Metal base plate with PVC ring, 2 holes for fastening with M5 screws, 45 mm hole spacing, 78 mm, suitable for e.g. Case IH, Claas, Deutz, Holder, Johne Deere, MF, ...

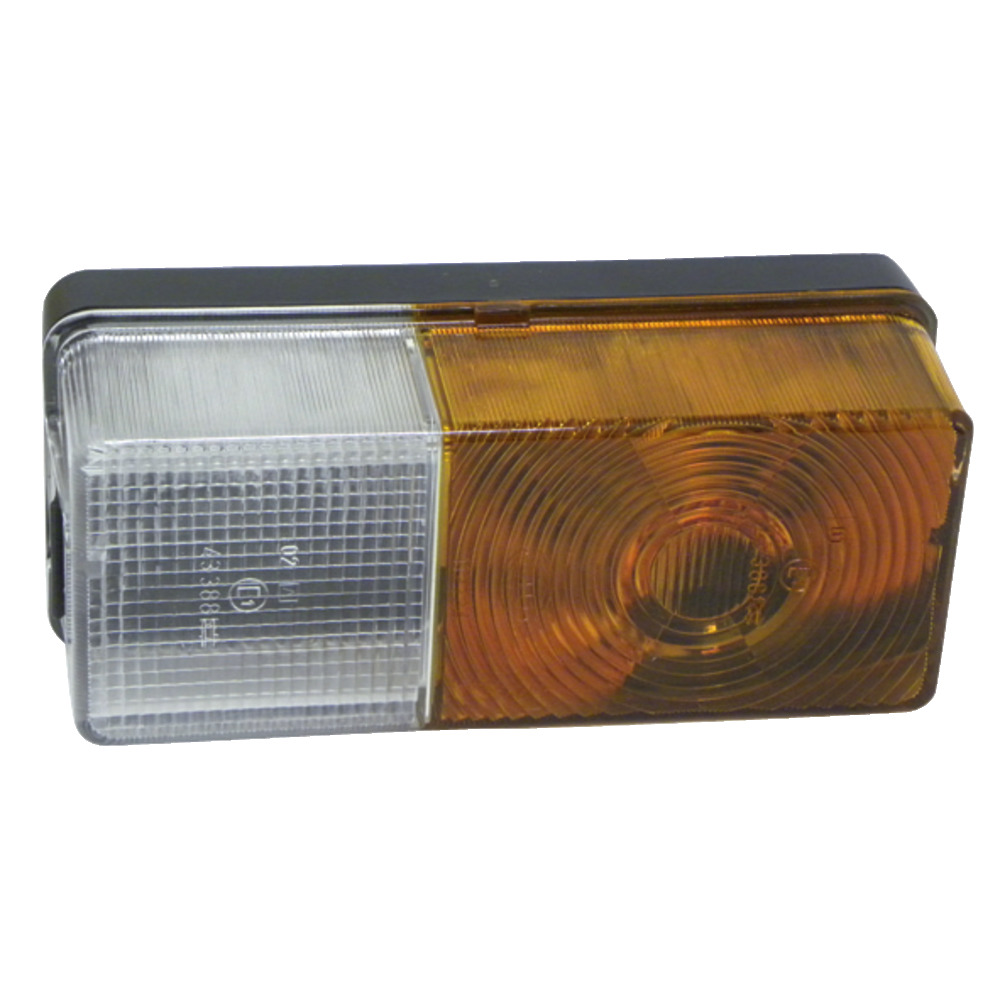

For mounting at the front, base plate made of impact-resistant plastic, cover glass with snap fastening, 2 holes M5, 70 mm hole spacing, can be used right/left, LxWxH: 170x75x64 mm, suitable for e.g. Case IH, John Deere, ...

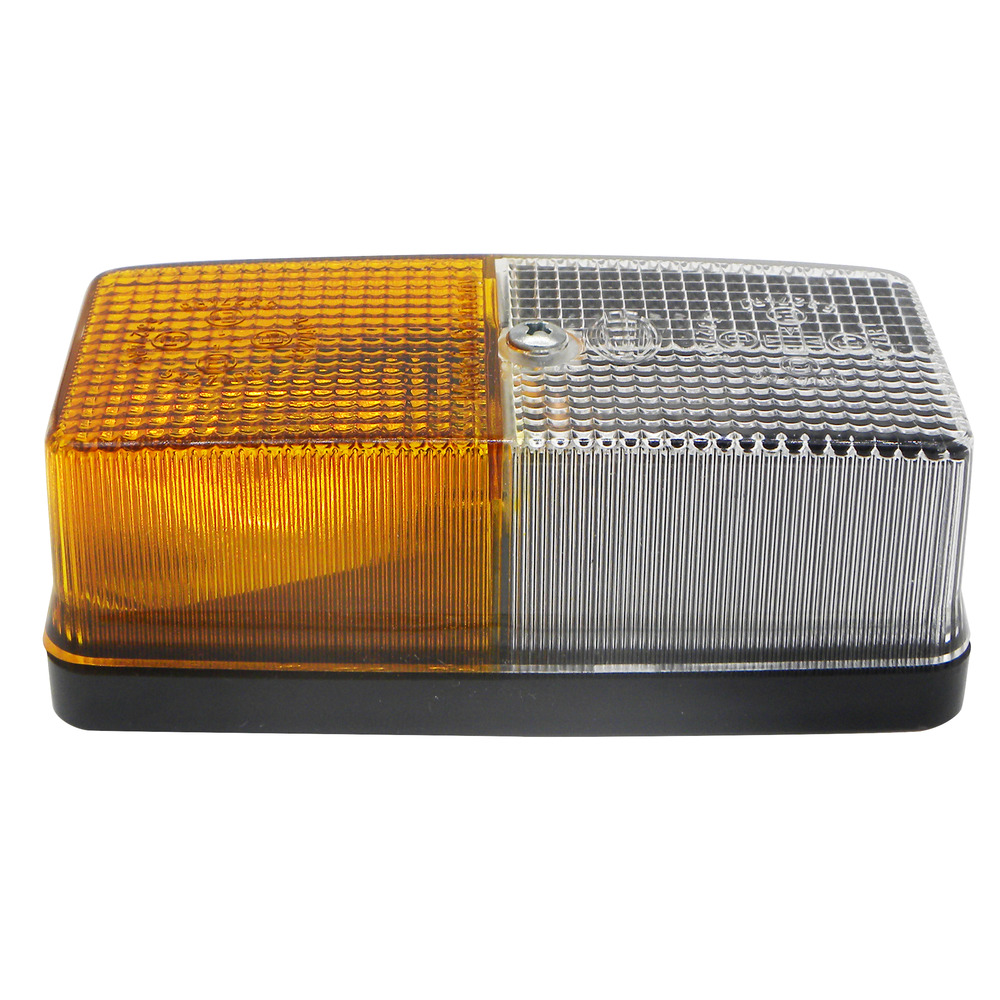

Front attachment, 2 holes M4, hole spacing 104mm,LxWxH: 125x63x49mm,suitable for e.g. Class, Deutz, John Deere right/left

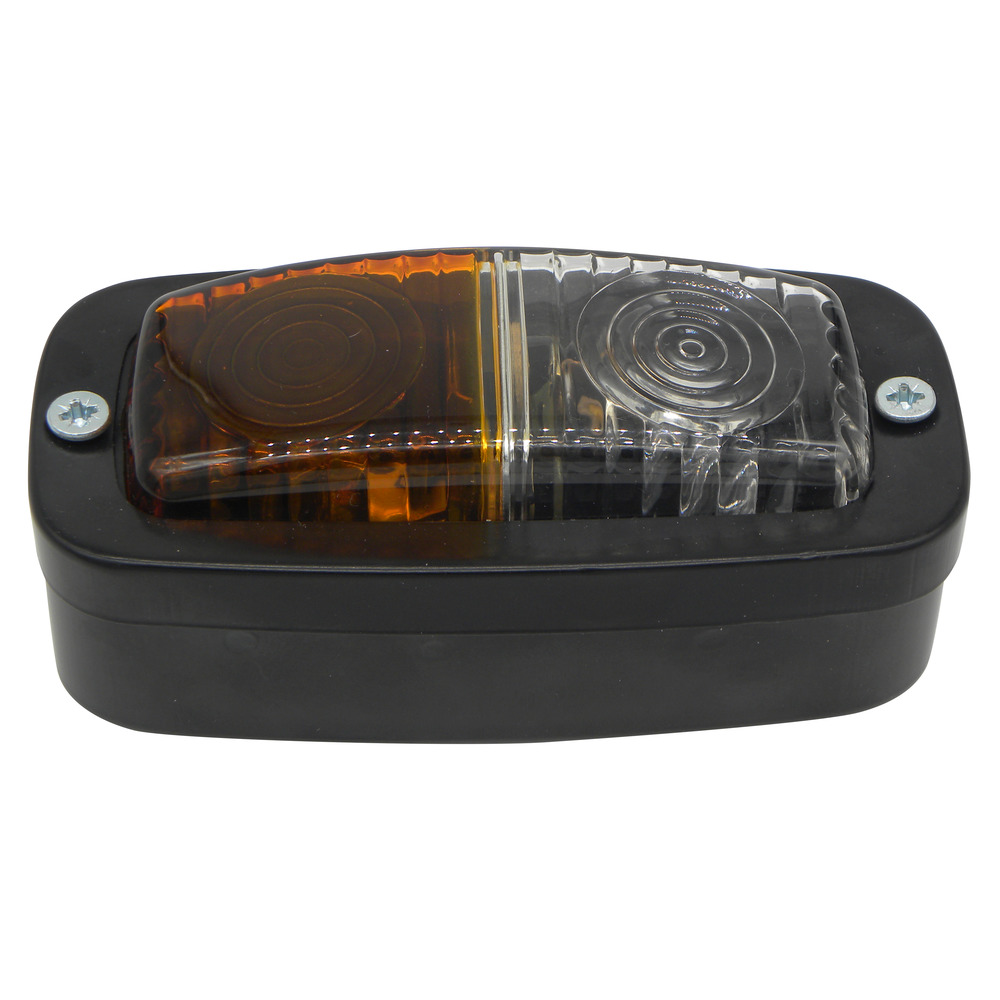

Metal housing, 2 M6 holes, hole spacing 45mmLxWxH: 110x57x45mm

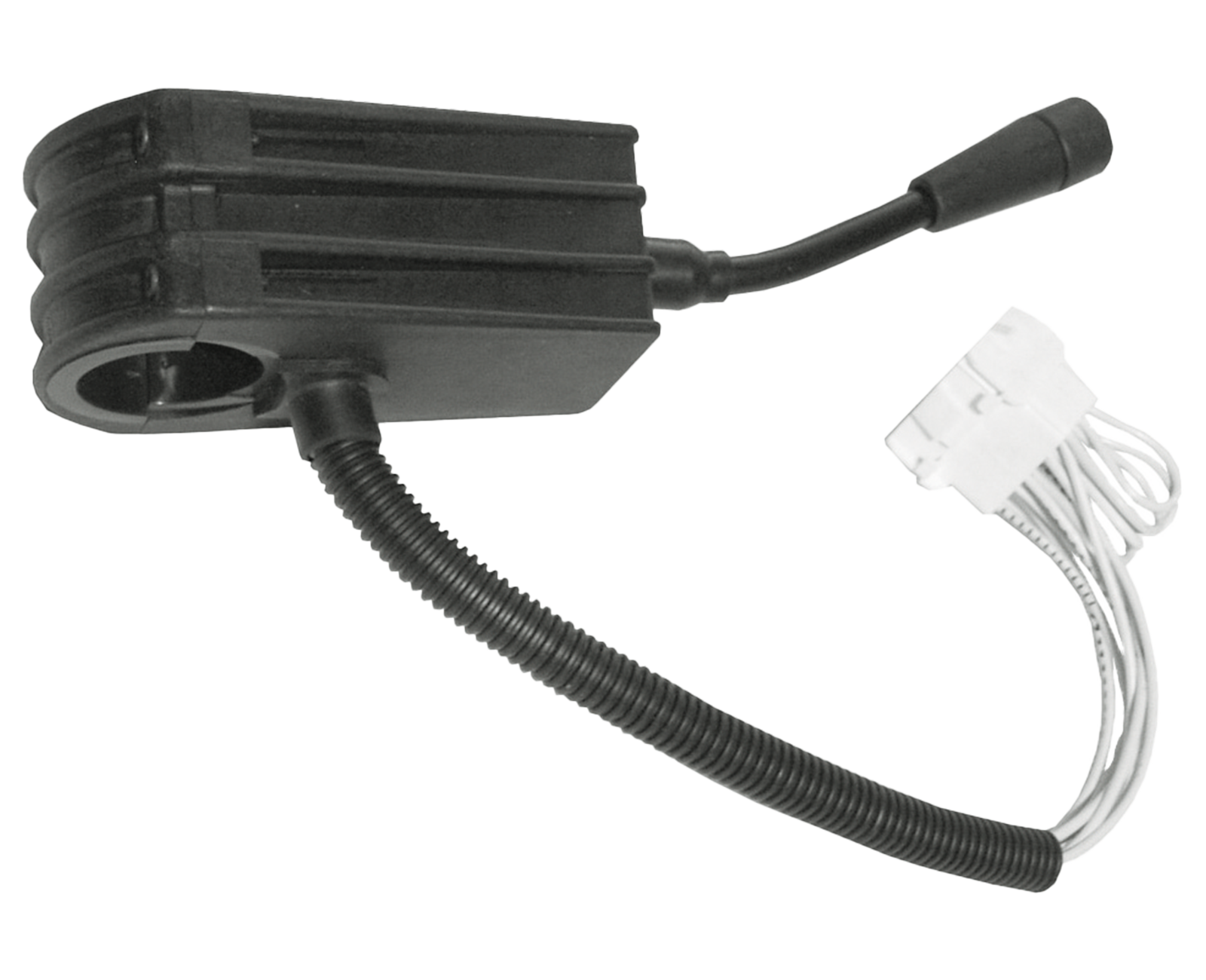

44 mm, with indicators, horn, high/low beam.

15-pin connector

2 circuit indicator system, indicator light redInstallation : 26 mm Connections: 49a/R/L/54R/54F/L/C/C

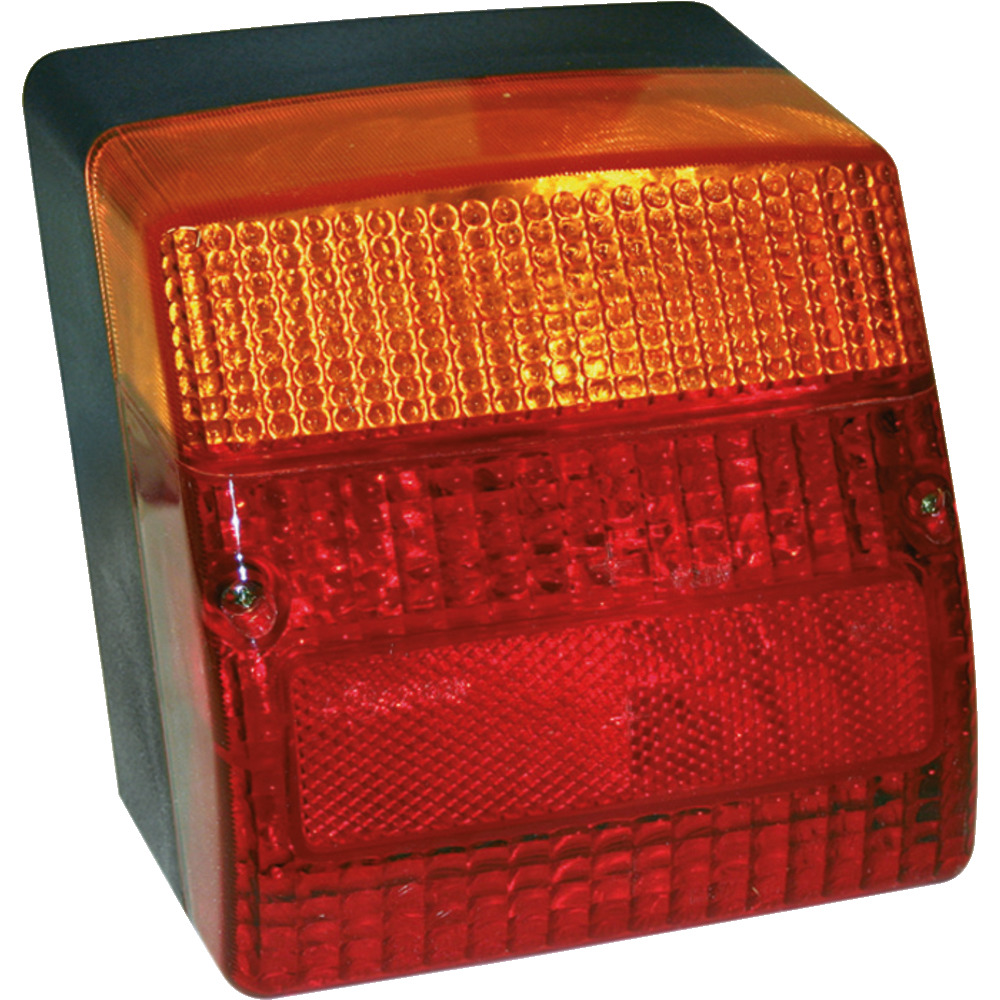

left with license plate lighting, dimensions: 155x140mm, including bulbs, suitable for Case Series CS, CS Pro, CVX, Steyr Series 9000, 9100, CVT

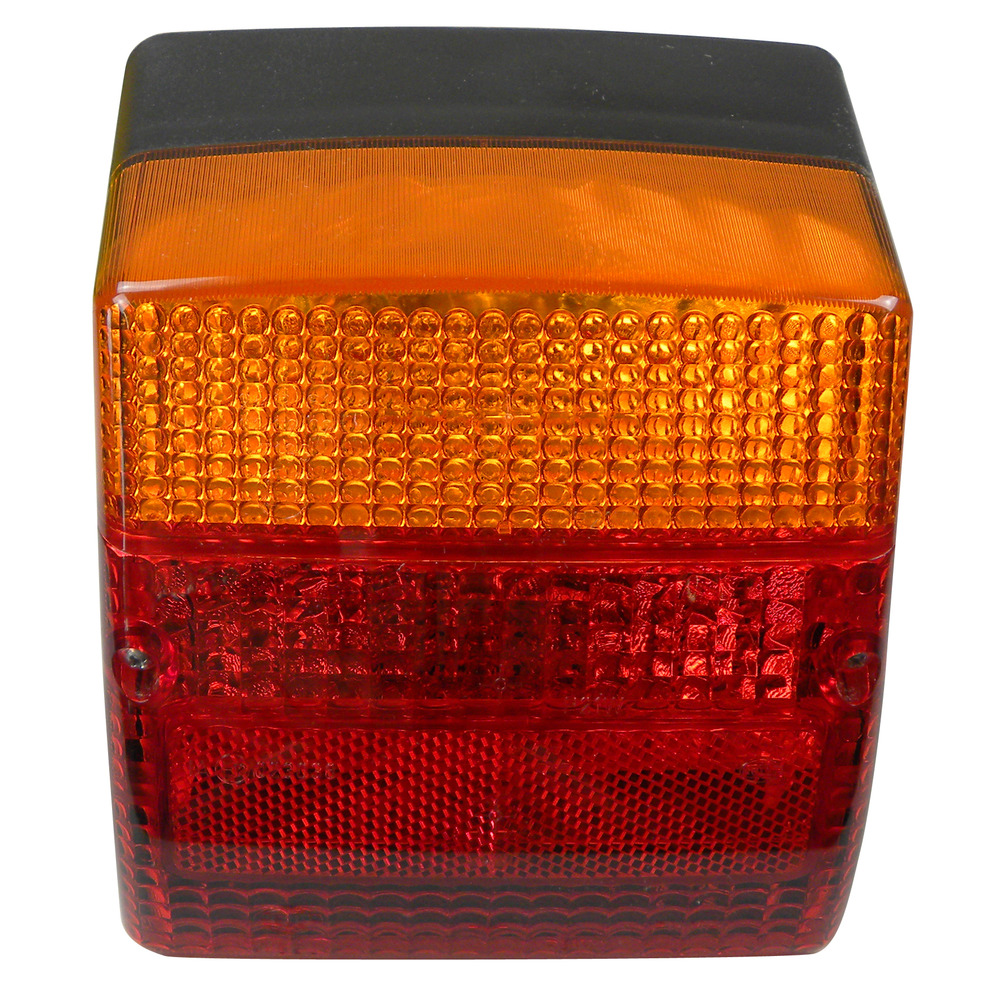

right without license plate lighting, dimensions: 155x140mm, including bulbs, suitable for Case Series CS, CS Pro, CVX, Steyr Series 9000, 9100, CVT
