Trailer components

Quick assembly

Quick assembly

Radschraube metrisch M12x1,5, Kugelbund

Galvanized cable pull, cable connection thread M8, sleeve length 1230 mm, cable length 1440 mm, bell outer dimension 22 mm

For car trailers.LxWxH: 200x95x95mmAxle load 1600kg

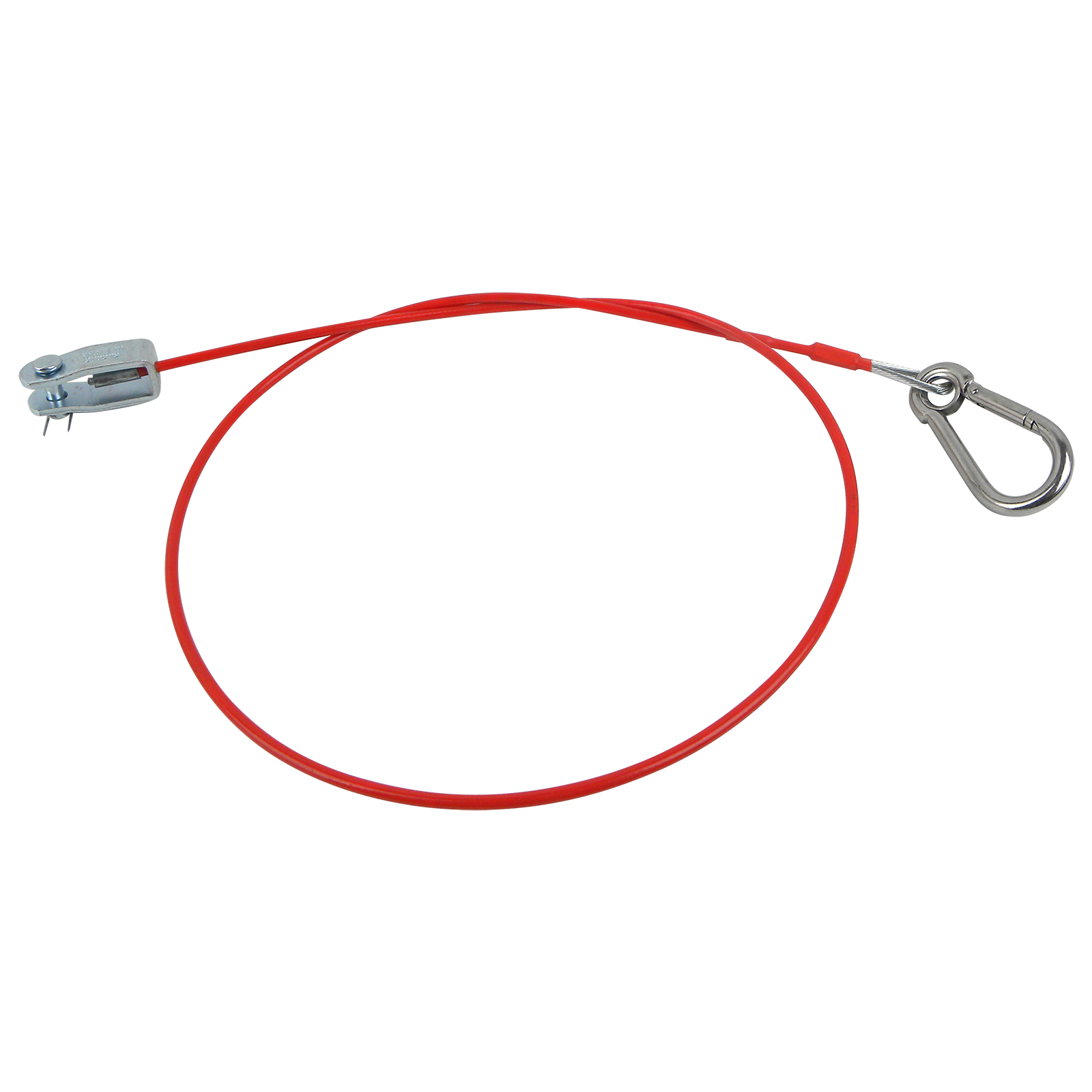

with carabiner hook

With automatic reversing system, hot-dip galvanized axle body, speed up to 140 km/h, ET 25 to 35, track a = c-2xET, including brake cables

Axle body hot-dip galvanized, speed up to 140 km/h, ET -5 to 35, track a = c-2xET

Perm. Total weight 1600kg, support load 120kg, connection around 50mm. With reducing sleeves 35/45mm (for all common brands)Additional advantages:With safety display, false locks are excludedSoft dock as standardSoft touch handle with optimal feel

up to 750kg permissible total weight, with safety display, hole spacing for drawbar attachment 90mm, holes 12.5mm

up to 750kg permissible total weight, with safety display, hole spacing for drawbar attachment 90mm, holes 12.5mm

for car jockey wheel and lifting support

for car jockey wheel

Can be used right/left, length 145 mm.

Can be used right/left

With profile 12/40, e.g. box trailer, livestock transporter in tandem design.

Adjustable up to 35 mm, length 230 mm, galvanized. Without counter hooks.

With automatic Safety hook length 220 mm Hole spacing 64mm (without counter hook.)

Hot-dip galvanized, suitable for screwing onto frames or side walls.

With discus lock and 2 keys. Suitable for all ball couplings.

Support load 175 kg, round outer tube 48 mm, (without clamp holder).

With 2 screw holes 6 mm.

Without clamp holder.

Without clamp holder.
