Installation requirements

with screw connections

With lid, especially for Steyr Plus series, LxWxH: 120x45x30 mm.

M18x1.5mm

10 ohms

fully insulated

fully insulated, with two cast inserts and ground strap

12 V/100 A, manual switch for switching + or - lines. Switching key can be removed in the off position, 2 connection screws for 8 mm cable lug, switching current 12/24 V = 100 A, switching current for short-term operation (5 seconds) 500 A.

Switch lever can be removed in the off position, 2 connection screws for 10 mm cable lug, 250 A, short-term operation (5 seconds) 2500 A.

Simple fixation using a double cable clamp, for cables up to 70 mm

For Steyr 80, M10x1.2 flat connector.

Closer, rest position "~Off"~

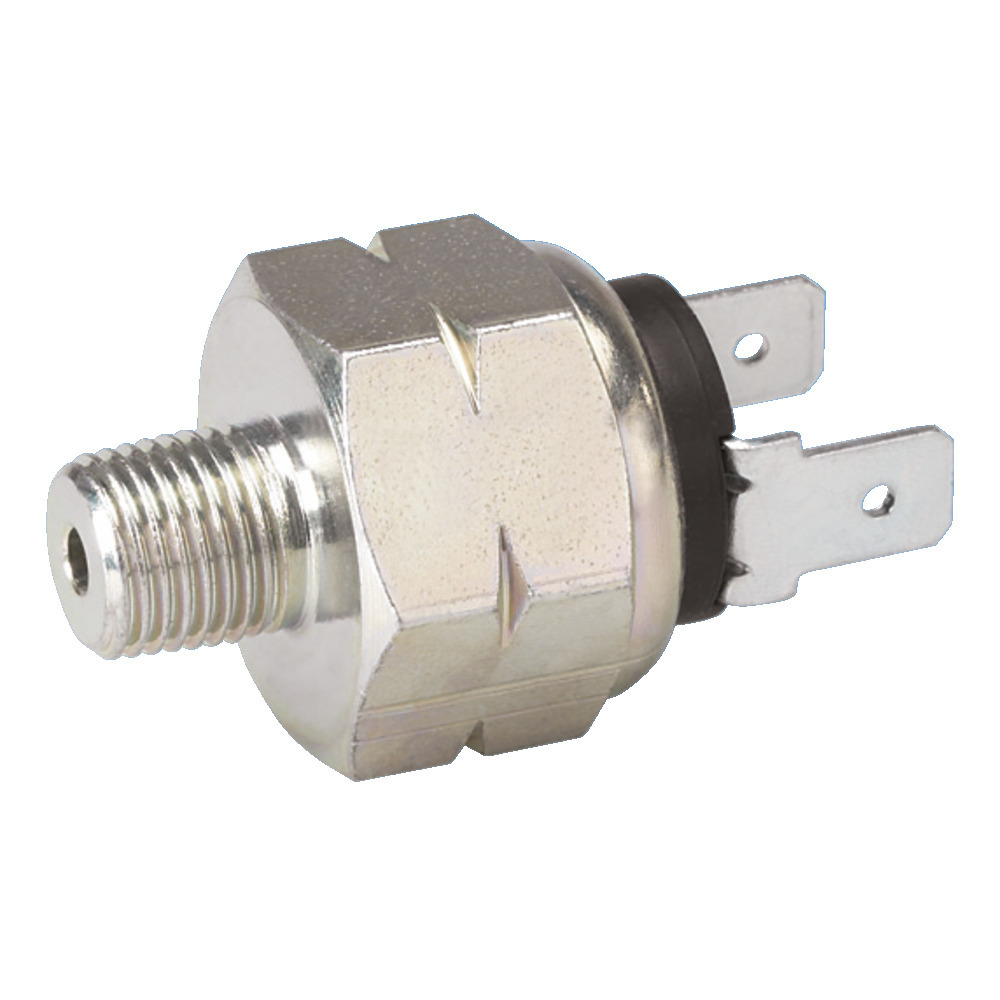

Switch for brake light or start safety 12/24V, 4 flat plugs,IP67, can be used instead of CNH: 82026949, 5163618, 47132449, Steyr: 321564850

PVC, 2 flat connectors, thread 12 mm, thread length 35 mm.

With rubber cover cap.

For Steyr Plus,...

2-pole with flat connectors

1-pole with screw connection, M18 mounting thread.

2-pole, with cover, installation opening 28 mm.

Distribution box for trailer wiring with screw connections, made of plastic, prevents ingress of moisture, dust, 10-pin, LxWxH: 146x75x40mm.

Length 123 mm, for Steyr Plus

Suitable for Steyr Plus seriesLength: 88 mm

320mm length, 25mm.
