Barn ventilation & fans
Mobile fan 230 V with chassis
Thanks to the integrated chassis, this swiveling fan with integrated 3-stage controller is ideal for mobile use in agriculture or industry. The fan with a rotor diameter of 80 cm delivers a maximum air output of 15,8000 m/h at 930 rpm. Volume 56 dB(A). 230 volts, 50 Hz, protective cover IP54, 320 watts. Dimensions 90x98x37 cm (WxHxD).Technical data / performance step controller:Stage I: 12,500 m/h, 200 WStage II: 13,000 m/h, 250 WLevel III: 15,800 m/h 320 WAttention: Currently delivered in white
Mobile fan cool 230V including 3-level controller, white
The integrated chassis makes this pivoting fan with integrated 3-speed controller ideal for mobile use in agriculture or industry. The fan with a rotor diameter of 80 cm has a maximum air output of 15,8000 m³/h at 930 rpm. Noise level 56 dB(A). 230 volts, 50 Hz, protective cover IP54, 320 watts. Dimensions 90x98x37 cm (WxHxD).Special version with cooling nozzle ring. 8 nozzles with a capacity of 1 l/min ensure particularly effective cooling.Technical data / capacity Stage controller:Stage I: 12,500 m³/h, 200 WStage II: 13,000 m³/h, 250 WStage III: 15,800 m³/h 320 W
Motor protection switch MS 0.63 incl. housing
Pour la protection des ventilateurs contre les surcharges et les courts-circuits.Les interrupteurs de protection du moteur sont équipés d'un interrupteur marche/arrêt principal.Boîtier isolant inclus. Indice de protection IP65.0,4 - 0,63 A
Motor protection switch MS 1.0 incl. housing
For protecting fans against overload and short circuits.The motor protection switches have a main on/off switch.Includes insulating housing. Protection class IP65.0.63 - 1.0 Amps
Motor protection switch MS 1.25
The "Siemens" motor protection switch offers optimal protection of motors in the event of short circuits and overloads due to its high shutdown capacity and strong current limitation.0.9 to 1.25 ADelivery including housing
Motor protection switch MS 1.6 incl. housing
For protecting fans against overload and short circuits.The motor protection switches have a main on/off switch.Includes insulating housing. Protection class IP65.1.0 - 1.6 Amps
Motor protection switch MS 1.60
The Siemens motor protection switch offers optimal protection for motors against short circuits and overloads thanks to its high breaking capacity and strong current limiting.1.1 to 1.6 AIncludes housing
Motor protection switch MS 2.5
The Siemens motor protection switch offers optimal protection for motors against short circuits and overloads thanks to its high breaking capacity and strong current limiting.1.8 to 2.5 AIncludes housing
Motor protection switch MS 2.5 incl. housing
For protecting fans against overload and short circuits.The motor protection switches have a main on/off switch.Includes insulating housing. Protection class IP651.6 - 2.5 Amps
Motor protection switch MS 3.2
The Siemens motor protection switch offers optimal protection for motors against short circuits and overloads thanks to its high breaking capacity and strong current limiting.2.2 to 3.2 AIncludes housing
Motor protection switch MS 4.0 incl. housing
For protecting fans against overload and short circuits.The motor protection switches have a main on/off switch.Includes insulating housing. Protection class IP65.2.5 - 4.0 Amps
Motor protection switch MS 5.0
The Siemens motor protection switch offers optimal protection for motors against short circuits and overloads thanks to its high breaking capacity and strong current limiting.3.5 to 5.0 AIncludes housing
Motor protection switch MS 6.0 incl. housing
For protecting fans against overload and short circuits.The motor protection switches have a main on/off switch.Includes insulating housing. Protection class IP654.0 - 6.0 Amps
PVC closure flap for fans
With automatically opening and closing slats, color gray (RAL 7015), PVC ultraviolet protected, reinforced slats with a steel rod that functions as a pivot point. Easy wall mounting. From a width of 60.5 cm, the slats are in two parts. The specified diameter refers to the matching impellers of the fan.

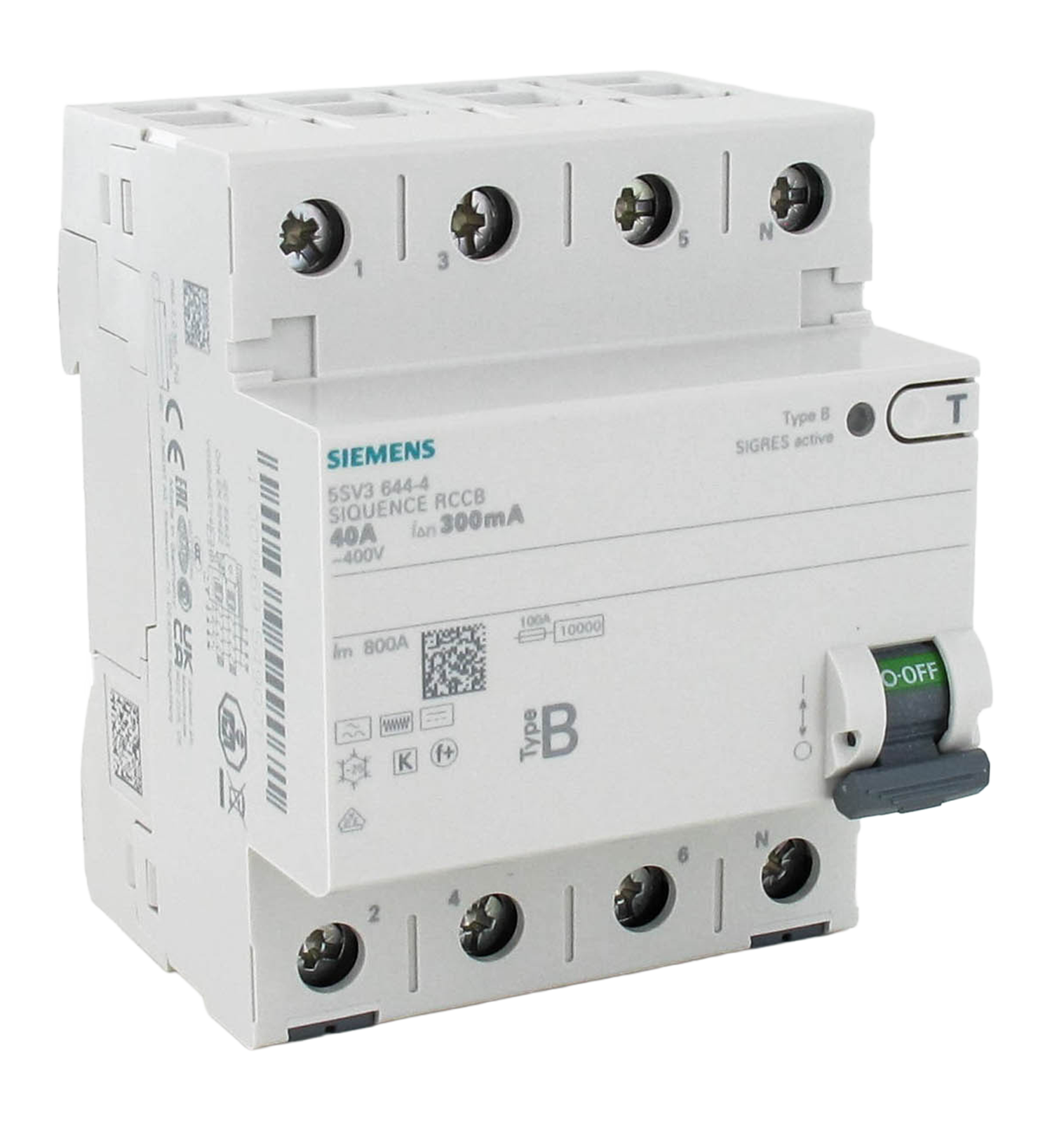

SIEMENS Fehlerstromschutzschalter 4-polig, 40 A
Type B, AC/DC sensitive, 300 mA, 230/400 V, direct mountingThe Siemens residual current device (RCD) is distinguished by the comprehensive protection it offers people and property against electric shock.Whether dealing with AC residual currents or smooth DC residual currents, Siemens offers the right type—as well as special versions—to meet every requirement.Reliable safety during installation, thanks to integrated protection against accidental contact and grasping.
Speed controller S56
Temperature-controlled speed controller for cage fans.Product description:The S56 temperature-dependent speed controller offers two solutions in one device to maximize fan efficiency and flexibility.This innovative controller allows for both automatic speed adjustment based on temperature and manual speed setting in five stages.Key features:Automatic speed control: As the temperature rises, the fan speed automatically increases to ensure optimal ventilation.Manual setting: One of the five speed settings can be manually selected at any time. In this operating mode, the fan switches off automatically as soon as the set temperature is undershot.Operation:Control knob on the left: Set the target temperature7-way switch on the right: Select between Off, speeds 1 to 5, and Automatic modeIncludes temperature sensor: For precise temperature measurement and controlCompatibility: The S56 speed controller is suitable for fans 133451, 133452, 133453, and 133454. It can also be retrofitted into existing systems.
Stable / milking parlor fan 69 cm 230 V
This cage fan offers an airflow of 13,600 m³/h and allows for easy and flexible operation for optimal ventilation.With innovative features and a robust design, this fan is ideal for a variety of applications.Key Features:Easy Adjustment: Test the optimal settings directly and without tools.Flexible Direction: Change the direction instantly with a single movement to direct the airflow precisely where needed or distribute it indirectly via walls, floors, or ceilings.Mounting Options: The fan can be mounted on walls or fixtures and allows for one-handed 3D adjustment.Over-Temperature Protection: Protection against overheating.Robust Construction: The grille design prevents water accumulation and provides dust and splash protection according to IP54.Ease of Use: A 2-speed switch is included, and a speed controller is available as an accessory.Applications:The S16 cage fan is ideal for use in various environments that require efficient and flexible ventilation.Whether in industrial, commercial, or agricultural settings, this fan offers the perfect solution for optimal air circulation.Technical Specifications:Color: BlackVoltage: 230 V, 50 HzPower Consumption: 250 WMax. Current: 1.1 ASpeed: Stage 1 (88%): 1,200 rpm; Stage 2 (100%): 1,350 rpmAir Circulation: Stage 1 (88%): 13,728 m³/h; Stage 2 (100%): 15,600 rpmHorizontal Throw: Approx. 10 mSound Pressure Level at 1 m: 71 dB(A)Weight: 12.5 kgDiameter: 69 cmDepth: 20 cmProtection Class: IP54Includes adjustable mounting bracket, power cable (approx. 1 m), and plug
Stallventilator RR 140 400V
Der Stalllüfter sorgt für frische Luft und ein angemehmes Stallklima. Gehäuse verzinkt. Flügel aus Edelstahl. Beidseitige Schutzgitter.Technische Daten: Gehäuse 138 x 138 cm Flügel-Ø 129 cmGewicht: 68 kg Volumenstrom [m³/h] 41.306 Geräuschpegel [dB] 73,4Leistung [kW] 1,1 [PS] 1,5Stromaufnahme 2,7 ASpannung [V] 400Hergestellt in ItalienAchtung: Bei den Ventialtoren wird zum Schutz von Lüftermotoren gegen Überlastungen und Fehlfunktionen der Einsatz von einem Motorschutzschalter empfohlen! Ohne Motorschutzschalter besteht bei Schäden keinerlei Garantieanspruch! Bei der Auswahl ist die richtige Stromstärke (A bzw. Ampere zu beachten) zu berücksichtigen!Diese Lüfter sind nur für den Betrieb an Frequenzreglern bzw. AN/AUS geeignet!
Step controller SEA-N
The two step transformers can be used as manual, semi-automatic or automatic step controllers for single-phase fans.Without a thermostat they can be used as a manual 5-step controller. For semi-automatic control the thermostat T15-2 (3-stage) or T15-WD (2-stage) should be used and for automatic control the thermostat T15-4 (5-stage) should be used. in stages). Advantages: Easy to install and operate, robust and insensitive to short-term power peaks and overload, can be used in new and existing ventilation systems. Integrated temperature protection, on/off switch.Technical data:- Power supply 230 V- Fan output current 3 amps or 6 amps (depending on model)- IP54 plastic housing- Dimensions (WxHxD): 13 x 24 x 13 cm- Fan output current: Level: 1 80 V, Level 2: 100 V, Level 3: 130 V, Level 4: 170 V, Level 5: 230V
Suspension set for basket fan Ø 130 cm
Fastening kit for hanging the ceiling fan 130 cm. Consisting of: 2x 7 m chain and fastening hook
T-Control control system
Automatic temperature control for up to 20 fans.The T-Control features a three-character LED display, status and programming LEDs, and a rotary encoder for interacting with the control unit.The LED display shows ambient temperatures, error codes, and programming information.This controller can only be used with fans equipped with EC motors or in combination with a frequency converter.Product features:Alarm relay (for an external alarm system or alarm siren)Three-second full-power startup to reduce fan icingThree-character LED displayStatus and programming LEDsError code displayPower failure protection (settings are retained)Temperature sensorRugged housing (corrosion-resistant, waterproof, and fire-retardant)Technical data:Input power: 230 V AC, 50 HzSignal output: 0 to 10 V DCRelay ratings: 5 A at 250 V AC / 5 A at 30 V DC (resistive load); 2 A at 250 V AC / 2 A at 30 V DC (inductive load)Alarm relay ratings: 0.4 A at 125 V AC / 2 A at 30 V DC (resistive load); 0.2 A at 125 V AC / 1 A at 30 V DC (inductive load)The T-Control must be installed by a qualified electrician. Disconnect the mains power supply before installing the T-Control or performing maintenance work.
Thermostat T15-2
Combination of two mechanical single-phase thermostats that can be adjusted separately. The minimum and maximum switching value can be set.Advantages: Low investment costs, easy installation, simple operation, durable and robust, can be used in new and existing ventilation systems.Outputs:< /strong> Fans, heaters or alarms, step transformerTechnical data: Temperature switching range: 2x 0-40C, mains voltage 250 V, IP55 plastic housing, dimensions (W x H x D) 15 x 11 x 15 cm, to be used with the level controller SEA.
Thermostat T15-4
5-stage thermostat: each stage switches at a temperature difference of 1 C, based on the entered setting value, in combination with a step controller, e.g. SEA.Advantages: Low investment costs, easy installation, simple operation, Durable and robust, can be used in new and existing ventilation systems.Outputs: Fans, heaters or alarms, step transformerTechnical data: Temperature switching range: 0-50 C, mains voltage 230 V, housing IP55 plastic, dimensions (W x H x D) 15 x 11 x 15 cm, to be used with the SEA stage controller.
Thermostat T15-WD
The mechanical thermostat switches single-phase devices on and off at a set temperature.Advantages: Low investment costs, easy installation, simple operation, durable and robust, can be used in new and existing ventilation systems. Outputs: Fans, heaters or alarms, step transformerTechnical data: Temperature switching range: 0-40C, mains voltage 250 V, housing IP55 plastic, dimensions (B x H x D) 10 x 15.5 x 6.5 cm, to be used with the level controller SEA.
