6/2-way valve, mechanically reversible, flow rate 120 l/min, R3/4 Zoll, centre position closed, for pipework installation
Product number:
FA122175
€159.00 *
Only a few in stock (Delivery time: 1-3 working days)
Beschreibung
Product information "6/2-way valve, mechanically reversible, flow rate 120 l/min, R3/4 Zoll, centre position closed, for pipework installation"
The manually operated 6/2-way changeover valve DEV has the function of a hydraulic switch. This function allows several double-acting consumers to be connected and operated with a time delay. The consumers are supplied by the upstream control unit, which retains all control functions.

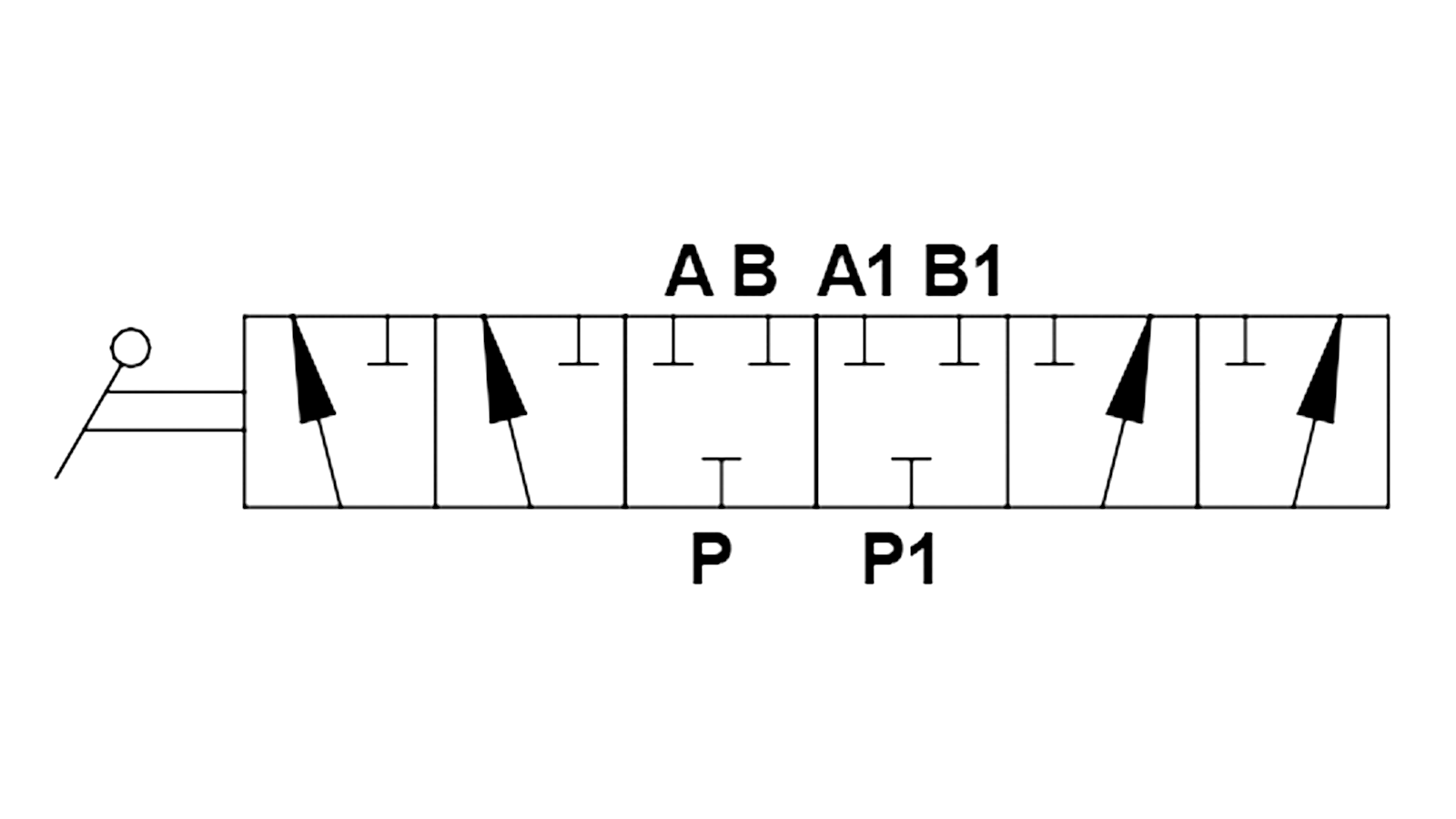

In the centre position, all connections are closed.

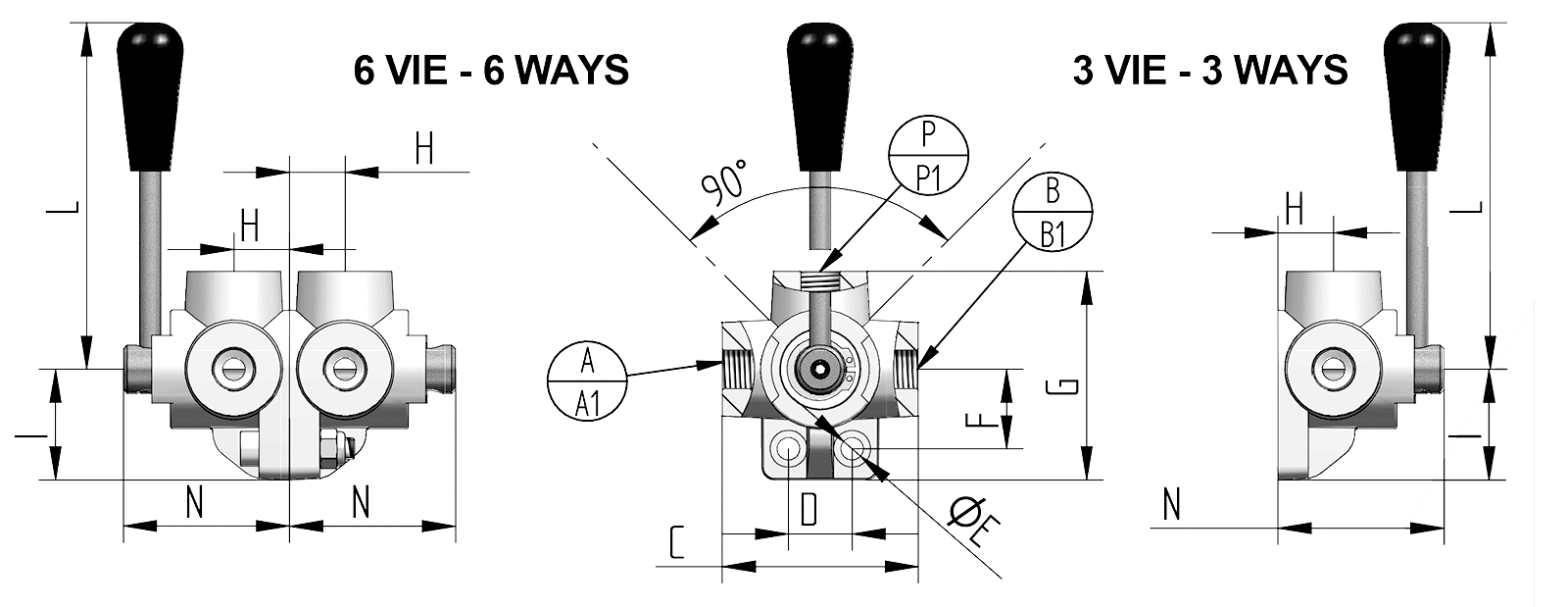

| C (mm): | 90 |
|---|---|
| D (mm): | 32 |
| Druck max. (bar): | 220 |
| Durchfluss (l/min): | 120+120 |
| E (mm): | 10,5 |
| F (mm): | 41 |
| G (mm): | 100 |
| Gewinde A: | R 3/4 Zoll |
| H (mm): | 28 |
| I (mm): | 55 |
| L (mm): | 128 |
| N (mm): | 80 |
