Additional control unit for Bosch SB1 hydraulics
Additional control unit for Bosch SB1 hydraulics
Beschreibung
Product information "Additional control unit for Bosch SB1 hydraulics"

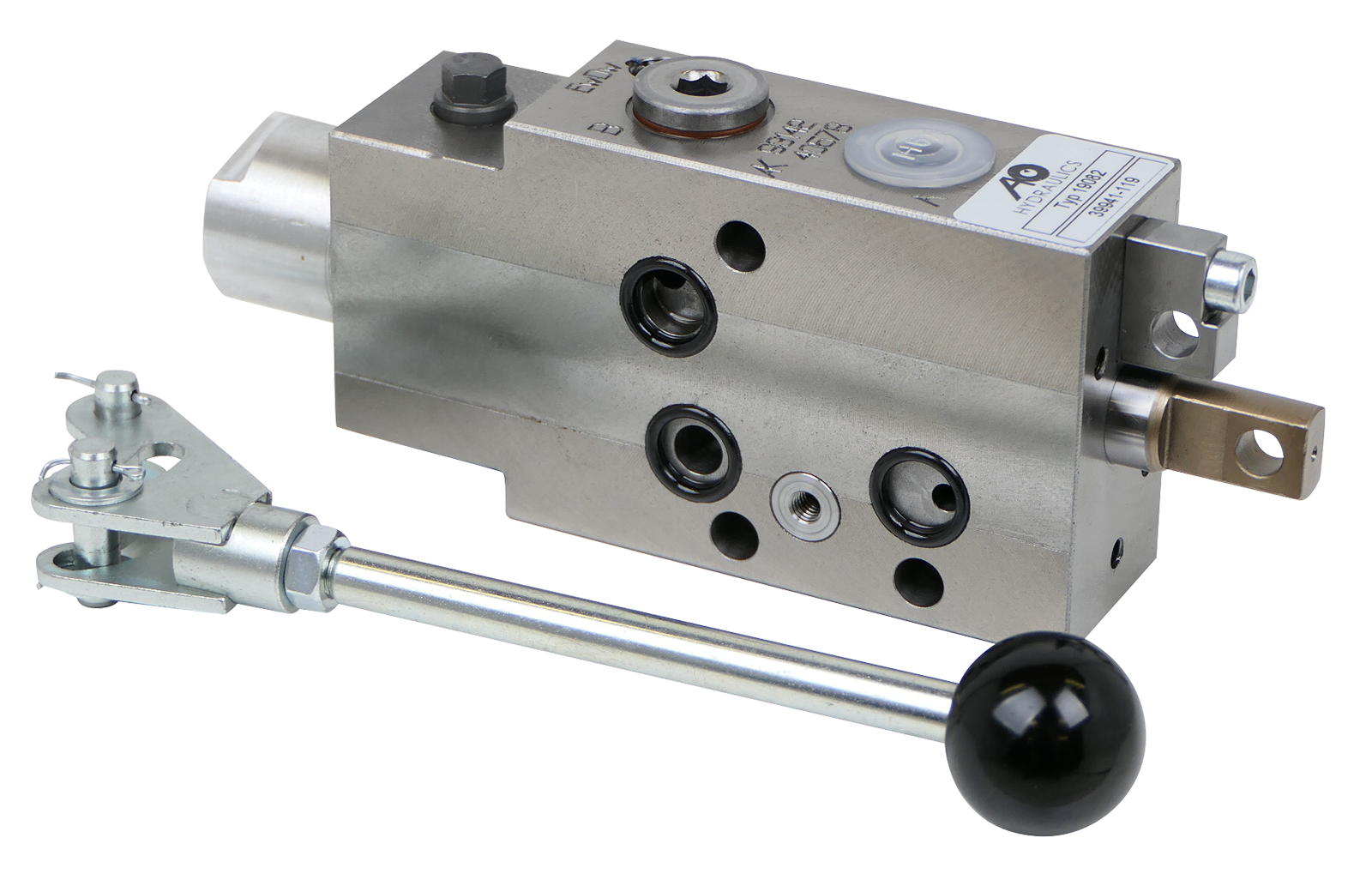

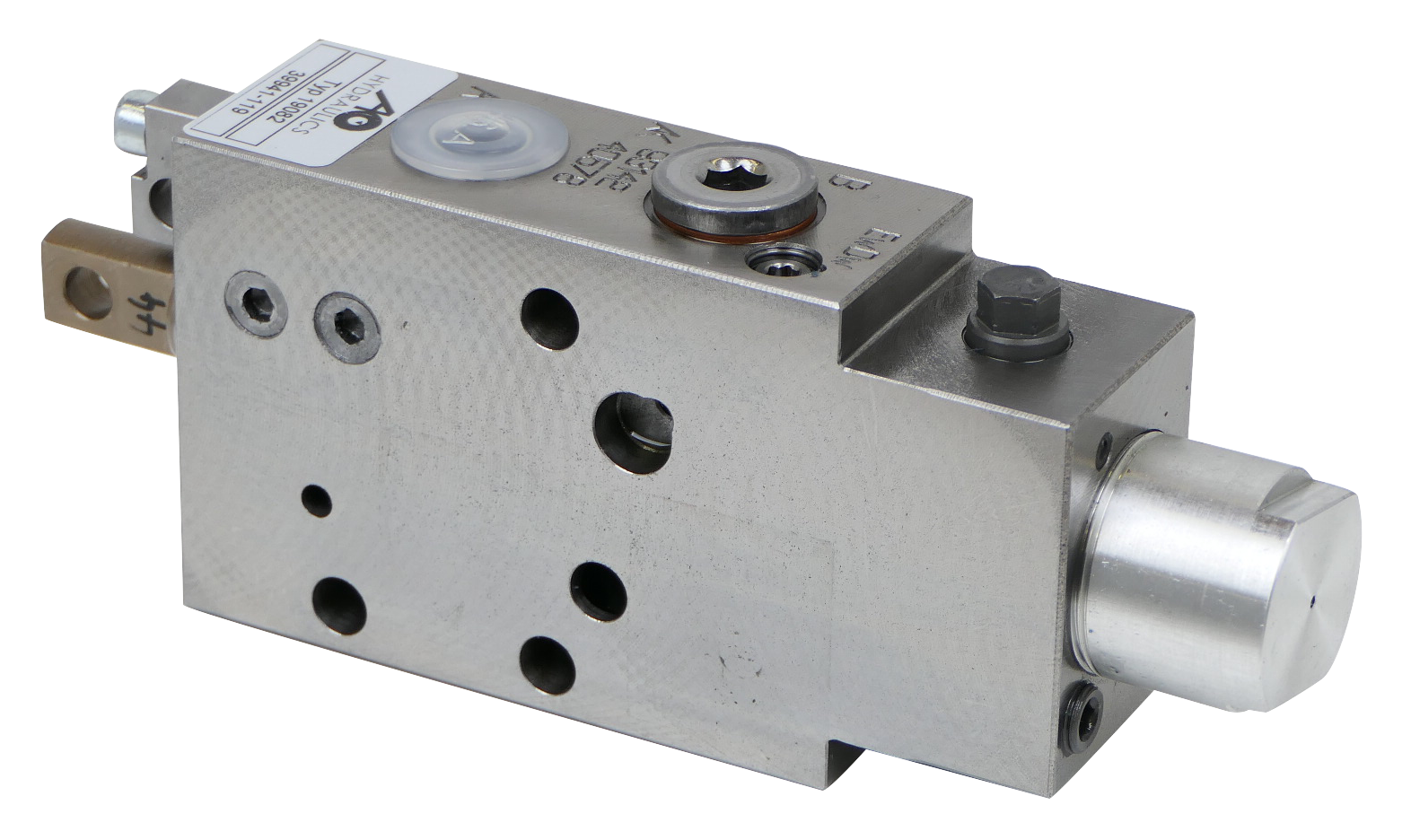

The additional control device is a 5/4-way valve, which is operated manually to control hydraulic consumers. It is a four-position control device that can be used for double and single-acting lifting cylinders. It has slide-sealed cylinder ports A and B. This means that extremely low leakage is permitted at high loads. The device has a grid position in the lifting position, which is equipped with a hydraulic-automatic limit switch. If you switch further via the lowering position, the locked floating position is switched on, which is not unlocked hydraulically (consumer connections A and B connected to each other for the return). The floating position can be used as a locked lowering position for both double-acting and single-acting lifting cylinders. The additional control unit can be switched from double-acting to single-acting during operation. The operating lever is included in delivery.
| Flow rate (l/min): | 40 |
|---|---|
| Max. pressure (bar): | 220 |
| Suchnummer: | 10053 |
| Suitable for Fendt series: | Farmer 200 |
| Suitable for Lamborghini series: | Formula |
| Thread: | M18x1,5 |
| can be used instead of Bosch: | 0521602026, 0521602034, 0523600053, 0523602012, 0523602026 |
| suitable for Case: | 323, 353, 383, 423, 433, 439, 440, 453, 523, 533, 540, 553, 554, 633, 640, 644, 654, 733, 740, 743, 744, 833, 840, 844, 940, 955, 1055, 1255, D320, D322, D324, D326, D430, D432, D436, D439, D440 |
| suitable for Case series: | 55, 300, 400, 500, 600, 700, 800, 900, D |
| suitable for Fendt: | Farmer 250S, Farmer 260S, Farmer 260V, Farmer 270V, Farmer 275S, Farmer 275V, Farmer 280P, Farmer 280S, Farmer 280V |
| suitable for Lamborghini: | Grand Prix 674-70, Grand Prix 874-90 |
Hersteller
AK-Regeltechnik GmbH
Dieselstraße 6a
38350
Helmstedt
DE
[email protected]
GTIN/EAN:
4044841190823
