Aircraft AIRPROFI 600/200 OF PRO compressor
Aircraft AIRPROFI 600/200 OF PRO compressor
Product number:
FA128490
€3,290.00 *
Freight flat rate:
€65.00
Content:
1
Stück
available within 14 working days
Beschreibung
Product information " AIRPROFI 600/200 OF PRO compressor "

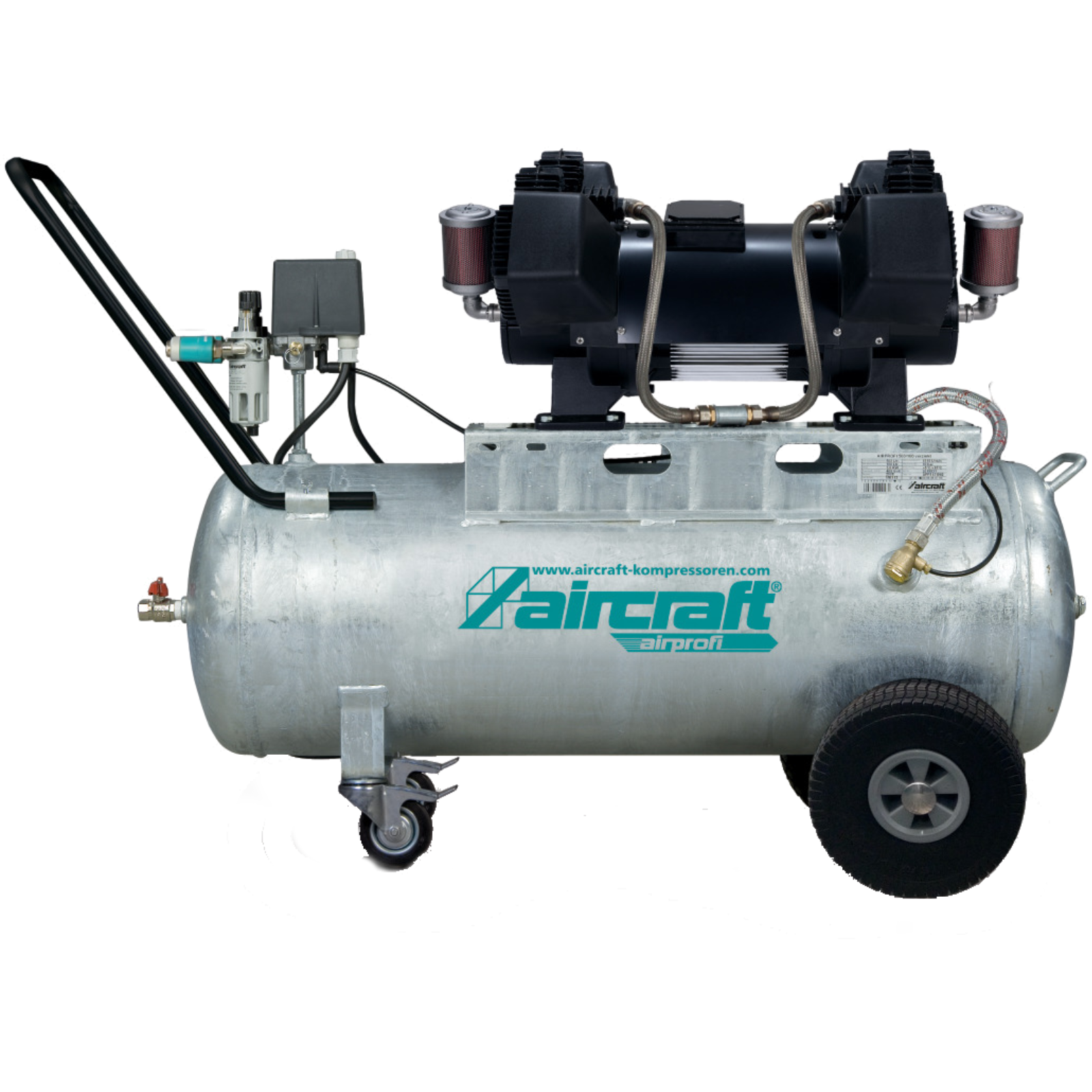

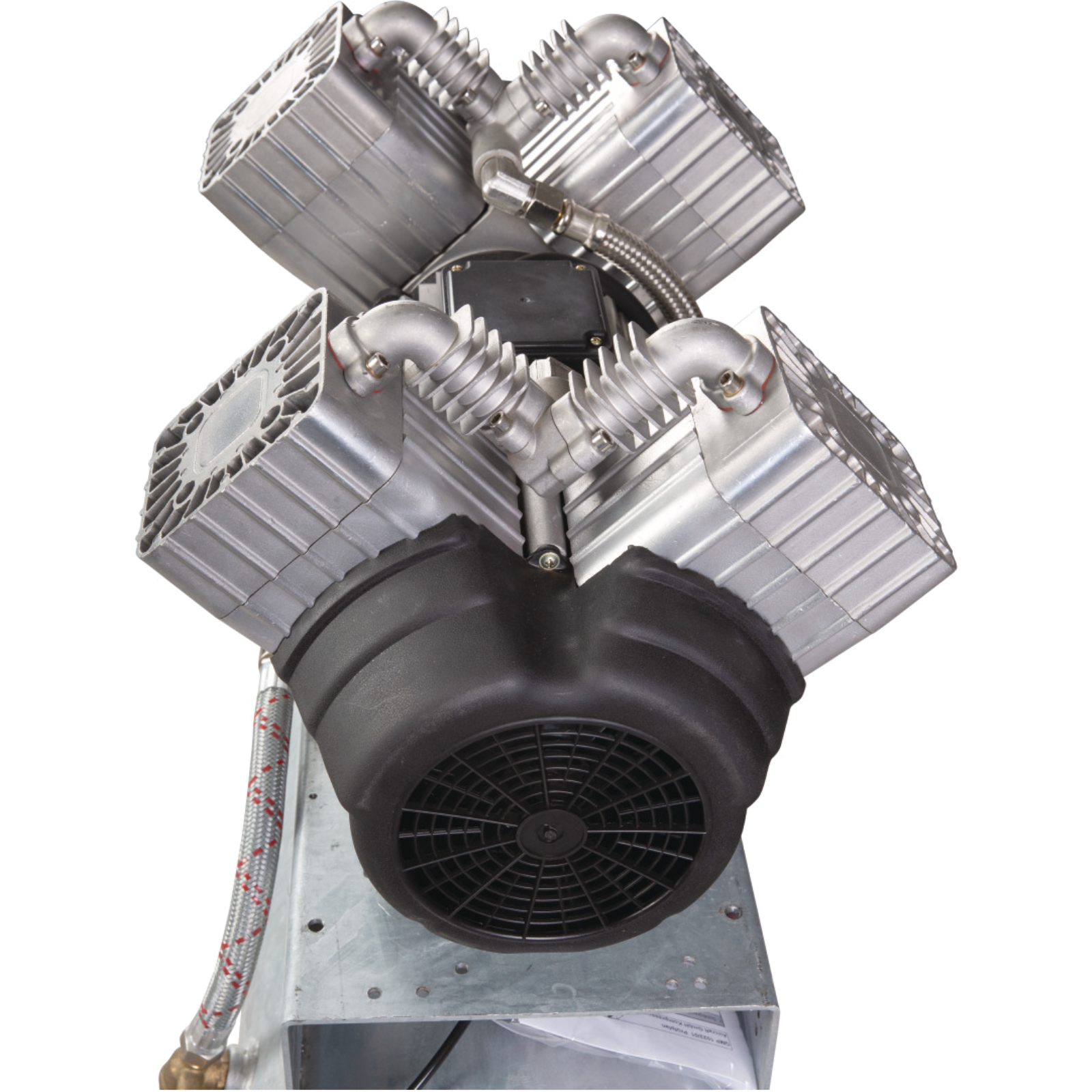

Mobile piston compressor with oil-free, direct-coupled V-units
Developed for demanding continuous use when oil-free and clean compressed air is required
Air is blown through the cooling chambers of the cylinder by means of a fan; this achieves optimum cooling
Large piston, movably mounted, thus 60% more power compared to tilting piston systems
Cylinder running surfaces with high-precision and micro-smooth surface for minimum friction
The high-performance piston or piston ring made of a special graphite-Teflon-carbon mixture has a much longer service life than a simple piston ring made of Teflon
High-quality maximum equipment:

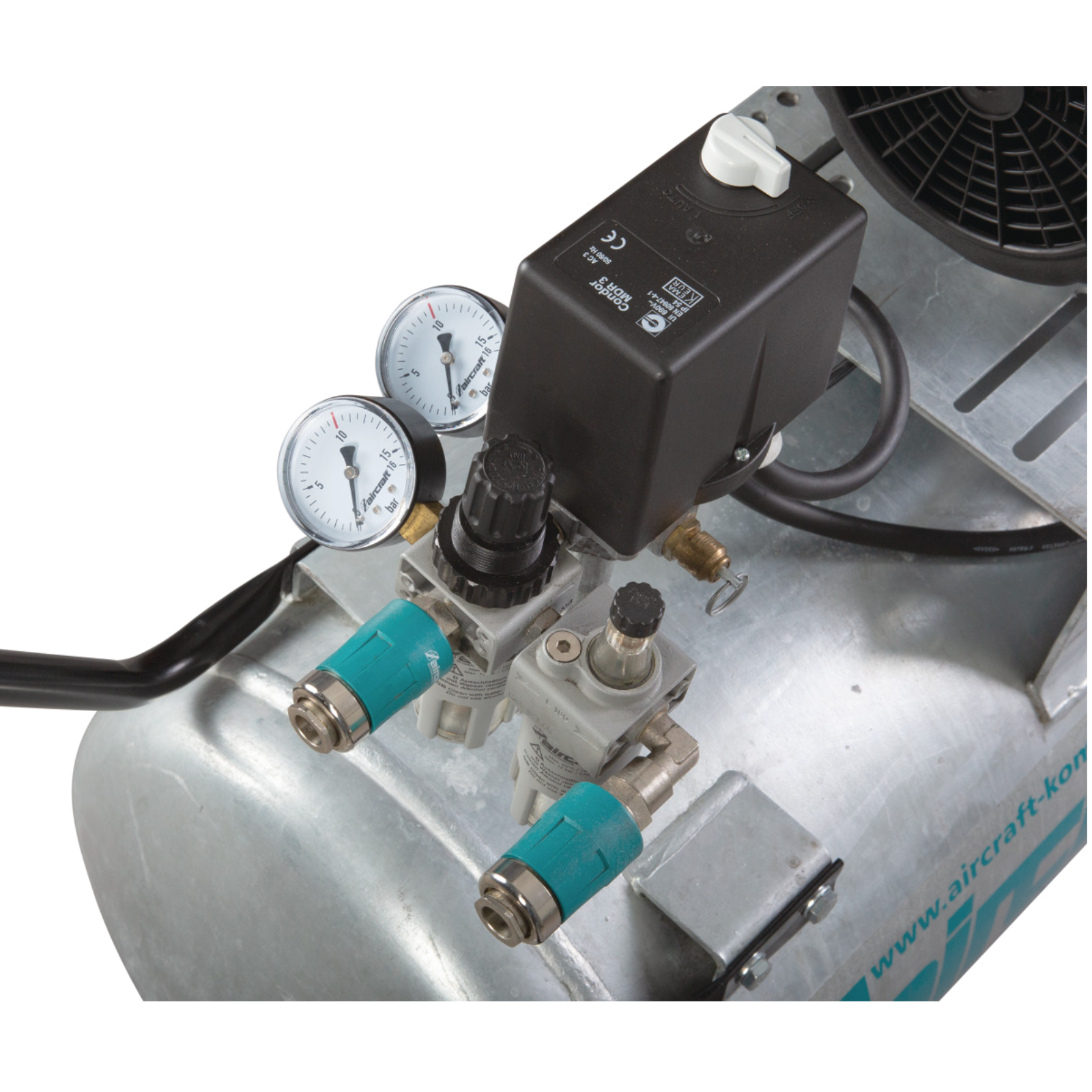

Filter pressure regulator for infinitely variable adjustment of the working pressure, with simultaneous dirt, oil and condensate separation
One compressed air outlet each for filtered compressed air, filtered and lubricated compressed air and a direct outlet on the compressed air tank
Two convenient safety quick-release couplings
High-quality CONDOR pressure switch
One pressure gauge each for tank and working pressure
Simple condensate drain via ball valve
Compressed air lines and tanks with long service life:
Flexible armored hose line with heat protection prevents vibration fractures
Internally and externally hot-dip galvanized, corrosion-protected compressed air tank with 15-year guarantee against rusting through
Comfort safety quick-release couplings:
One-hand safety couplings in accordance with DIN EN 983 from AIRCRAFT, the first manufacturer to use them as standard
Two separate locking systems for maximum work safety
No whipping of the hose line when uncoupling
Convenient transportation:
Back-friendly transportation in an upright position and without lifting
Additional transport handle directly on the container

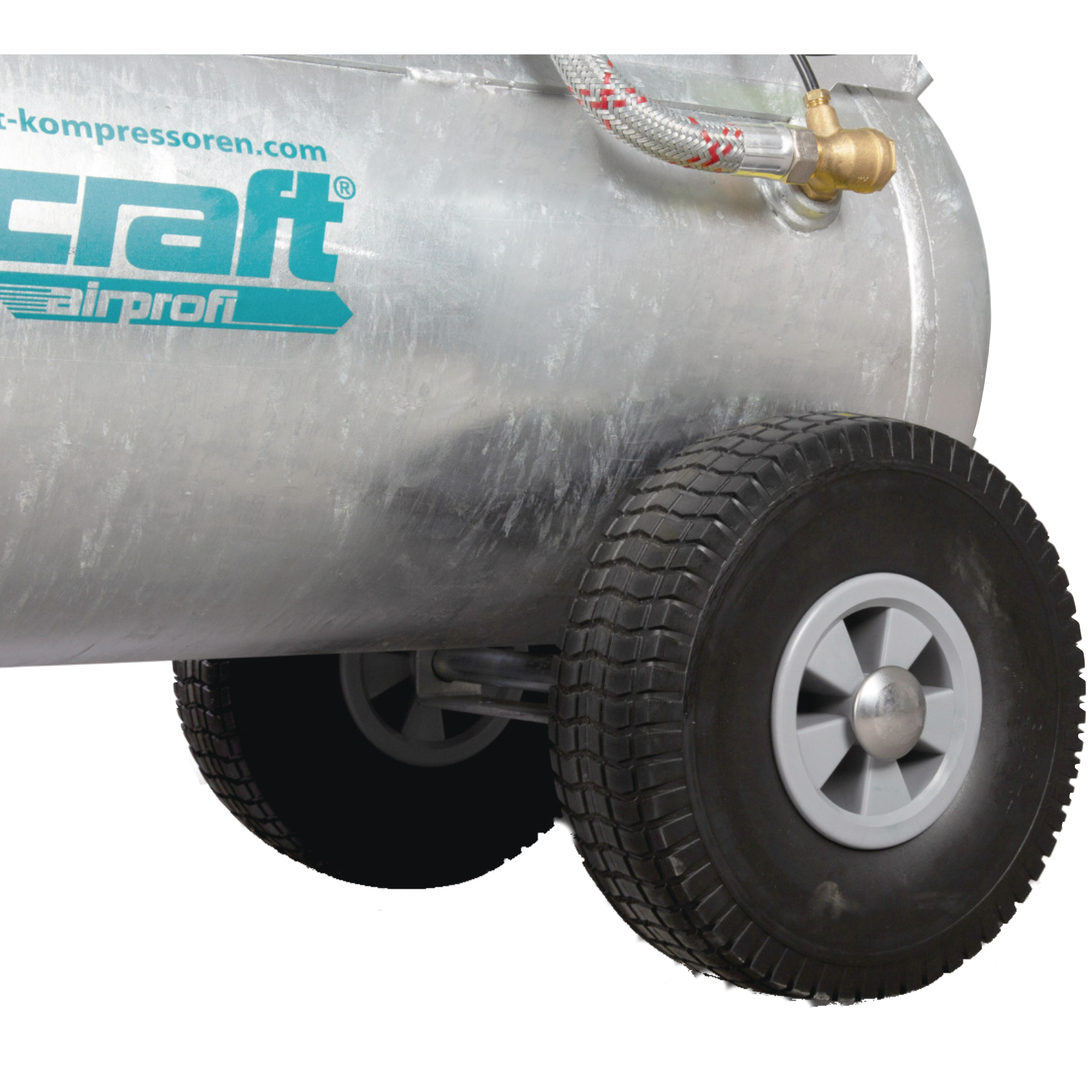

Puncture-proof PU foam wheels
Sturdy steering chassis with parking brake
Ready for immediate use:
Fully automatic on/off operation
With all safety devices
Completely ready for connection
Technical data:
Supply voltage: 400 V
Mains frequency: 50 Hz
Output power: 2.3 kW
Input power: 3 kW
Noise emission:
Sound pressure level Lp: 75 dB(A)
Compressor:
Oil-free
Suction capacity approx.: 510 l/min
Filling capacity approx.: 300 l/min
Explanation Filling capacity: at 6 bar working pressure
Number of cylinders: 4
Number of compression stages: 1
Compressor speed: 1400 min¯¹
Compressed air tank
Maximum pressure: 10 bar
Tank capacity: 200 l
| Suchnummer: | 128490 |
|---|
Hersteller
Aircraft
Gewerbestrasse Ost 6
4921
Hohenzell
AT
[email protected]
GTIN/EAN:
4036351344797
