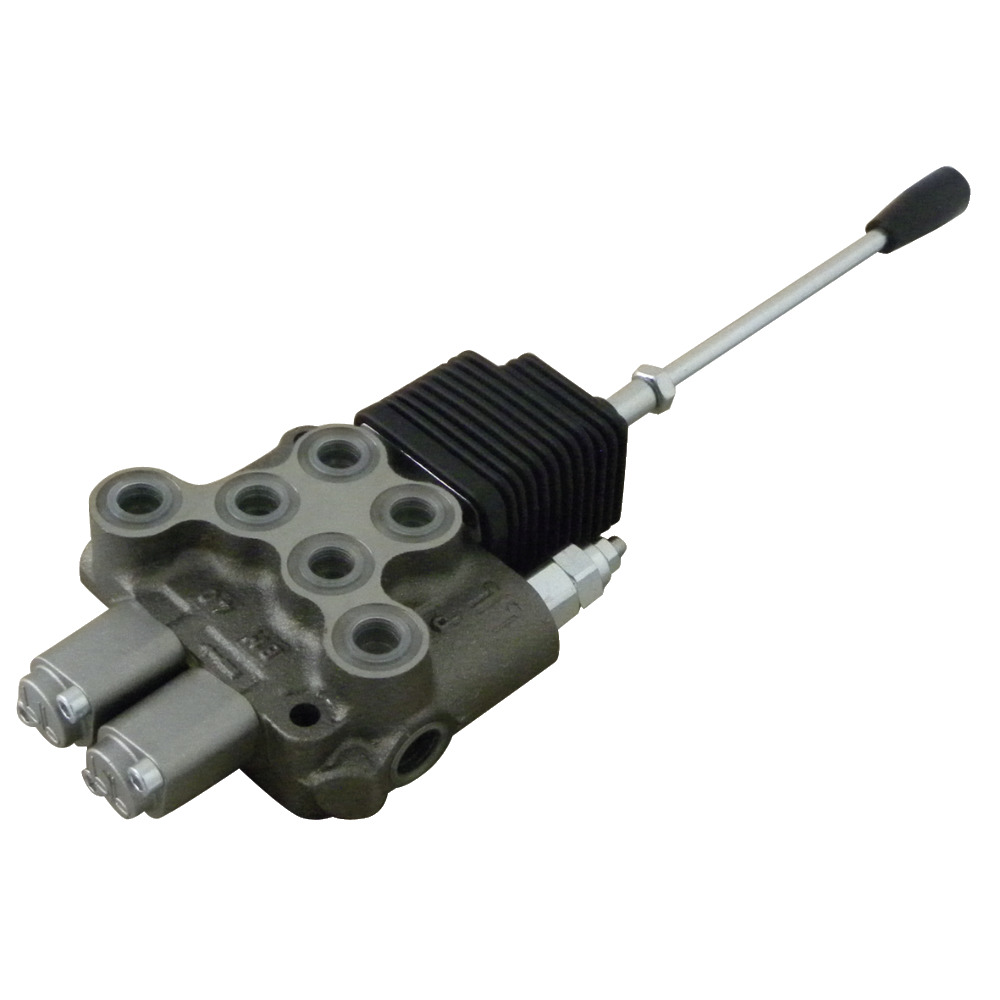

Control valve BM40/2 DW/DW with joystick
Control valve BM40/2 DW/DW with joystick
Beschreibung
Product information "Control valve BM40/2 DW/DW with joystick"
Mechanical actuation with spring return as standard. The middle position is designed with a pressureless circulation and ports A, B are blocked. Pressure relief valve at connection P (pump). Negative overlap of the slides.
Standard version of the valves in parallel connection.
Flow rate max.: BM40 = 40 L/min., BM70 = 80 L/min.
Operating pressure: 250 bar
max . Pressure: 320 bar
Relief valve set: 140 bar, adjustable from 100-250 bar
Screw-in thread A, B, P, T,: R1/2?
Screw-in thread P2, T2: R3/4?
H=Raise, 0=Middle position, S=Lowering, SW=Floating position, ELG=Rapid traverse, R=with detent.The switching positions listed depend on the respective model of the control valve.
Standard version of the valves in parallel connection.
Flow rate max.: BM40 = 40 L/min., BM70 = 80 L/min.
Operating pressure: 250 bar
max . Pressure: 320 bar
Relief valve set: 140 bar, adjustable from 100-250 bar
Screw-in thread A, B, P, T,: R1/2?
Screw-in thread P2, T2: R3/4?
H=Raise, 0=Middle position, S=Lowering, SW=Floating position, ELG=Rapid traverse, R=with detent.The switching positions listed depend on the respective model of the control valve.
| 1st slider: | H/0/S, tastend |
|---|---|
| 1st slider home position: | 0 |
| 1st slider version: | doppeltwirkend |
| 2. slider home position: | 0 |
| 2nd slider: | H/0/S, tastend |
| 2nd slider version: | doppeltwirkend |
| Suchnummer: | 1564 |
| Type: | BM40 |
Hersteller
Blb S.r.l.
Via Natta, 25 - 7.i.
36040
Brendola Vicenza
IT
[email protected]
MPN:
Downloads
bed_steuerventil-bm.pdf
