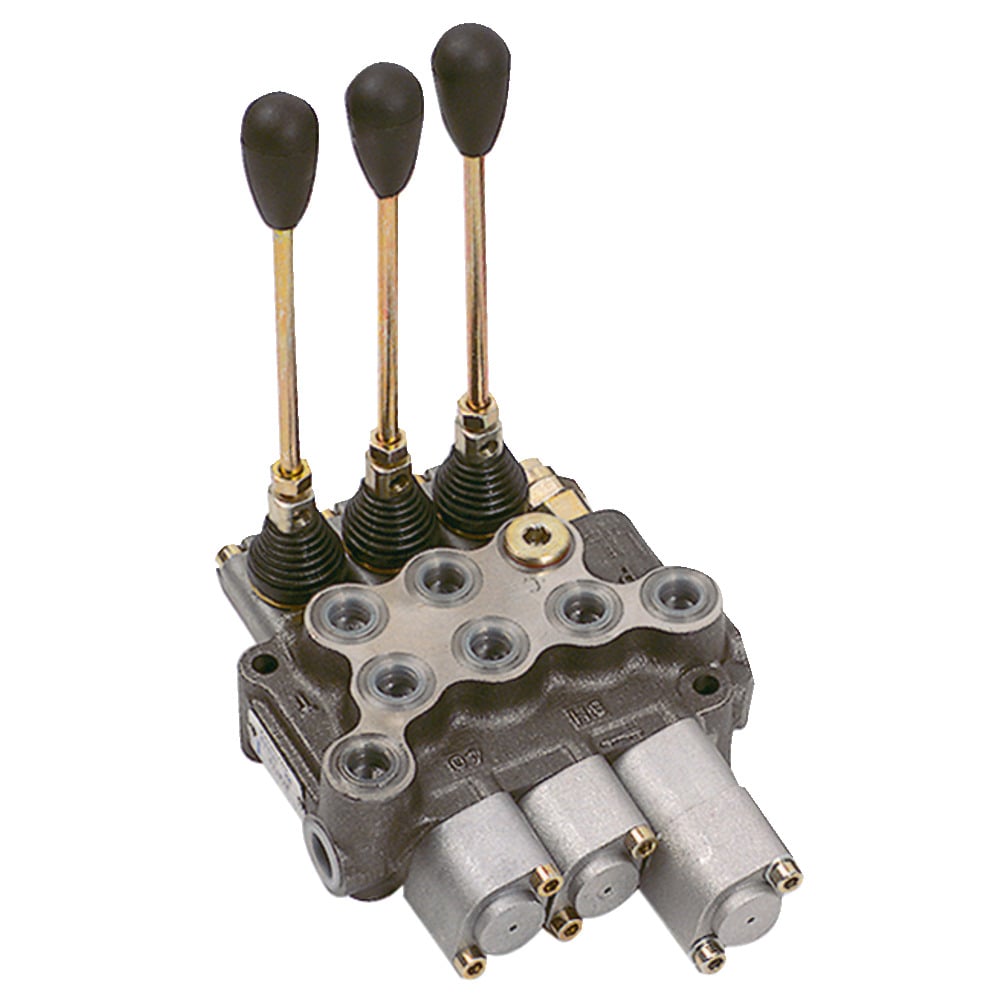

Control valve BM40/3 EW-SR/DW/DW
Control valve BM40/3 EW-SR/DW/DW
Beschreibung
Product information "Control valve BM40/3 EW-SR/DW/DW"
Mechanical actuation with spring return as standard. The middle position is designed with a pressureless circulation and ports A, B are blocked. Pressure relief valve at connection P (pump). Negative overlap of the slides.
Standard version of the valves in parallel connection.
Flow max.: 45 L/min.
Operating pressure: 250 bar
max. Pressure: 320 bar
Relief valve set: 140 bar, adjustable from 100-250 bar
Screw-in thread A, B, P, T,: R3/8"~
Screw-in thread P2, T2: R1/2"~
H=Raising, 0=Middle position, S=Lowering, SW=Floating position, ELG=Rapid traverse, R=with detent.The switching positions listed depend on the respective model of the control valve.
Standard version of the valves in parallel connection.
Flow max.: 45 L/min.
Operating pressure: 250 bar
max. Pressure: 320 bar
Relief valve set: 140 bar, adjustable from 100-250 bar
Screw-in thread A, B, P, T,: R3/8"~
Screw-in thread P2, T2: R1/2"~
H=Raising, 0=Middle position, S=Lowering, SW=Floating position, ELG=Rapid traverse, R=with detent.The switching positions listed depend on the respective model of the control valve.
| 1st slider: | H/0/S-R |
|---|---|
| 1st slider home position: | 0 |
| 1st slider version: | einfachwirkend gerastet |
| 2. slider home position: | 0 |
| 2nd slider: | H/0/S |
| 2nd slider version: | doppeltwirkend |
| 3. slider: | H/0/S |
| 3. slider design: | doppeltwirkend |
| 3. slider home position: | 0 |
| Suchnummer: | 5760 |
| Type: | BM40 |
