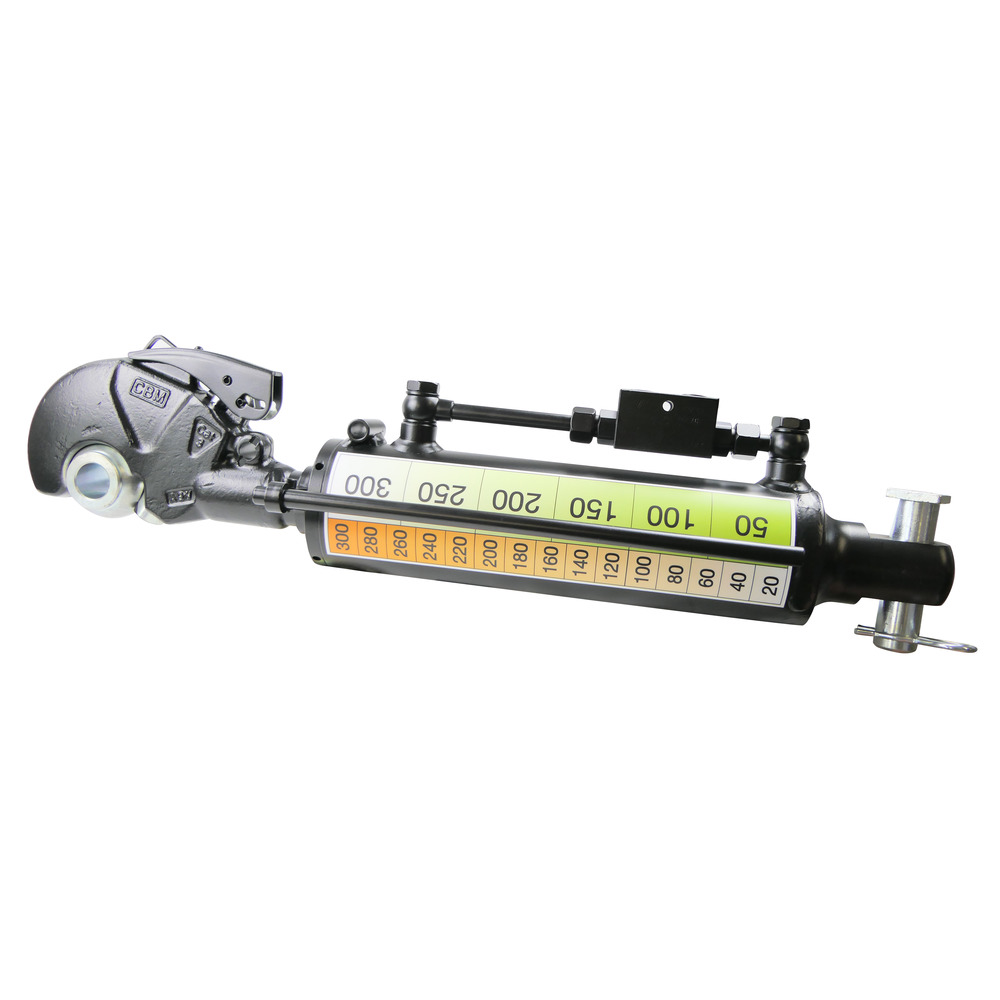

Hydraulic top link with CBM catch hook Cat.3 and with bolt for the joint head
Hydraulic top link with CBM catch hook Cat.3 and with bolt for the joint head
Produkt-Highlights
- Komplett ausgestattet mit allen Zubehörteilen !
- Einfache Anpassung des Oberlenkers an jedes Anbaugerät !
- Verstellung der Oberlenkerlänge vom Traktor/Sc
Beschreibung
Product information "Hydraulic top link with CBM catch hook Cat.3 and with bolt for the joint head"

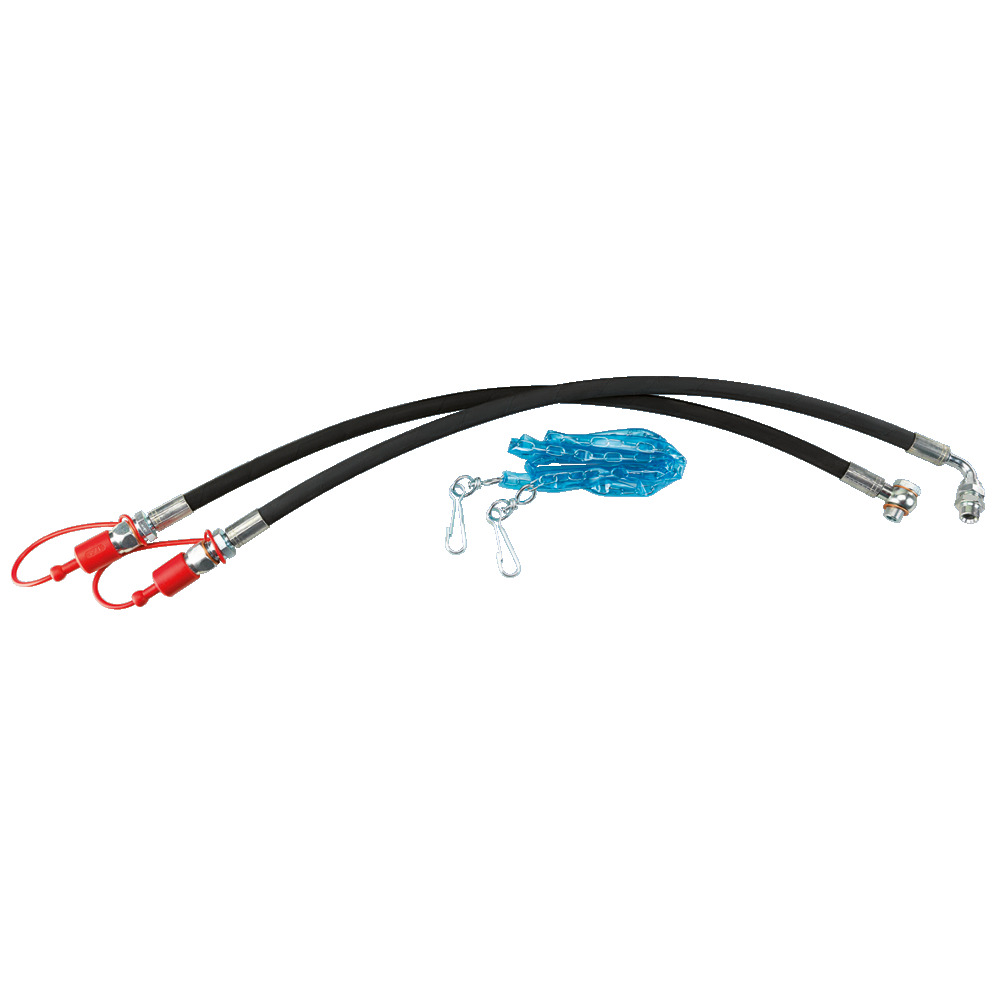

Suitable for tractorsup to approx. 200 HP, piston K = 80mm, piston rod S = 40mm, pressure force 9047kg, pulling force 6785kg. CBM catch hook cat. 3 with ball cat. 3/2 25 mm, bolt 28 mm for joint head mount. Includes hydraulically unlockable check valve (locking block), 2 hydraulic hoses with connectors and dust caps, operating chain for catch hook and lift indicator.
Indication of the installation length including the joint head.
Please order the joint head that fits your top link bolt on the tractor/tractor with a bore of 25mm (Faie No. 102310), 28mm (Faie No. 102311) or 32mm (Faie No. 102312).
The specified lengths always refer to bolt centre to bolt centre including the knuckle !
Indication of the installation length including the joint head.
Please order the joint head that fits your top link bolt on the tractor/tractor with a bore of 25mm (Faie No. 102310), 28mm (Faie No. 102311) or 32mm (Faie No. 102312).
The specified lengths always refer to bolt centre to bolt centre including the knuckle !
| A (mm): | 100 |
|---|---|
| B (mm): | 140 |
| Installation length EL (mm): | 630 |
| Stroke (mm): | 210 |
| Ø outer pipe (R)(mm): | 92 |
Hersteller
Faie Handelsgesmbh
Handelsstraße 9
4844
Regau
AT
[email protected]
MPN:
Downloads
There are no downloads available for this article
Bewertungen
Login
There aren't any asked questions yet.
#FA102310

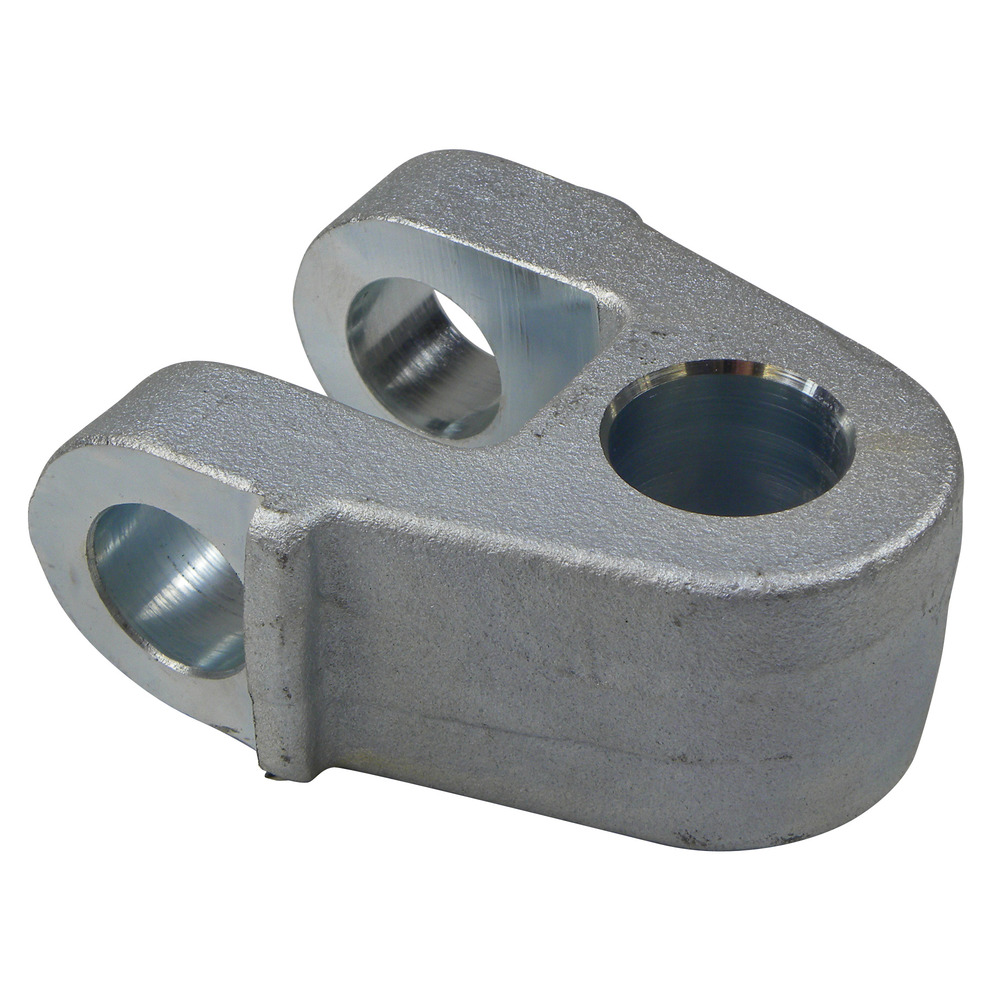

Rod head for hydraulic top link
Sale and shipment by: FAIE Handels GmbH
Rod head for hydraulic top link. Installation length 63mm, width 50mm
Variants from €39.90*
