ESM Mower blade service station ESM

Now with a universally usable grinding attachment for standard angle grinders with a grinding wheel diameter of 125 mm. Function and easy handling determine the concept of the ESM service station. All ESM knife types can be precisely sharpened with a blade cutting angle of up to 40. The grinding attachment holder, which can be adjusted in all levels, enables adaptation to angle gears of angle grinders from a wide range of manufacturers.

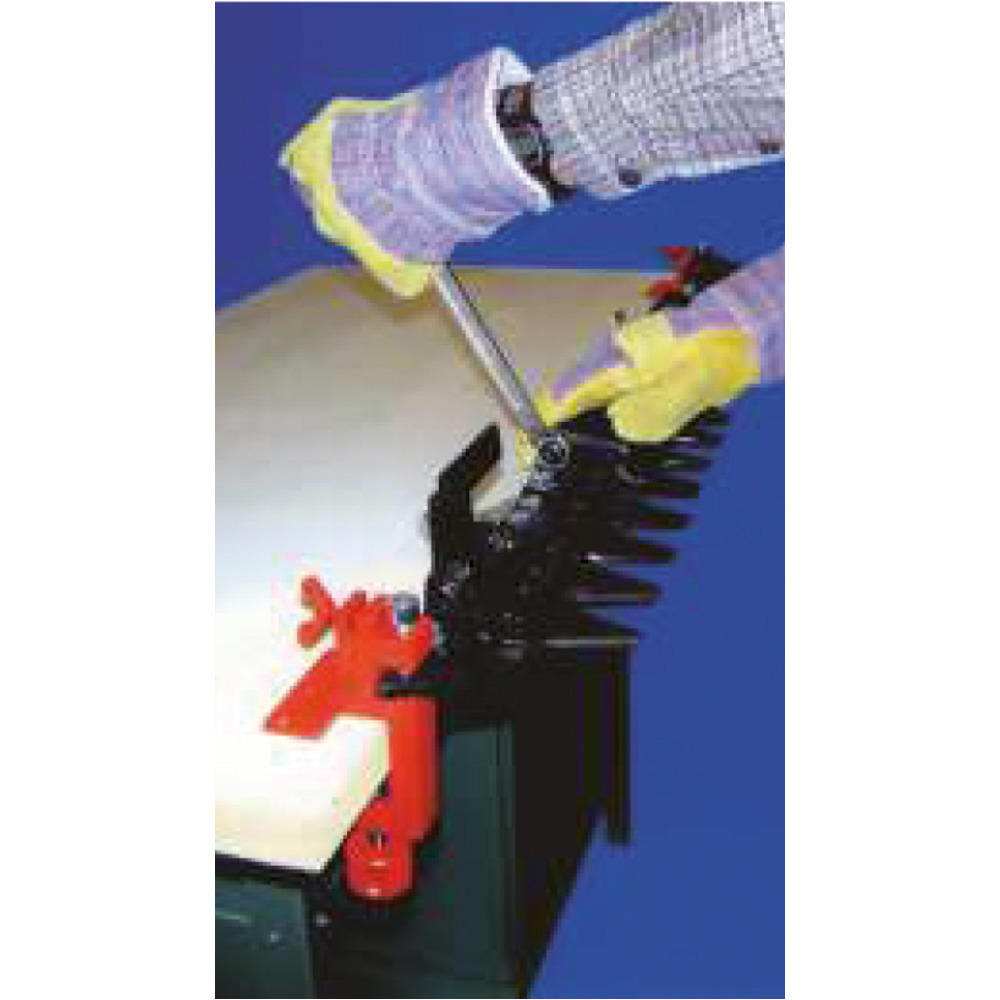

As an additional product benefit, the ESM service station offers the option of holding ESM cutter bars in order to be able to carry out maintenance work on them.

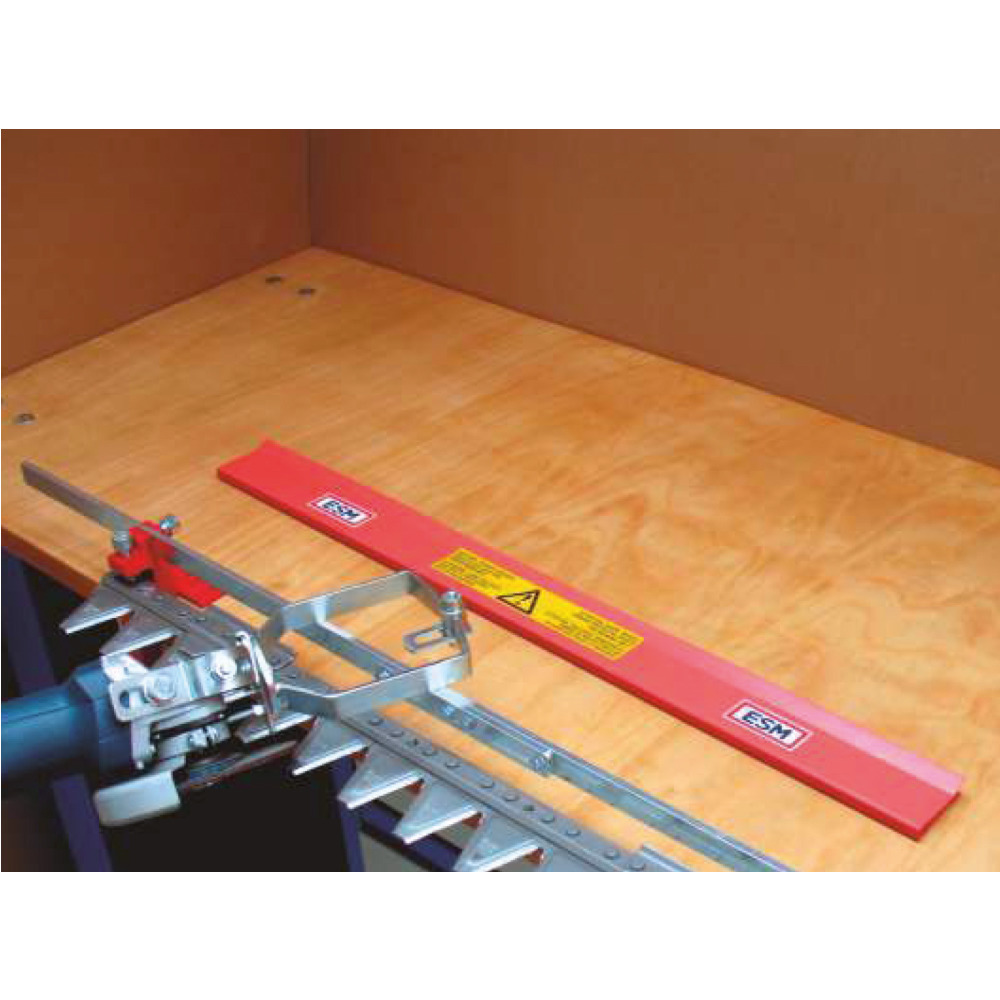

The ESM Service station consists of two clamping devices, the mower blade grinding attachment for angle grinders with a grinding wheel diameter of 125 mm, and a guide rail. The components can be easily and quickly fixed on any standard workbench. For long-term use, screwed fastening of the clamping devices via their additional support plates to the table support is recommended.
The grinding attachment is adjusted to the structural conditions of the available angle grinder after the handle of the angle grinder has been unscrewed. It is possible to adjust the height, width, depth and angle of the attachment.

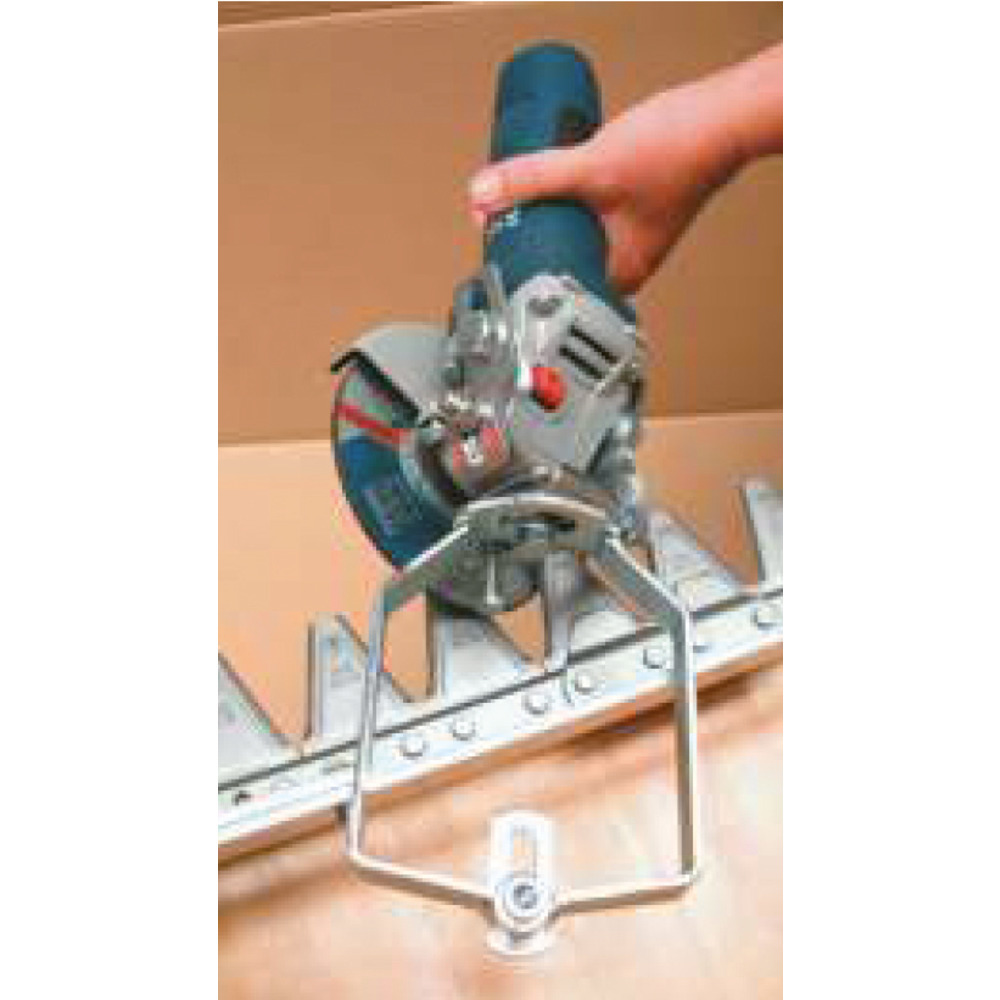

The mower blade is secured in the clamping device by two screws, the angle grinder with attachment is placed on the guide rail and the grinding wheel is attached to the blade cutting edge by moving it back and forth guided along.
The angle adjustment in the hinge point of the grinding attachment ensures a repeatable, true-angle grinding of the blades and thus optimal blade sharpness.
Scope of delivery: 2 clamping devices, 1 guide rail, 1 mower blade grinding attachment for Angle grinder with grinding wheel diameter 125 mm
