Plunger cylinder piston rod Ø S = 20 mm
Plunger cylinder piston rod Ø S = 20 mm
Beschreibung
Product information "Plunger cylinder piston rod Ø S = 20 mm"

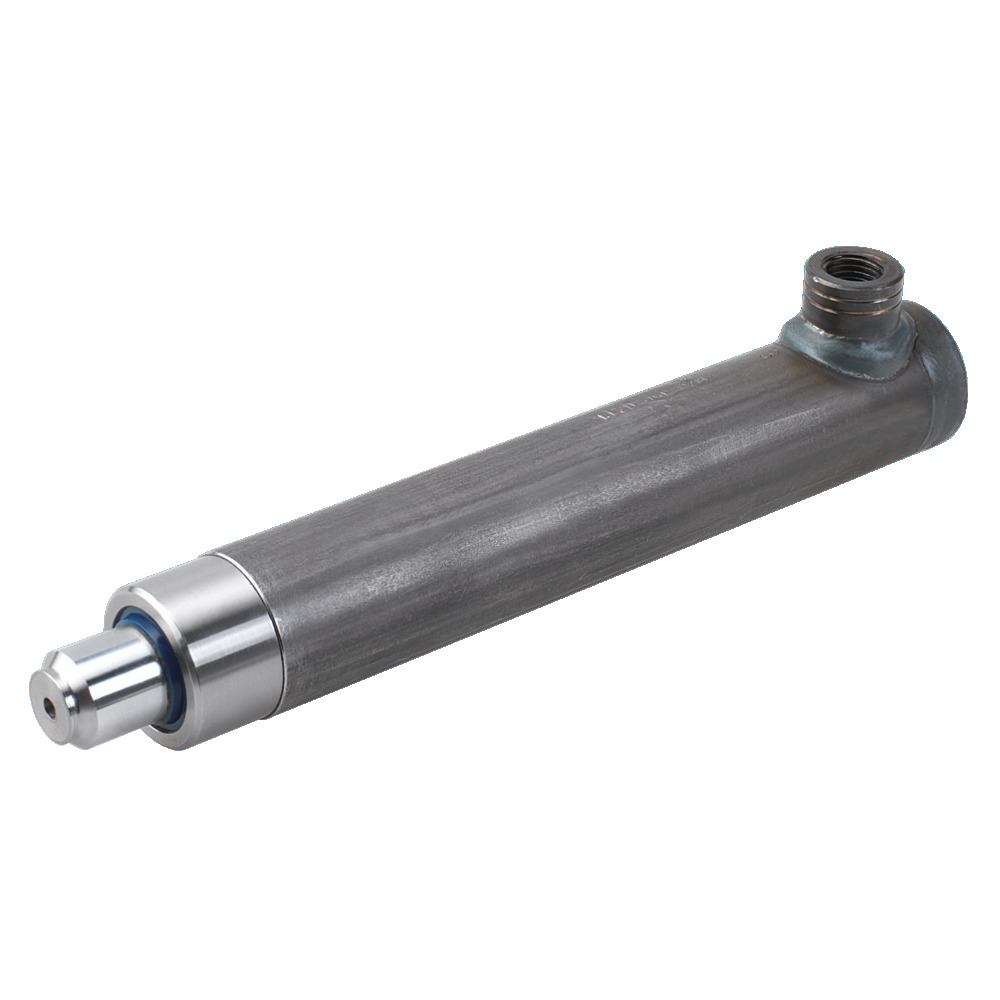

Single-acting hydraulic cylinder (plunger cylinder) without mounting parts on the piston rod and cylinder base. The piston rod has a diameter of 20 mm and is fitted with an extension lock at the lower end. Our cylinders are provided with a locating hole for dowel pins on the rod and base for easy attachment of fastening elements. A welding bevel is screwed onto the upper end of the piston rod.
Pressure force 565 kg at 180 bar, connection G M14x1.5, nominal pressure 250bar
Pressure force 565 kg at 180 bar, connection G M14x1.5, nominal pressure 250bar

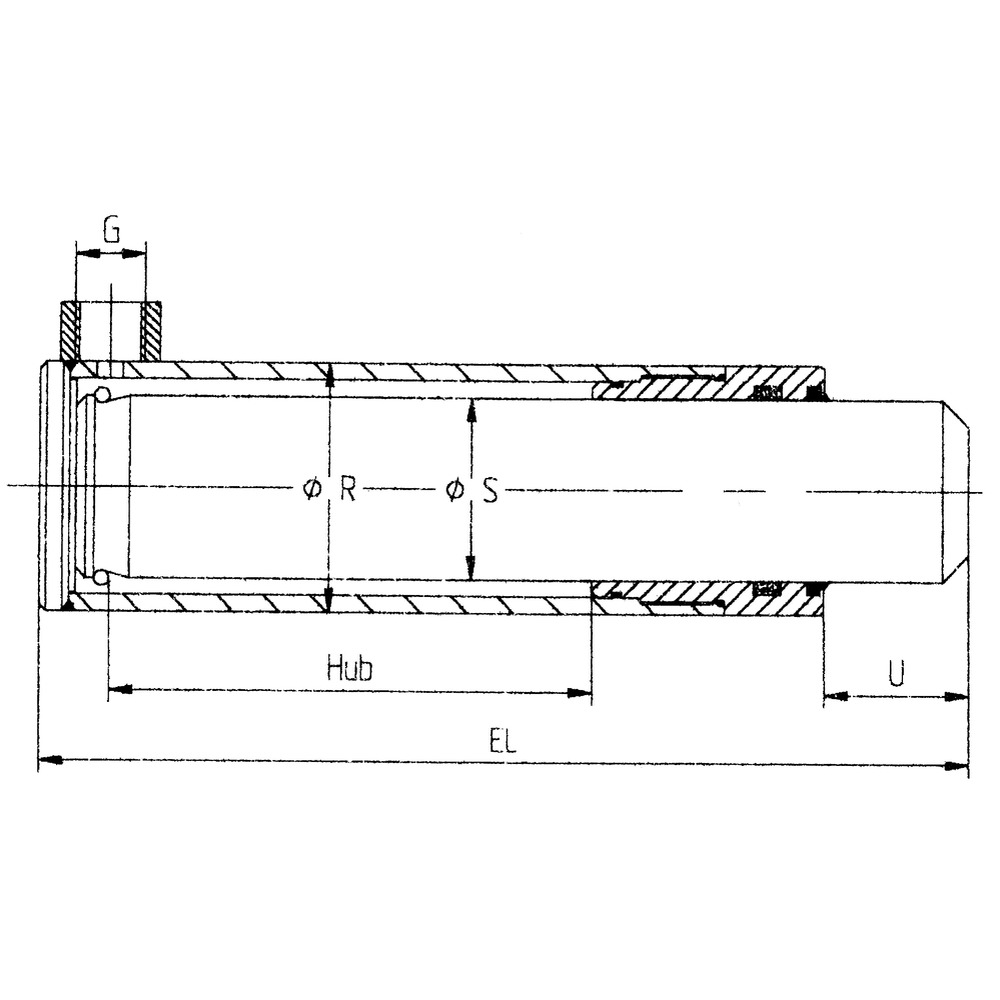

| Installation length EL (mm): | 132 |
|---|---|
| Protrusion U (mm): | 22 |
| Stroke (mm): | 50 |
| Ø outer pipe (R)(mm): | 35 |
