Schneider Quick-change frame for front loaders Cat.2(85 cm) and Cat.3(102 cm) with hydraulic locking system
NEU
Schneider Quick-change frame for front loaders Cat.2(85 cm) and Cat.3(102 cm) with hydraulic locking system
Product number:
FA127031
€495.00 *
Freight flat rate:
€49.00
Content:
1
Stück
detail.deliveryTimeAvailableHR
Beschreibung

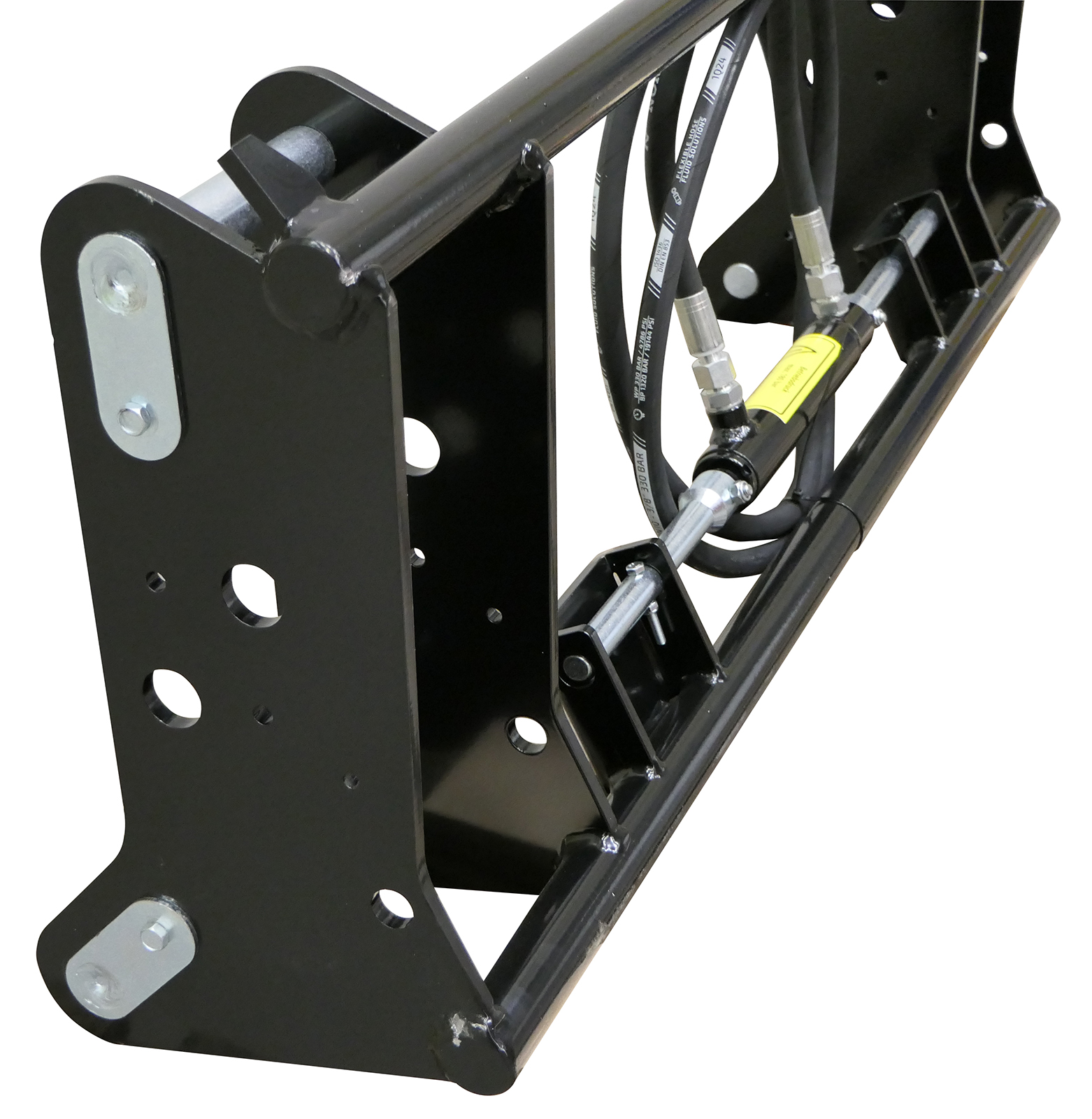

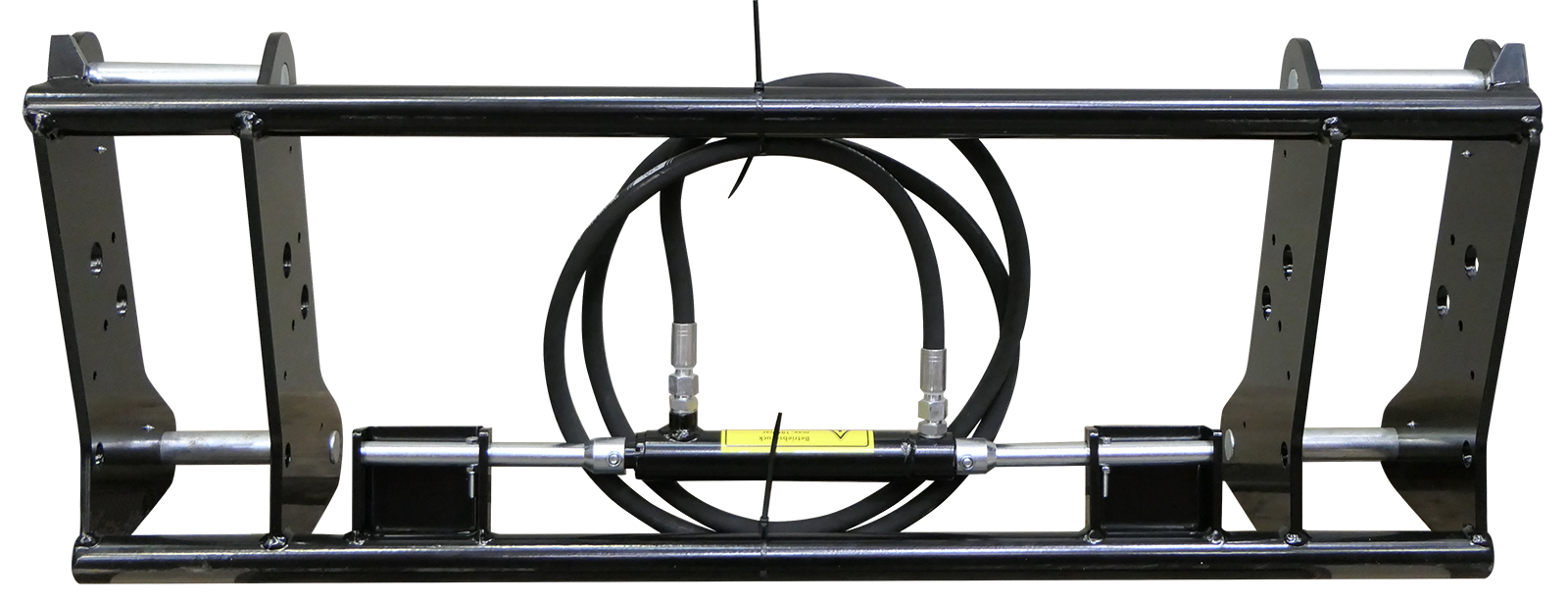

Product information "Quick-change frame for front loaders Cat.2(85 cm) and Cat.3(102 cm) with hydraulic locking system"

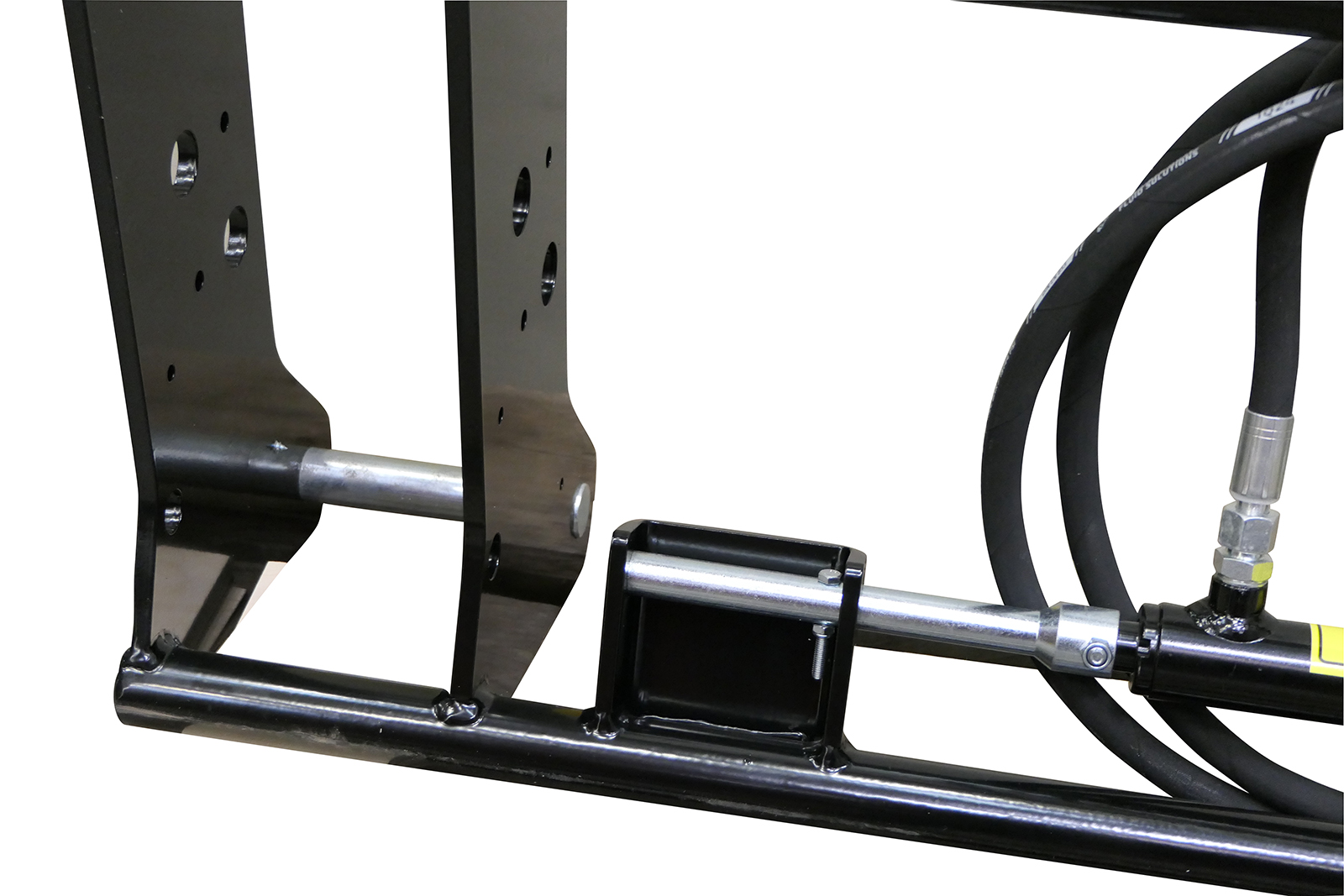

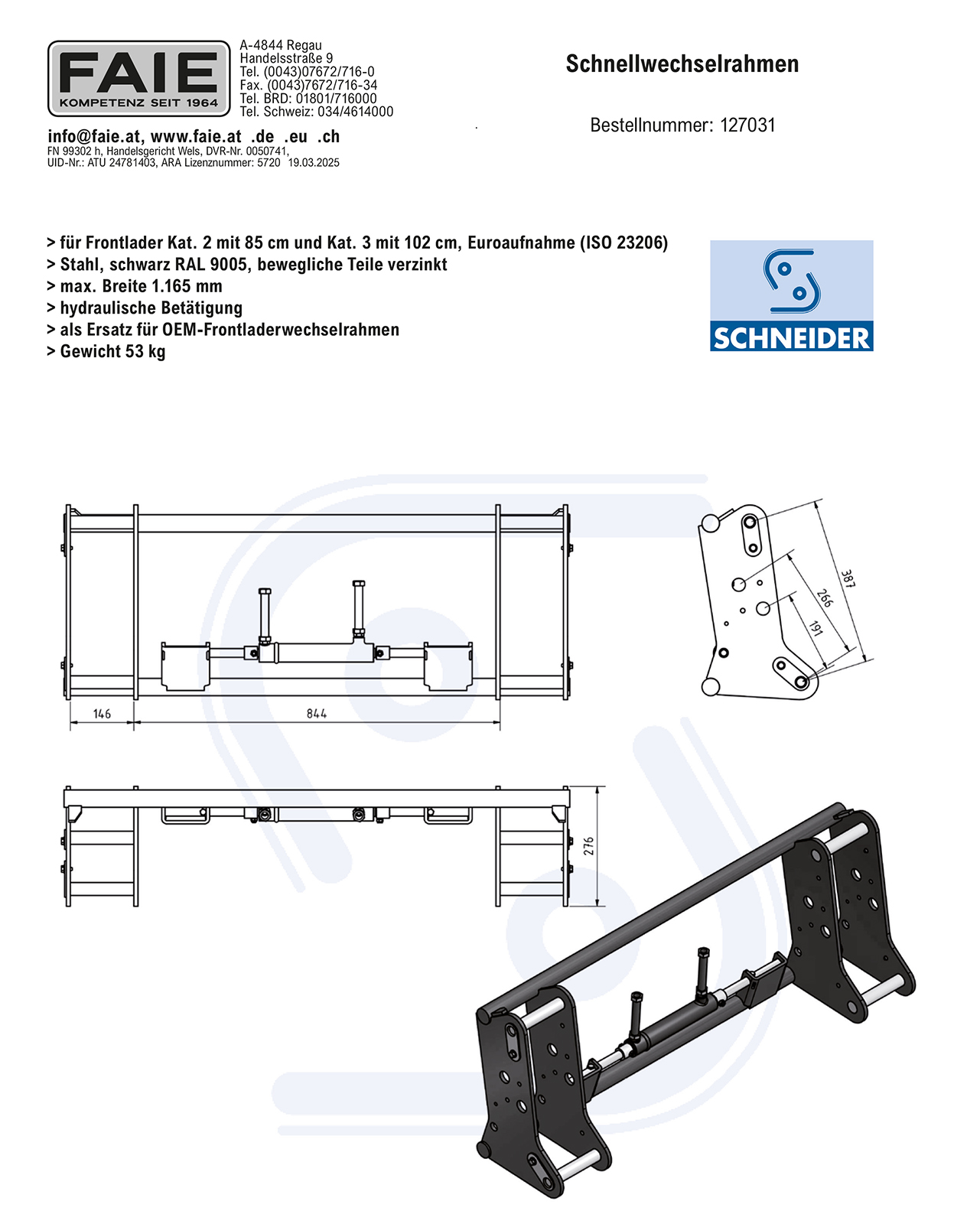

Quick and easy coupling and uncoupling for implements on category 2 (85 cm) and 3 (102 cm) front loaders. The upper mounting bolts allow individual tilt angle adjustment by repositioning. The quick-change frame also has a hydraulic locking mechanism. The hydraulic hose lines with a length of 1.5 m are included in the scope of delivery. The lines have a connection with an M18x1.5 mm union nut - 12L connection. Mounting pin on the front loader side 30 mm, mounting shaft on the implement side 40 mm, mounting width of the front loader arm minimum 855 mm inside and maximum 1120 mm outside, locking pin Ø 20 mm, total width 1165 mm, weight 53 kg. With a load centre of gravity of 800 mm, the load capacity is approx. 3000 kg.
The quick-change frame is suitable as a replacement for OEM front loader change frames.
| Suchnummer: | 127031 |
|---|
Hersteller
Schneider Fahrzeug- und
Brockhagener Straße 92
33649
Bielefeld
DE
[email protected]
MPN:
Downloads
There are no downloads available for this article
