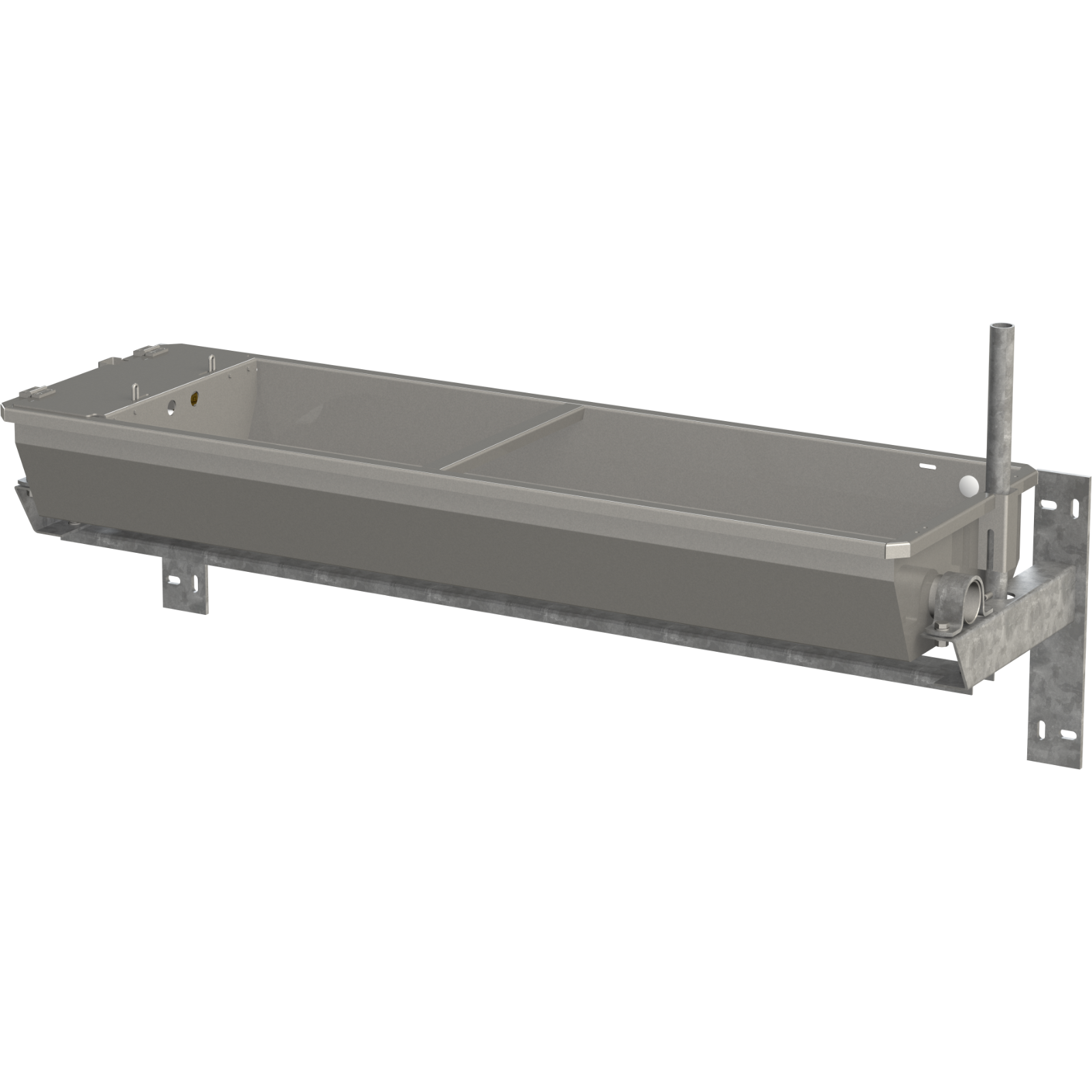

KERBL Stainless steel tipping trough, heatable

Product number	Beschreibung	Execution	Fassungsvermögen (L)	Size (mm)	Unit price	Custom field	Delivery time	Content	Buy

Beschreibung

Product information "Stainless steel tipping trough, heatable"

Trough drinker with tilting mechanism

Flat stainless steel drinking trough

Water connection from left or right 1/2”

Water flow rate 30 l/min at 3 bar

Galvanized wall bracket and base frame

Quick cleaning due to tilting mechanism

Float valve with 1/2” connection

Can be used up to max. 6 bar without pressure reducer

with electric heater 24 Volt 100/200 Watt rust-proof down to approx. -15 °C. Transformer required! (not included in the scope of delivery)

Dimensions

Tipping trough 1 m: internal dimensions drinking trough 89 x 40 17 cm (LxWxH), external dimensions with wall bracket 103 x 50 x 43 cm (LxWxH), external dimensions with base frame 103 x 45 x 88 cm (LxWxH)

Tipping trough 1.5 m: Internal dimensions drinking trough 139 x 40 x 17 cm (LxWxH), external dimensions with wall bracket 153 x 50 x 43 cm (LxWxH), external dimensions with base frame 203 x 45 x 88 cm (LxWxH)

Tipping trough 2 m: Internal dimensions of trough 188 x 40 x 17 cm (LxWxH), external dimensions with wall bracket 203 x 45 x 43 cm (LxWxH), external dimensions with base frame 203 x 45 x 88 cm (LxWxH)

Capacity (L):	30
Description:	mit Bodengestell
Execution:	1 m
Heat output (W):	100
Previous article:	120062

Hersteller

Kerbl Austria
Wirtschaftspark 1
9130 Poggersdorf
AT
[email protected]
GTIN/EAN: 4018653408827

Downloads

There are no downloads available for this article

Bewertungen

0 of 0 reviews

Leave a review!

Share your experiences with other customers.

Login

Your email address

Your password

No reviews found. Share your insights with others.

Please enter a valid email address.

Your question *

Please enter a valid question.

I agree that my data will be processed to answer the question. I have taken note of the Privacy Policy and agree to the information described therein.*

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Fields marked with * are mandatory.

There aren't any asked questions yet.

#FA120068

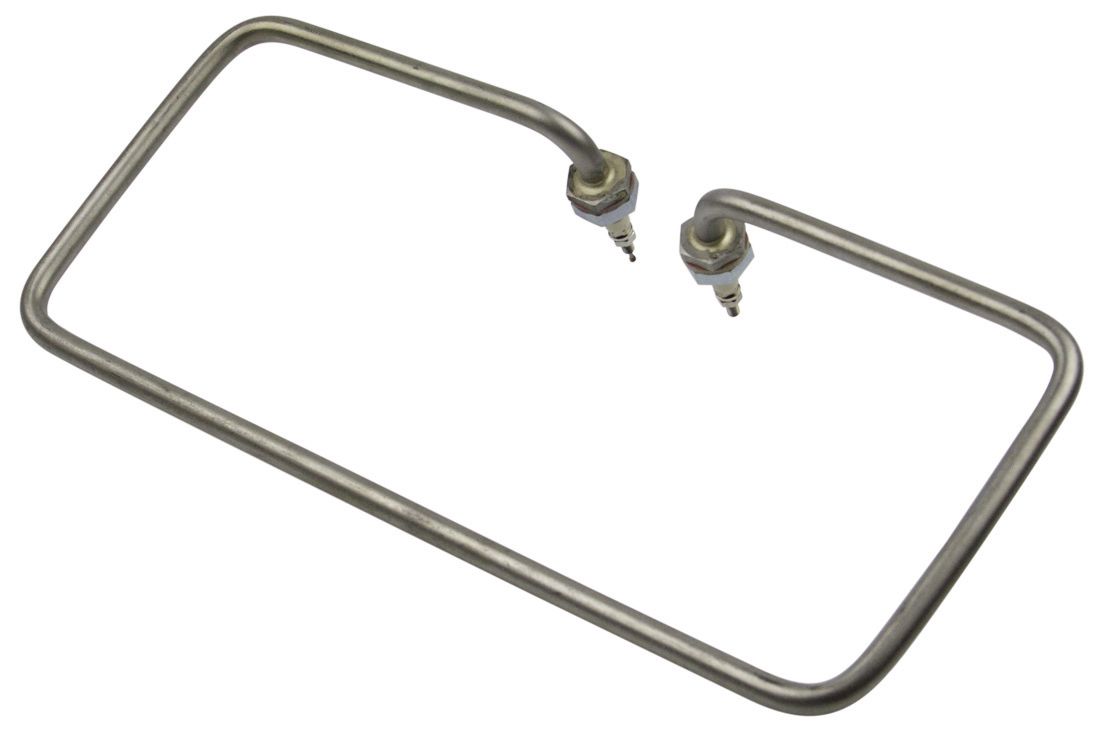

Heater for tilting drinkers 24V 200W

Sale and shipment by: FAIE Handels GmbH

Suitable for tilting drinkers 50+70 liters Art. 120057, 120058, 120059, 120060

€84.95*

#FA120085

Frost protection heating cable 24 V

Sale and shipment by: FAIE Handels GmbH

?to heat the branch line of drinking troughsa 24 V transformer is required for operation Heating cable frost-proof down to -45C< /ul>

Variants from €33.95*

€25.46*

to the product

#FA128681

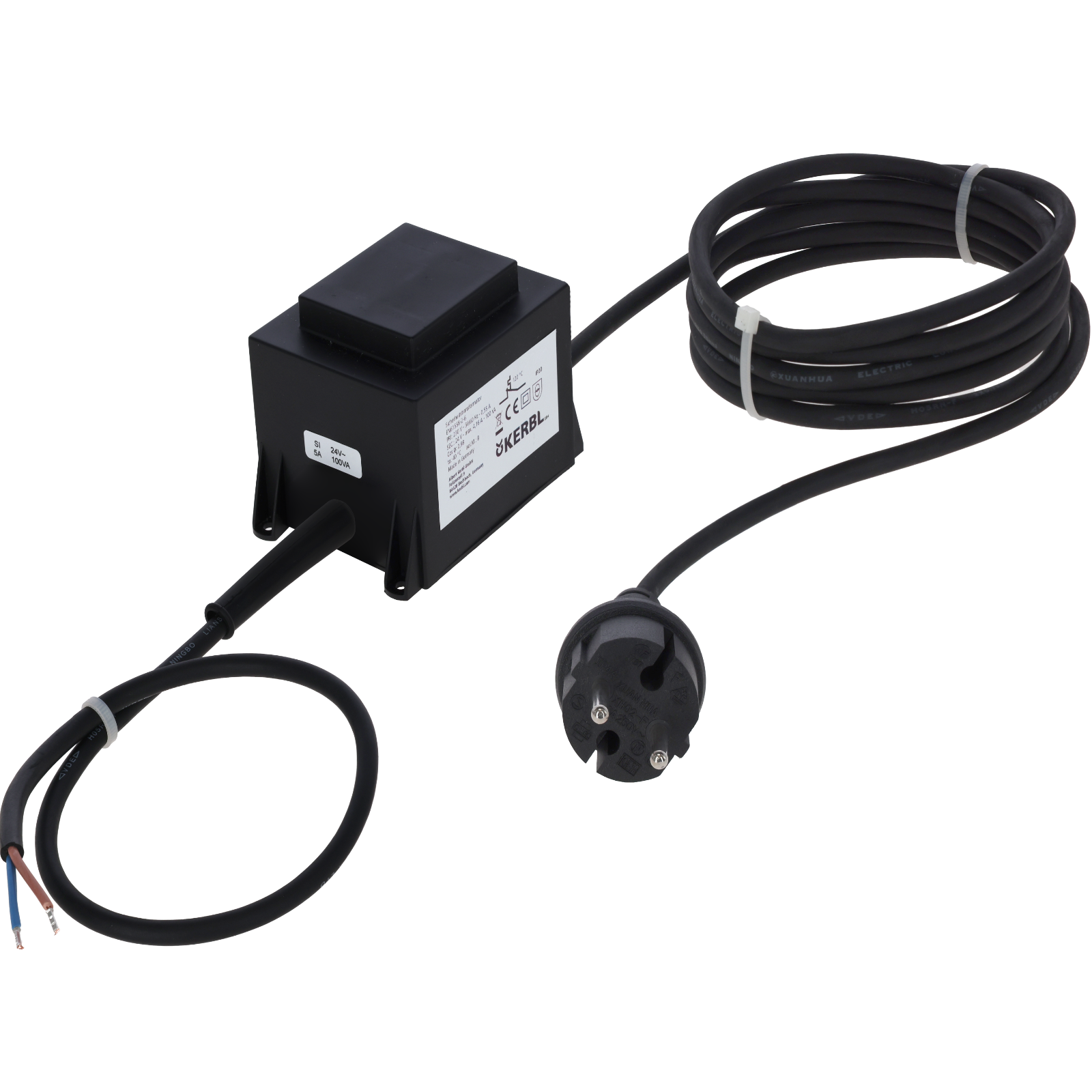

24 V transformer for heated drinking bowls
