Agricultural machinery

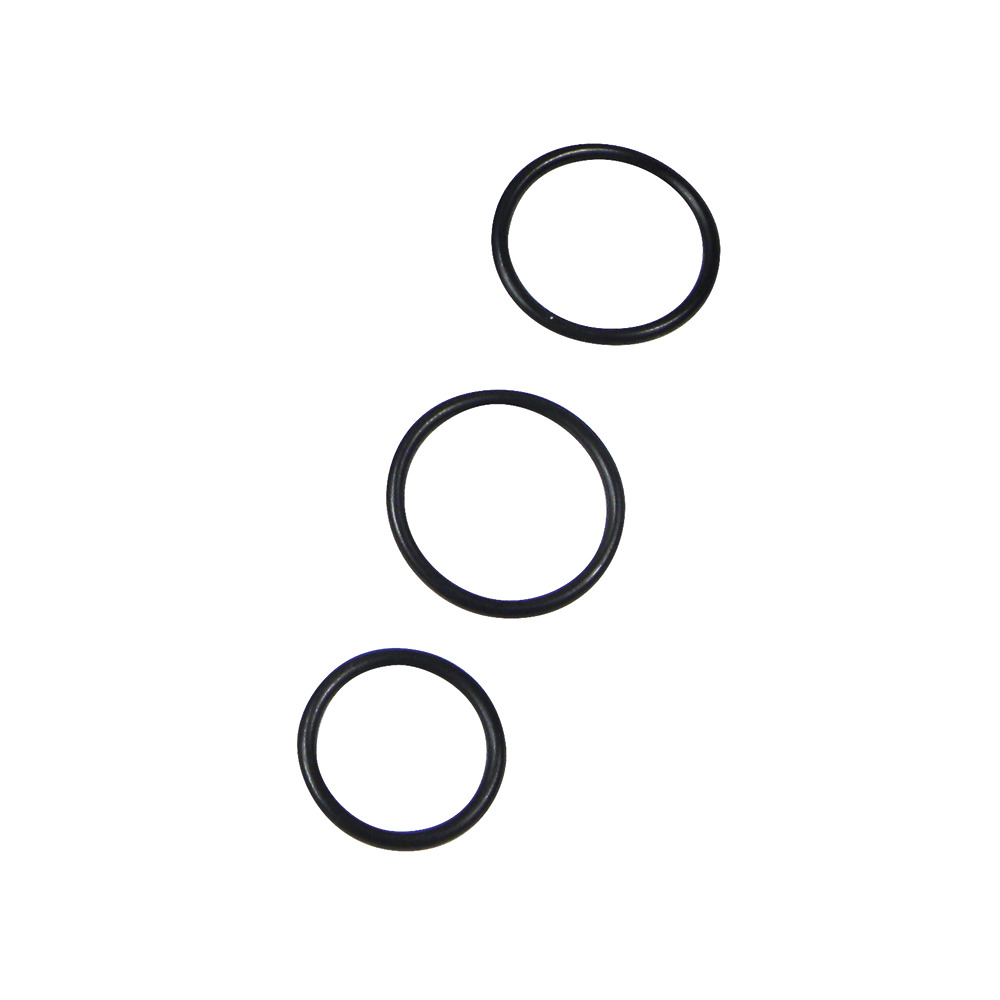

O-ring set for connecting DVS directional control valves. Consisting of 3 pieces of O-rings for 2-way valves and 6 pieces of O-rings for 3-way valves.

Suitable for Steyr

Suitable for Steyr with MWM engine

Sealing cap for oil filler neck without ventilationOn Steyr T190, T288, T290 also as a radiator cap for the filler neck ~

Suitable for Steyr: T80, T84

Aluminum oil air cooler in panel construction. Maximum operating pressure 26 bar, protection class IP68.Oil coolers are used in continuous operation of hydraulic systems to cool the hydraulic oil. However, oil coolers are primarily installed on systems that have been subsequently equipped with additional hydraulic consumers. In many cases, the tank contents are not increased during these conversion work and this increases the circulation and temperature of the oil in the hydraulic system. The optimal operating temperature of a hydraulic system is between 50-60C. If the temperature increases too much, the excess heat must be dissipated via an oil/air cooler.In order to determine the size of the oil cooler, we need some data from you for the calculation:- Gear pump or control pump- Pump delivery rate in L/min- Tank capacity in L (if known)- Oil pressure in the hydraulic system in bar- Ambient temperature in C- Oil temperature of the hydraulic system in C - Connection voltage in VWe will be happy to calculate the oil cooler you need and look forward to your inquiry.

Aluminium-Ölluftkühler in Plattenbauweise. Maximaler Betriebsdruck 26 bar, Schutzart IP68.Ölkühler werden bei Dauerbetrieb von hydraulischen Anlagen zur Abkühlung des Hydrauliköls eingesetzt. Vorwiegend werden Ölkühler jedoch auf solchen Anlagen montiert, die nachträglich mit weiteren hydraulischen Verbrauchern ausgerüstet wurden. Bei diesen Umbauarbeiten wird in vielen Fällen der Tankinhalt nicht vergrößert und dadurch erhöht sich der Umlauf und die Temperatur des Öles im Hydrauliksystem. Die optimale Betriebstemperatur einer Hydraulikanlage liegt zwischen 50-60°C. Erhöht sich die Temperatur zu stark, muss die überschüssige Wämemenge über einen ÖL/Luftkühler abgeführt werden.Um die Größe des Ölkühlers festlegen zu können, benötigen wir für die Berechnung einige Daten von Ihnen:- Zahnradpumpe oder Regelpumpe- Fördermenge der Pumpe in L/min- Tankinhalt in L (wenn bekannt)- Öldruck im Hydrauliksystem in bar- Umgebungstemperatur in °C- Öltemperatur der Hydraulikanlage in °C- Anschlussspannung in VWir berechnen gerne für Sie den benötigten Ölkühler und freuen uns auf Ihre Anfrage

Aluminum oil air cooler, max. operating pressure 26 bar, protection class IP 68. World's first flexible mounting and connection system for oil coolers. The hydraulic connection direction can be freely selected for each connection with 3 directions and the flow direction in the cooler can be changed. The oil flow direction can be described as both "~U-flow"~ as well as with "~diagonal flow"~ can be realized without special parts!Delivery without connections.

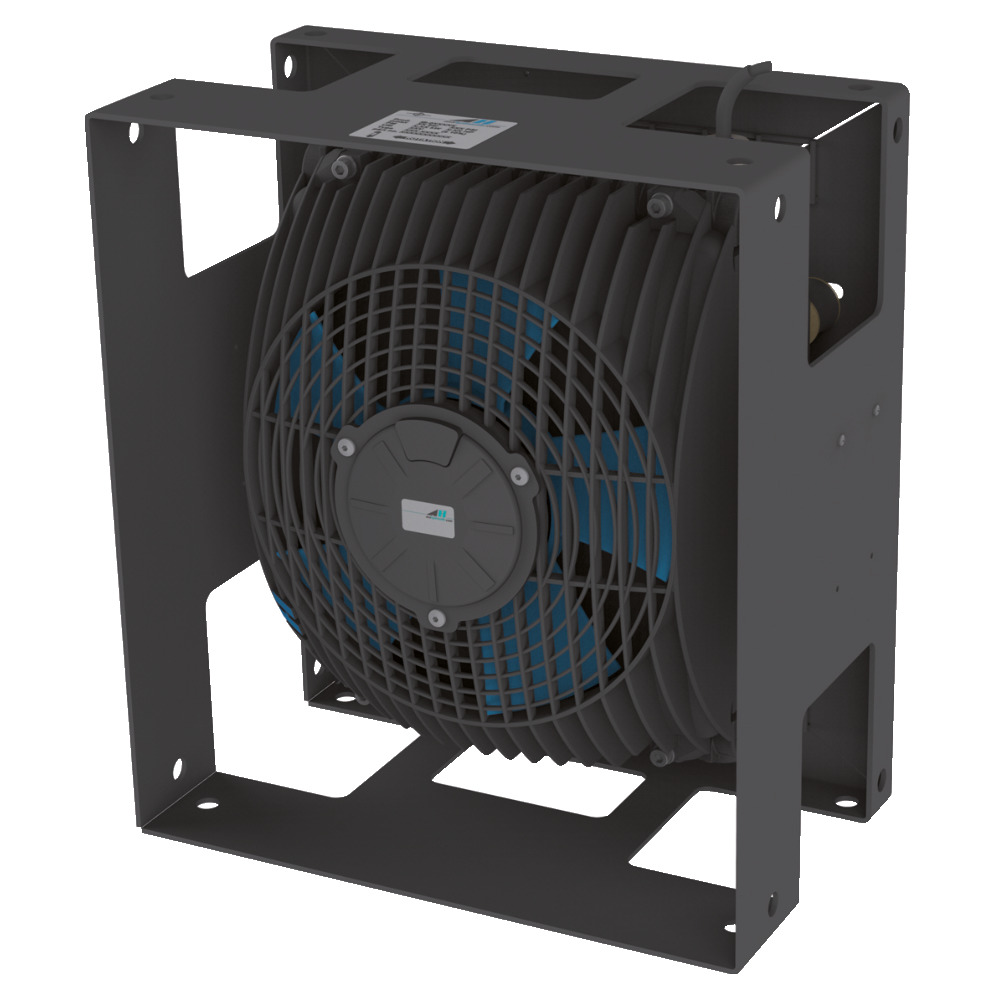

The GT series oil coolers are a fully assembled cooler package consisting of an oil air cooler, fan control with sensor, connections, vibration dampers and protective housing.The temperature is controlled via an electronic control in conjunction with a temperature sensor. Depending on the oil temperature, this fan control ensures the optimal fan speed and a smooth start-up of the fan. This reduces noise and increases the service life of the fan unit.The protective housing is a stable frame with a metal protective grille in front of the cooling element. The cooler is mounted on the special asa vibration dampers in the protective frame to prevent vibrations.Aluminum oil air cooler, max. operating pressure 26 bar, protection class IP68.

The GT series oil coolers are a fully assembled cooler package consisting of an oil air cooler, fan control with sensor, connections, vibration dampers and protective housing.The temperature is controlled via an electronic control in conjunction with a temperature sensor. Depending on the oil temperature, this fan control ensures the optimal fan speed and a smooth start-up of the fan. This reduces noise and increases the service life of the fan unit.The protective housing is a stable frame with a metal protective grille in front of the cooling element. The cooler is mounted on the special asa vibration dampers in the protective frame to prevent vibrations. Aluminium oil air cooler, max. operating pressure 26 bar, protection class IP68.

Insertion length: 202mm

for 3 cylinder engine

Thread: M38x1.5SW 22

Thread: 3/4"~

Thread: M38x1.5

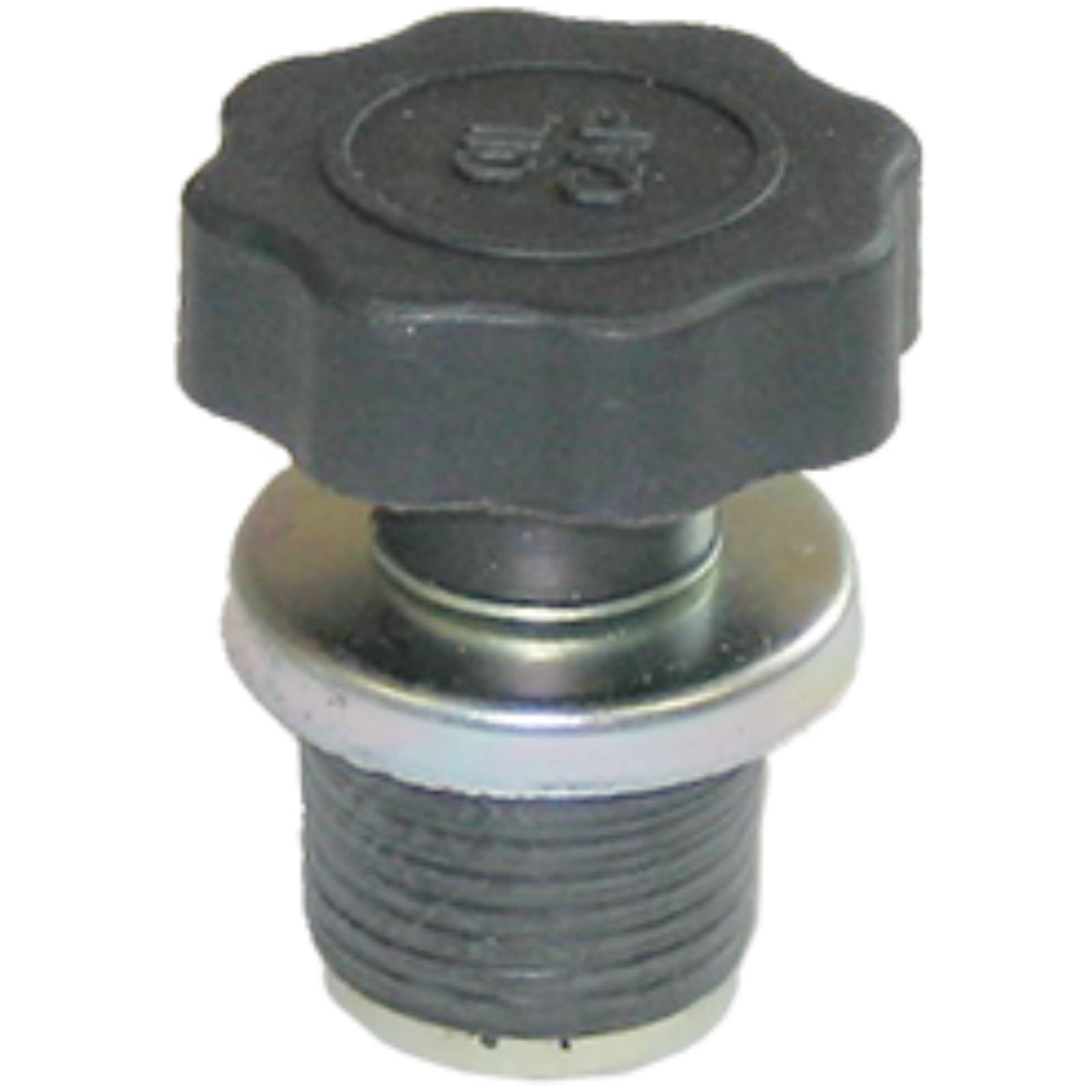

Verwendung: für Motor und Getriebe

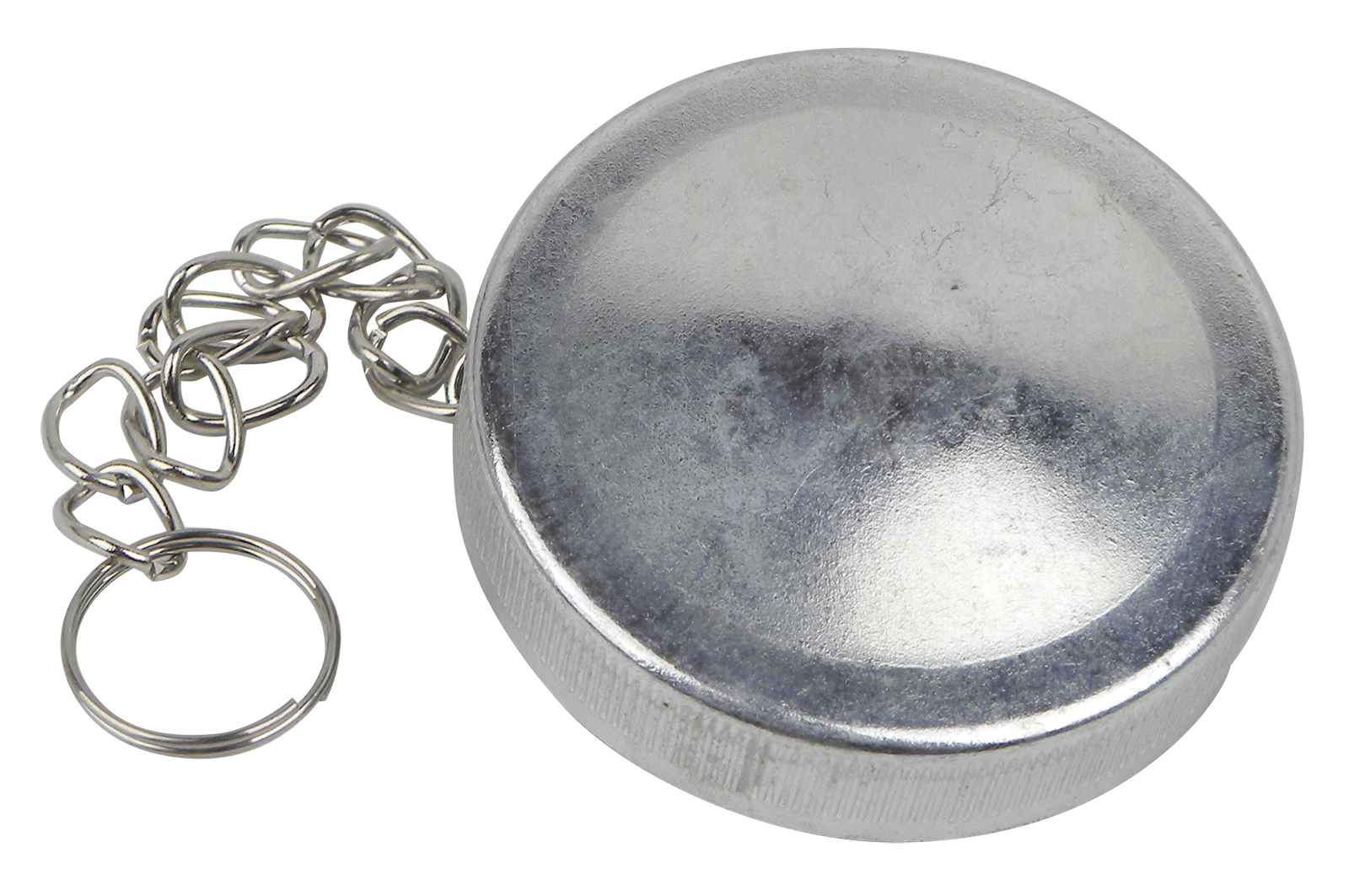

Mit Sicherungskette

Includes lid

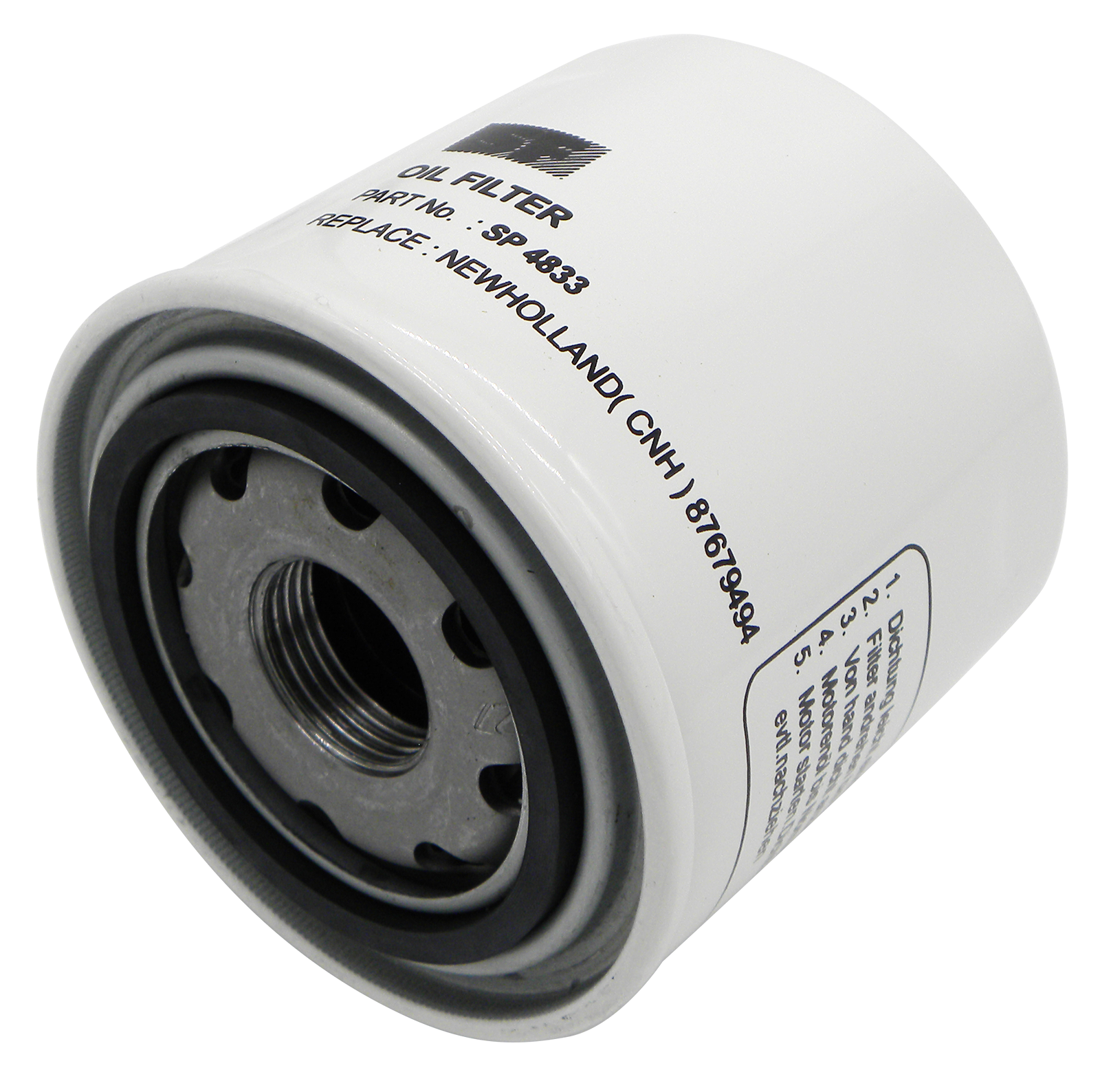

Can be used instead of man: W10050 ?Outer diameter: 96mmLength: 93mmThread: M27x2 ~

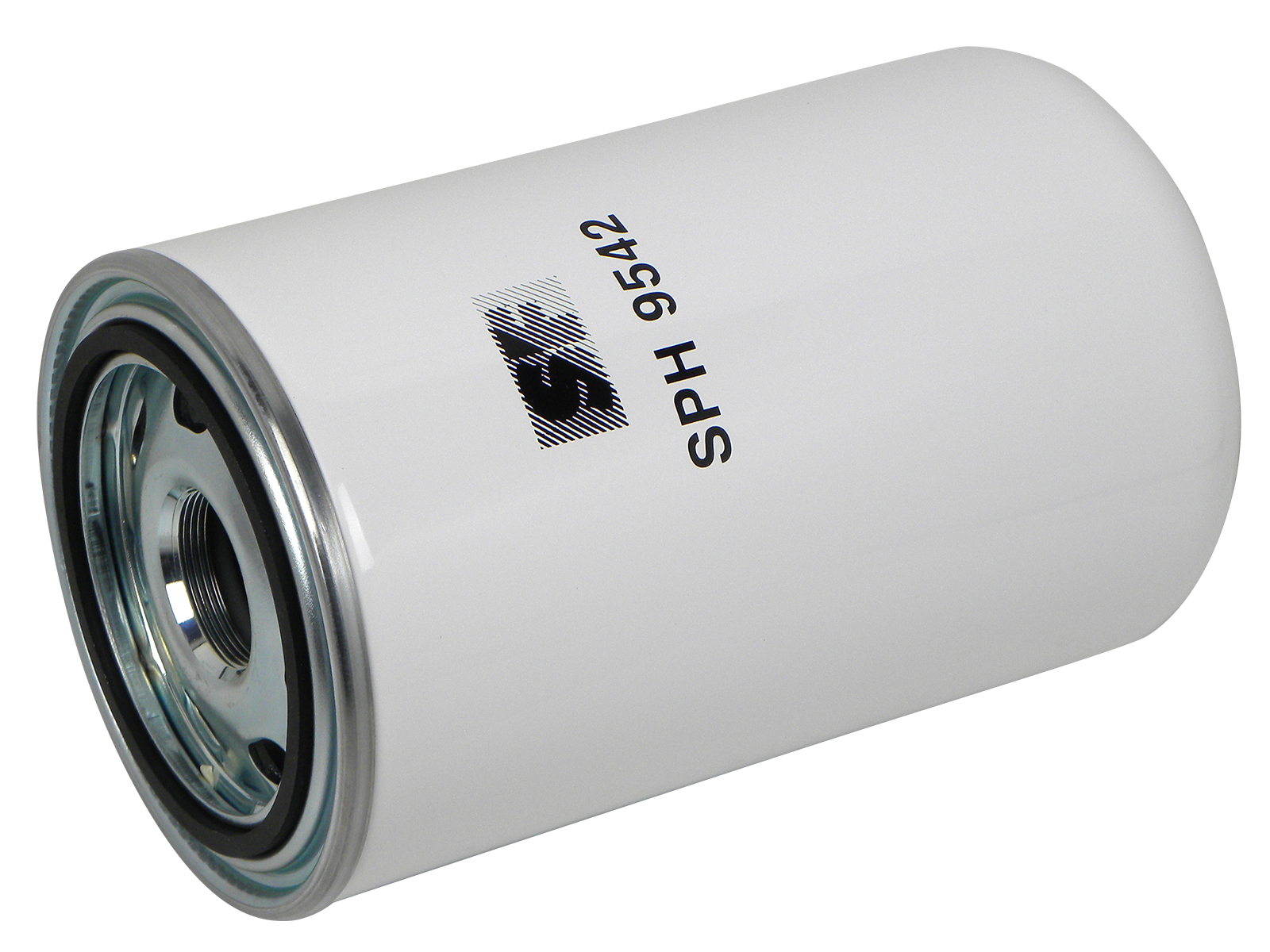

Hydraulic oil filter suitable for Case and Steyr Outer diameter: 138mmLength: 235mmThread: 1 1/2" - 16 UNF

Suitable for Case: CS68/68A, CS75/75A, CS78/78A, CS86/86A, CS94/94ASuitable for Steyr: 8055, 8065, 8060, 8080, 8180, 975, M975, 9078, M9078, 9083, 9086, M9086, 9094, M9094

Suitable for: Claas, John Deere, Liebherr, Fendt and Pellenc.

Suitable for: Case-IH (CNH Global), Case-Steyr (CNH Global), Claas, New Holland.

with non-return valve
